GSU45L-BRASKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

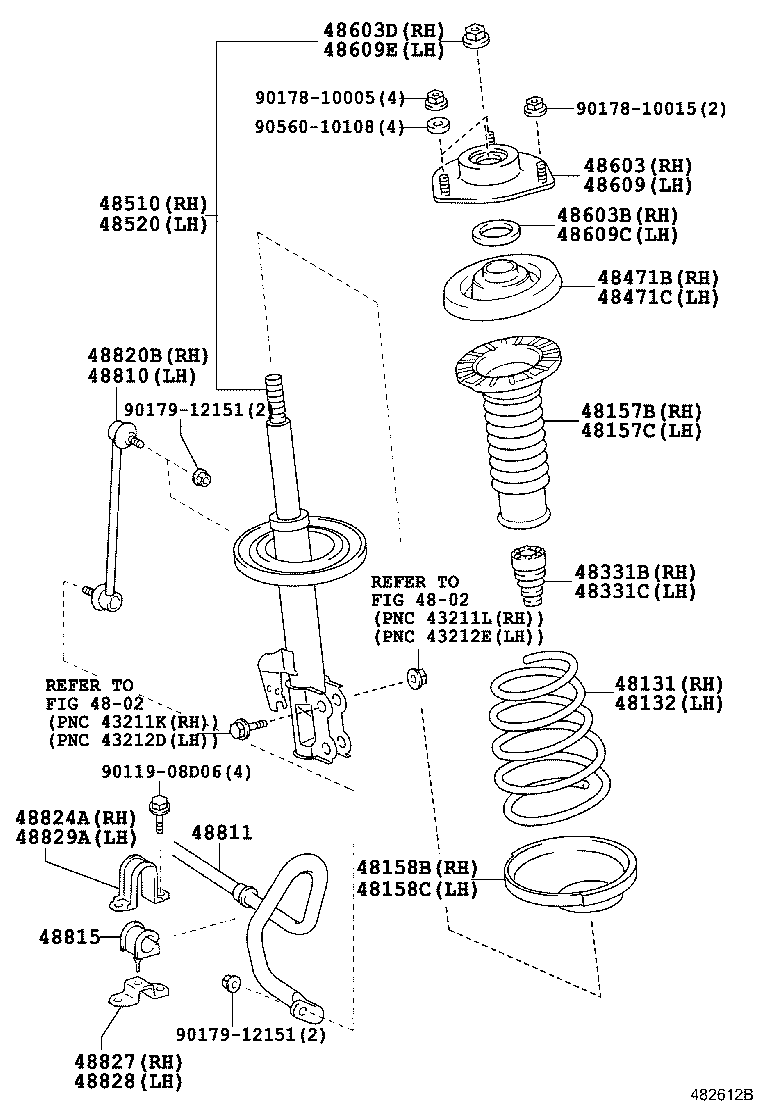

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48580 |
GSU45..SPO |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-48580 |
GSU45..SPO |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41011 |
GSU4#,MHU48 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-41011 |
GSU4#,MHU48 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80373 |
GSU4#..SPO MARK 48510-48230 |
1 | ||
| 48510-80481 |
GSU4#..SPO MARK 48510-48231 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80221 |
GSU4#..SPO MARK 48520-48231 |
1 | ||
| 48520-80136 |
GSU4#..SPO MARK 48520-48230 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-48130 |
GSU45 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-48070 |
ASU40,GSU4#,MHU48 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-08D06 | ||||
| 90178-10005 | ||||
| 90178-10015 | ||||
| 90179-12151 | ||||
| 90560-10108 | ||||
| Linked diagrams | ||||
| 4802 | ||||
