GSU45L-BRAMKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705-1007)GSU45

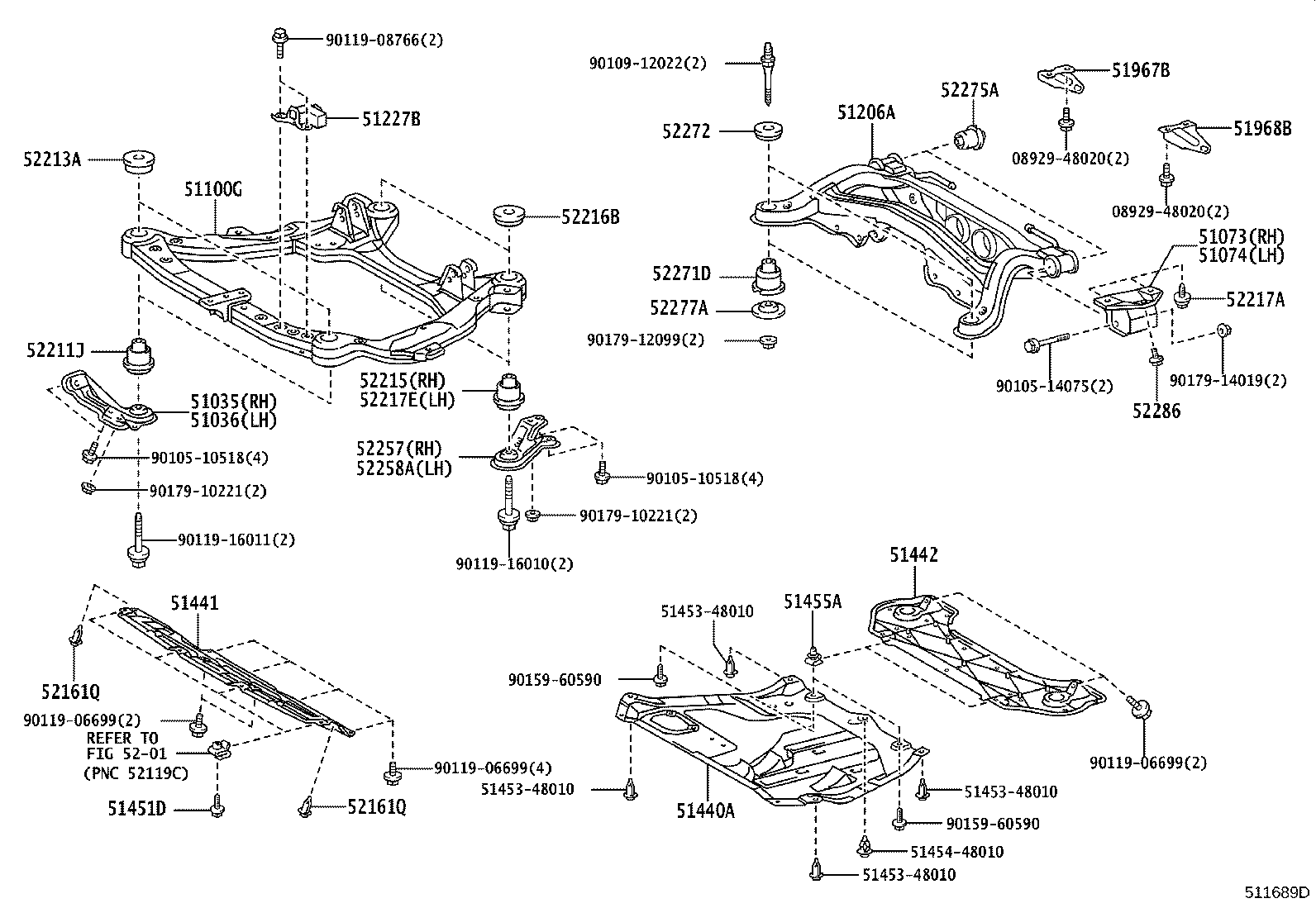

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-48010 |
GSU45,MHU48 |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-48010 |
GSU45,MHU48 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-48070 |
GSU4# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-48040 |
GSU45 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-48031 |
ASU40,GSU4# |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-48070 |
GSU4# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-48060 |
GSU4#,MHU48 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60444 |
ASU40,GSU4#,MHU48 |
4 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52161Q - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52161Q - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-28020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-48010 |
GSU45,MHU48 |
4 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-32010 |
GSU45,MHU48 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-32010 |
GSU45,MHU48 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-48010 |
GSU45,MHU48 |
2 | ||
| 52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-32010 |
GSU45,MHU48 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-48010 |
GSU45,MHU48 |
2 | ||
| Common parts | ||||
| 08929-48020 | ||||
| 51453-48010 | ||||
| 51454-48010 | ||||
| 90105-10518 | ||||
| 90105-14075 | ||||
| 90109-12022 | ||||
| 90119-06699 | ||||
| 90119-08766 | ||||
| 90119-16010 | ||||
| 90119-16011 | ||||
| 90159-60590 | ||||
| 90179-10221 | ||||
| 90179-12099 | ||||
| 90179-14019 | ||||
| Linked diagrams | ||||
| 5201 | ||||
