GSU40L-BRANKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )STD

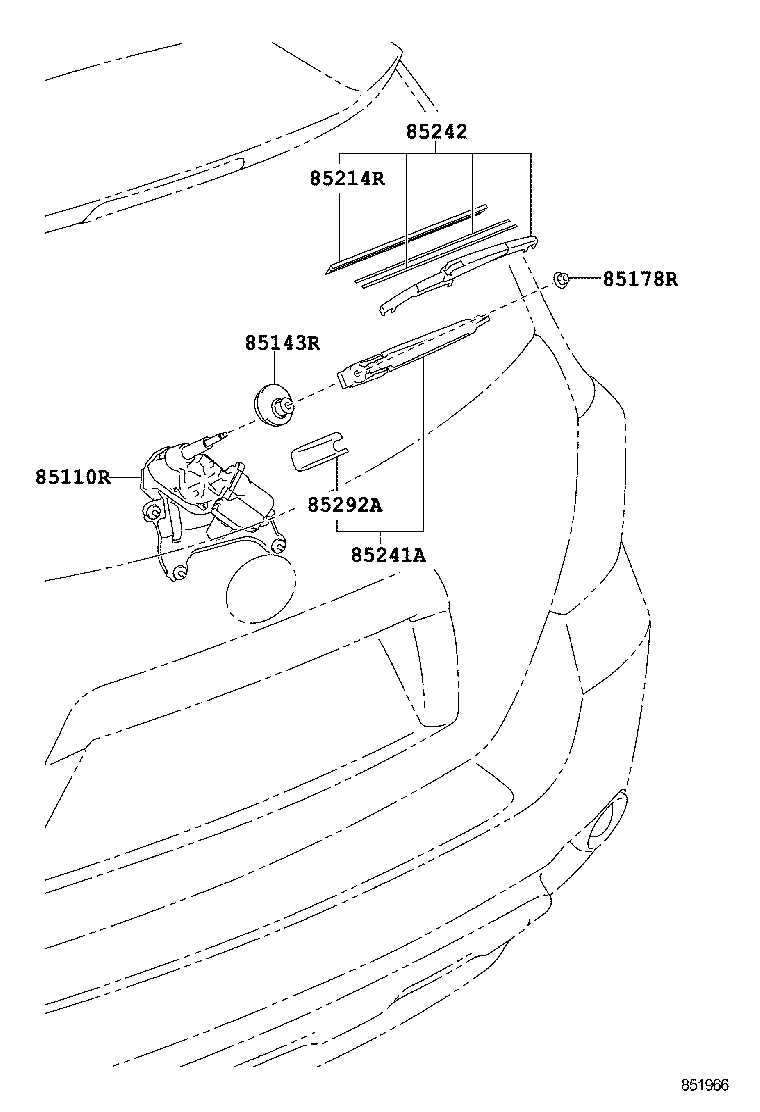

Click highlighted areas on diagram

FIXED WINDOW

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-48050

ASU40,GSU4#,MHU48..STD

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-48020

ASU40,GSU4#,MHU48..STD

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

ASU40,GSU4#,MHU48

 1
85214R - RUBBER, REAR WIPER
85214-42040

ASU40,GSU4#,MHU48

 1
85241A - ARM, REAR WIPER
85241-42070

ASU40,GSU4#,MHU48

 1
85242 - BLADE, RR WIPER
85242-42030

ASU40,GSU4#,MHU48

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42020

ASU40,GSU4#,MHU48

 1
