GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1007)GSU4#

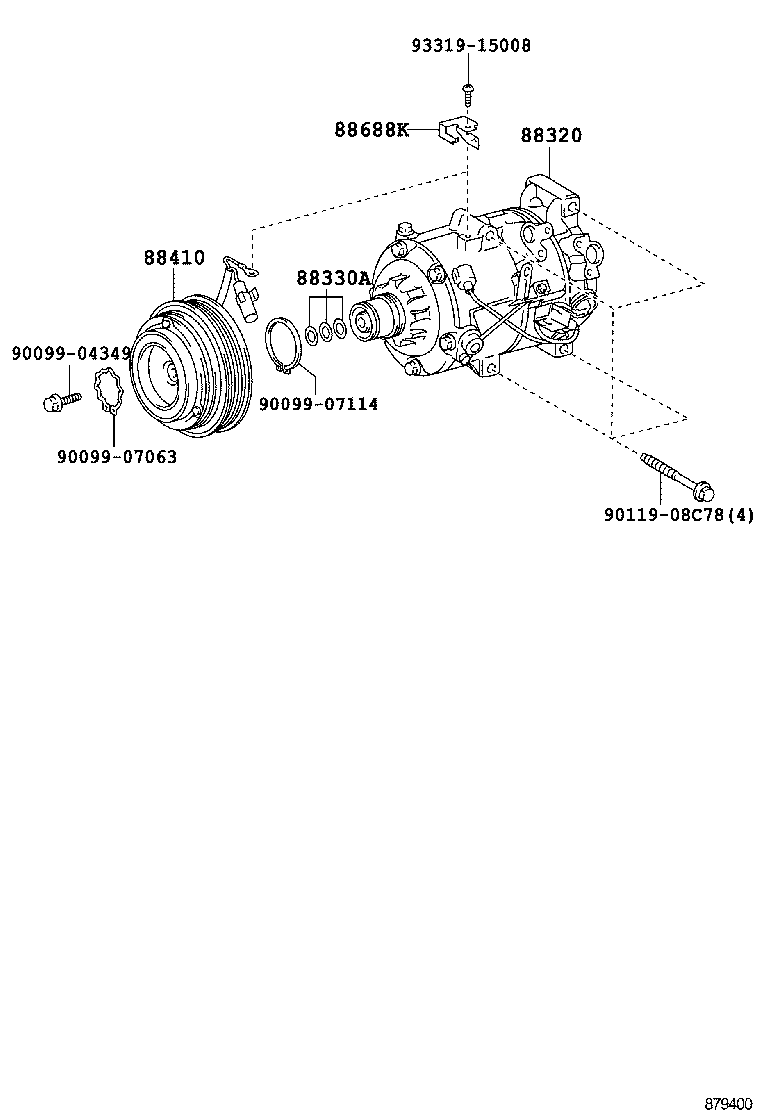

Click highlighted areas on diagram

diagram 88320 88330A 88410 88688K 9009904349 9009907063 9009907114 9011908C78 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-48160

GSU4#

 1
88320-48150

GSU4#..GD,LIMD,SPO

WITH(REAR AUTO AIR CONDITIONER)

 1
88320-48150

GSU4#..GD,SPO,STD

WITH(REAR MANUAL AIR CONDITIONER)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GSU4#

 1
88410 - CLUTCH ASSY, MAGNET
88410-33150

GSU4#

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33460

GSU4#

 1
Common parts
90099-04349
90099-07063
90099-07114
90119-08C78
93319-15008
