GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

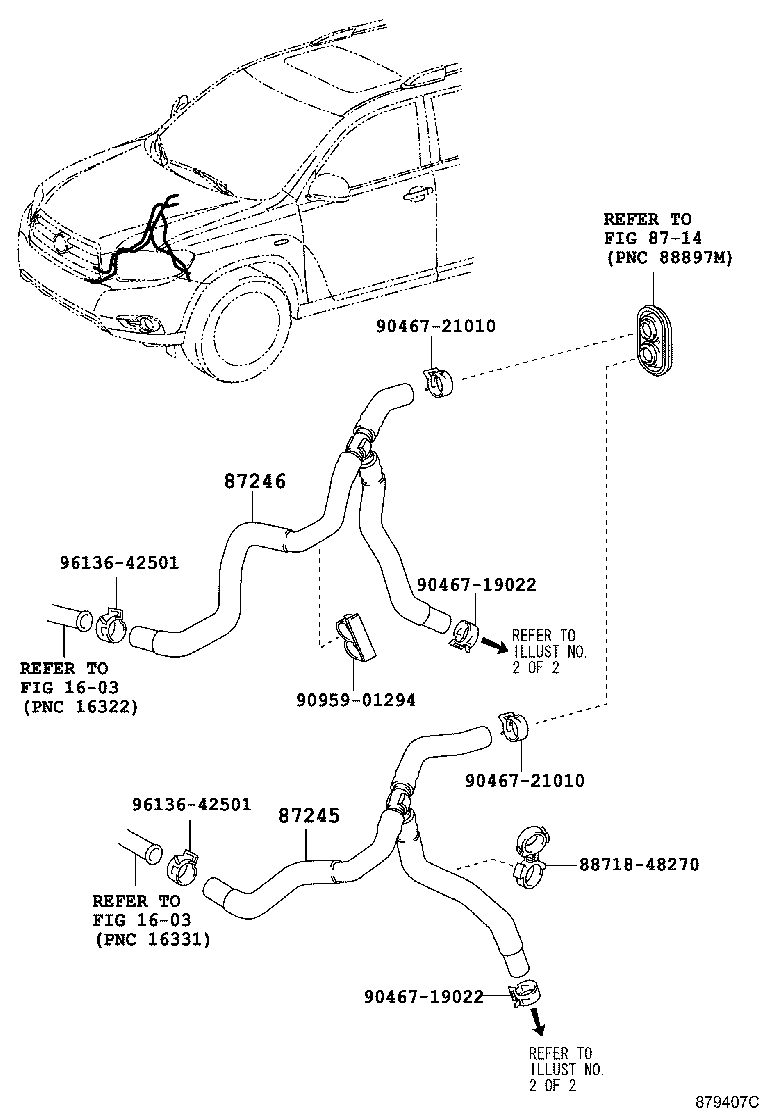

ILLUST NO. 1 OF 2(0705- )GSU4#
FRONT,W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87209-48140 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87245-48C00 |
GSU4# |
1 | ||
| 87209-48140 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-48C10 |
GSU4# |
1 | ||
| 87209-48150 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87209-48150 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88718-48270 | ||||
| 90467-19022 | ||||
| 90467-21010 | ||||
| 90959-01294 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

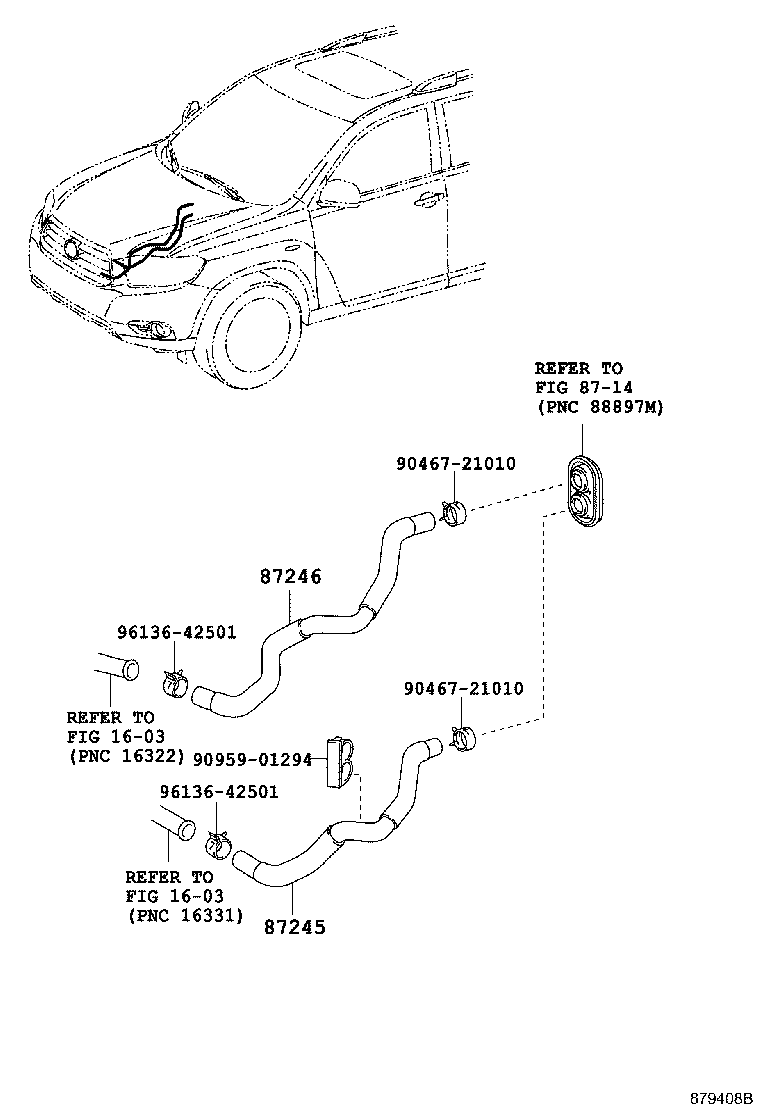

ILLUST NO. 1 OF 2(0705- )GSU4#
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87209-48140 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87245-48C00 |
GSU4# |
1 | ||
| 87209-48140 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-48C10 |
GSU4# |
1 | ||
| 87209-48150 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87209-48150 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 90467-21010 | ||||
| 90959-01294 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

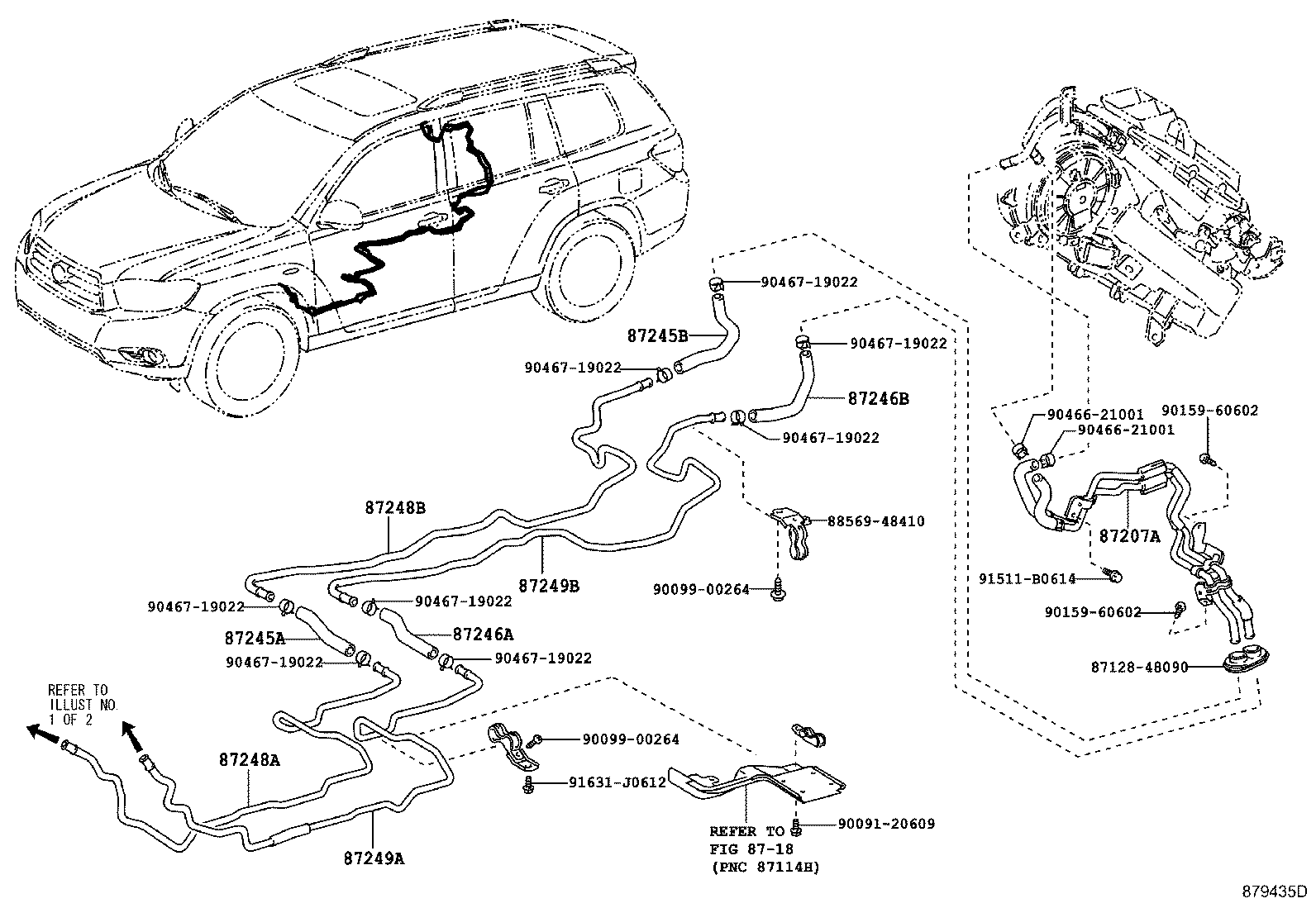

ILLUST NO. 2 OF 2(0705- )ASU40,GSU4#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87207A - PIPE & HOSE SUB-ASSY, WATER A | ||||
| 87207-48040 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87207-48040 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-48A80 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87245-48A80 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-48A90 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87245-48A90 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-48B00 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87245-48B00 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-48B10 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87245-48B10 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-48130 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87208-48130 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-48050 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87248-48050 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-48140 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87208-48140 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-48060 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87248-48060 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 87128-48090 | ||||
| 88569-48410 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90159-60602 | ||||
| 90466-21001 | ||||
| 90467-19022 | ||||
| 91511-B0614 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8718 | ||||
