GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

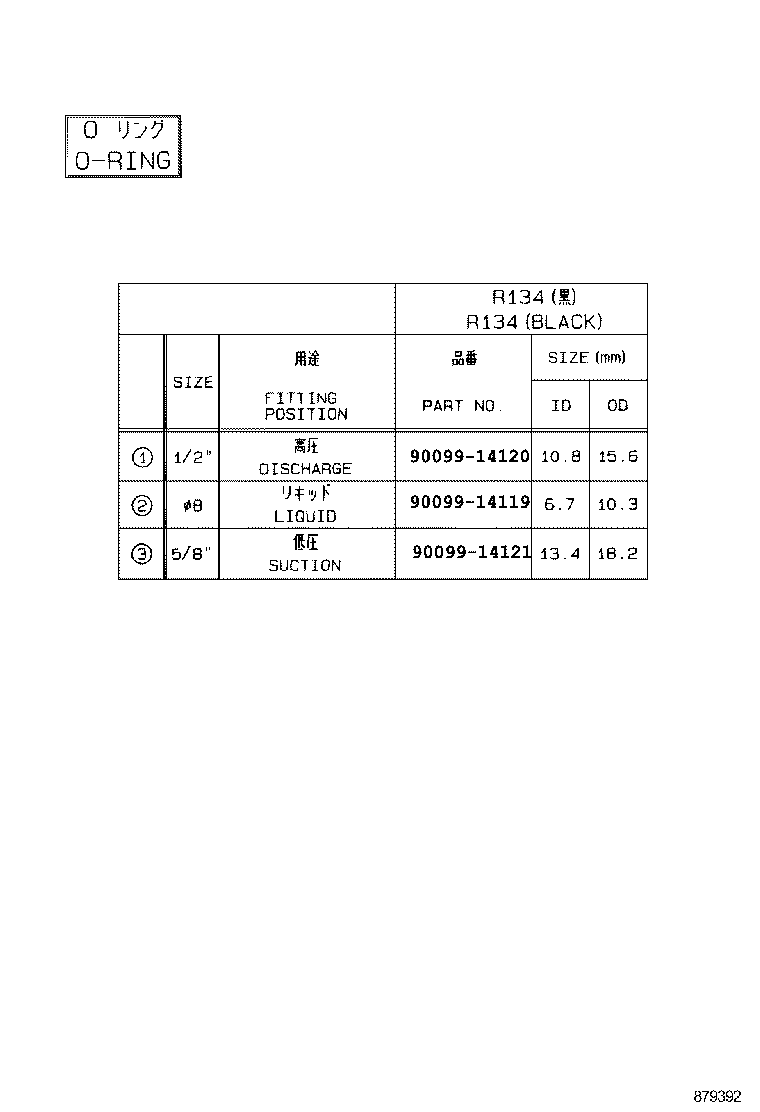

ILLUST NO. 3 OF 3(0705- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

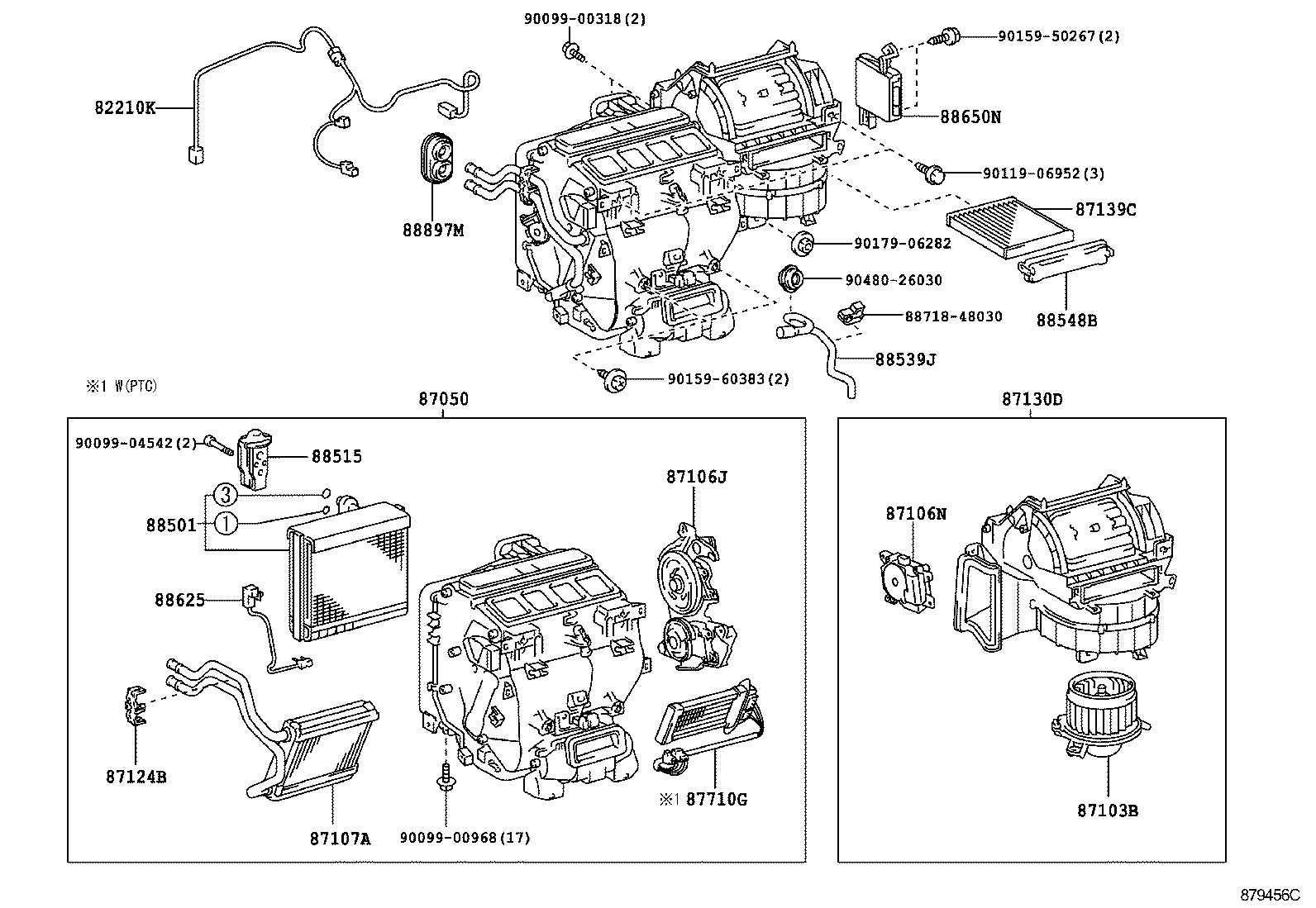

ILLUST NO. 1 OF 3(0705- )
FRONT,MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33021 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82212-33031 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33542 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87050-33542 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87050-48261 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87050-48251 |
GSU4#..GD,SPO,STD |
1 | ||
| 87050-48241 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33090 |
GSU4#,MHU48 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-33250 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87106-33250 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87106-33290 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87106-33250 |
MHU48;GSU4#..GD,SPO,STD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-33270 |
ASU40,GSU4#,MHU48 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-33200 |
GSU4#,MHU48 |
1 | ||
| 87130-48220 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87130-48200 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50060 |
ASU40,GSU4#,MHU48 DEODORANT FILTER |
1 | ||
| 87139-52020 |
ASU40,GSU4#,MHU48 MICRO DUST FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-48010 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87710-48010 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33190 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88501-33190 |
GSU4#..GD,SPO,STD |
1 | ||
| 88501-33190 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88501-33190 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88501-28400 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88501-28400 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88501-33200 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88501-33200 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88501-48310 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88501-48310 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-33040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-33190 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-48330 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88650-48330 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88650-48240 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88650-48250 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 90480-01696 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 88718-48030 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-06952 | ||||
| 90159-50267 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||

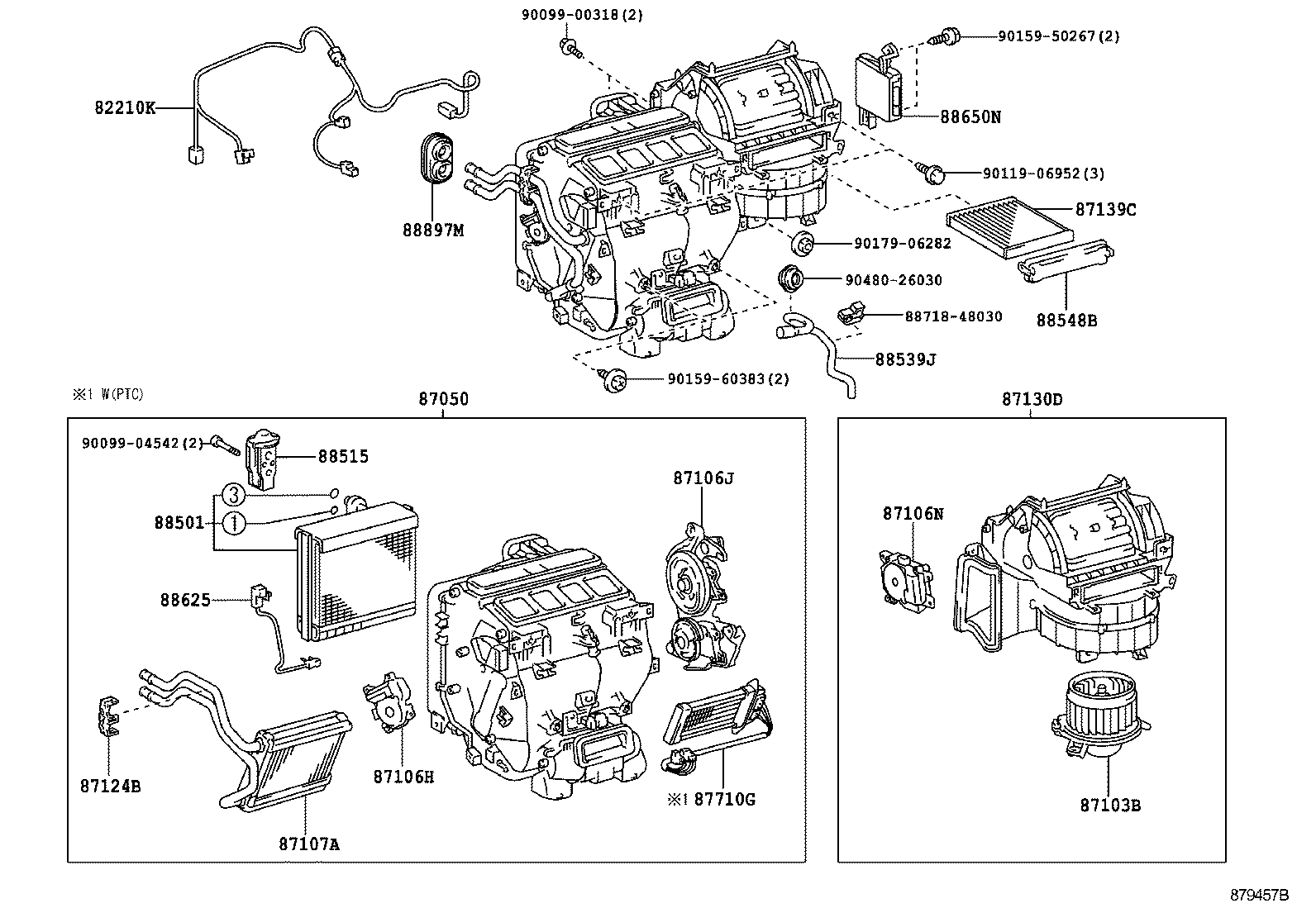

ILLUST NO. 1 OF 3(0705- )
FRONT,AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33021 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82212-33031 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33542 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87050-33542 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87050-48261 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87050-48251 |
GSU4#..GD,SPO,STD |
1 | ||
| 87050-48241 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33090 |
GSU4#,MHU48 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-33260 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87106-33260 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-33250 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87106-33250 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87106-33290 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87106-33250 |
MHU48;GSU4#..GD,SPO,STD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-33270 |
ASU40,GSU4#,MHU48 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-33200 |
GSU4#,MHU48 |
1 | ||
| 87130-48220 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 87130-48200 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50060 |
ASU40,GSU4#,MHU48 DEODORANT FILTER |
1 | ||
| 87139-52020 |
ASU40,GSU4#,MHU48 MICRO DUST FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-48010 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87710-48010 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33190 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88501-33190 |
GSU4#..GD,SPO,STD |
1 | ||
| 88501-33190 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88501-33190 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88501-28400 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88501-28400 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88501-33200 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88501-33200 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88501-48310 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88501-48310 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-33040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-33190 |
ASU40,GSU4#,MHU48 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-48330 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 88650-48330 |
GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88650-48240 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 88650-48250 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 90480-01696 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 88718-48030 | ||||
| 90099-00318 | ||||
| 90099-04542 | ||||
| 90119-06952 | ||||
| 90159-50267 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||

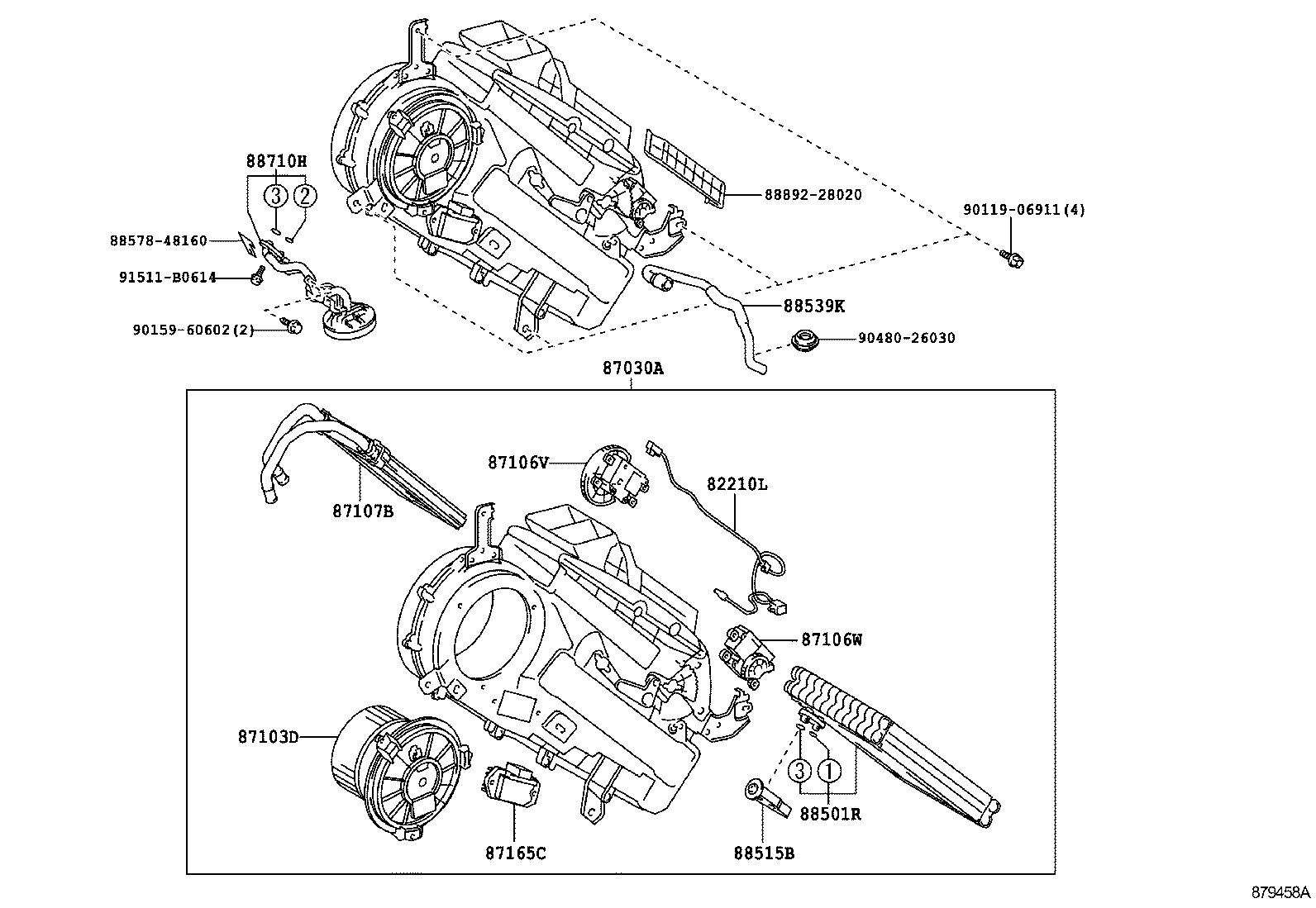

ILLUST NO. 2 OF 3(0705- )
REAR,AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-48020 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82212-48020 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-48010 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87030-48010 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28110 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87103-28110 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-28180 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87106-28180 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR) | ||||
| 87106-28170 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87106-28170 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-48100 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87107-48100 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-45030 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 87165-45030 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88501-28360 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28200 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88515-28200 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-48050 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 88539-48050 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-48290 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 88710-48290 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88578-48160 | ||||
| 88892-28020 | ||||
| 90119-06911 | ||||
| 90159-60602 | ||||
| 90480-26030 | ||||
| 91511-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
