GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )GSU4#,GVU48,MHU48

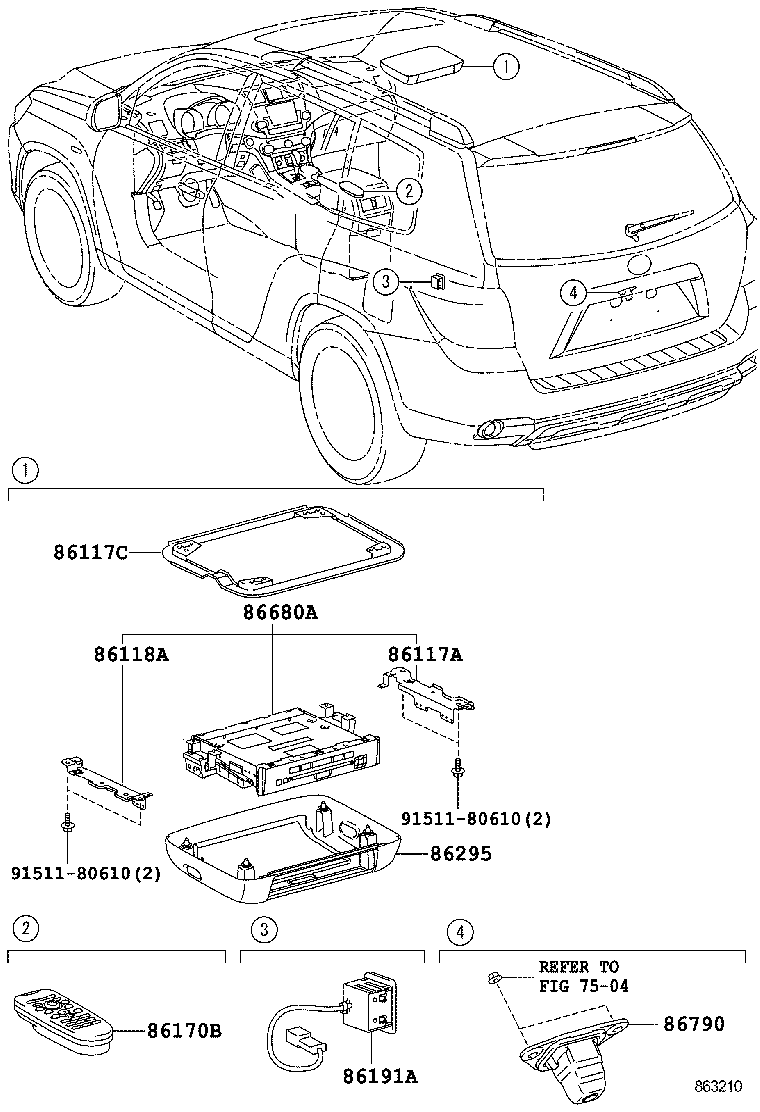

Click highlighted areas on diagram

diagram 7504 86117A 86117C 86118A 86170B 86191A 86295 86680A 86790 9151180610 9151180610
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-48070

MHU48;GSU4#..GD,LIMD,SPO

 1
Common parts
91511-80610
Linked diagrams
7504
