GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-0808)MHU48 ; (0705-0808)GSU4#..GD,LIMD,SPO; (0808- )GSU40..SPO ; (0808-

Click highlighted areas on diagram

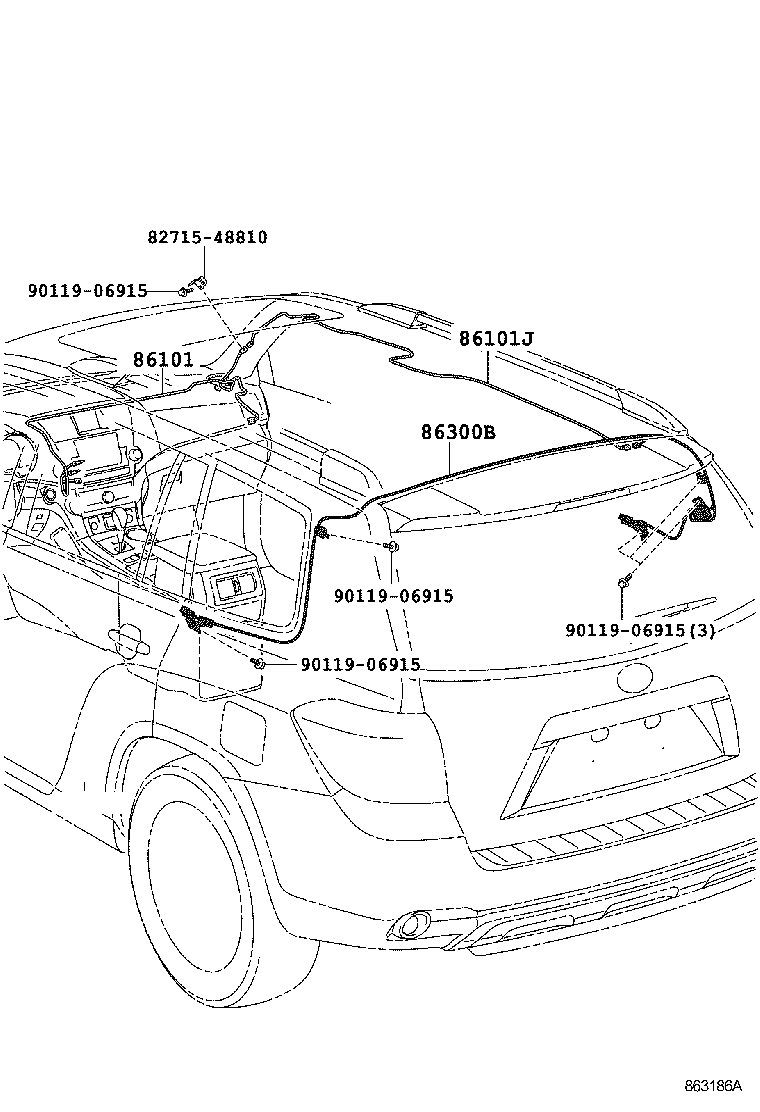

diagram 8271548810 86101 86101J 86300B 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-48730

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86101-48710

GSU4#,MHU48..GD,LIMD,SPO

 1
86101-48710

GSU4#..GD,SPO

AUDIO-AM/FM 6SPEAKER

 1
86101-48730

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-48C30

GSU4#,MHU48..GD,LIMD,SPO

 1
86101-48650

GSU4#,MHU48..GD,LIMD,SPO

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-48260

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86300-48260

MHU48;GSU4#..GD,LIMD,SPO

 1
Common parts
82715-48810
90119-06915

(0808- )GVU48,MHU48 ; (0808- )GSU4#..GD,LIMD,SPO

Click highlighted areas on diagram

W(SDARS ANTENNA)

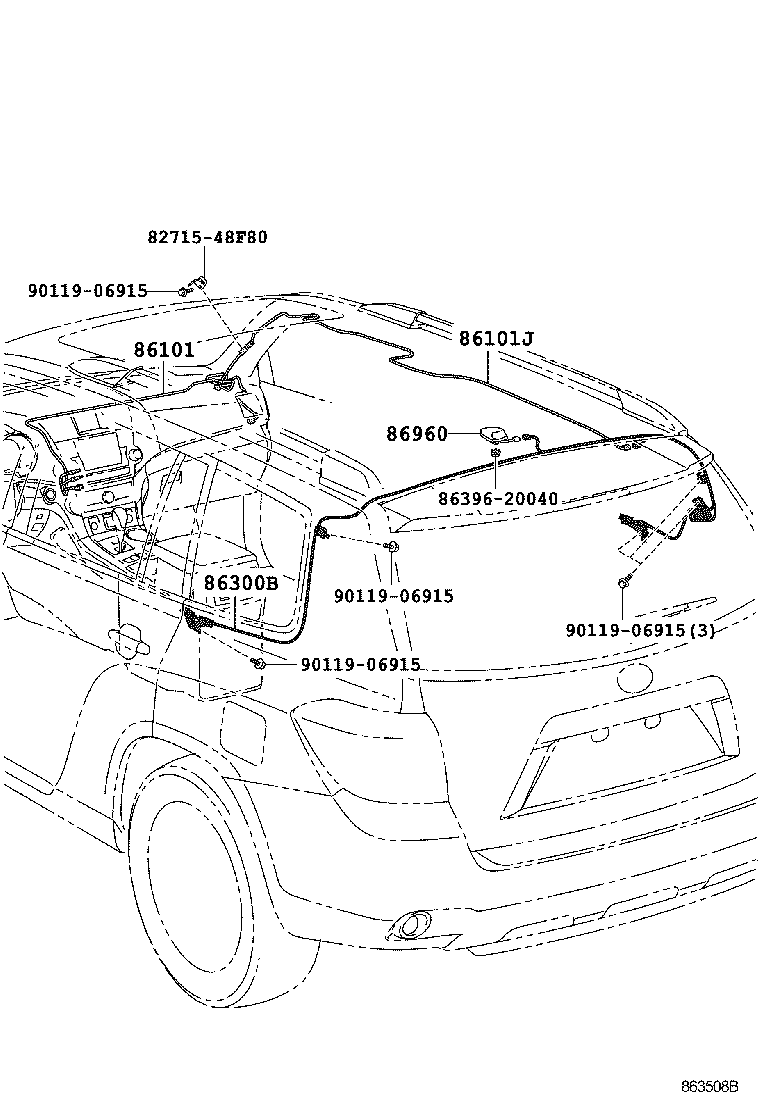

diagram 8271548F80 86101 86101J 86300B 8639620040 86960 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-48730

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86101-48710

GSU4#,MHU48..GD,LIMD,SPO

 1
86101-48710

GSU4#..GD,SPO

AUDIO-AM/FM 6SPEAKER

 1
86101-48730

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-48C30

GSU4#,MHU48..GD,LIMD,SPO

 1
86101-48650

GSU4#,MHU48..GD,LIMD,SPO

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-48260

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86300-48260

MHU48;GSU4#..GD,LIMD,SPO

 1
Common parts
82715-48F80
86396-20040
90119-06915
