GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

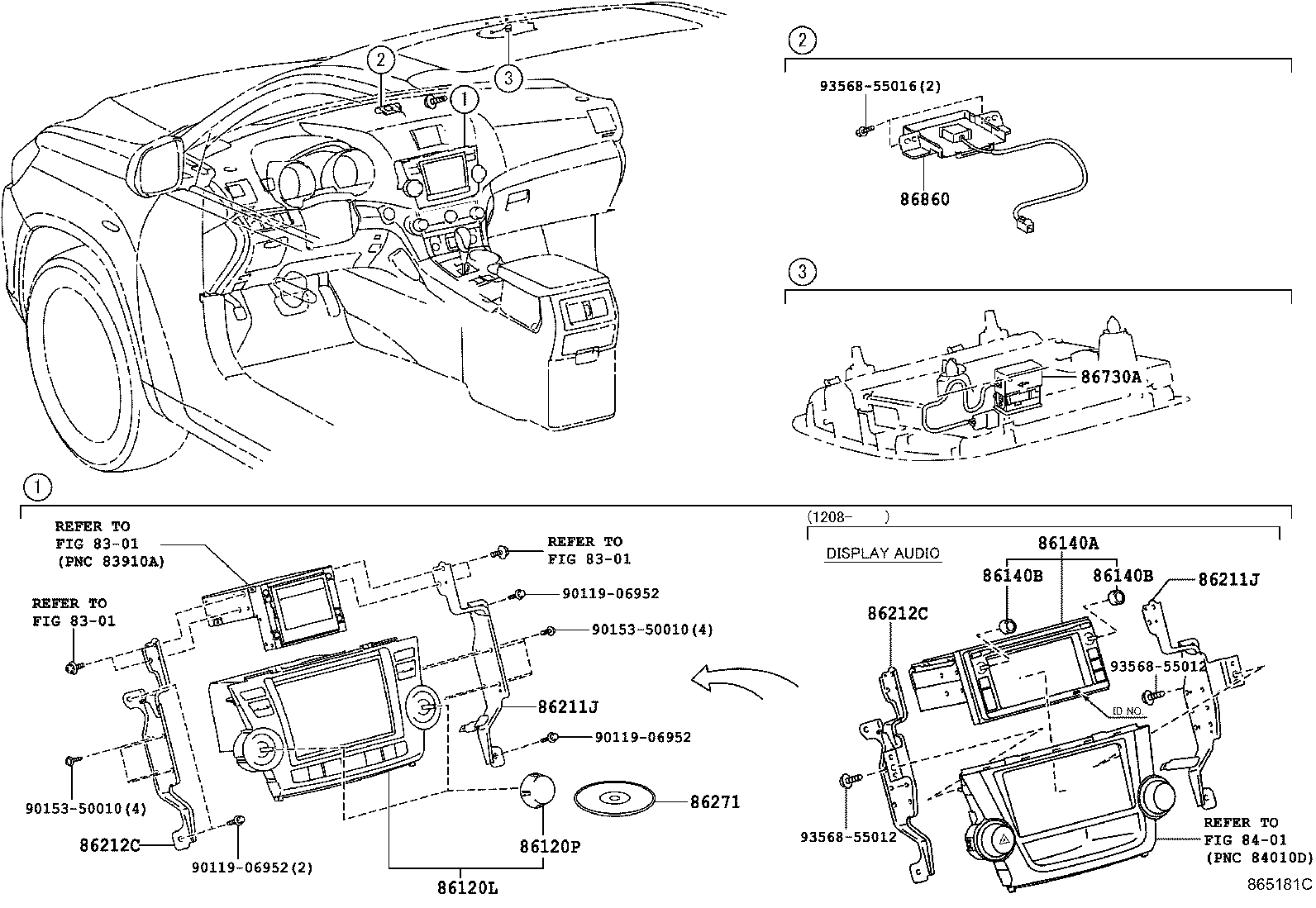

Click highlighted areas on diagram

diagram 8301 8301 8301 8401 86120L 86120P 86140A 86140B 86140B 86211J 86211J 86212C 86212C 86271 86730A 86860 9011906952 9011906952 9011906952 9015350010 9015350010 9356855012 9356855012 9356855016
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-48F00C0

GSU4#..GD,LIMD,SPO

DENSO,AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM1#,2#

 1
86120-48F00E0

GSU4#..GD,LIMD,SPO

DENSO,AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,DK. BROWN,TRIM4#

 1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90010-26011

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-48060

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-48060

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-48060

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-48060

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86271 - DISC, DISC PLAYER
86271-53023

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86271-53021

GSU4#..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86271-53022

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-33010

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86730-33010

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-48100

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
Common parts
90119-06952
90153-50010
93568-55012
93568-55016
Linked diagrams
8301
8401
