GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

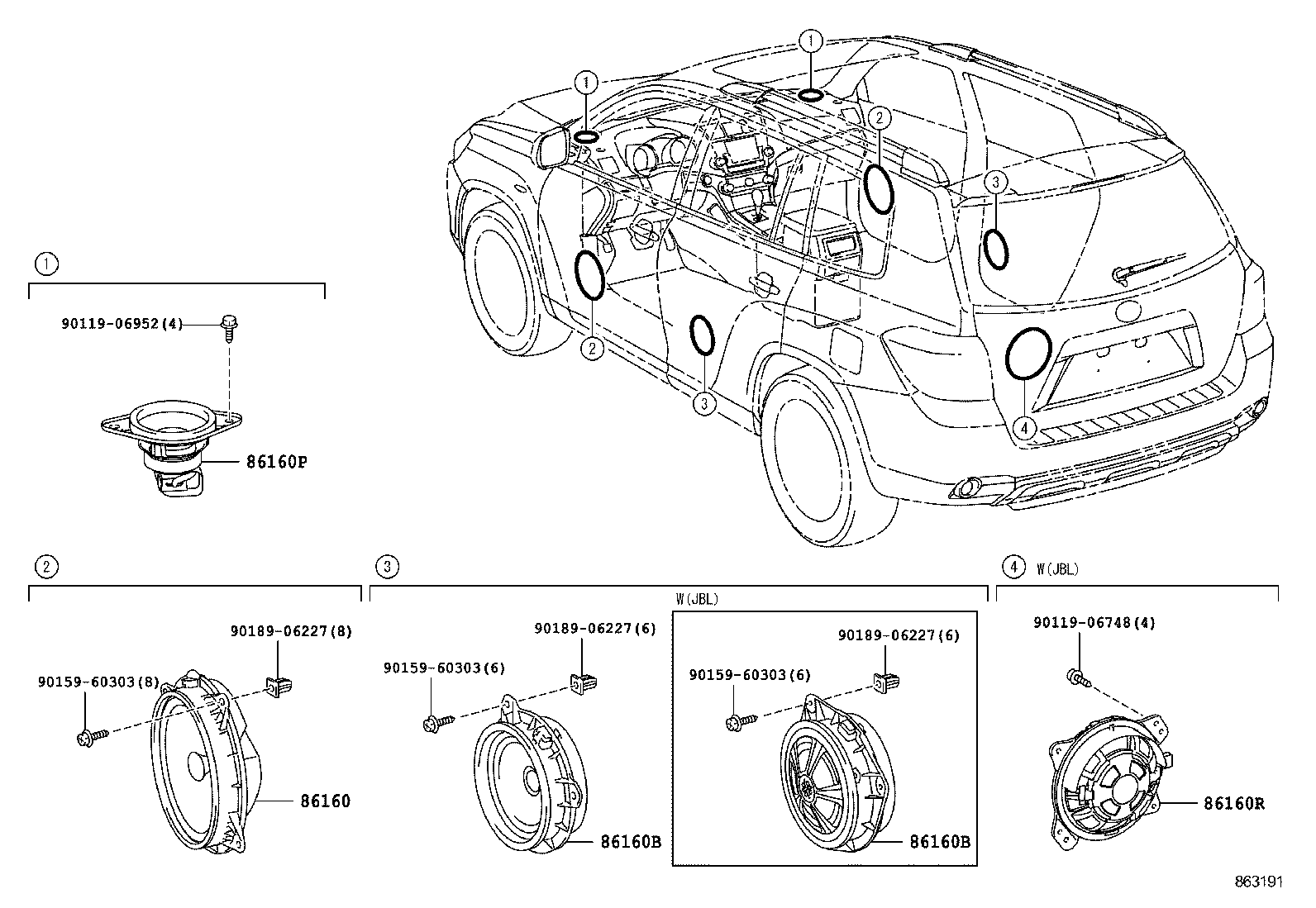

Click highlighted areas on diagram

diagram 86160 86160B 86160B 86160P 86160R 9011906748 9011906952 9015960303 9015960303 9015960303 9018906227 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-48210

ASU40,GSU4#,MHU48

 2
86160-0WJ30

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 2
86160-0WJ30

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 2
86160B - SPEAKER ASSY, REAR
86160-0WF10

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 2
86160-2B580

ASU40,GSU4#,MHU48

 2
86160-0WF10

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 2
86160B - SPEAKER ASSY, REAR
86160-0WF10

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 2
86160-2B580

ASU40,GSU4#,MHU48

 2
86160-0WF10

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-33740

ASU40,GSU4#,MHU48

 2
86160-0WE80

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 2
86160-0WE80

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 2
86160R - SPEAKER ASSY, STEREO COMPONENT
86160-0WJ40

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86160-0WJ40

MHU48;GSU4#..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
Common parts
90119-06748
90119-06952
90159-60303
90189-06227
