GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

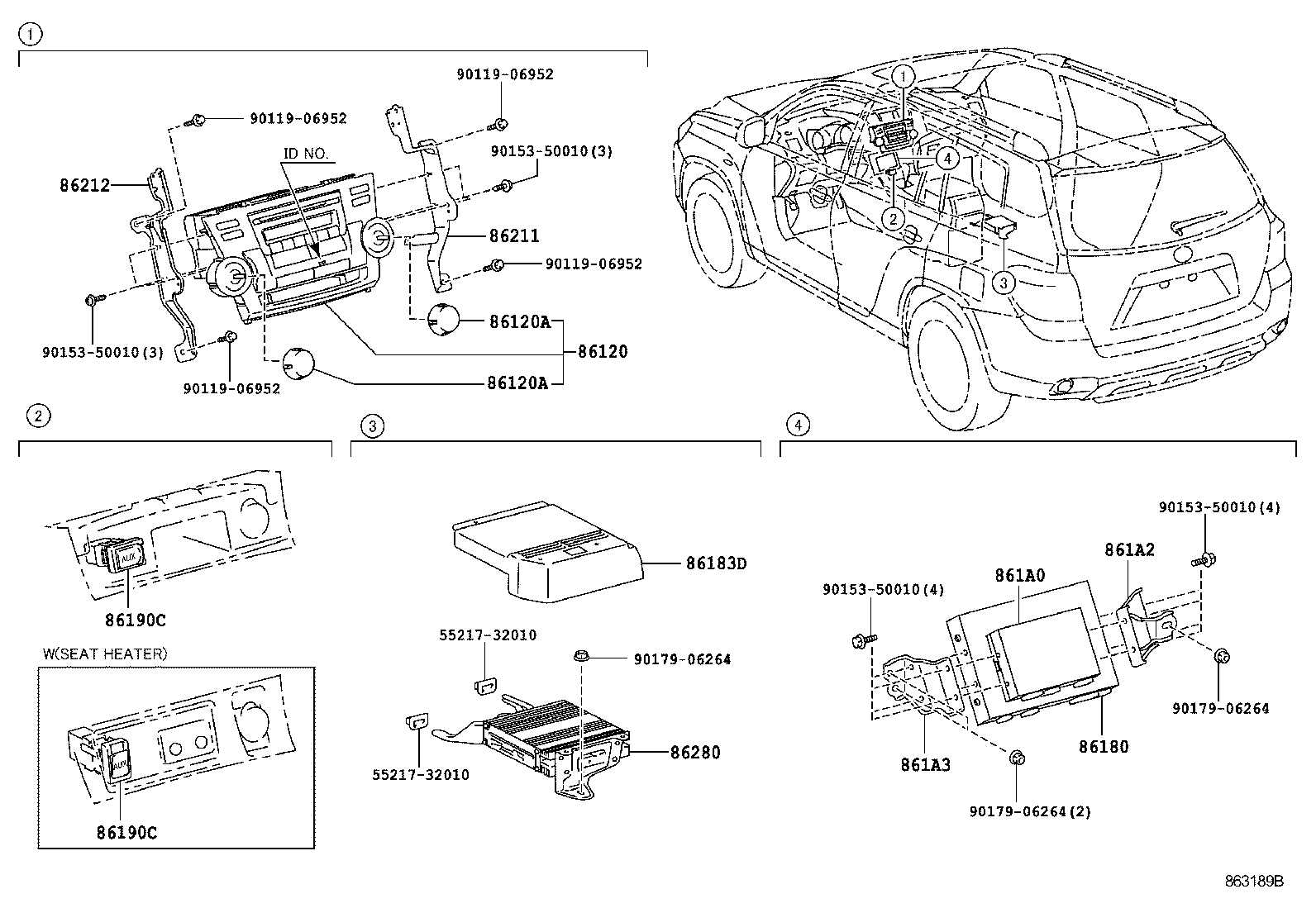

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 5521732010 5521732010 86120 86120A 86120A 86180 86183D 86190C 86190C 861A0 861A2 861A3 86211 86212 86280 9011906952 9011906952 9011906952 9011906952 9015350010 9015350010 9015350010 9015350010 9017906264 9017906264 9017906264
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-48E50C0

GSU4#..GD,LIMD,SPO

MATSUSHITA,BLACK,TRIM1#,2#

 1
86120-48E40E0

GSU4#..GD,SPO

MATSUSHITA,AUDIO-AM/FM 6SPEAKER,DK. BROWN,TRIM4#

 1
86120-48E50E0

GSU4#,MHU48..GD,LIMD,SPO

MATSUSHITA,DK. BROWN,TRIM4#

 1
86120-48E40C0

GSU4#..GD,SPO

MATSUSHITA,AUDIO-AM/FM 6SPEAKER,BLACK,TRIM1#,2#

 1
86120-48E60C0

GSU4#..GD,LIMD,SPO

MATSUSHITA,AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM1#,2#

 1
86120-48E60E0

MHU48;GSU4#..GD,LIMD,SPO

MATSUSHITA,AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,DK. BROWN,TRIM4#

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24126

ASU40,GSU4#,MHU48

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24126

ASU40,GSU4#,MHU48

 2
86183D - COVER, AUDIO AMPLIFIER
86183-48010

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
86183-48010

GSU4#,MHU48..GD,LIMD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48010

ASU40,GSU4#,MHU48

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48010

ASU40,GSU4#,MHU48

 1
86211 - BRACKET, RADIO, NO.1
86211-48070

ASU40,GSU4#,MHU48

 1
86212 - BRACKET, RADIO, NO.2
86212-48070

ASU40,GSU4#,MHU48

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W270

MHU48..LIMD;GSU4#..GD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86280-0W271

MHU48..LIMD;GSU4#..GD,SPO

AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT

 1
86280-0W270

MHU48..LIMD;GSU4#..GD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
86280-0W271

MHU48..LIMD;GSU4#..GD,SPO

AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT

 1
Common parts
55217-32010
90119-06952
90153-50010
90179-06264

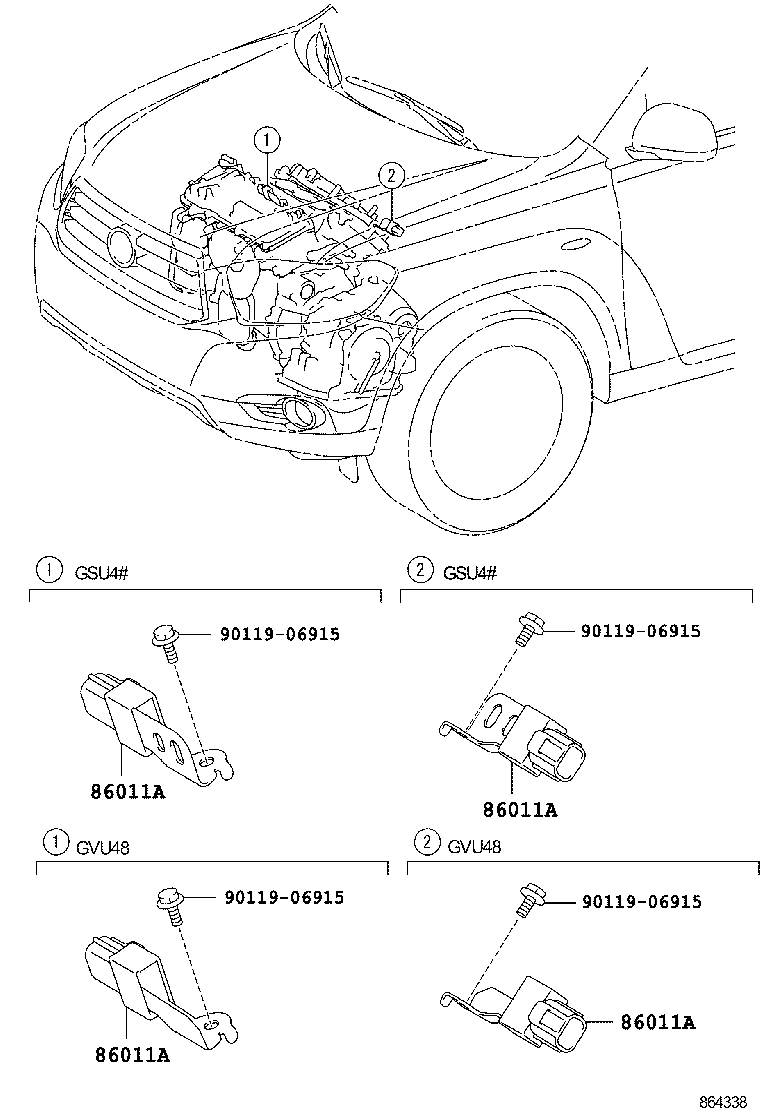

ILLUST NO. 2 OF 2(0705- )GSU4#,GVU48

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011A 86011A 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU4#

 2
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU4#

 2
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU4#

 2
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU4#

 2
Common parts
90119-06915
