GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

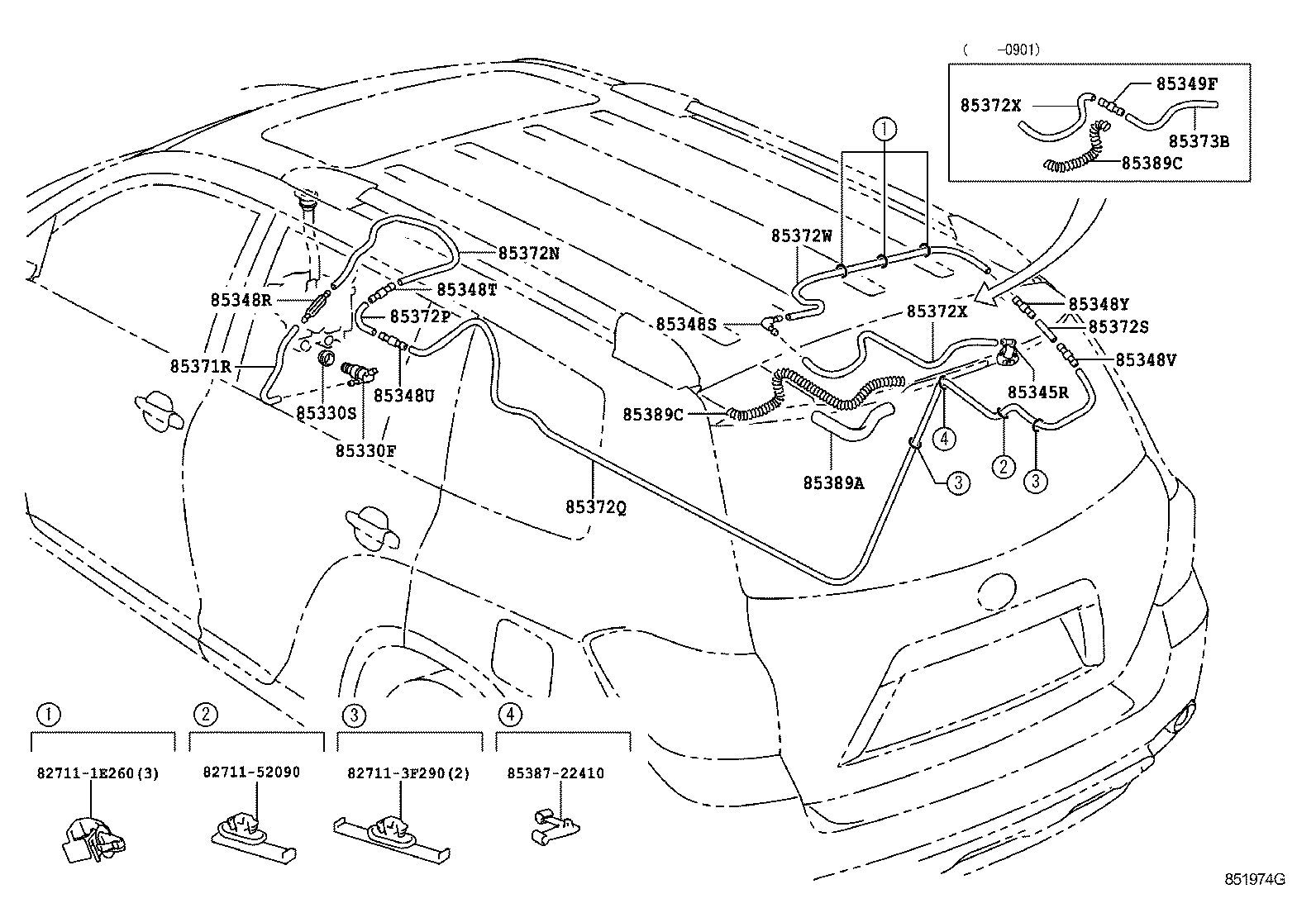

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60180 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-48030 |
ASU40,GSU4#..GD,LIMD,STD |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ASU40,GSU4#,MHU48 *H,L=300 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
ASU40,GSU4#,MHU48 *H,L=940 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ASU40,GSU4#,MHU48 *H,L=50 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
ASU40,GSU4#,MHU48 *H,L=4850 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ASU40,GSU4#,MHU48 *H,L=50 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
ASU40,GSU4#,MHU48 *H,L=610 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ASU40,GSU4#,MHU48 *H,L=320 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ASU40,GSU4#,MHU48 *H,L=320 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
ASU40,GSU4#,MHU48 *H,L=320 |
1 | ||
| 85389A - PACKING, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85389-48290 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-72030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-72030 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-3F290 | ||||
| 82711-52090 | ||||
| 85387-22410 | ||||
