GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )GVU48,MHU48 ; (0705- )GSU4#..GD,LIMD,SPO

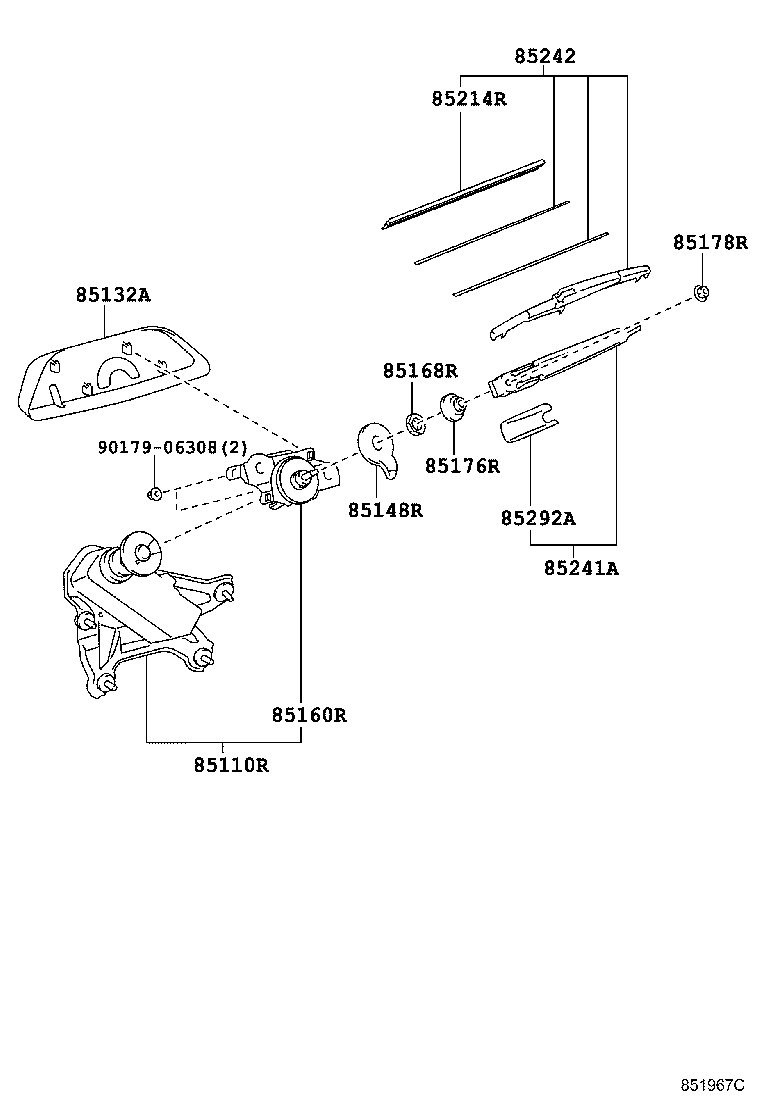

Click highlighted areas on diagram

HATCH GLASS

diagram 85110R 85132A 85148R 85160R 85168R 85176R 85178R 85214R 85241A 85242 85292A 9017906308
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-48040

GSU4#,MHU48..GD,LIMD,SPO

 1
85132A - COVER, REAR WIPER SHAFT
85132-48030

GSU4#,MHU48..GD,LIMD,SPO

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85133-48010

GSU4#,MHU48..GD,LIMD,SPO

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05141

GSU4#,MHU48..GD,LIMD,SPO

 1
85176R - CAP, REAR WIPER LINK
85172-48010

GSU4#,MHU48..GD,LIMD,SPO

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

ASU40,GSU4#,MHU48

 1
85214R - RUBBER, REAR WIPER
85214-42040

ASU40,GSU4#,MHU48

 1
85241A - ARM, REAR WIPER
85241-42070

ASU40,GSU4#,MHU48

 1
85242 - BLADE, RR WIPER
85242-42030

ASU40,GSU4#,MHU48

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42020

ASU40,GSU4#,MHU48

 1
Common parts
90179-06308
