GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

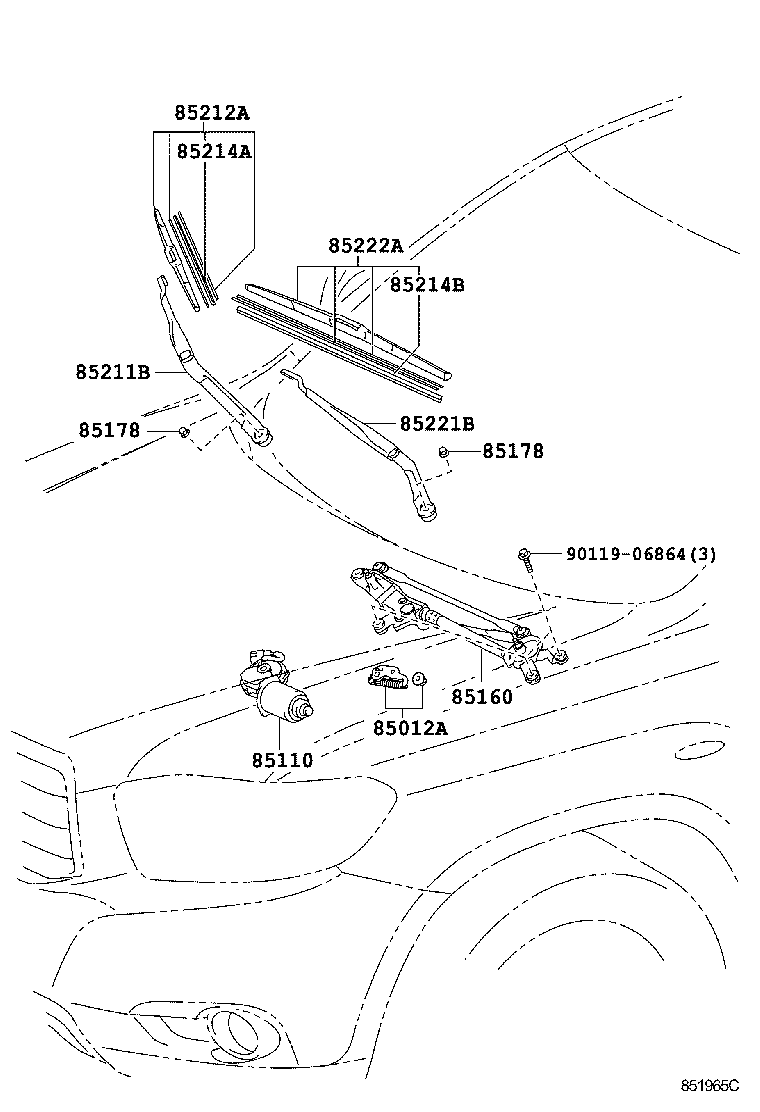

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-28010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
ASU40,GSU4#,MHU48 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
ASU40,GSU4#,MHU48 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-53081 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-53090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-68020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-48130 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
