GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

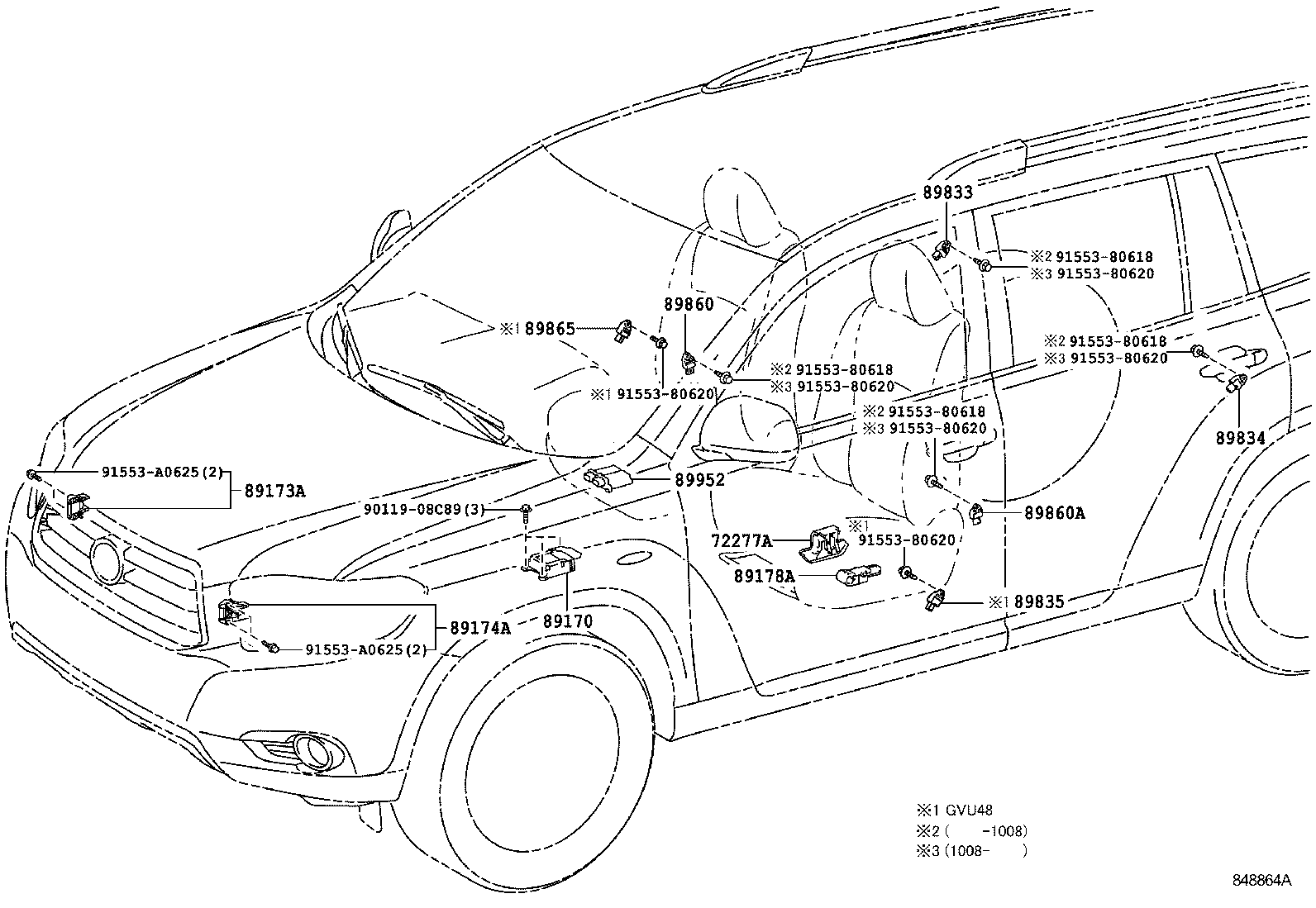

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89833 89834 89835 89860 89860A 89865 89952 9011908C89 9155380618 9155380618 9155380618 9155380618 9155380620 9155380620 9155380620 9155380620 9155380620 9155380620 91553A0625 91553A0625
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

MHU48;GSU4#..GD,LIMD,SPO

 1
89170 - SENSOR ASSY, AIR BAG
89170-48240

ASU40,GSU4#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39375

ASU40,GSU4#,MHU48

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-39375

ASU40,GSU4#,MHU48

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

MHU48;GSU4#..GD,LIMD,SPO

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-48010

ASU40,GSU4#,MHU48

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-48010

ASU40,GSU4#,MHU48

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-28020

ASU40,GSU4#,MHU48

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-28020

ASU40,GSU4#,MHU48

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

ASU40,GSU4#,MHU48

 1
Common parts
90119-08C89
91553-80618
91553-80620
91553-A0625
