GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ASU40,GSU40

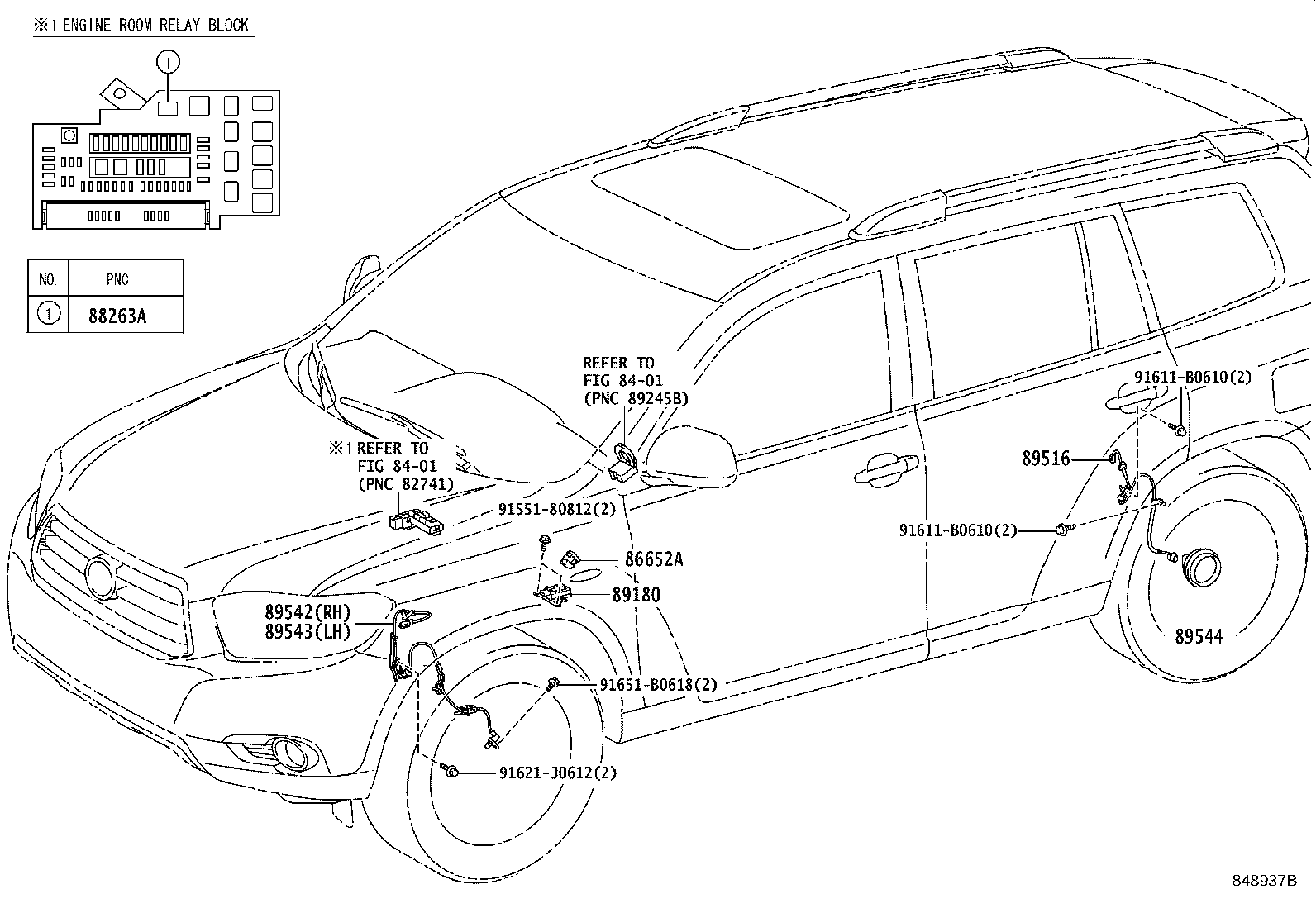

Click highlighted areas on diagram

diagram 8401 8401 86652A 88263A 89180 89516 89542 89543 89544 9155180812 91611B0610 91611B0610 91621J0612 91651B0618
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

ASU40,GSU4#,MHU48

 1
88263A - RELAY, SKID CONTROL
90987-04004

ASU40,GSU4#,MHU48

 1
89180 - SENSOR ASSY, YAWRATE
89180-48050

ASU40,GSU4#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-48060

ASU40,GSU40

LH

 1
89516-48050

ASU40,GSU40

RH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-48040

ASU40,GSU4#,MHU48

 1
89543 - SENSOR, SPEED, FRONT LH
89543-48040

ASU40,GSU4#,MHU48

 1
89544 - SENSOR, SKID CONTROL
89544-28010

ASU40,GSU40

 2
Common parts
91551-80812
91611-B0610
91621-J0612
91651-B0618
Linked diagrams
8401
