GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )GSU4#

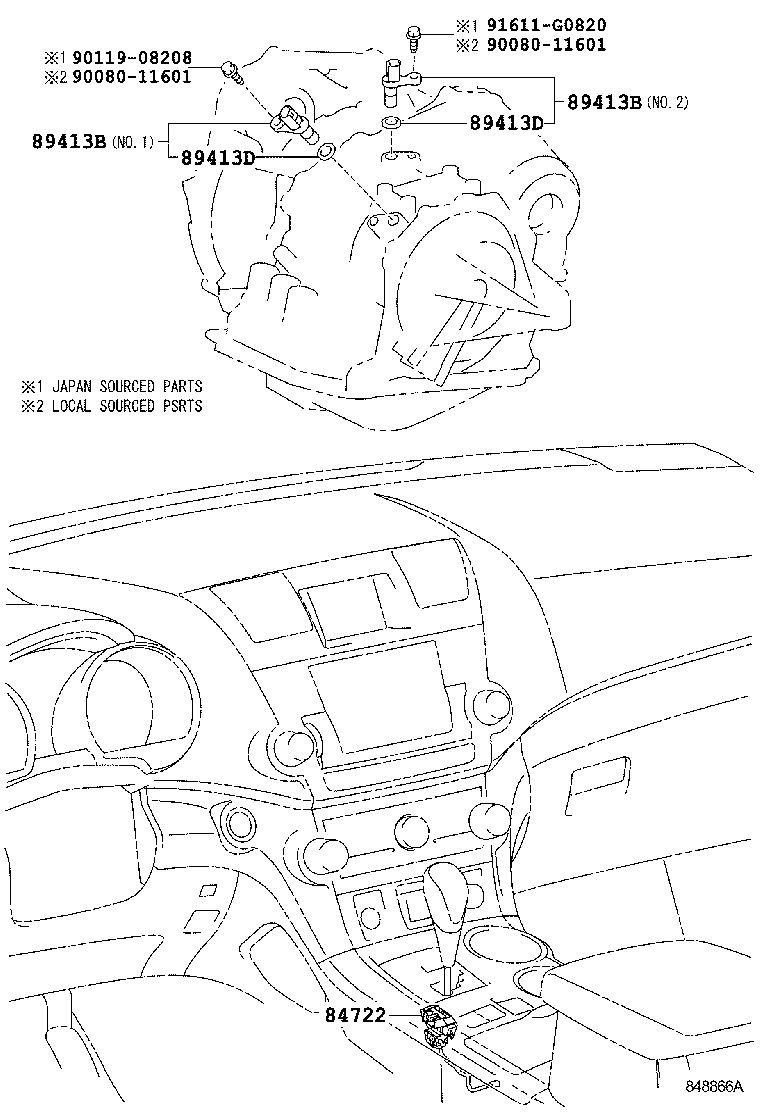

Click highlighted areas on diagram

diagram 84722 89413B 89413B 89413D 89413D 9008011601 9008011601 9011908208 91611G0820
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-33250

ASU40,GSU4#

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-24010

GSU4#

NO.1,(J)

 1
89413-48010

GSU4#

NO.2

 1
89413-24010

GSU4#

NO.1

 1
89413-08020

GSU4#

NO.1,(L)

 1
89413-08010

GSU4#

NO.2,(L)

 1
89413-48010

GSU4#

NO.2,(J)

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-24010

GSU4#

NO.1,(J)

 1
89413-48010

GSU4#

NO.2

 1
89413-24010

GSU4#

NO.1

 1
89413-08020

GSU4#

NO.1,(L)

 1
89413-08010

GSU4#

NO.2,(L)

 1
89413-48010

GSU4#

NO.2,(J)

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

GSU4#

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

GSU4#

 2
Common parts
90080-11601
90119-08208
91611-G0820
