GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
Production
May 2007
-
Jul 2010
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )GSU4#

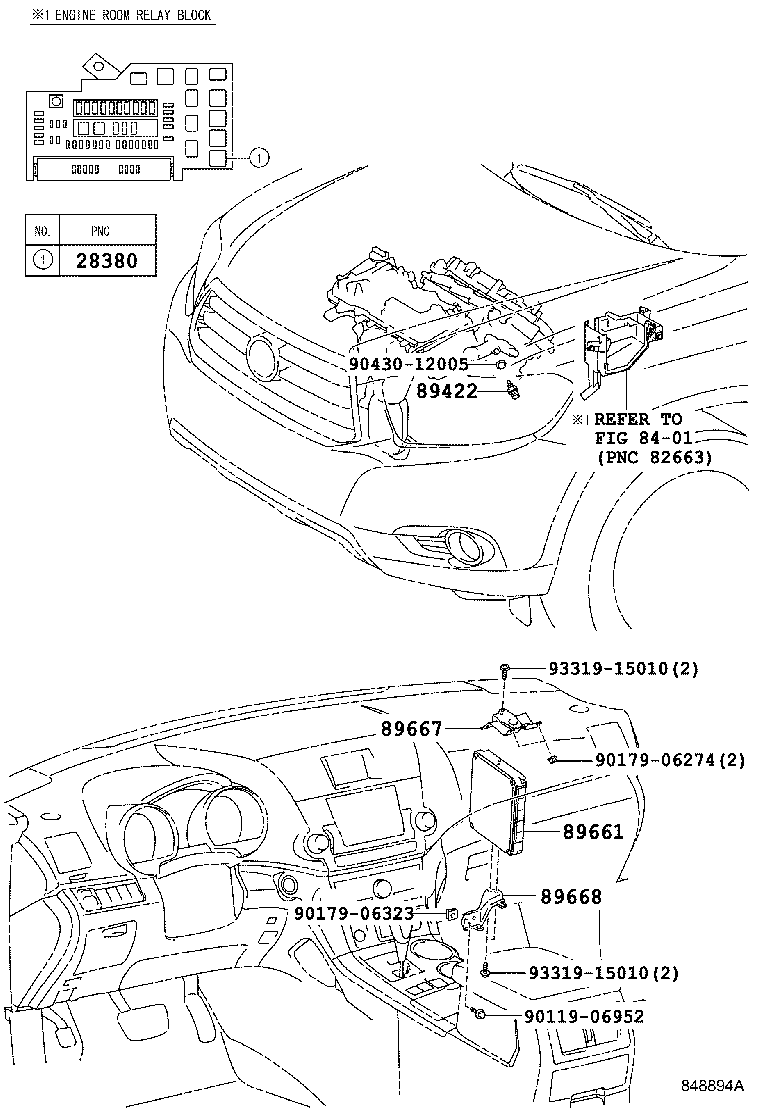

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 90987-04004 |
2GRFE..GSU4# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
ASU40,GSU4# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-48B62 |
GSU40 |
1 | ||
| 89661-48B60 |
GSU40 |
1 | ||
| 89661-48B61 |
GSU40 |
1 | ||
| 89661-48F10 |
GSU40 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-48090 |
GSU4# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-48070 |
GSU4# |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90179-06274 | ||||
| 90179-06323 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
