GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

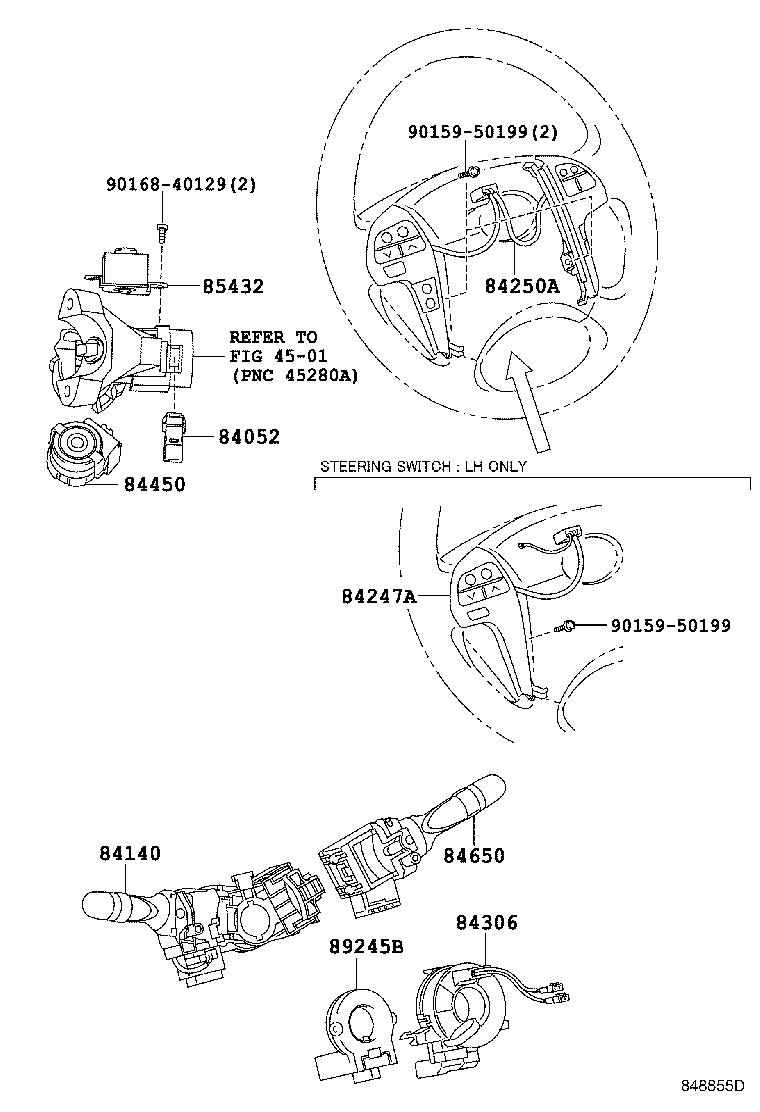

ILLUST NO. 7 OF 9(0705- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33200 |
GSU4#..GD LIGHT CONTROL SYSTEM-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH) |
1 | ||
| 84140-47081 |
GSU4#..GD |
1 | ||
| 84140-48130 |
GSU4#..GD CANADA SPEC&LIGHT CONTROL SYSTEM-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITHOUT(OFF SW) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-48160 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 84250-48170 |
MHU48;GSU4#..GD,SPO |
1 | ||
| 84250-48160 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 84250-48190 |
MHU48..LIMD;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 84250-48190 |
MHU48..LIMD;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 84250-48180 |
MHU48;GSU4#..GD,SPO FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48060 |
GSU4#,MHU48 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

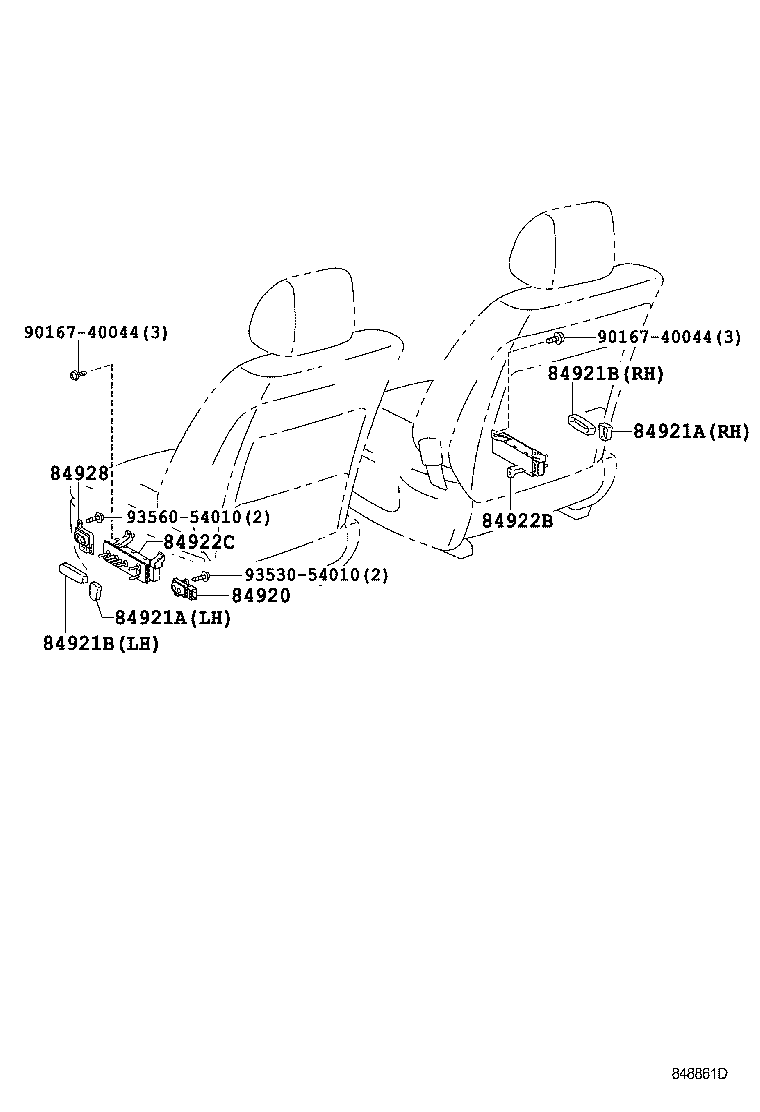

ILLUST NO. 8 OF 9(0705- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050B8 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 84920-60050E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 84920-60050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60120B6 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1#,LH |
1 | ||
| 84921-60120E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4#,LH |
1 | ||
| 84921-60120C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921-58010C1 |
GSU4#..GD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60120B6 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1#,LH |
1 | ||
| 84921-60120E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4#,LH |
1 | ||
| 84921-60120C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921-58010C1 |
GSU4#..GD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60080E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4#,LH |
1 | ||
| 84921-60080B6 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1#,LH |
1 | ||
| 84921-60080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921-58020C0 |
GSU4#..GD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60080E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4#,LH |
1 | ||
| 84921-60080B6 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1#,LH |
1 | ||
| 84921-60080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84921-58020C0 |
GSU4#..GD,SPO BLACK,TRIM2#,LH |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60120 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93530-54010 | ||||
| 93560-54010 | ||||

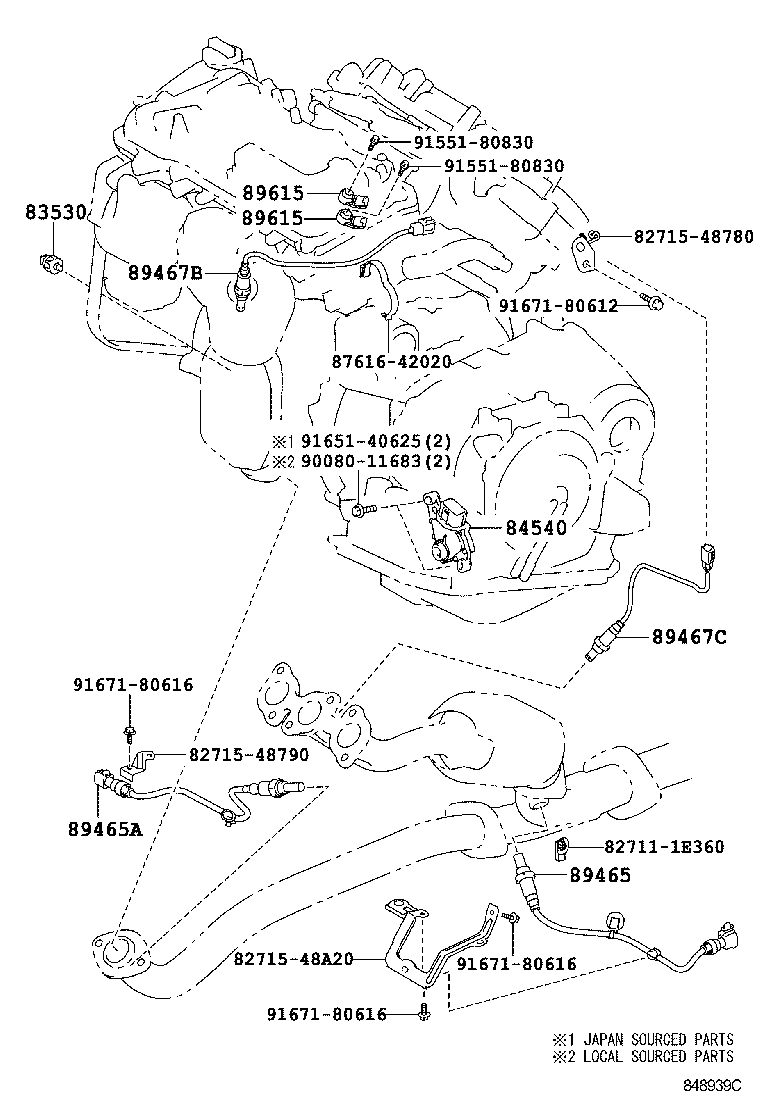

ILLUST NO. 1 OF 9(0705-1007)GSU4#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ASU40,GSU4#,MHU48 DENSO |
1 | ||
| 83530-60020 |
ASU40,GSU4#,MHU48 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-0E010 |
GSU4# (L) |
1 | ||
| 84540-42010 |
GSU4# |
1 | ||
| 84540-42010 |
GSU4# (J) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48110 |
GSU4# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-68050 |
GSU4# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48120 |
GSU4# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48130 |
GSU4# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSU4#,MHU48 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSU4#,MHU48 |
2 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82715-48780 | ||||
| 82715-48790 | ||||
| 82715-48A20 | ||||
| 87616-42020 | ||||
| 90080-11683 | ||||
| 91551-80830 | ||||
| 91651-40625 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||

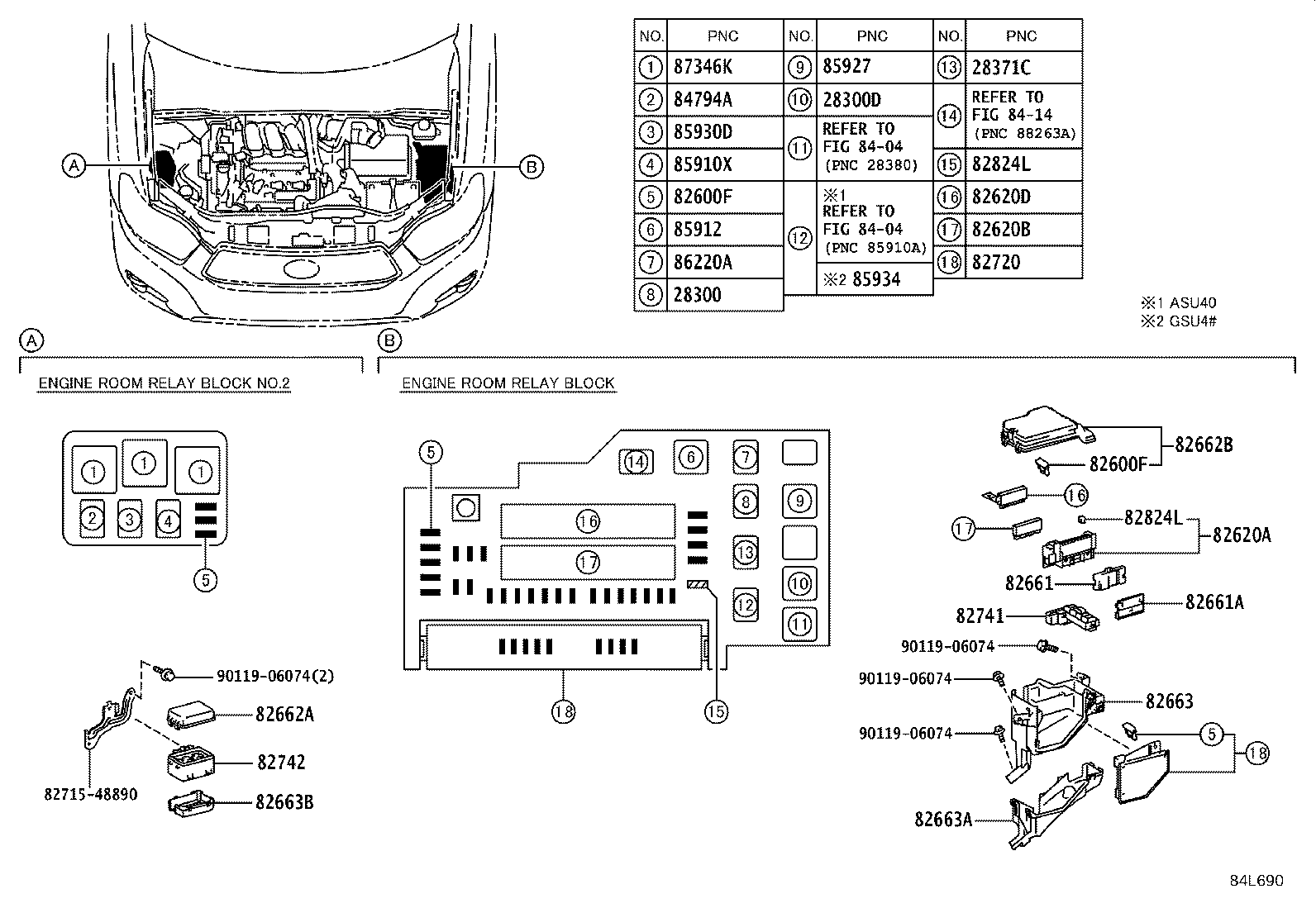

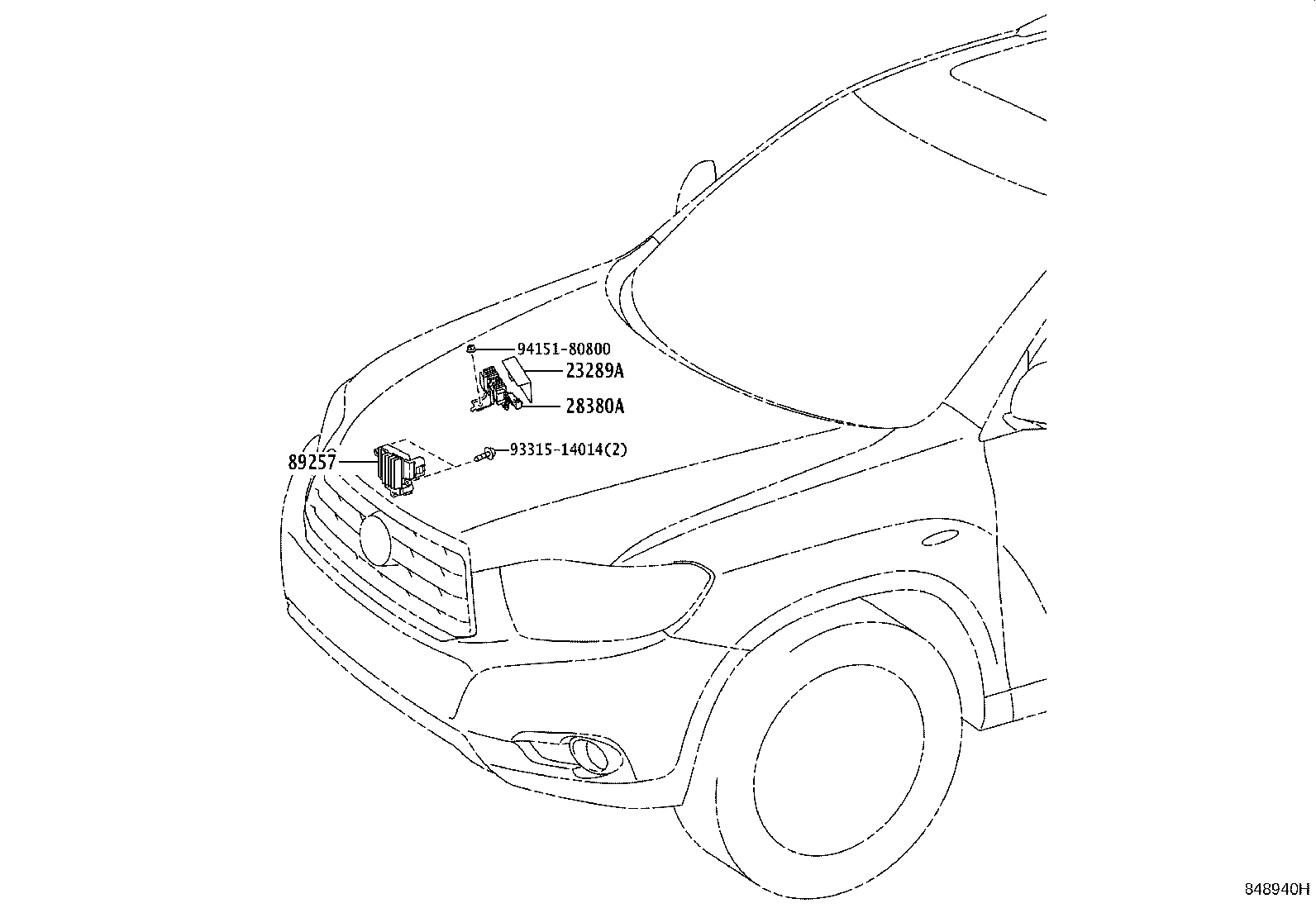

ILLUST NO. 2 OF 9(0705-1007)ASU40,GSU4#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23289A - COVER, FUEL PUMP RESISTOR | ||||
| 23289-31010 |
2GRFE..GSU4# |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31130 |
2GRFE..GSU4# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
ASU40,GSU4# |
1 | ||
| 89257-30080 |
GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| Common parts | ||||
| 93315-14014 | ||||
| 94151-80800 | ||||

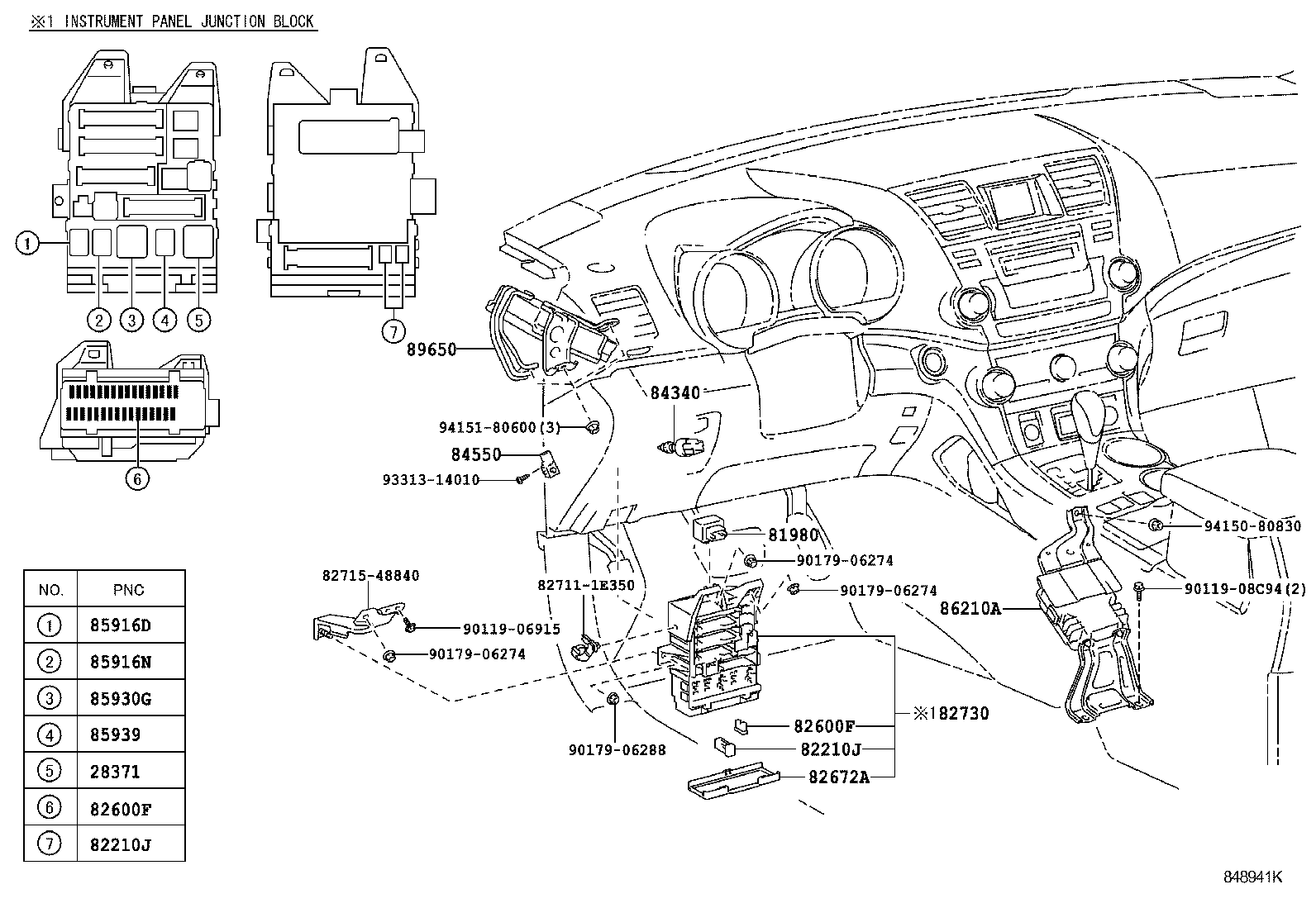

ILLUST NO. 4 OF 9(0705- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1ARFE,2GRFE,3MZFE..ASU40,GSU4#,MHU48 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-53020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
ASU40,GSU4#,MHU48 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
ASU40,GSU4#,MHU48 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ASU40,GSU4#,MHU48 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU40,GSU4#,MHU48 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASU40,GSU4#,MHU48 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ASU40,GSU4#,MHU48 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASU40,GSU4#,MHU48 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU40,GSU4#,MHU48 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ASU40,GSU4#,MHU48 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU40,GSU4#,MHU48 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASU40,GSU4#,MHU48 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ASU40,GSU4#,MHU48 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASU40,GSU4#,MHU48 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU40,GSU4#,MHU48 30A,MINI FUSE,GRN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-48250 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-48D20 |
GSU4#..GD CANADA SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITHOUT(OFF SW) |
1 | ||
| 82730-48E10 |
GSU4#..GD ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 82730-48E00 |
GSU4#..GD ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH) |
1 | ||
| 82730-48F80 |
GSU4#..GD |
1 | ||
| 82730-48E30 |
GSU4#..GD WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH) |
1 | ||
| 82730-48G20 |
GSU4#..GD CANADA SPEC&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITHOUT(OFF SW) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-47020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02027 |
ASU40,GSU4#,MHU48 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-48060 |
ASU40,GSU4#..GD,LIMD,STD |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-48840 | ||||
| 90119-06915 | ||||
| 90119-08C94 | ||||
| 90179-06274 | ||||
| 90179-06288 | ||||
| 93313-14010 | ||||
| 94150-80830 | ||||
| 94151-80600 | ||||

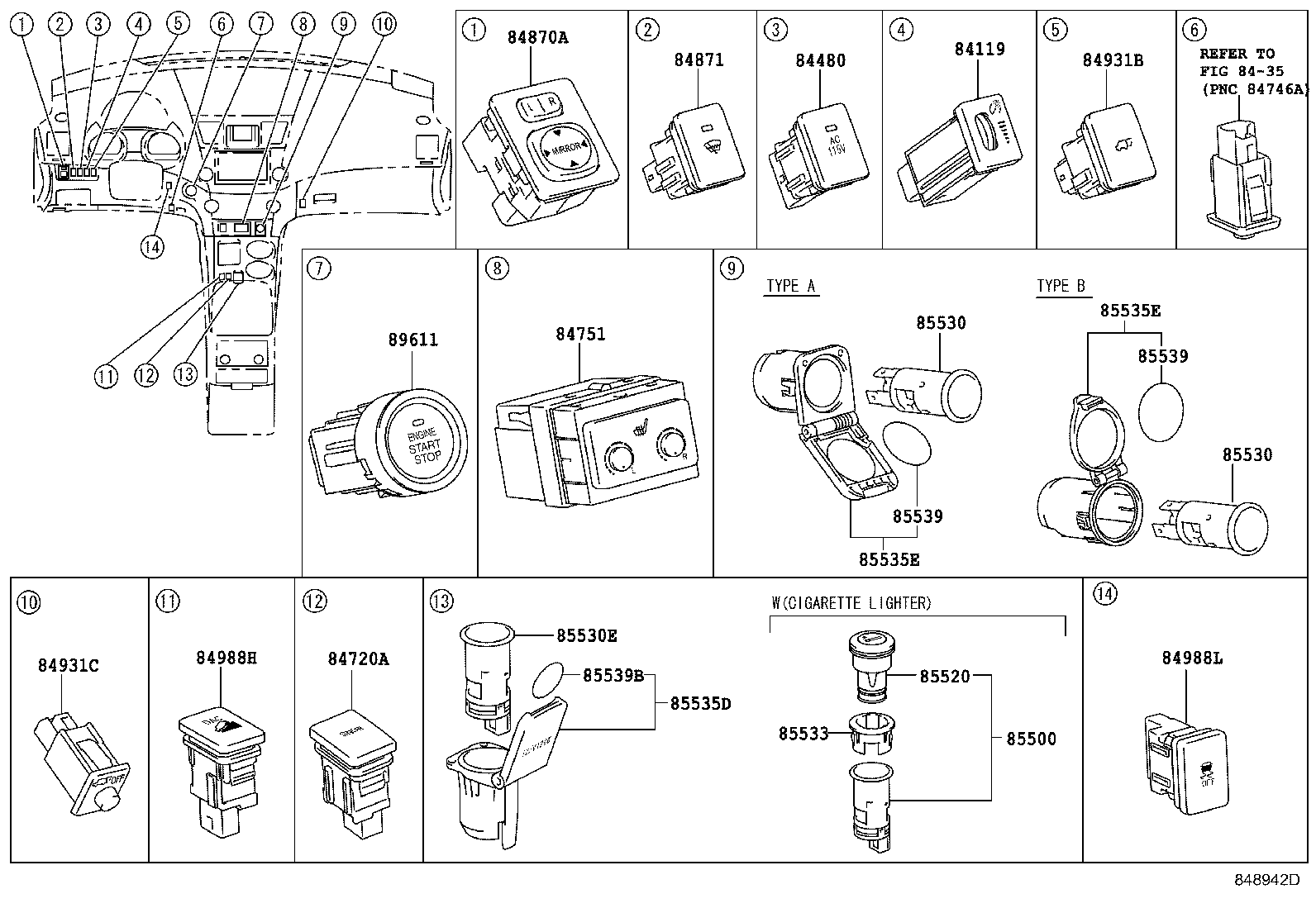

ILLUST NO. 5 OF 9(0705-1007)ASU40,GSU4#
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-28040 |
ASU40,GSU4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-48040 |
ASU40,GSU4#,MHU48 WINDOSHIELD DEICER-WITH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-48050 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-48010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48070 |
ASU40,GSU4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50090 |
ASU40,GSU4#,MHU48 CIGARETTE LIGHTER-WITH |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30200 |
ASU40,GSU4#,MHU48 CIGARETTE LIGHTER-WITH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-50010 |
ASU40,GSU4#,MHU48 CIGARETTE LIGHTER-WITH |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-33060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM1#,2#,TYPE B:REFER ILLUST. |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM1#,2#,TYPE B:REFER ILLUST. |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85539B - LABEL, POWER OUTLET NOTICE, CENTER | ||||
| 85539-60020 |
ASU40,GSU4#,MHU48 |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||

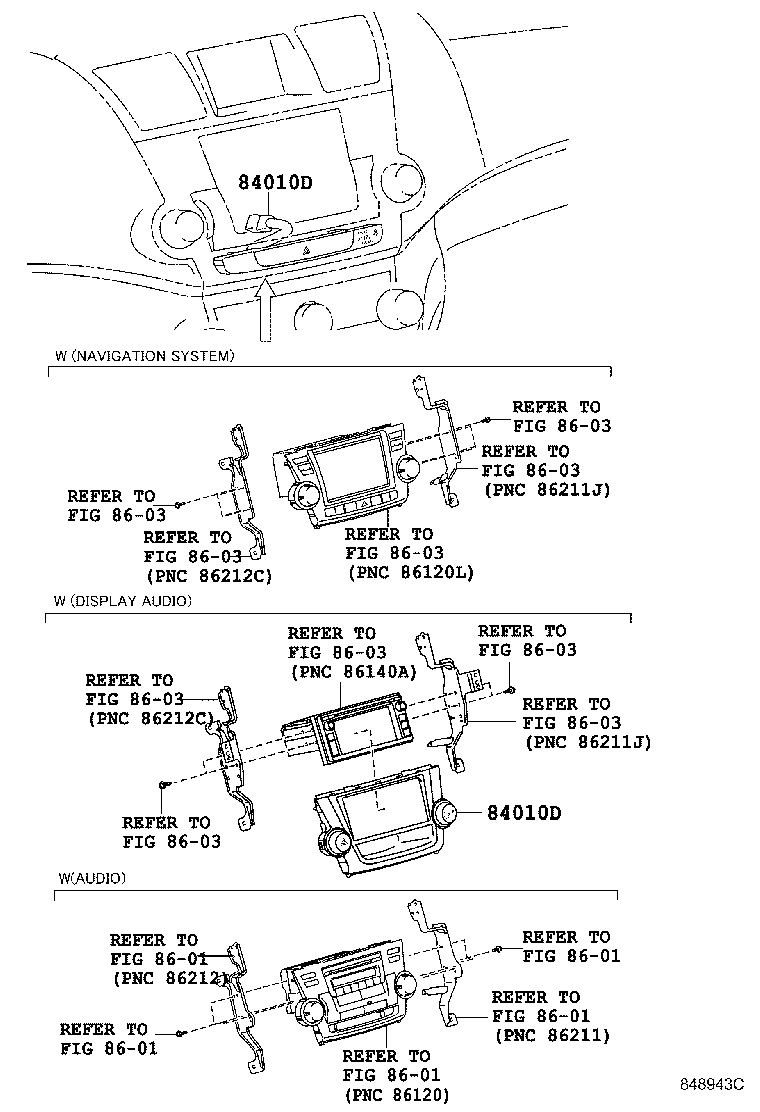

ILLUST NO. 6 OF 9(0705- )
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-48390C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM1#,2# |
1 | ||
| 84010-48390E0 |
MHU48;GSU4#..GD,LIMD,SPO DK. BROWN,TRIM4# |
1 | ||
| 84010-48390C0 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM1#,2# |
1 | ||
| 84010-48390E0 |
MHU48;GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,DK. BROWN,TRIM4# |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-48390C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM1#,2# |
1 | ||
| 84010-48390E0 |
MHU48;GSU4#..GD,LIMD,SPO DK. BROWN,TRIM4# |
1 | ||
| 84010-48390C0 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM1#,2# |
1 | ||
| 84010-48390E0 |
MHU48;GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,DK. BROWN,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||

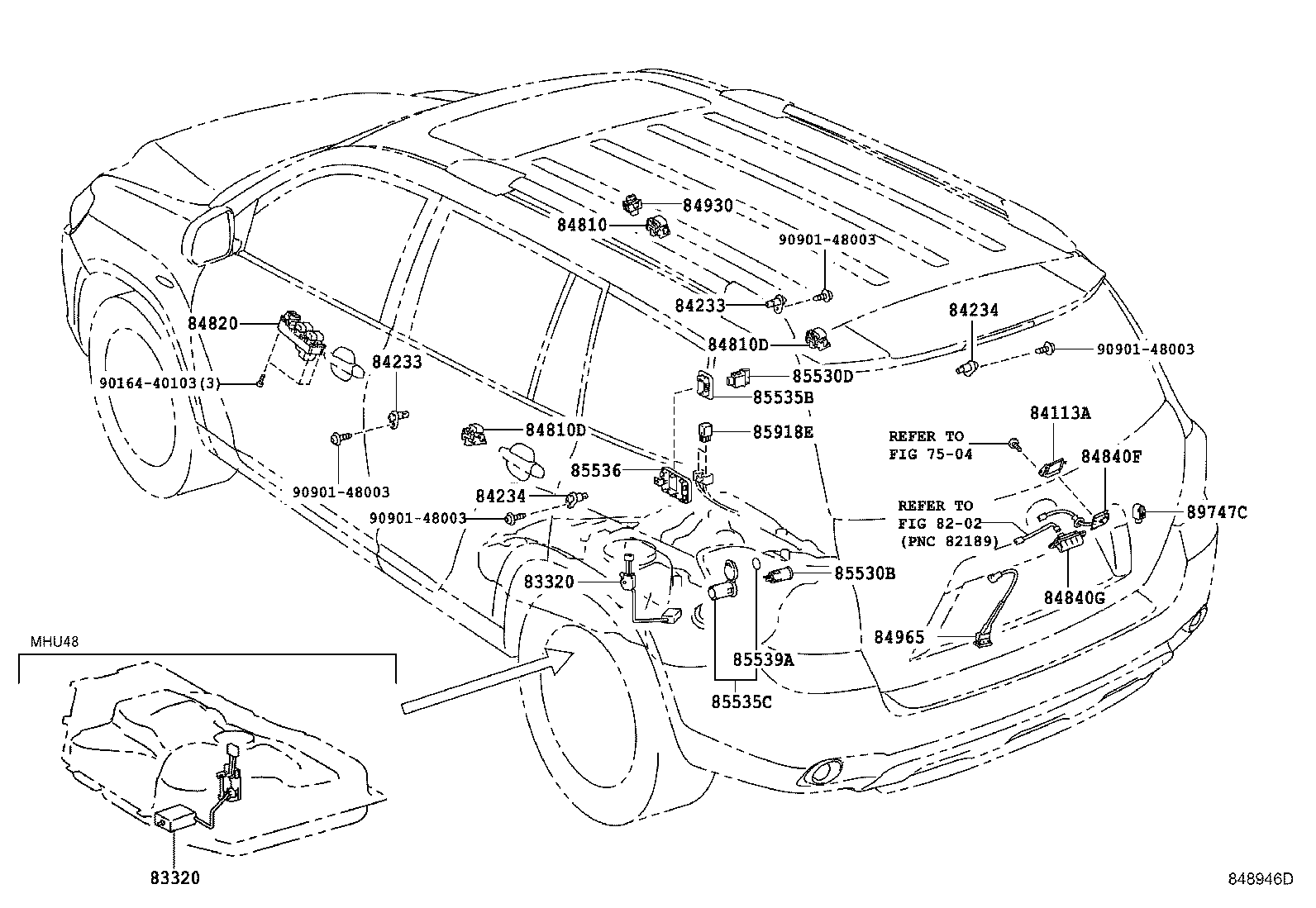

ILLUST NO. 9 OF 9(0705-1008)
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-48031 |
ASU40,GSU4# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-48031 |
ASU40,GSU4# |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-48010 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASU40,GSU4#,MHU48 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASU40,GSU4#,MHU48 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASU40,GSU4#,MHU48 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASU40,GSU4#,MHU48 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33251 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-48010 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84965 - SWITCH, POWER BACK DOOR MAIN | ||||
| 84930-48021 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60100C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 85535-60100E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 85535-60100B2 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85918E - RELAY, GLASS HATCH JUNCTION | ||||
| 90987-04004 |
GSU4#,MHU48..GD,LIMD,SPO |
2 | ||
| 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING | ||||
| 89747-52010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 9(0705-1007)ASU40,GSU4#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ARFE,2GRFE..ASU40,GSU4# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
1ARFE,2GRFE,3MZFE..ASU40,GSU4#,MHU48 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ASU40,GSU4#,MHU48 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU40,GSU4#,MHU48 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASU40,GSU4#,MHU48 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ASU40,GSU4#,MHU48 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASU40,GSU4#,MHU48 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU40,GSU4#,MHU48 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ASU40,GSU4#,MHU48 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU40,GSU4#,MHU48 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASU40,GSU4#,MHU48 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ASU40,GSU4#,MHU48 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASU40,GSU4#,MHU48 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASU40,GSU4#,MHU48 30A,MINI FUSE,GRN |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48100 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-48090 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-48070 |
ASU40,GSU4# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-48070 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-48050 |
ASU40,GSU4#..GD,STD WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH) |
1 | ||
| 82720-48040 |
ASU40,GSU4#..GD,STD |
1 | ||
| 82720-48050 |
ASU40,GSU4#..GD,STD WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITHOUT(OFF SW) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-48060 |
ASU40,GSU4# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-48010 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-04004 |
ASU40,GSU4#,MHU48 WINDOSHIELD DEICER-WITH |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
ASU40,GSU4#..GD,SPO,STD WINDOSHIELD DEICER-WITH |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GSU4# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
3 | ||
| 90987-02025 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
3 | ||
| Common parts | ||||
| 82715-48890 | ||||
| 90119-06074 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
