GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

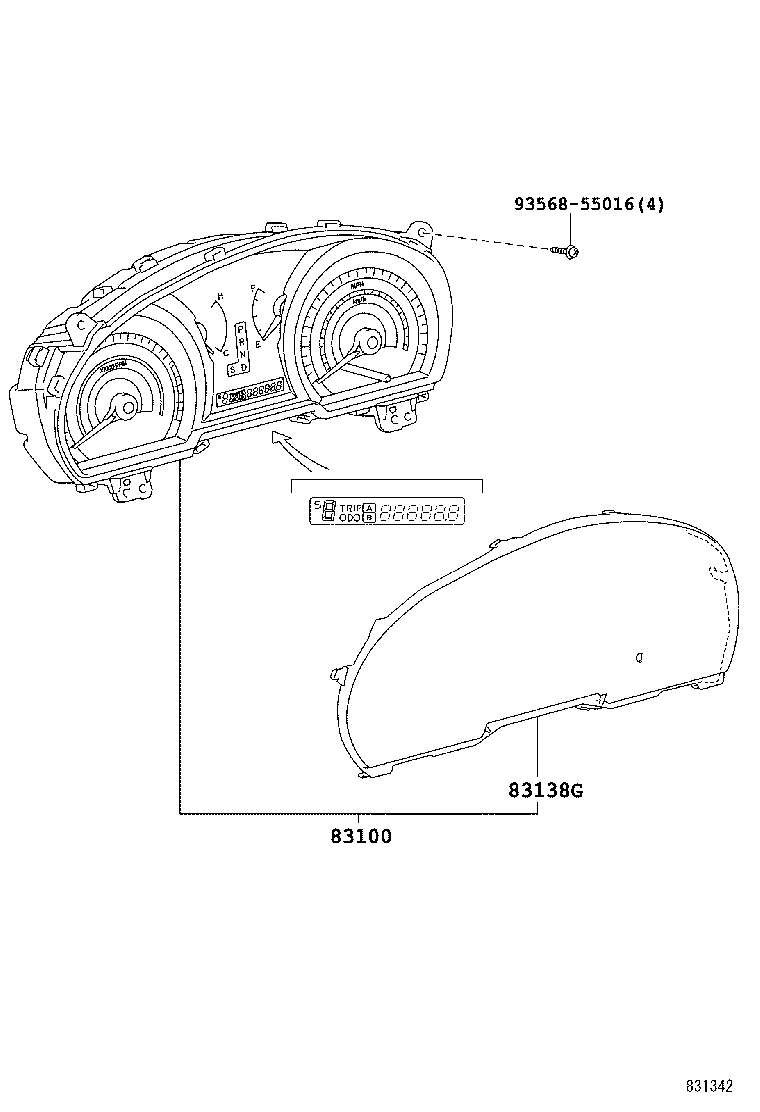

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 83100 83138G 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-48A20

GSU4#..GD,LIMD,SPO

 1
83800-48A40

GSU4#..GD,LIMD,SPO

CANADA SPEC

 1
83138G - GLASS, COMBINATION METER
83852-48A10

ASU40,GSU4#,MHU48

 1
Common parts
93568-55016

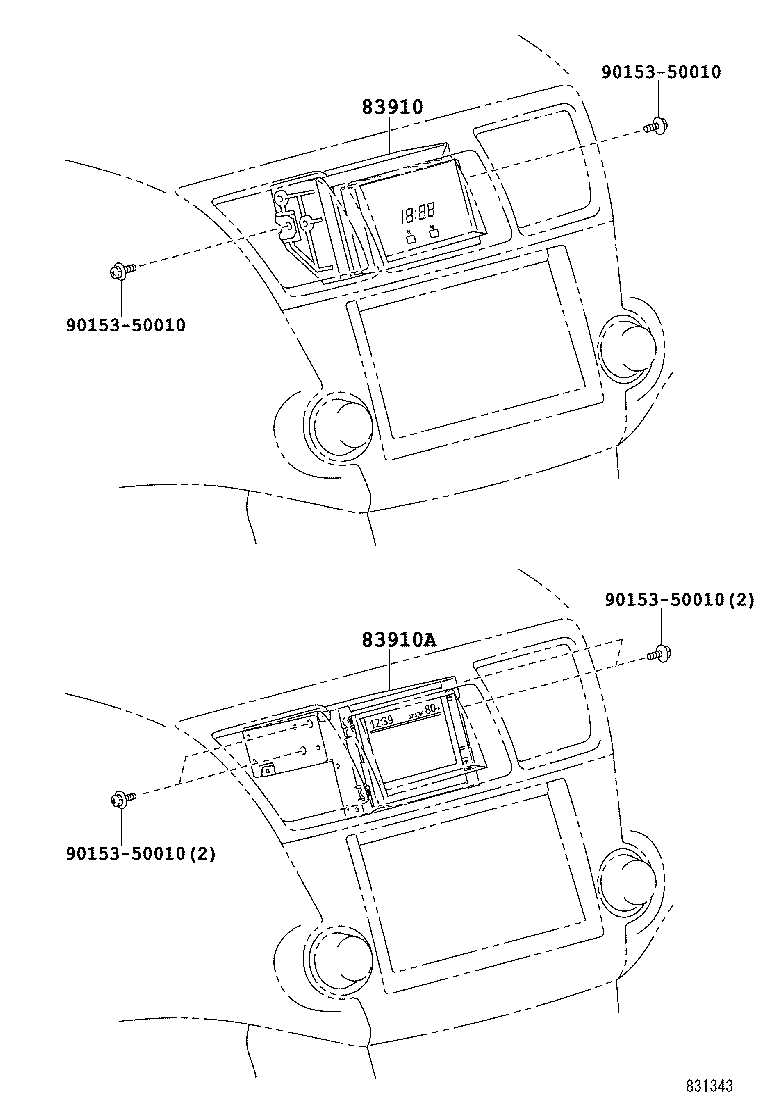

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

CLOCK

diagram 83910 83910A 9015350010 9015350010 9015350010 9015350010
Part # Description Qty Price
83910A - CLOCK ASSY, W/MULTI INFORMATION DISPLAY
83910-48020

MHU48;GSU4#..GD,LIMD,SPO

 1
Common parts
90153-50010
