GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

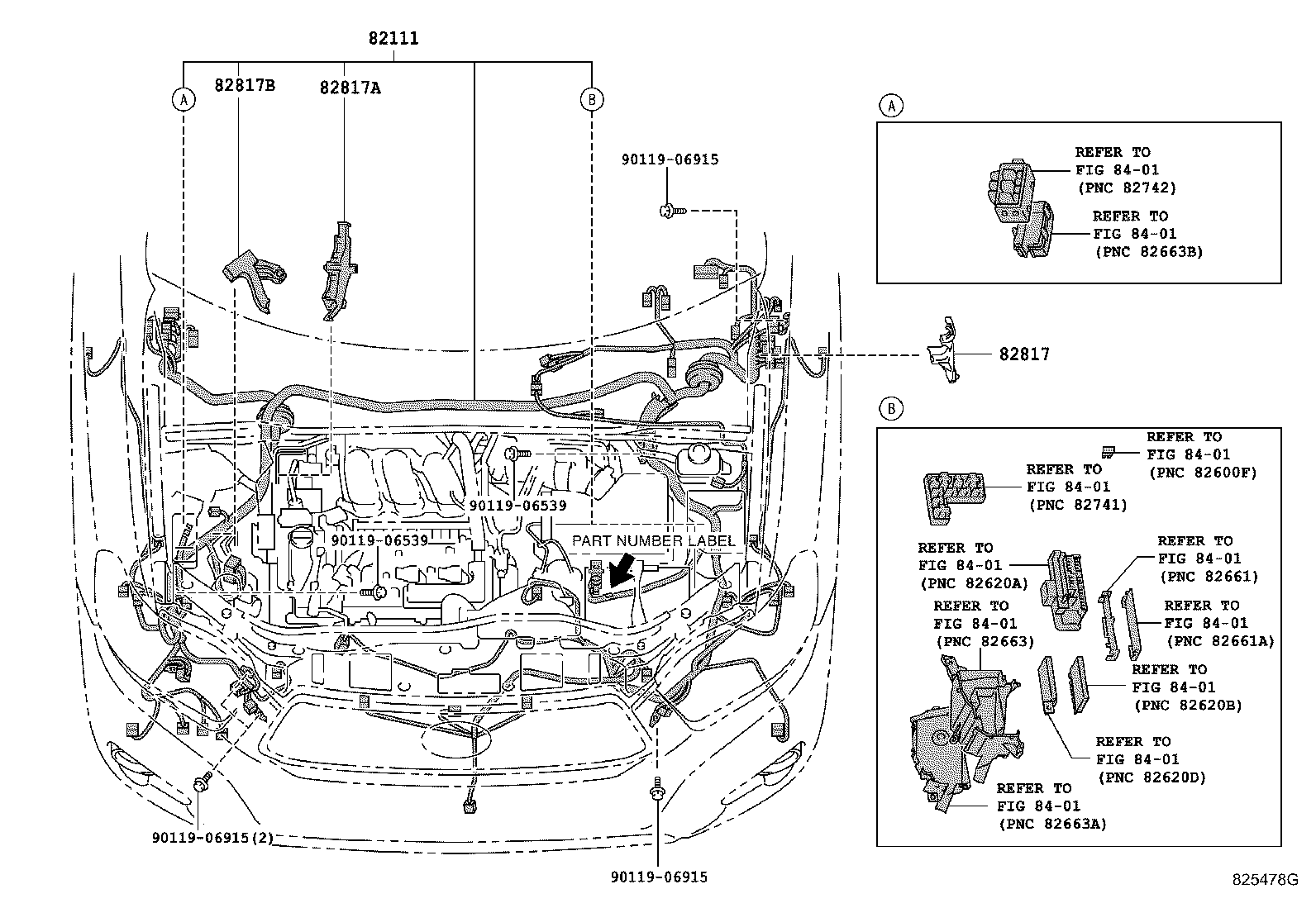

ILLUST NO. 1 OF10(0705- )ASU40,GSU4#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-48L30 |
GSU4#..GD,SPO |
1 | ||
| 82111-48L50 |
GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82111-48L50 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-48A80 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-48A90 |
ASU40,GSU4# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-48B70 |
ASU40,GSU4# |
1 | ||
| Common parts | ||||
| 90119-06539 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

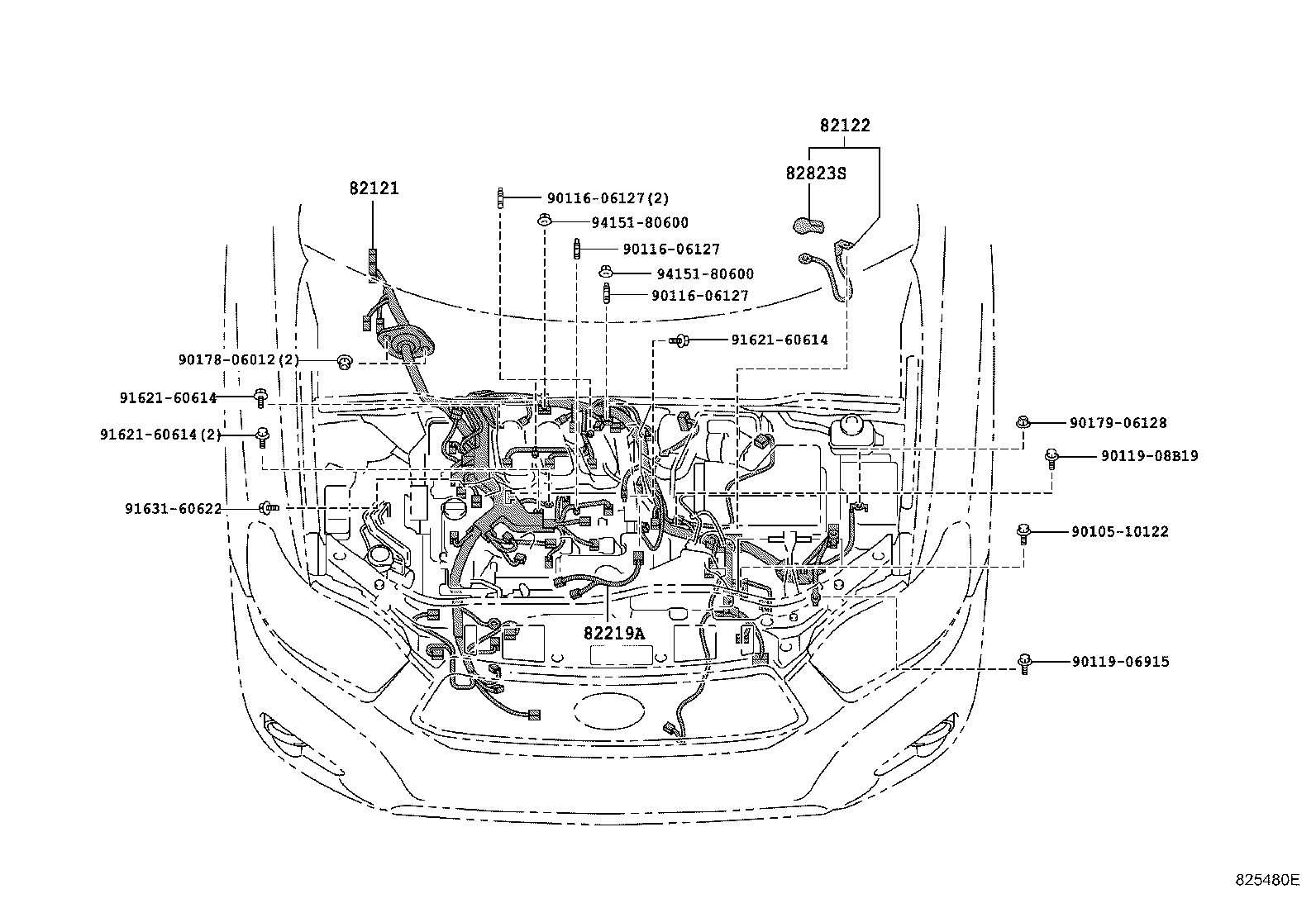

ILLUST NO. 2 OF10(0705- )GSU4#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-48380 |
GSU4# TOWING PACKAGE-5000LBS |
1 | ||
| 82121-48360 |
GSU4# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-48050 |
GSU4# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-41010 |
GSU4# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ASU40,GSU4# |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-08B19 | ||||
| 90178-06012 | ||||
| 90179-06128 | ||||
| 91621-60614 | ||||
| 91631-60622 | ||||
| 94151-80600 | ||||

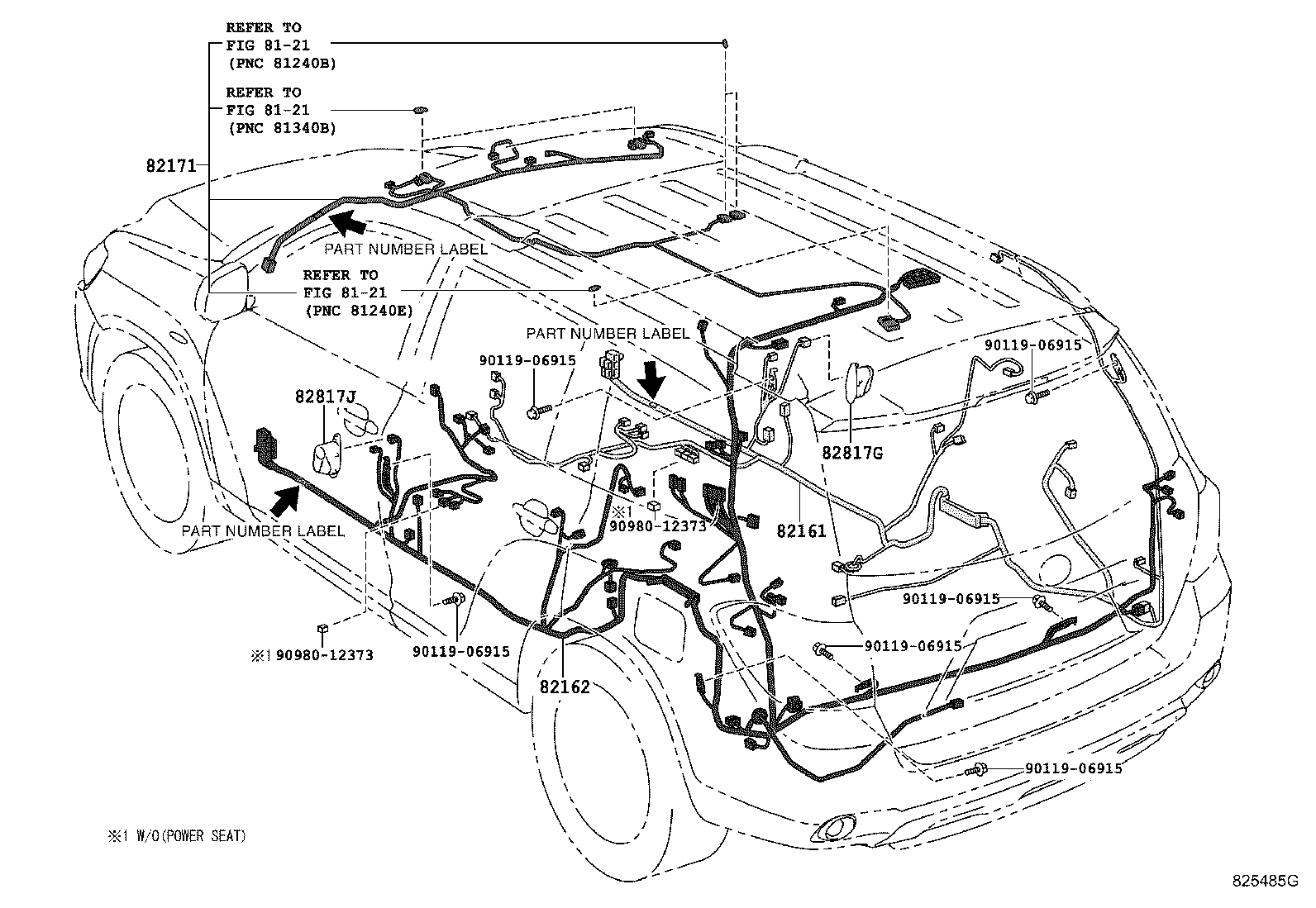

ILLUST NO. 5 OF10(0705- )ASU40,GSU4#
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-48P40 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER)&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82161-48P30 |
ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82161-48P10 |
GSU4#..GD,SPO |
1 | ||
| 82161-48P30 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82161-48P40 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER)&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82161-48P20 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82161-48P40 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER)&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82161-48P40 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER)&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82161-48P20 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-48C90 |
GSU4#..GD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 82162-48C80 |
GSU4#..GD,SPO |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48550 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82171-48550 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82171-48620 |
MHU48;GSU4#..GD,SPO |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-48B90 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-48B90 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90980-12373 | ||||
| Linked diagrams | ||||
| 8121 | ||||

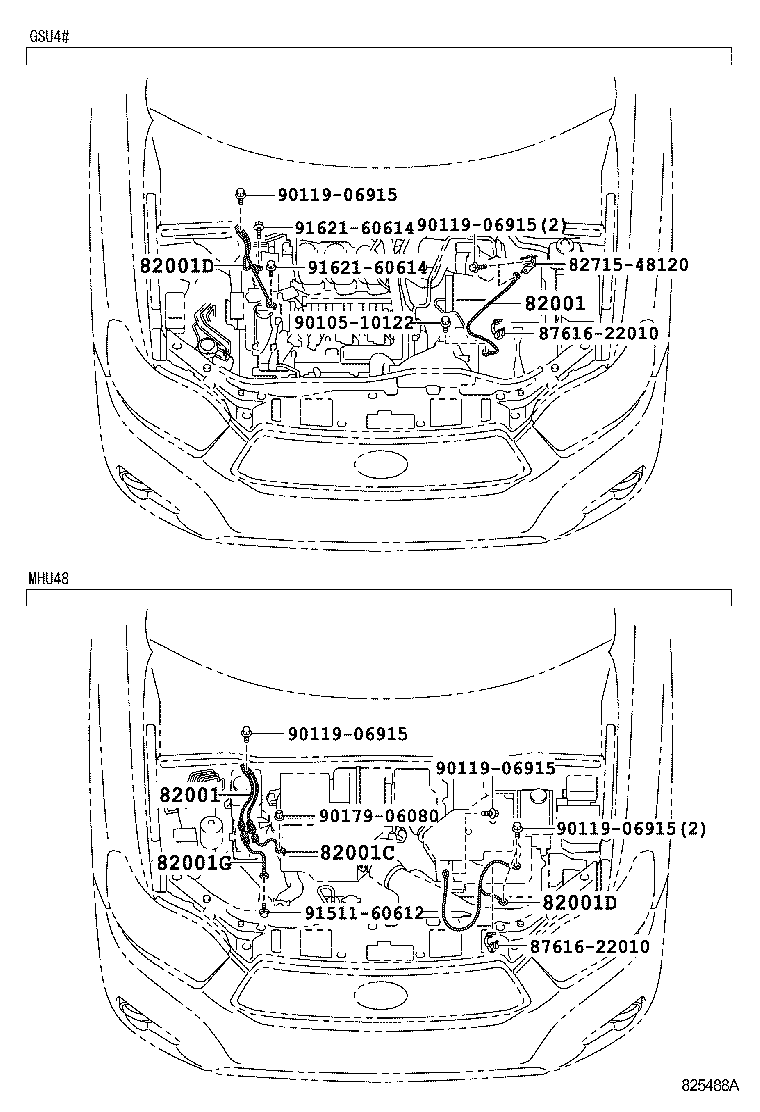

ILLUST NO. 9 OF10(0705-1008)GSU4#,MHU48
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07109 |
GSU4# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07109 |
GSU4# |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 82124-48070 |
GSU4# |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 82124-48070 |
GSU4# |
1 | ||
| Common parts | ||||
| 82715-48120 | ||||
| 87616-22010 | ||||
| 90105-10122 | ||||
| 90119-06915 | ||||
| 90179-06080 | ||||
| 91511-60612 | ||||
| 91621-60614 | ||||

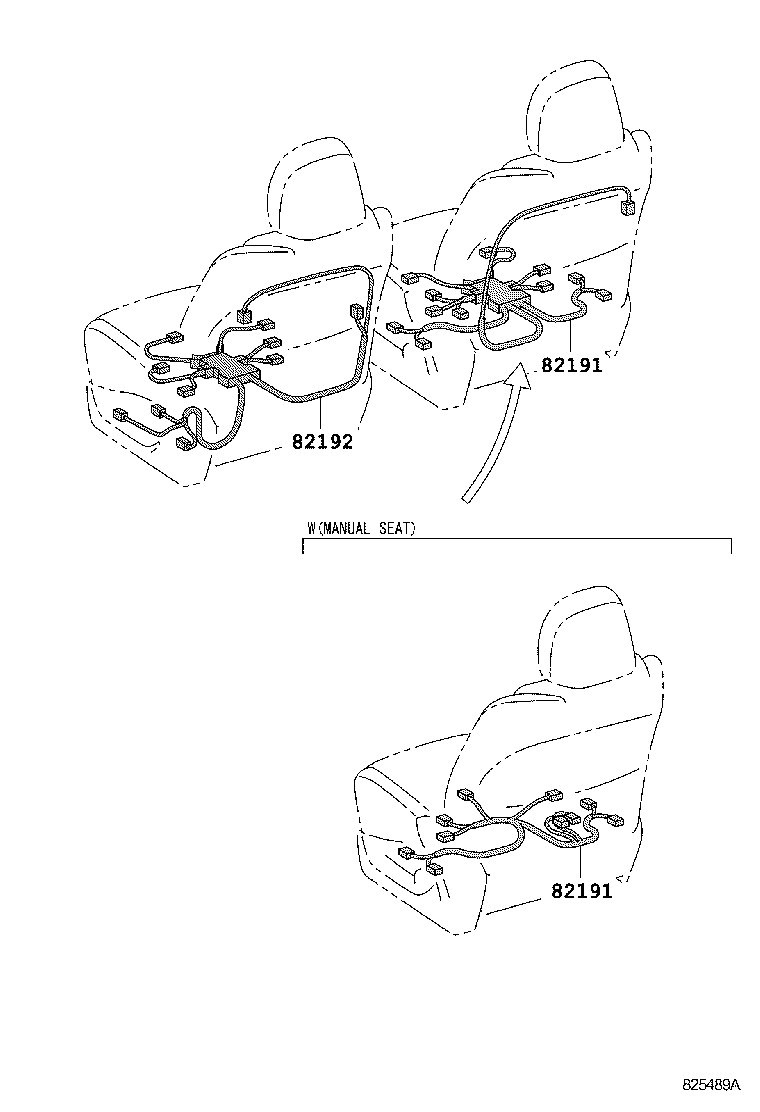

ILLUST NO. 7 OF10(0705- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-48390 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-48390 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-48280 |
MHU48;GSU4#..GD,SPO |
1 | ||

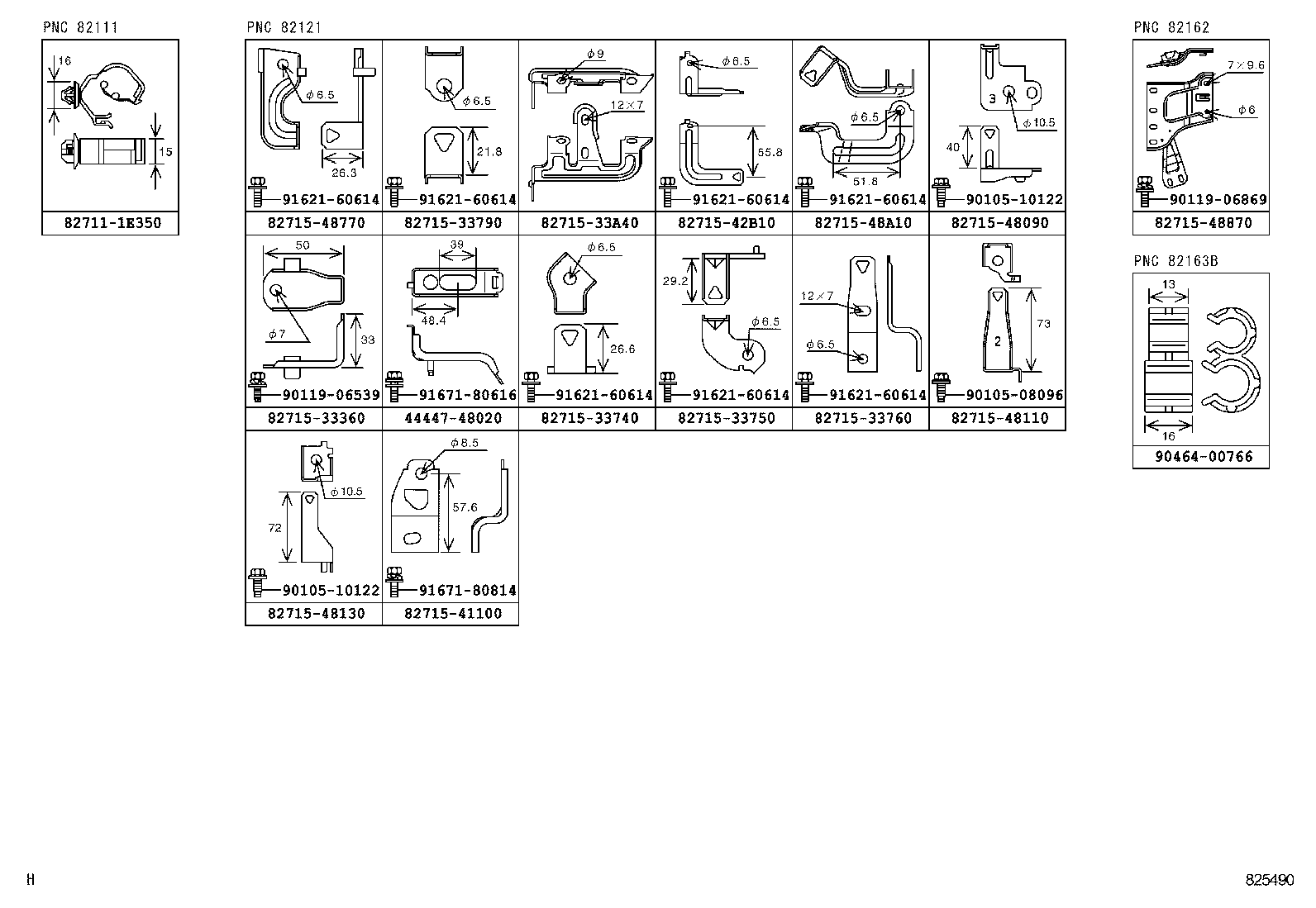

ILLUST NO. 8 OF10(0705- )GSU4#
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 44447-48020 | ||||
| 82711-1E350 | ||||
| 82715-33360 | ||||
| 82715-33740 | ||||
| 82715-33750 | ||||
| 82715-33760 | ||||
| 82715-33790 | ||||
| 82715-33A40 | ||||
| 82715-41100 | ||||
| 82715-42B10 | ||||
| 82715-48090 | ||||
| 82715-48110 | ||||
| 82715-48130 | ||||
| 82715-48770 | ||||
| 82715-48870 | ||||
| 82715-48A10 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06539 | ||||
| 90119-06869 | ||||
| 90464-00766 | ||||
| 91621-60614 | ||||
| 91671-80616 | ||||
| 91671-80814 | ||||

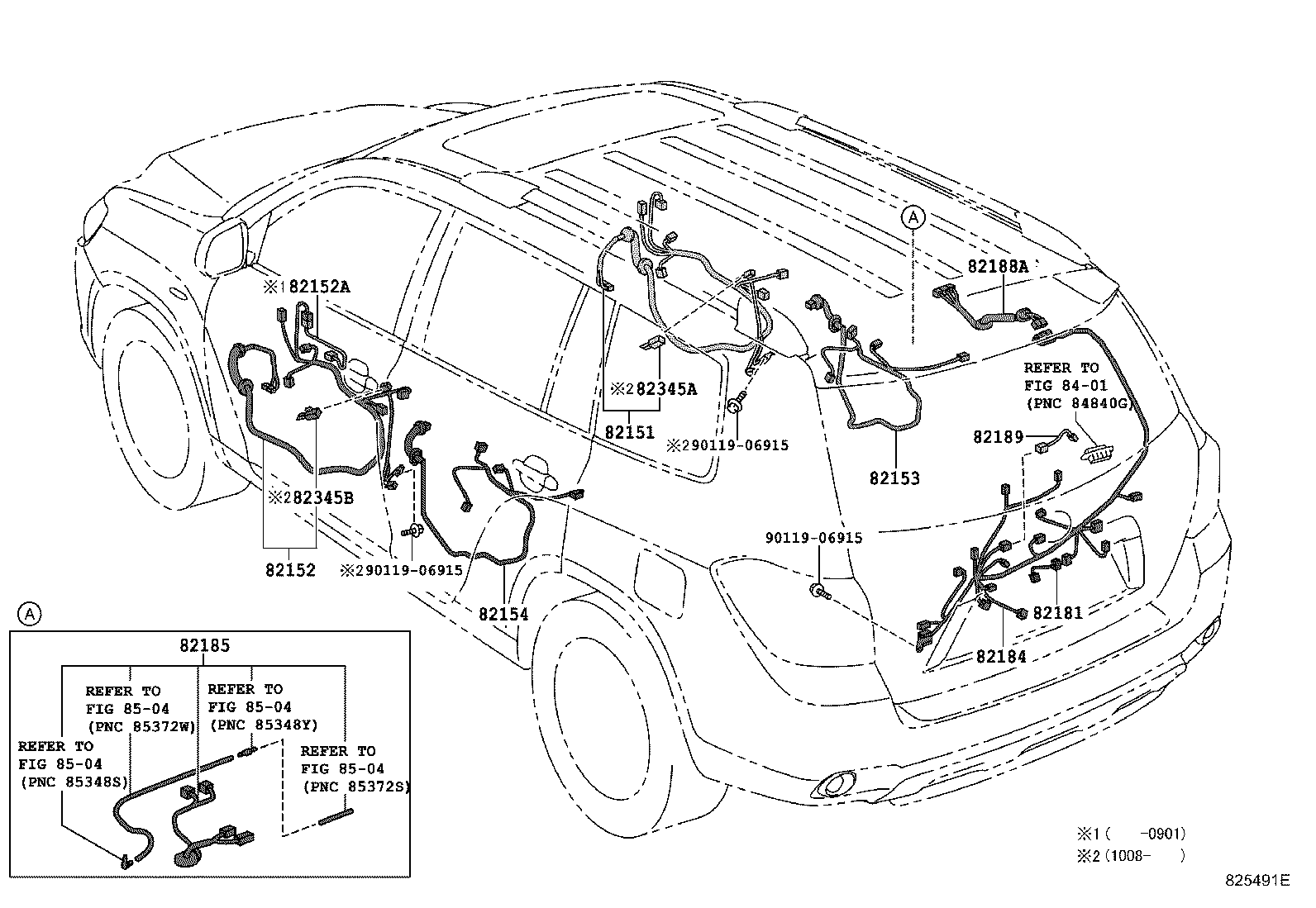

ILLUST NO. 4 OF10(0705- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-48320 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 82151-48370 |
ASU40,GSU4#..GD,SPO,STD WINDOSHIELD DEICER-WITH |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-48340 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 82152-48350 |
ASU40,GSU4#..GD,SPO,STD WINDOSHIELD DEICER-WITH |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-48140 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-48030 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-48370 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 82184-48350 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 82184-48360 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82184-48360 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82184-48380 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82184-48380 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-48030 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82184-48390 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8504 | ||||

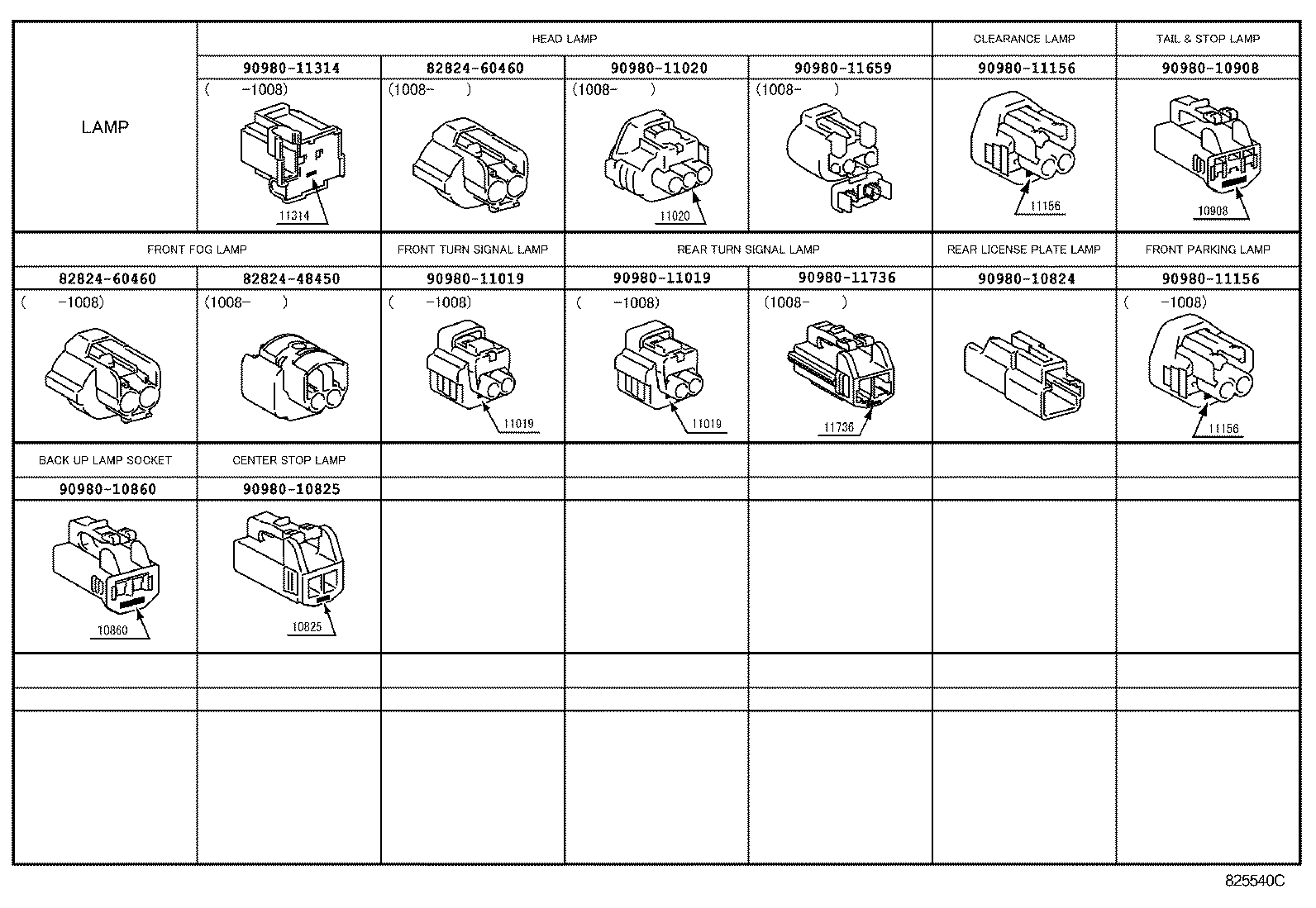

ILLUST NO.10 OF12(0705- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-48450 | ||||
| 82824-60460 | ||||
| 90980-10824 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10908 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-11736 | ||||

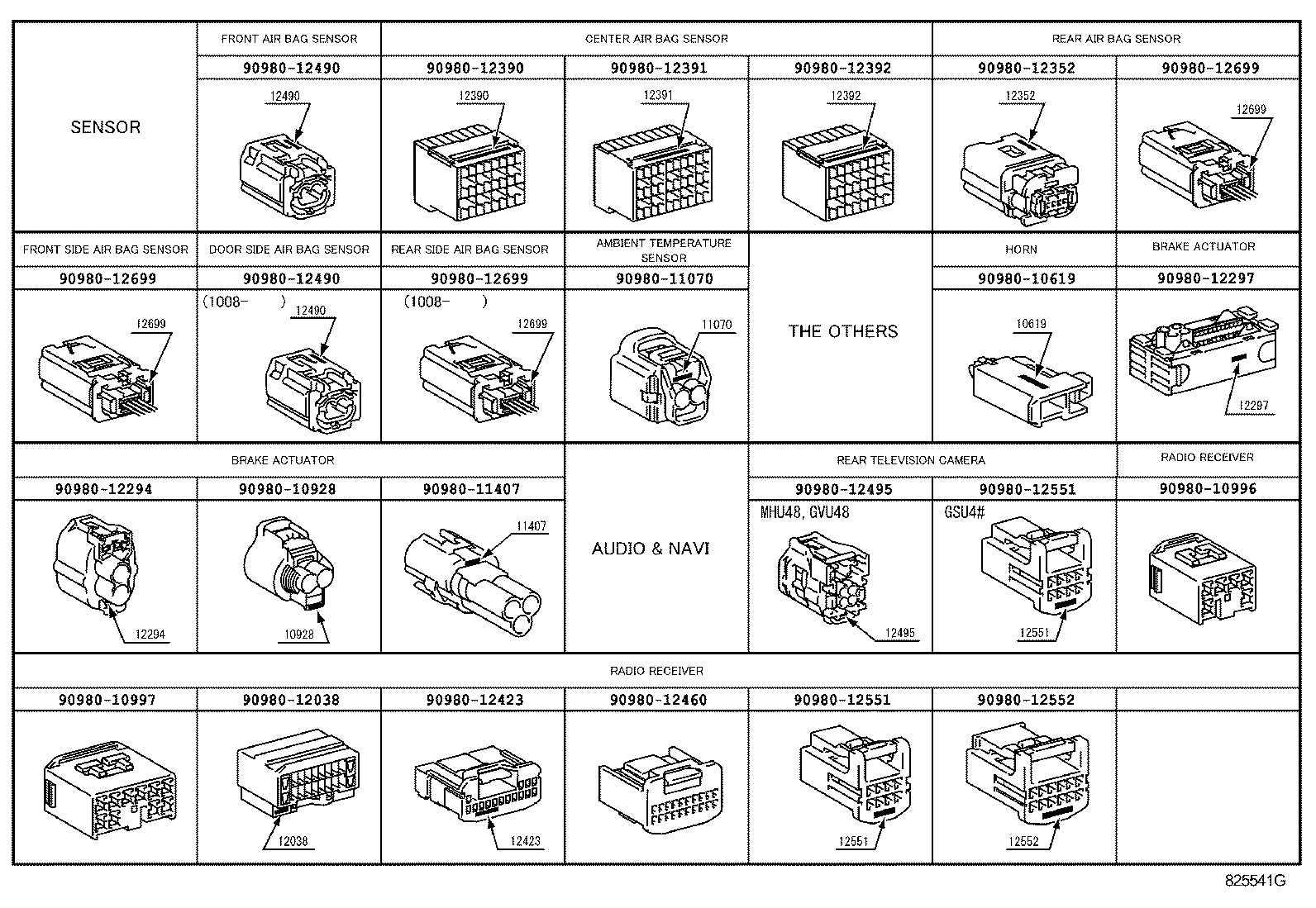

ILLUST NO.11 OF12(0705- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10928 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11407 | ||||
| 90980-12038 | ||||
| 90980-12294 | ||||
| 90980-12297 | ||||
| 90980-12352 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12423 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12699 | ||||

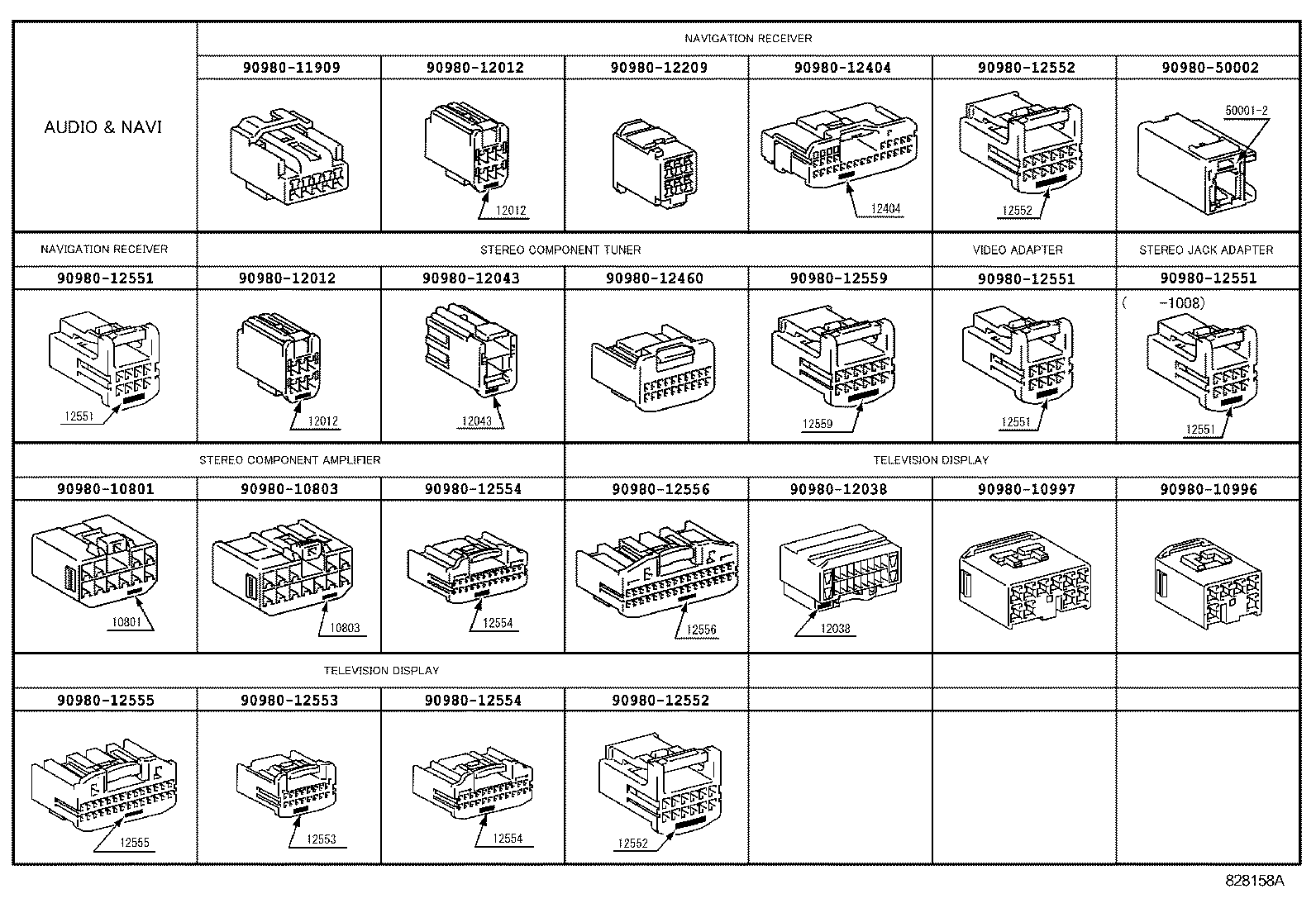

ILLUST NO.12 OF12(0705- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12043 | ||||
| 90980-12209 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12559 | ||||
| 90980-50002 | ||||

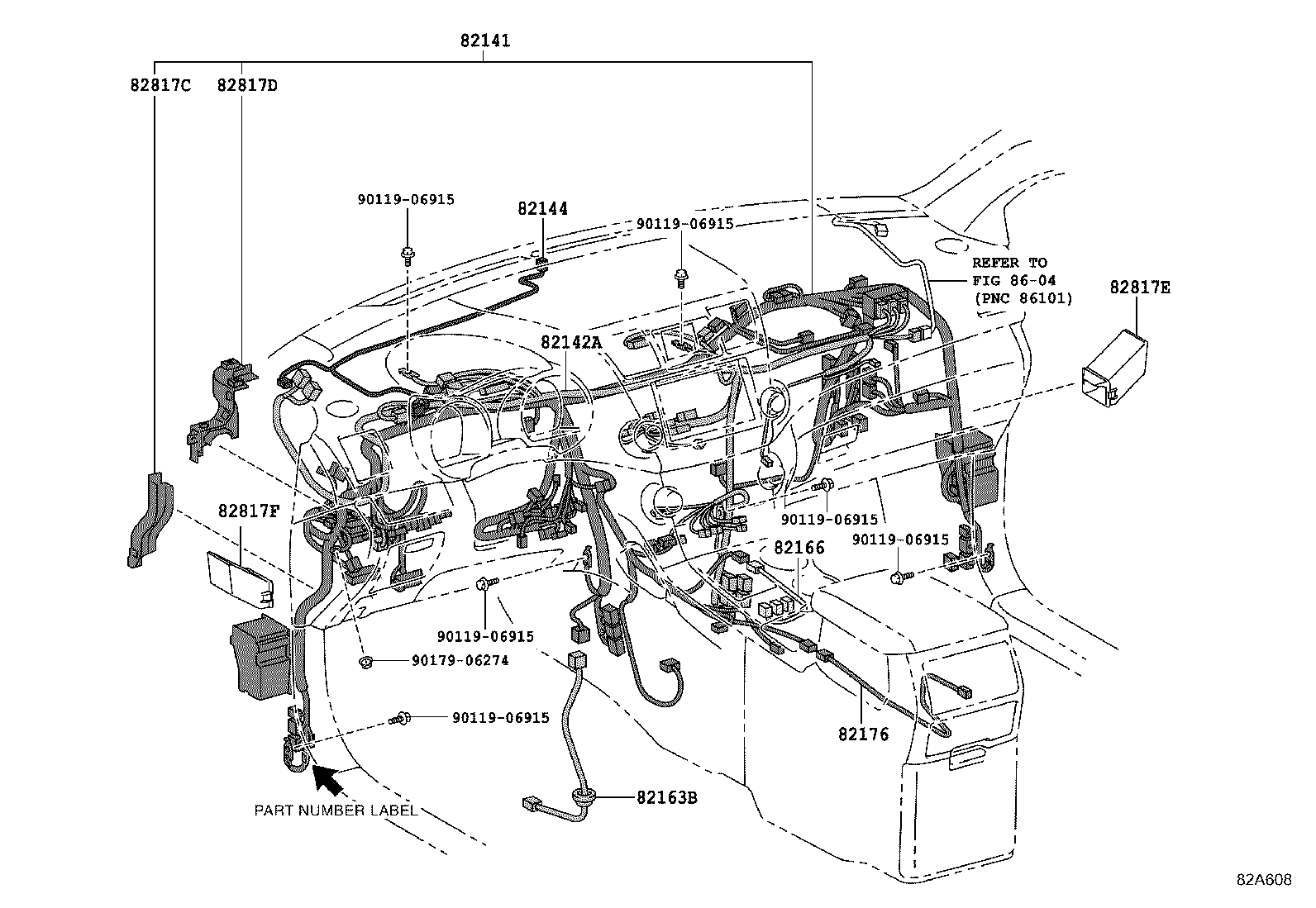

ILLUST NO. 3 OF10(0705- )ASU40,GSU4#
INSTRUMENT PANEL & CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-48R20 |
GSU4#..GD,SPO |
1 | ||
| 82141-48R30 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82141-48R30 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82141-48R31 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82141-48R31 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82141-48R21 |
GSU4#..GD,SPO |
1 | ||
| 82141-48R30 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82141-48R20 |
GSU4#..GD,SPO |
1 | ||
| 82141-48R30 |
GSU4#..GD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82141-48R31 |
GSU4#..GD,SPO CANADA SPEC&WINDOSHIELD DEICER-WITH&WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82141-48R21 |
GSU4#..GD,SPO CANADA SPEC&WINDOSHIELD DEICER-WITH |
1 | ||
| 82141-48R31 |
GSU4#..GD,SPO CANADA SPEC&WINDOSHIELD DEICER-WITH&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-48700 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 82142-48750 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82142-48790 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-48040 |
ASU40,GSU4#,MHU48..GD,STD |
1 | ||
| 82144-48060 |
ASU40,GSU4#,MHU48..GD,STD LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 82144-48080 |
GSU4#..GD;MHU48..STD AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48070 |
GSU4#..GD;MHU48..STD LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82144-48090 |
GSU4#..GD FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48090 |
GSU4#..GD;MHU48..STD FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48100 |
GSU4#..GD LIGHT CONTROL SYSTEM-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48110 |
GSU4#..GD LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48100 |
GSU4#..GD;MHU48..STD LIGHT CONTROL SYSTEM-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48080 |
GSU4#..GD AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48110 |
GSU4#..GD;MHU48..STD LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 82144-48050 |
GSU4#..GD;MHU48..STD FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-48010 |
ASU40,GSU4# |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-48020 |
MHU48;GSU4#..GD,SPO CANADA SPEC&WINDOSHIELD DEICER-WITH&WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82176-48020 |
MHU48;GSU4#..GD,LIMD,SPO CANADA SPEC&WINDOSHIELD DEICER-WITH&WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82176-48020 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER) |
1 | ||
| 82176-48020 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-48B10 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-48B20 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-48A20 |
ASU40,GSU4#,MHU48 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-48A20 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
