GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

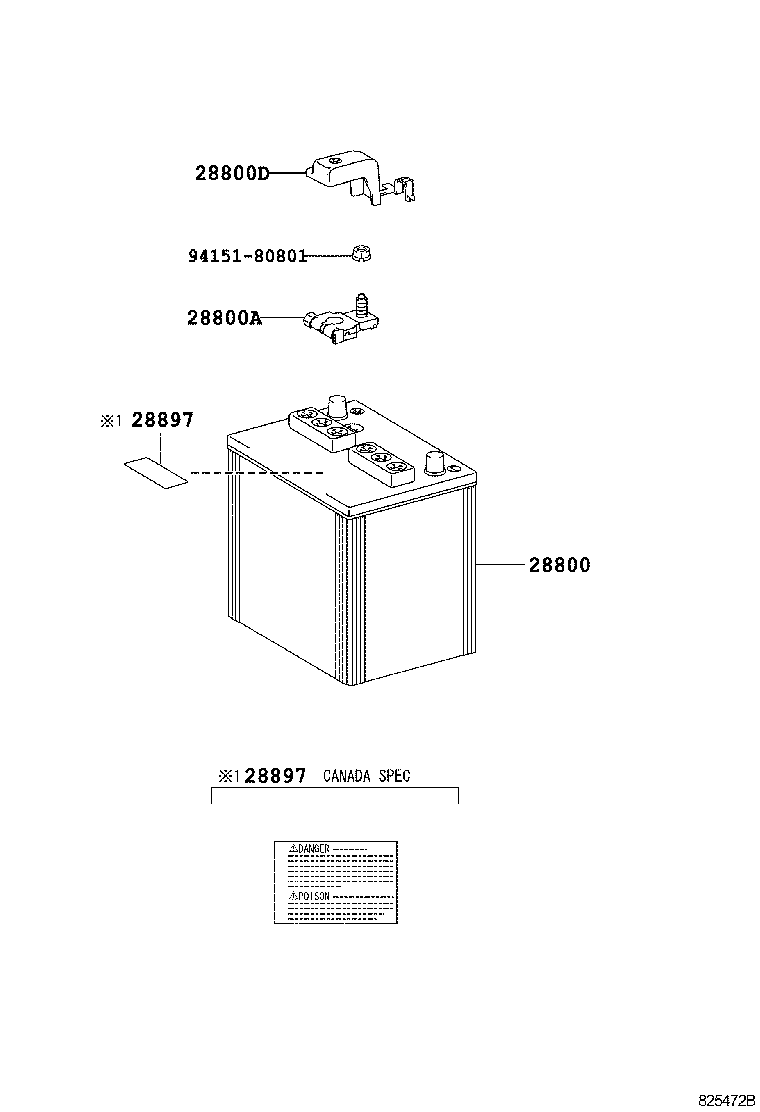

ILLUST NO. 1 OF 3(0705- )ASU40,GSU4#

Click highlighted areas on diagram

12V BATTERY

diagram 28800 28800A 28800D 28897 28897 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-64132

1ARFE,2GRFE..ASU40,GSU4#

80D26L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1ARFE,2GRFE..ASU40,GSU4#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-48020

1ARFE,2GRFE..ASU40,GSU4#

 1
28897 - PLATE, BATTERY CAUTION
28897-46020

1ARFE,2GRFE..ASU40,GSU4#

CANADA SPEC

 1
28897 - PLATE, BATTERY CAUTION
28897-46020

1ARFE,2GRFE..ASU40,GSU4#

CANADA SPEC

 1
Common parts
94151-80801
