GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

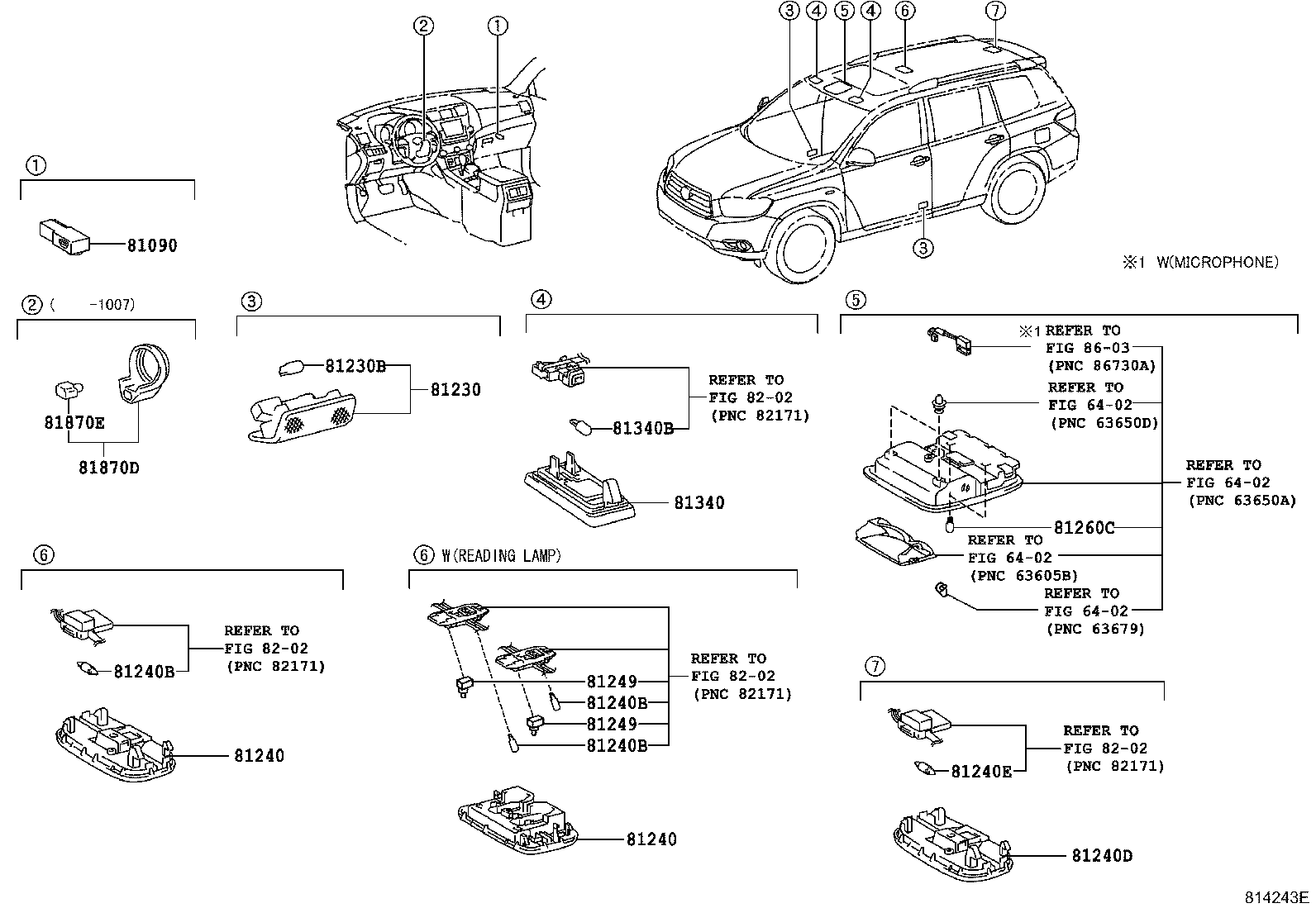

Click highlighted areas on diagram

diagram 6402 6402 6402 6402 81090 81230 81230B 81240 81240 81240B 81240B 81240B 81240D 81240E 81249 81249 81260C 81340 81340B 81870D 81870E 8202 8202 8202 8202 8603
Part # Description Qty Price
81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080-48010

ASU40,GSU4#,MHU48

 1
81230 - LAMP ASSY, COURTESY
81230-48020

ASU40,GSU4#,MHU48

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ASU40,GSU4#,MHU48

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81260-48290E0

MHU48;GSU4#..GD,LIMD,SPO

SAND BEIGE,TRIM4#

 1
81260-48290B0

GSU4#..GD,LIMD,SPO

GRAY,TRIM1#,2#

 1
81240 - LAMP ASSY, ROOM, NO.1
81260-48290E0

MHU48;GSU4#..GD,LIMD,SPO

SAND BEIGE,TRIM4#

 1
81260-48290B0

GSU4#..GD,LIMD,SPO

GRAY,TRIM1#,2#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12050

MHU48;GSU4#..GD,LIMD,SPO

12V 5W

 2
81240B - BULB, ROOM LAMP, NO.1
99132-12050

MHU48;GSU4#..GD,LIMD,SPO

12V 5W

 2
81240B - BULB, ROOM LAMP, NO.1
99132-12050

MHU48;GSU4#..GD,LIMD,SPO

12V 5W

 2
81240D - LAMP ASSY, ROOM, NO.2
81240-60060E0

ASU40,GSU4#,MHU48

SAND BEIGE,TRIM4#

 1
81240-60060B1

GSU4#..GD,LIMD,SPO

GRAY,TRIM1#,2#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

ASU40,GSU4#,MHU48

12V 8W

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

ASU40,GSU4#,MHU48

12V 5W

 2
81340 - LAMP ASSY, VANITY
81340-30100B1

GSU4#..GD,LIMD,SPO

GRAY,TRIM1#,2#

 2
81340-30100E2

MHU48;GSU4#..GD,LIMD,SPO

SAND BEIGE,TRIM4#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

MHU48;GSU4#..GD,LIMD,SPO

12V 8W

 2
Linked diagrams
6402
8202
8603
