GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

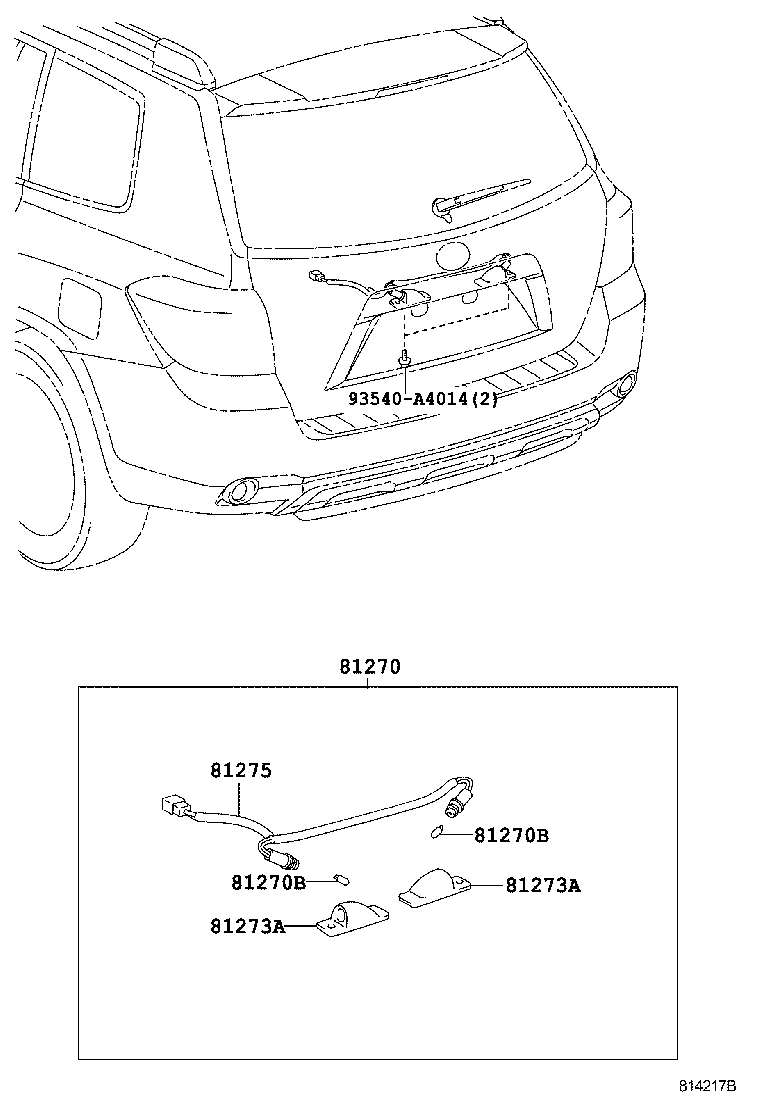

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81273A 81273A 81275 93540A4014
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-48011

ASU40,GSU4#,MHU48

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ASU40,GSU4#,MHU48

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ASU40,GSU4#,MHU48

12V 5W

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

ASU40,GSU4#,MHU48

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

ASU40,GSU4#,MHU48

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-48010

ASU40,GSU4#,MHU48

 1
Common parts
93540-A4014
