GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1007)ASU40,GSU4# ; (0708-1008)MHU48

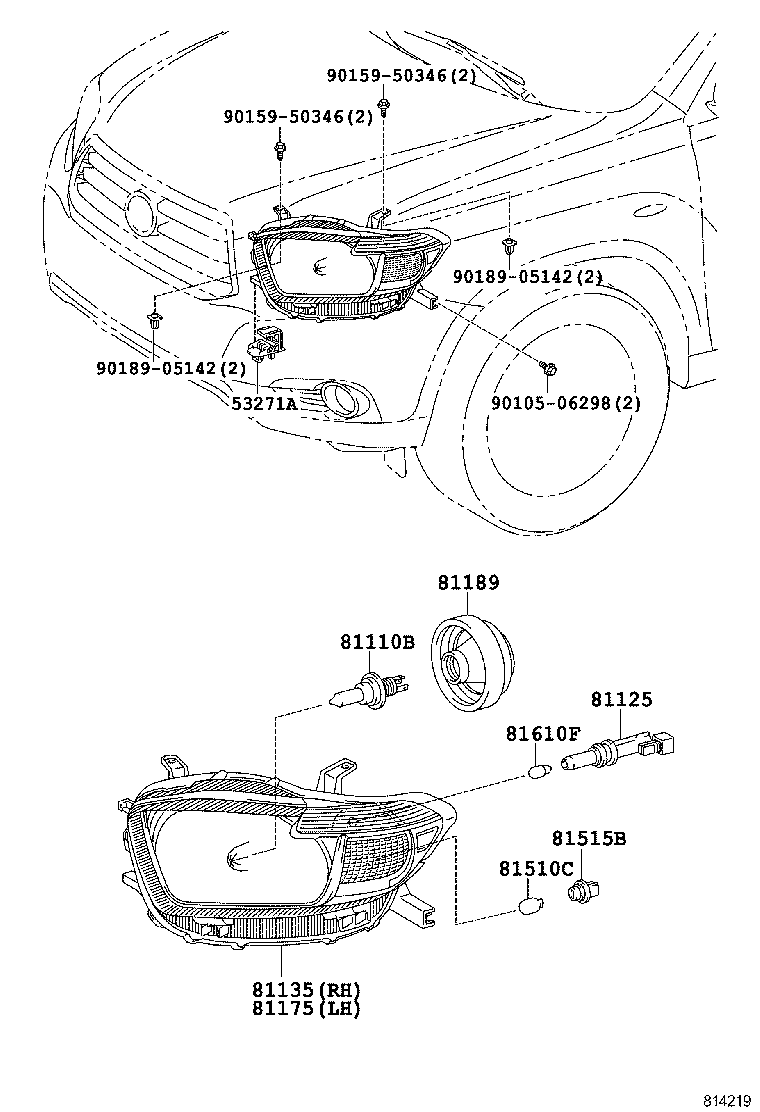

Click highlighted areas on diagram

diagram 53271A 81110B 81125 81135 81175 81189 81510C 81515B 81610F 9010506298 9015950346 9015950346 9018905142 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

ASU40,GSU4#,MHU48

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

ASU40,GSU4#

12V 60/55W,HALOGEN

 2
81125 - CORD, HEADLAMP
81125-48470

ASU40,GSU4#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-48470

ASU40,GSU4#..GD,LIMD,STD

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-48460

ASU40,GSU4#..GD,LIMD,STD

 1
81189 - COVER, HEADLAMP
90075-65002

ASU40,GSU4#

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ASU40,GSU4#

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ASU40,GSU4#

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-15012

ASU40,GSU4#

12V 5W

 2
Common parts
90105-06298
90159-50346
90189-05142
