GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
ILLUST NO. 1 OF 2(0705-1007)GSU4#

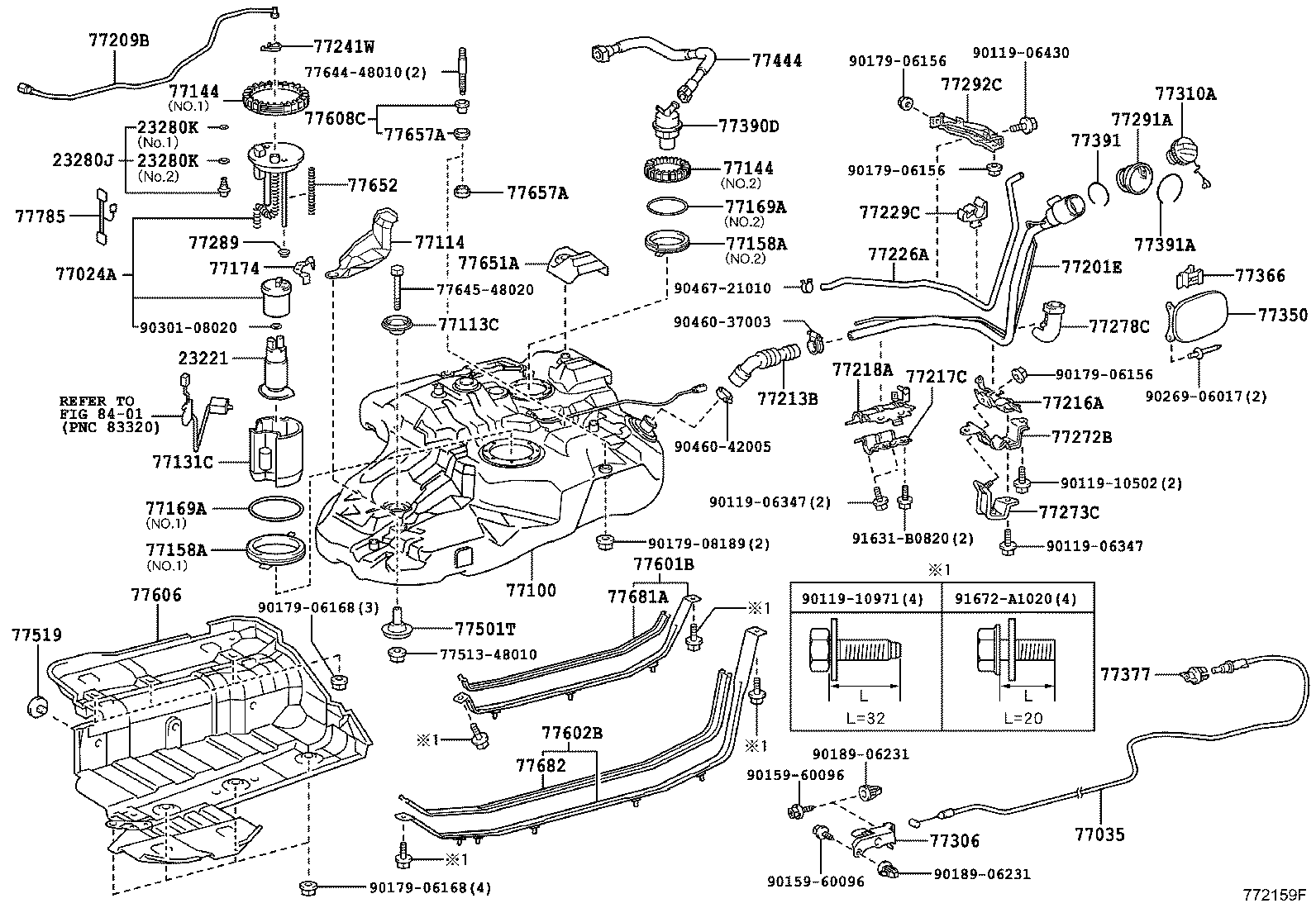

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-31180 |
2GRFE..GSU4# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ARFE,2GRFE..ASU40,GSU4# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2GRFE..GSU4# NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
2GRFE..GSU4# NO.1:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2GRFE..GSU4# NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
2GRFE..GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48040 |
GSU4# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-48070 |
ASU40,GSU4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48130 |
ASU40,GSU4# |
1 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77103-48021 |
ASU40,GSU4# |
1 | ||
| 77114 - PLATE, FUEL TANK SIDE, REAR | ||||
| 77114-48010 |
ASU40,GSU4# |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-48031 |
GSU4# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-48020 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77144-48010 |
ASU40,GSU4# NO.2:REFER ILLUST. |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-48020 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77144-48010 |
ASU40,GSU4# NO.2:REFER ILLUST. |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-48010 |
ASU40,GSU4# NO.2:REFER ILLUST. |
1 | ||
| 77158-48020 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-48010 |
ASU40,GSU4# NO.2:REFER ILLUST. |
1 | ||
| 77158-48020 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48030 |
ASU40,GSU4# NO.2:REFER ILLUST. |
1 | ||
| 77169-48040 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77169-48060 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48030 |
ASU40,GSU4# NO.2:REFER ILLUST. |
1 | ||
| 77169-48040 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77169-48060 |
ASU40,GSU4# NO.1:REFER ILLUST. |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-22010 |
GSU4# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-48210 |
ASU40,GSU4# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-48060 |
ASU40,GSU4# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-48060 |
ASU40,GSU4# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48060 |
ASU40,GSU4# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48070 |
ASU40,GSU4# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77273C - SUPPORT, BREATHER TUBE, NO.2 | ||||
| 77273-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
ASU40,GSU4# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-48040 |
ASU40,GSU4# |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-48020 |
ASU40,GSU4# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52040 |
ASU40,GSU4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
GSU4#,MHU48 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK | ||||
| 77390-48022 |
ASU40,GSU4# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-48020 |
ASU40,GSU4# |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-48011 |
ASU40,GSU4# |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-48010 |
ASU40,GSU4# |
3 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48070 |
ASU40,GSU4# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48060 |
ASU40,GSU4# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48060 |
ASU40,GSU4# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
ASU40,GSU4# RH |
1 | ||
| 77608-48020 |
ASU40,GSU4# LH |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-48010 |
ASU40,GSU4# |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-48030 |
ASU40,GSU4# |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
ASU40,GSU4# RH |
2 | ||
| 77655-48020 |
ASU40,GSU4# LH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
ASU40,GSU4# RH |
2 | ||
| 77655-48020 |
ASU40,GSU4# LH |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-48050 |
ASU40,GSU4# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-48050 |
ASU40,GSU4# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48020 |
ASU40,GSU4# |
1 | ||
| Common parts | ||||
| 77513-48010 | ||||
| 77644-48010 | ||||
| 77645-48020 | ||||
| 90119-06347 | ||||
| 90119-06430 | ||||
| 90119-10502 | ||||
| 90119-10971 | ||||
| 90159-60096 | ||||
| 90179-06156 | ||||
| 90179-06168 | ||||
| 90179-08189 | ||||
| 90189-06231 | ||||
| 90269-06017 | ||||
| 90301-08020 | ||||
| 90460-37003 | ||||
| 90460-42005 | ||||
| 90467-21010 | ||||
| 91631-B0820 | ||||
| 91672-A1020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0705-1007)ASU40,GSU4#

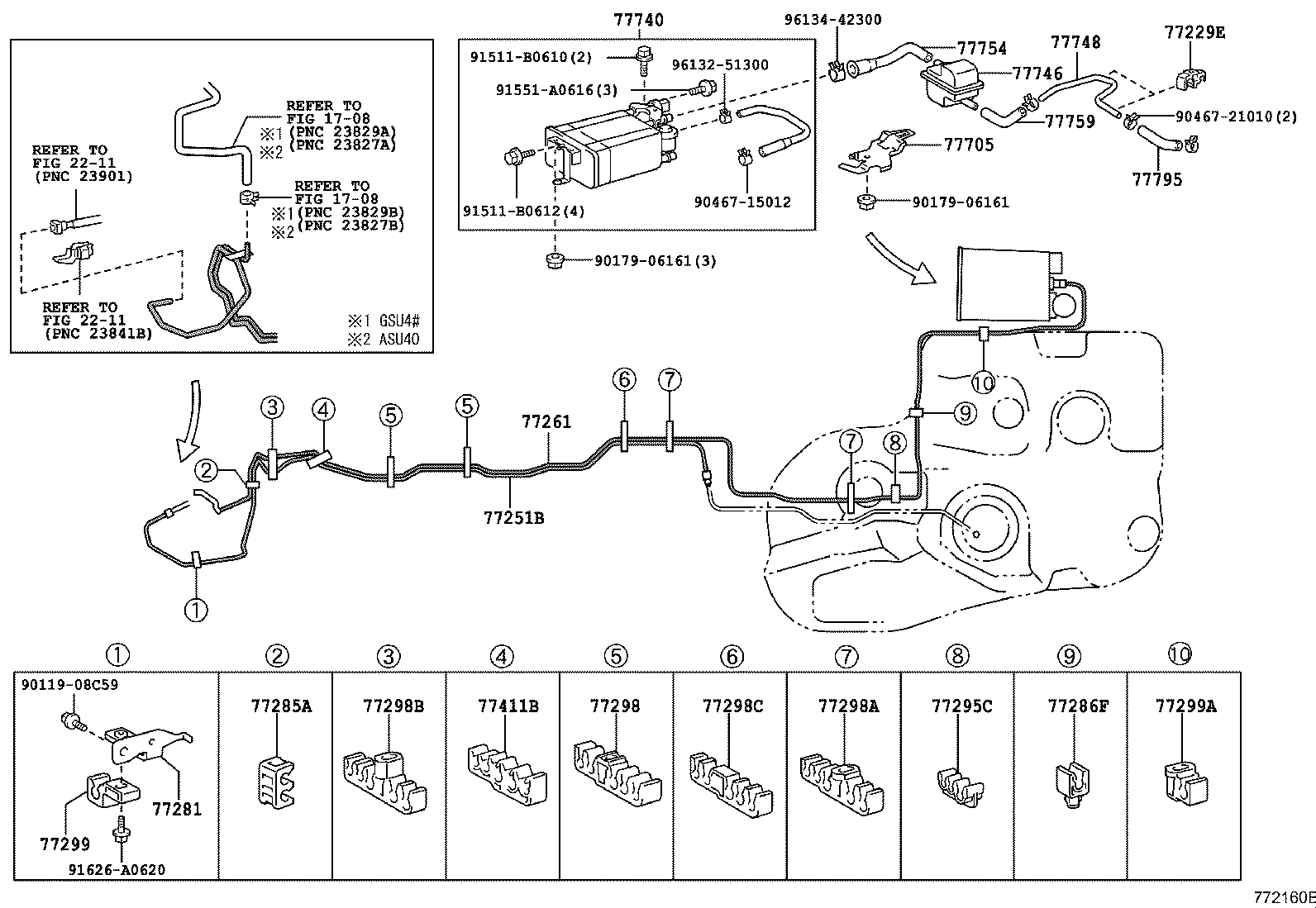

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48180 |
GSU4# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48160 |
ASU40,GSU4# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-48010 |
ASU40,GSU4# |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ASU40,GSU4# |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48040 |
ASU40,GSU4# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-42030 |
ASU40,GSU4# |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-48050 |
ASU40,GSU4#,MHU48 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48020 |
ASU40,GSU4# |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
ASU40,GSU4# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48040 |
ASU40,GSU4# |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-48010 |
ASU40,GSU4# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48121 |
ASU40,GSU4# |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77746-48010 |
ASU40,GSU4# |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-48010 |
ASU40,GSU4# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48050 |
ASU40,GSU4# |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-48010 |
ASU40,GSU4# |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-48010 |
ASU40,GSU4# |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90179-06161 | ||||
| 90467-15012 | ||||
| 90467-21010 | ||||
| 91511-B0610 | ||||
| 91511-B0612 | ||||
| 91551-A0616 | ||||
| 91626-A0620 | ||||
| 96132-51300 | ||||
| 96134-42300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
