GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1008)

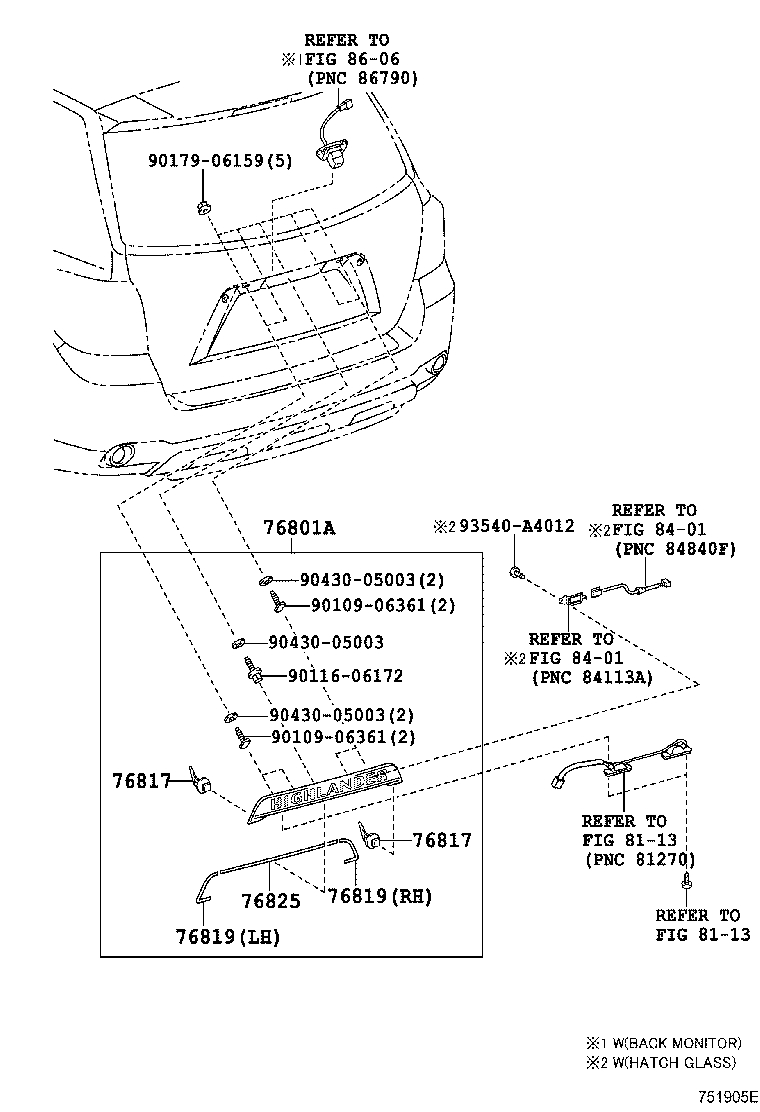

Click highlighted areas on diagram

diagram 76801A 76817 76817 76819 76819 76825 8113 8113 8401 8401 8606 9010906361 9010906361 9011606172 9017906159 9043005003 9043005003 9043005003 93540A4012
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-48901

GSU4#..GD

NO PAINT REQ.

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

GSU4#,MHU48

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-50010

GSU4#,MHU48

 2
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-48010

ASU40,GSU4#,MHU48

RH

 1
76829-48010

ASU40,GSU4#,MHU48

LH

 1
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-48010

ASU40,GSU4#,MHU48

RH

 1
76829-48010

ASU40,GSU4#,MHU48

LH

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-48040

ASU40,GSU4#,MHU48

 1
Common parts
90109-06361
90116-06172
90179-06159
90430-05003
93540-A4012
Linked diagrams
8113
8401
8606
