GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

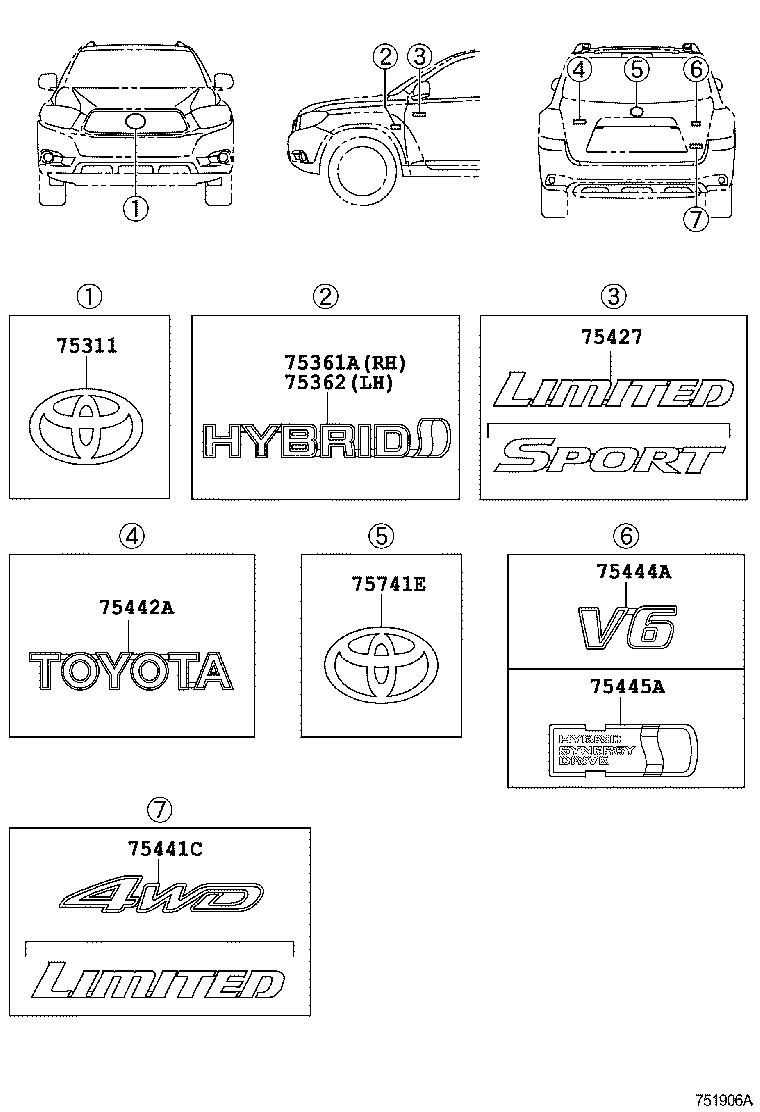

Click highlighted areas on diagram

diagram 75311 75361A 75362 75427 75441C 75442A 75444A 75445A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-02100

ASU40,GSU4#,MHU48

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-48090

ASU40,GSU4#,MHU48

TOYOTA

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-48090

GSU4#

V6

 1
75741E - EMBLEM, SYMBOL
90975-02063

ASU40,GSU4#,MHU48

 1
