GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

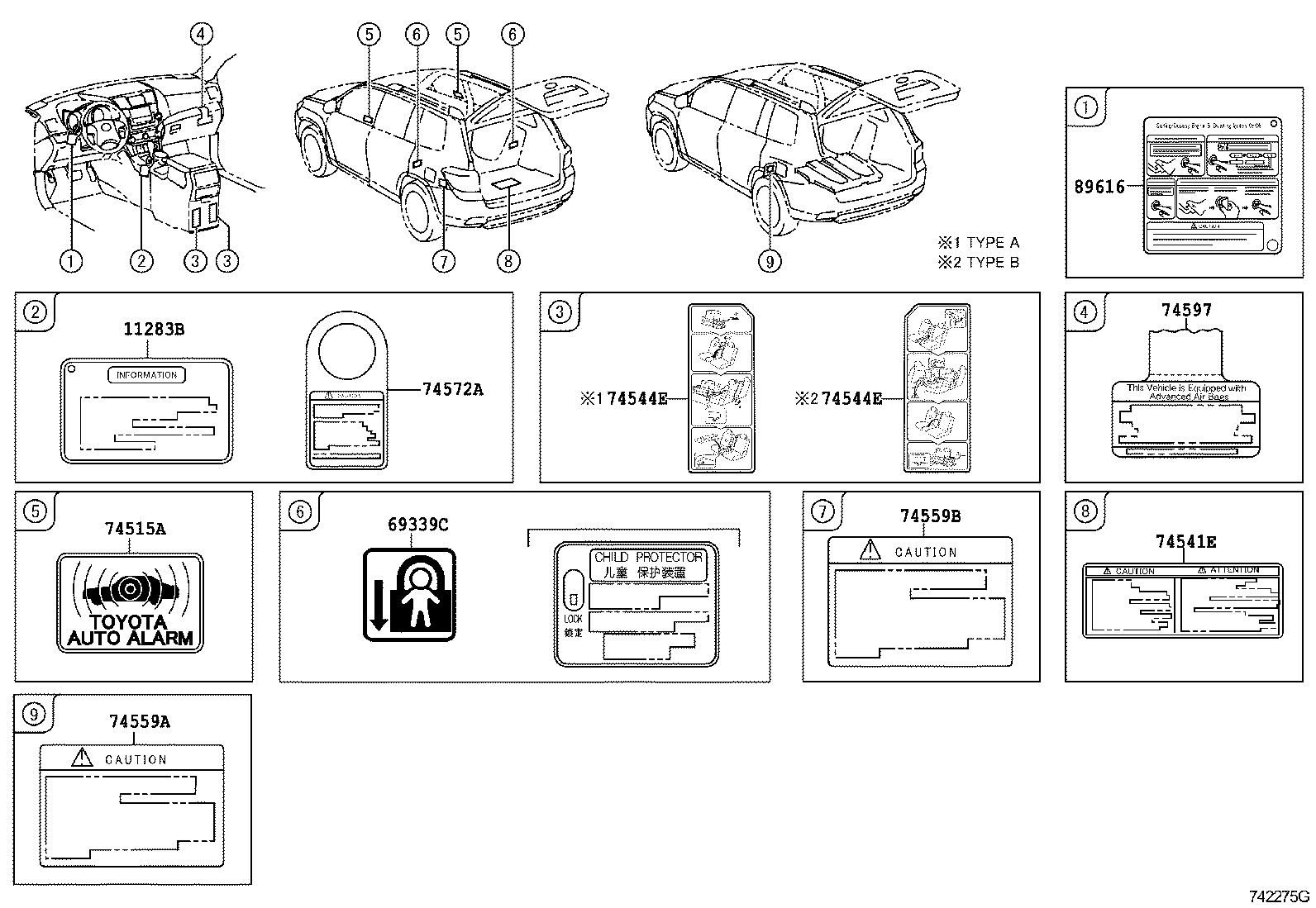

ILLUST NO. 2 OF 3(0705- )

Click highlighted areas on diagram

diagram 11283B 69339C 74515A 74541E 74544E 74544E 74559A 74559B 74572A 74597 89616
Part # Description Qty Price
11283B - LABEL, LEAK DETECTION PUMP INFORMATION
11294-28010

1ARFE,2GRFE,3MZFE..ASU40,GSU4#,MHU48

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-48010

ASU40,GSU4#,MHU48

 2
74515A - PLATE, THEFT WARNING
74515-33020

MHU48;ASU40,GSU4#..GD,SPO,STD

ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-14010

ASU40,GSU4#,MHU48

 1
74544E - LABEL, REAR NO.2 SEAT INFORMATION
74554-48030

ASU40,GSU4#,MHU48

TYPE B:REFER ILLUST.

 1
74554-48020

ASU40,GSU4#,MHU48

TYPE A:REFER ILLUST.

 1
74544E - LABEL, REAR NO.2 SEAT INFORMATION
74554-48030

ASU40,GSU4#,MHU48

TYPE B:REFER ILLUST.

 1
74554-48020

ASU40,GSU4#,MHU48

TYPE A:REFER ILLUST.

 1
74597 - LABEL, DRIVER & PASSENGER AIR BAG CAUTION
74599-48020

ASU40,GSU4#,MHU48

 1

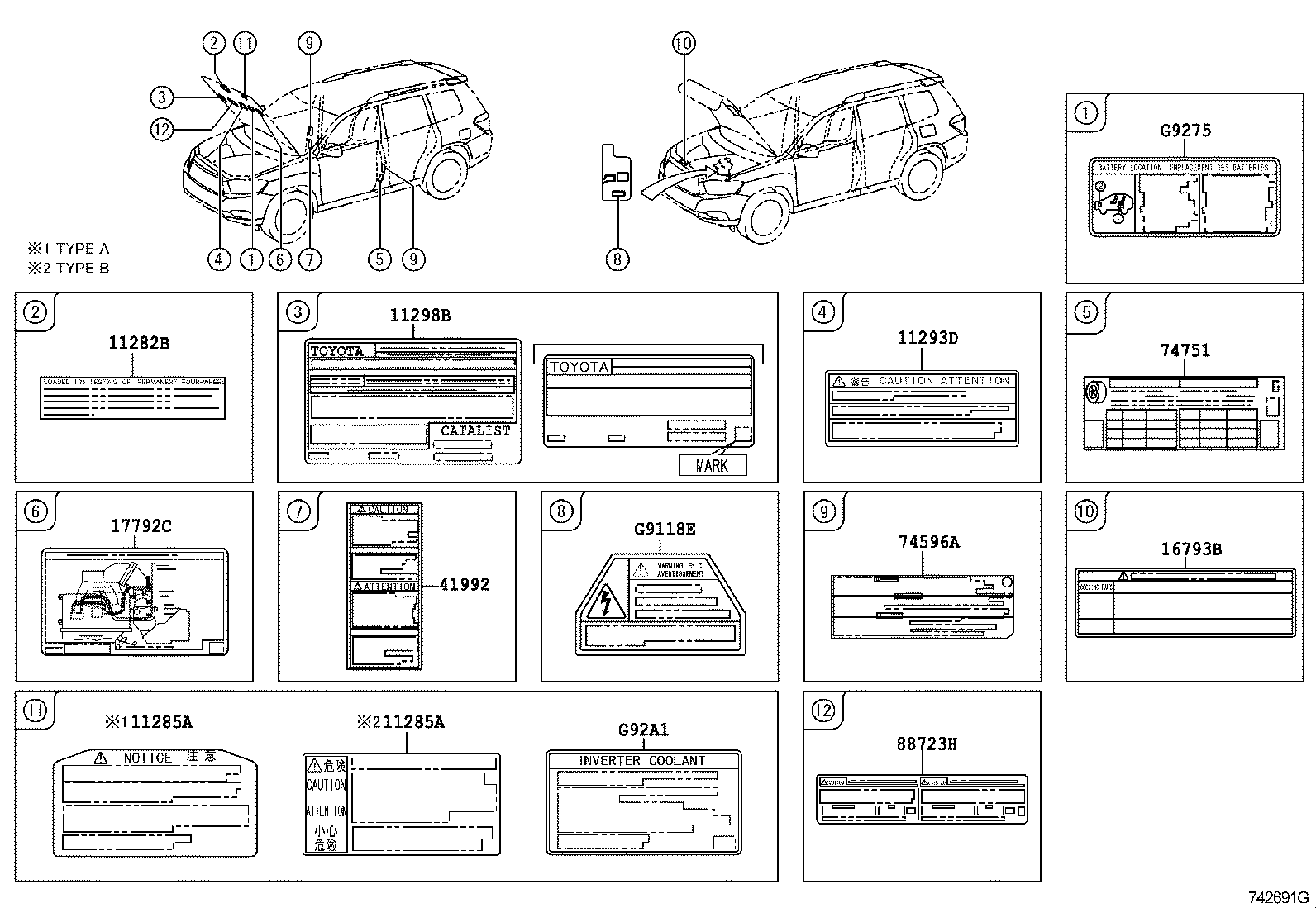

ILLUST NO. 1 OF 3(0705- )

Click highlighted areas on diagram

diagram 11282B 11285A 11285A 11293D 11298B 16793B 17792C 41992 74596A 74751 88723H G9118E G9275 G92A1
Part # Description Qty Price
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-31620

2GRFE..GSU4#

 1
11298-31370

2GRFE..GSU4#

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-31020

1ARFE,2GRFE,3MZFE..ASU40,GSU4#,MHU48

 1
17792C - LABEL, ENGINE VACUUM HOSE INFORMATION
17792-31270

2GRFE..GSU4#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

ASU40,GSU4#,MHU48

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-48430

ASU40,GSU4#..GD,STD

SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM

 1
42661-48420

ASU40,GSU4#..GD,STD

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-48080

GSU4#..GD,LIMD,SPO

WITH(REAR AUTO AIR CONDITIONER)

 1
88723-24030

ASU40,GSU4#

 1
88723-48080

ASU40,GSU4#..GD,SPO,STD

WITH(REAR MANUAL AIR CONDITIONER)

 1

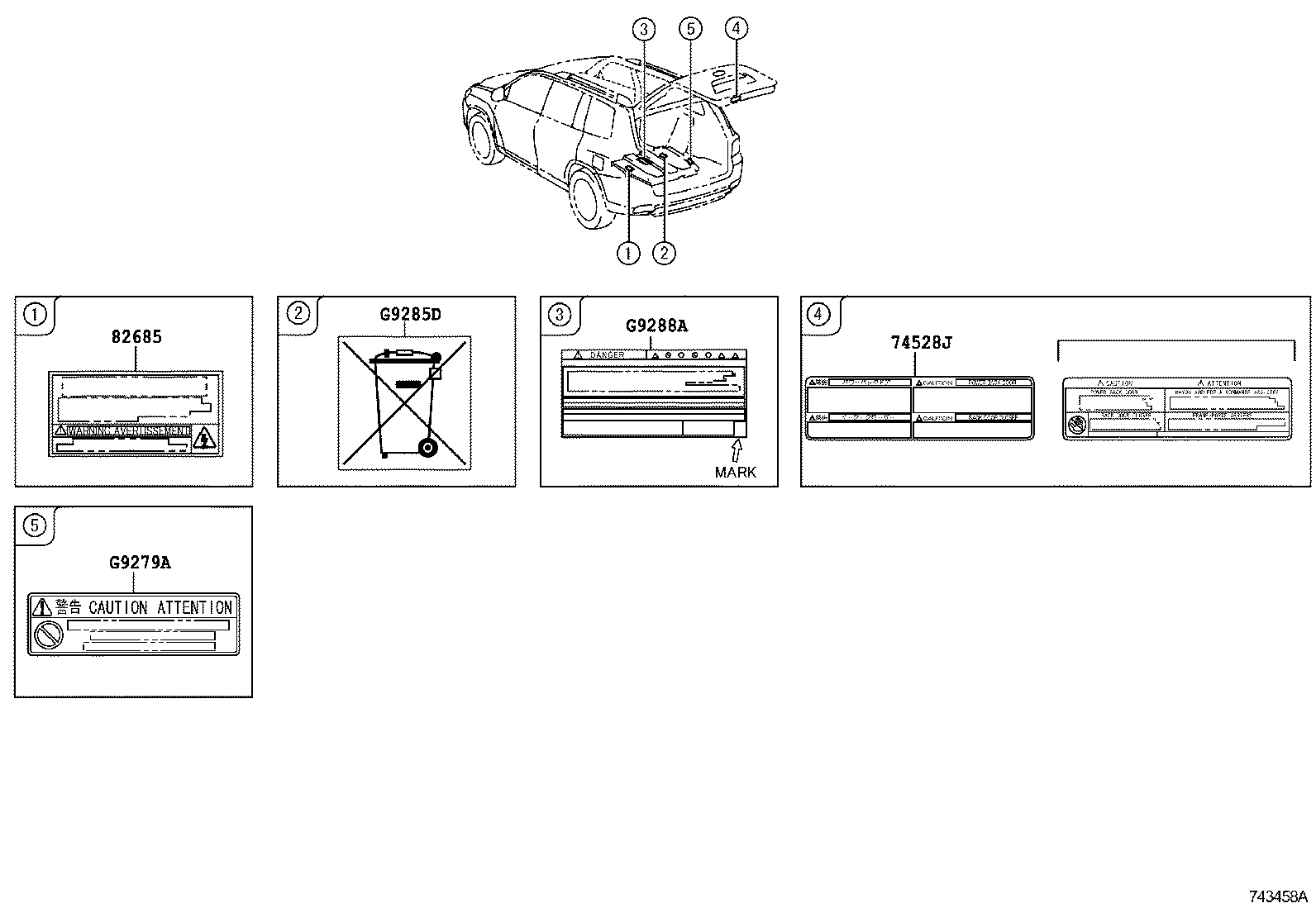

ILLUST NO. 3 OF 3(0705- )

Click highlighted areas on diagram

diagram 74528J 82685 G9279A G9285D G9288A
Part # Description Qty Price
74528J - LABEL, POWER BACK DOOR CAUTION
74528-48060

GSU4#..GD,LIMD,SPO

POWRE BACK DOOR-WITH

 1
