GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
ILLUST NO. 1 OF 3(0705- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33020B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 73023-33020E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33020B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 73024-33020E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-48160C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73210-48160A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 73210-48160B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ASU40,GSU4#,MHU48 BLACK |
1 | ||
| 73219-02030 |
ASU40,GSU4#,MHU48 BEIGE |
1 | ||
| 73219-02020 |
ASU40,GSU4#,MHU48 GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-48150A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 73220-48150B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73220-48150C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-48160C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 73230-48160E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 73230-48160B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-48250C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73230-48250B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 73230-48250E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
ILLUST NO. 3 OF 3(0705-1008)
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73003 - BELT SET, REAR SEAT 3 POINT TYPE, RH | ||||
| 73005-48020A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 73005-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73005-48021C0 |
GSU4#..GD,LIMD,SPO BLACK/GRAY,TRIM2# |
1 | ||
| 73005-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73004 - BELT SET, REAR SEAT 3 POINT TYPE, LH | ||||
| 73006-48040A0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,IVORY,TRIM4# |
1 | ||
| 73006-48030B0 |
MHU48..STD;ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 73006-48030A0 |
MHU48..STD;ASU40,GSU4# IVORY,TRIM4# |
1 | ||
| 73006-48040B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1# |
1 | ||
| 73006-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73006-48040C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK,TRIM2# |
1 | ||
| 73006-48031C0 |
GSU4#..GD,LIMD,SPO BLACK/GRAY,TRIM2# |
1 | ||
| 73006-48041B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1# |
1 | ||
| 73006-48041A0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,IVORY/SAND BEIGE,TRIM4# |
1 | ||
| 73006-48041C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK/GRAY,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ASU40,GSU4#,MHU48 BLACK |
1 | ||
| 73219-02030 |
ASU40,GSU4#,MHU48 BEIGE |
1 | ||
| 73219-02020 |
ASU40,GSU4#,MHU48 GRAY |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-44020E5 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73371-44020P0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-44020E5 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73371-44020P0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 73580-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 73580-48020A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 73580-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 73580-48020A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 91553-80612 | ||||

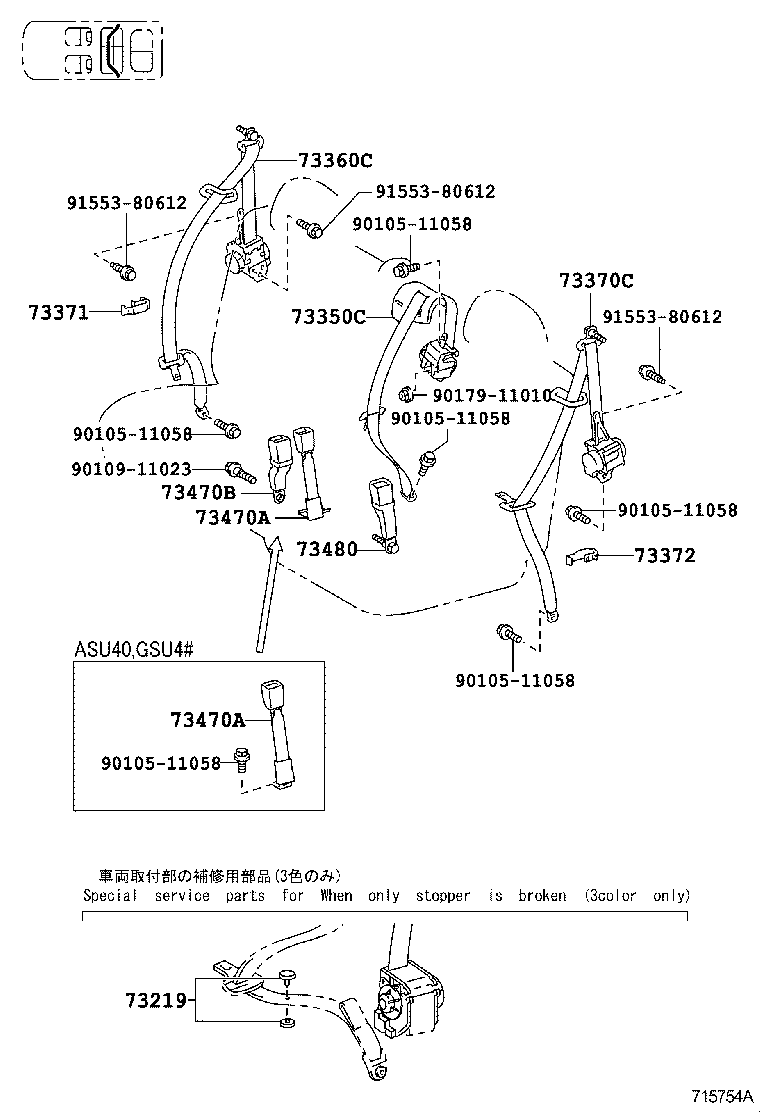

ILLUST NO. 2 OF 3(0705- )
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
ASU40,GSU4#,MHU48 BLACK |
1 | ||
| 73219-02030 |
ASU40,GSU4#,MHU48 BEIGE |
1 | ||
| 73219-02020 |
ASU40,GSU4#,MHU48 GRAY |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-48060A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 73350-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73350-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73360-48071C0 |
GSU4#..GD,LIMD,SPO BLACK/GRAY,TRIM2# |
1 | ||
| 73360-48070A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 73360-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73370-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73370-48071C0 |
GSU4#..GD,LIMD,SPO BLACK/GRAY,TRIM2# |
1 | ||
| 73370-48070A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73371-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73371-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73371-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73371-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73470A - BELT ASSY, REAR SEAT, INNER CENTER | ||||
| 73380-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73380-48091E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73380-48090E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73380-48091B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 73380-48091C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73380-48090B0 |
GSU4# GRAY,TRIM1# |
1 | ||
| 73470A - BELT ASSY, REAR SEAT, INNER CENTER | ||||
| 73380-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73380-48091E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73380-48090E0 |
GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 73380-48091B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 73380-48091C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73380-48090B0 |
GSU4# GRAY,TRIM1# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73480-48040E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73480-48040C1 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73480-48040B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73380-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73380-48030B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73380-48030E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11023 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
