GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

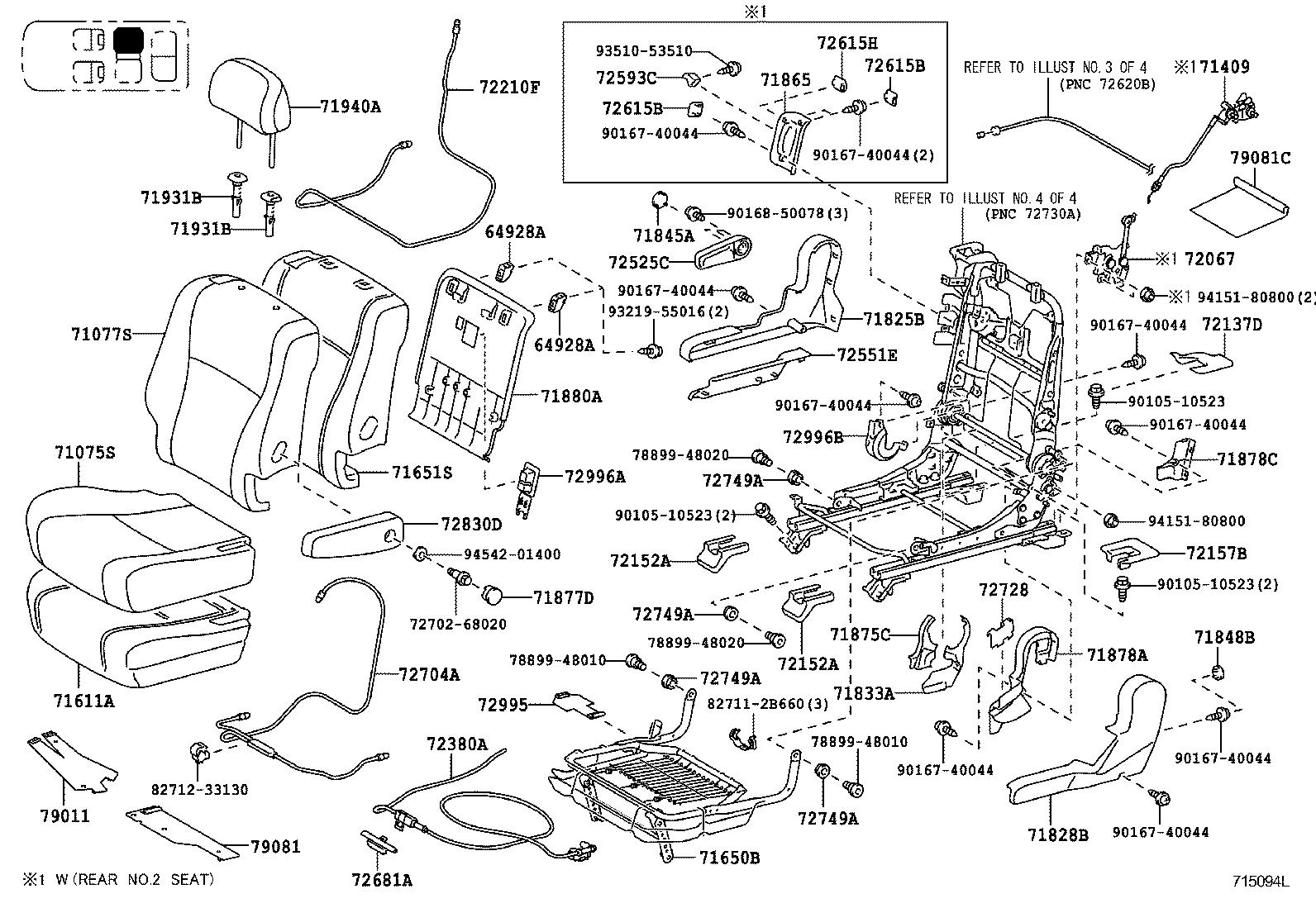

ILLUST NO. 1 OF 4(0705- )
REAR NO.1 SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 64928-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 64928-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 64928-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 64928-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-48330B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71075-48330C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71075-48330E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-48510C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71077-48510E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71077-48510B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-48010 |
ASU40,GSU4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-48190 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71825-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71825-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-48080E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71828-48080B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71828-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71833-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71833-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71845A - COVER, REAR SEAT RECLINING, UPPER RH | ||||
| 71845-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71845-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71845-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 71848-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 71848-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71865-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71865-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71875-48080E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71875-48080B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71877D - COVER, REAR SEAT ARMREST HOLE | ||||
| 71877-26020P8 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 71877-26020E4 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 71877-26020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71878-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71878-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71878-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71878-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-48230E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71880-48230B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 71880-48230C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48280B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71940-48280E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71940-48280C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71940-48281C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-48090B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72137-48091E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72137-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72137-48091B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72137-48091C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72137-48090E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-48080B0 |
ASU40,GSU4# GRAY,TRIM1# |
2 | ||
| 72152-48080E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 72152-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-48080B0 |
ASU40,GSU4# GRAY,TRIM1# |
2 | ||
| 72152-48080E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 72152-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72157-48080E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72157-48080B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72157-48081B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72157-48081E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72157-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72157-48081C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72210F - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-48010 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72525-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72525-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72551E - COVER, RECLINING HINGE, RH | ||||
| 72551-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72551-48030B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72551-48030E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72593C - KNOB, RECLINING REMOTE CONTROL LEVER, NO.2 | ||||
| 72593-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72593-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72593-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72615-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72615-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72615-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72615-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72615H - COVER, REAR SEAT BACK LOCK STRIKER, NO.1 | ||||
| 72615-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72615-48080E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72615-48080B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72681A - HOOK, REAR SEAT | ||||
| 72681-48010 |
MHU48;GSU4#..GD,LIMD,SPO |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72728-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72728-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-48260C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72830-48260B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 72830-48260E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 79081-48240 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 72996-12320E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 72996-12320C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72996B - COVER, REAR SEAT BACK, INNER RH | ||||
| 72996-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72996-48060E0 |
GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72996-48060B0 |
GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79081-48200 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79081 - COVER SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79081-48220 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79081C - COVER, REAR SEAT, NO.1 | ||||
| 79081-48110 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 78899-48010 | ||||
| 78899-48020 | ||||
| 82711-2B660 | ||||
| 82712-33130 | ||||
| 90105-10523 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 93219-55016 | ||||
| 93510-53510 | ||||
| 94151-80800 | ||||
| 94542-01400 | ||||
ILLUST NO. 3 OF 4(0705- )
REAR NO.1 SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 64928-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 64928-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 64928-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 64928-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-48290C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71076-48290B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71076-48290E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-48440C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71078-48440E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71078-48440B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-48140 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71826-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71826-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71827B - MOULDING, REAR SEAT CUSHION, FRONT | ||||
| 71827-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 71827-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71827-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-48060E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71829-48060B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 71829-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71834-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71834-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71846A - COVER, REAR SEAT RECLINING, UPPER LH | ||||
| 71846-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71846-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71846-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 71848-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 71848-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 71866A - BEZEL, REAR SEAT COVER, NO.2 | ||||
| 71866-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71866-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 71866-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71876-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71876-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71877D - COVER, REAR SEAT ARMREST HOLE | ||||
| 71877-26020P8 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 71877-26020E4 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 71877-26020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71879-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71879-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-48180C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71890-48180E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71890-48180B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48280B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71940-48280E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71940-48280C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71940-48281C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 72054C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72054-48010B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72054-48010E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72138-48060B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72138-48061E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72138-48060E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72138-48061B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72138-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72138-48061C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72152B - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72159-48120B0 |
ASU40,GSU4# GRAY,TRIM1# |
2 | ||
| 72159-48120C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72159-48120E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 72152B - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72159-48120B0 |
ASU40,GSU4# GRAY,TRIM1# |
2 | ||
| 72159-48120C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72159-48120E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
2 | ||
| 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH | ||||
| 72158-48081E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72158-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72158-48081C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72158-48080B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72158-48081B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 72158-48080E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72266-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72266-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72430 - CABLE ASSY, SEAT ADJUST DRIVE, NO.3 | ||||
| 72380-48020 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72526-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72526-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48040 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 72662-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72662-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72662-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72668A - BEZEL, REAR SEAT BACK LOCK, LOWER | ||||
| 72668-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72668-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72668-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72681A - HOOK, REAR SEAT | ||||
| 72681-48010 |
MHU48;GSU4#..GD,LIMD,SPO |
2 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-48100 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ASU40,GSU4#,MHU48 |
4 | ||
| 72840D - ARMREST ASSY, REAR SEAT, LH | ||||
| 72840-48020C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72840-48020B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 72840-48020E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 71845-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71845-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71845-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 72996-12320E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 72996-12320C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72997C - COVER, REAR NO.2 SEAT BACK, LH | ||||
| 72997-48030E0 |
GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72997-48030B0 |
GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72997-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 79081-48240 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72999B - COVER, REAR SEAT CUSHION SIDE, LH | ||||
| 72999-48010E0 |
GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72999-48010B0 |
GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72999-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73118 - PLATE, BELT SUPPORT | ||||
| 73118-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 73310C - COVER ASSY, REAR SEAT 3 POINT TYPE | ||||
| 73312-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 73312-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 73312-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73373B - COVER, REAR NO.1 SEAT SHOULDER BELT | ||||
| 73373-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 74865A - COVER, CENTER PROTECTOR | ||||
| 74865-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 74865-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 74865-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79081-48210 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79081D - COVER, REAR SEAT, NO.2 | ||||
| 79081-48130 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79082 - COVER SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79081-48230 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 79236-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79236-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79956-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79956-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 79956-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79956-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79956-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 79956-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 79965A - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79965-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79965-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 78899-48010 | ||||
| 78899-48020 | ||||
| 82711-2B660 | ||||
| 82712-33130 | ||||
| 90105-10523 | ||||
| 90119-06942 | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 90168-50078 | ||||
| 93219-55016 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 6404 | ||||
ILLUST NO. 2 OF 4(0705- )
REAR NO.1 SEAT CENTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-48060C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71097-48060E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71097-48060B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71085A - COVER SUB-ASSY, REAR SEAT CUSHION, NO.2 | ||||
| 79117-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79117-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79117-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71087-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71087-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71092B - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 71758-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71758-48010B0 |
GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71758-48010E0 |
GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71095S - COVER SUB-ASSY, CENTER SEAT BACK | ||||
| 71095-48020C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71095-48020B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71095-48020E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71316-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71485-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71485-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71486-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71486-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71668-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71693B - CAP, REAR SEAT CUSHION HINGE | ||||
| 71846-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71846-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71846-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71695-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71695-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E8 |
ASU40,GSU4#,MHU48 W/O(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47010P4 |
ASU40,GSU4#,MHU48 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010E8 |
ASU40,GSU4#,MHU48 W/O(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47010P4 |
ASU40,GSU4#,MHU48 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-48310B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71960-48310C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71960-48310E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72618 - PROTECTOR, REAR SEAT BACK LOCK STRIKER | ||||
| 72618-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 71848-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71848-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71848-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 78687 - COVER, REAR SEAT LEGREST LOCK | ||||
| 78687-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 78687-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 78687-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79102-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79910 - CABLE ASSY, REAR SEAT TURN, NO.1 | ||||
| 79910-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 94185-60600 | ||||
(0705-1008)
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71305B - SPACER, REAR SEAT BACK HINGE | ||||
| 72749-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71305B - SPACER, REAR SEAT BACK HINGE | ||||
| 72749-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-48030 |
ASU40,GSU4#,MHU48 |
4 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71704-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71704-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71704-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71704-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-48020C2 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-48020C2 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71865A - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71865-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 71865-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-48040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71970-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71970-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-48040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71970-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71970-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71970A - COVER, REAR SEAT HEADREST | ||||
| 72985-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71970A - COVER, REAR SEAT HEADREST | ||||
| 72985-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-48010C1 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-48090E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72553-48090C2 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72553-48090B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-48080C2 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72554-48080B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72554-48080E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-48100C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72615-48100B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72615-48100E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-48100C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72615-48100B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72615-48100E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72620D - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72620E - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72635B - HOOK, REAR SEAT BACK LOCK(MALE) | ||||
| 72635-13010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
3 | ||
| 72635-13010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
3 | ||
| 72635-13010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72635-13010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
3 | ||
| 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) | ||||
| 72635-13020B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
3 | ||
| 72635-13020E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
3 | ||
| 72635-13020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72635-13020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
3 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72660J - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK | ||||
| 72660-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72909 - HANDLE 3RD SEAT | ||||
| 72909-48010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72909-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72909-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-48040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 79021-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 79021-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-48040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 79023-48040B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 79023-48040E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 79201 - FRAME SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79201-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79203 - FRAME SUB-ASSY, NO.2 SEAT BACK | ||||
| 79203-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79207-48020B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 79207-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-48010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79273-48010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79273-48010C2 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79273A - COVER, NO.2 SEAT HINGE, NO.2 | ||||
| 79273-48020C2 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 79273-48020B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 79273-48020E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 78899-26010 | ||||
| 90109-10164 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 96160-01000 | ||||

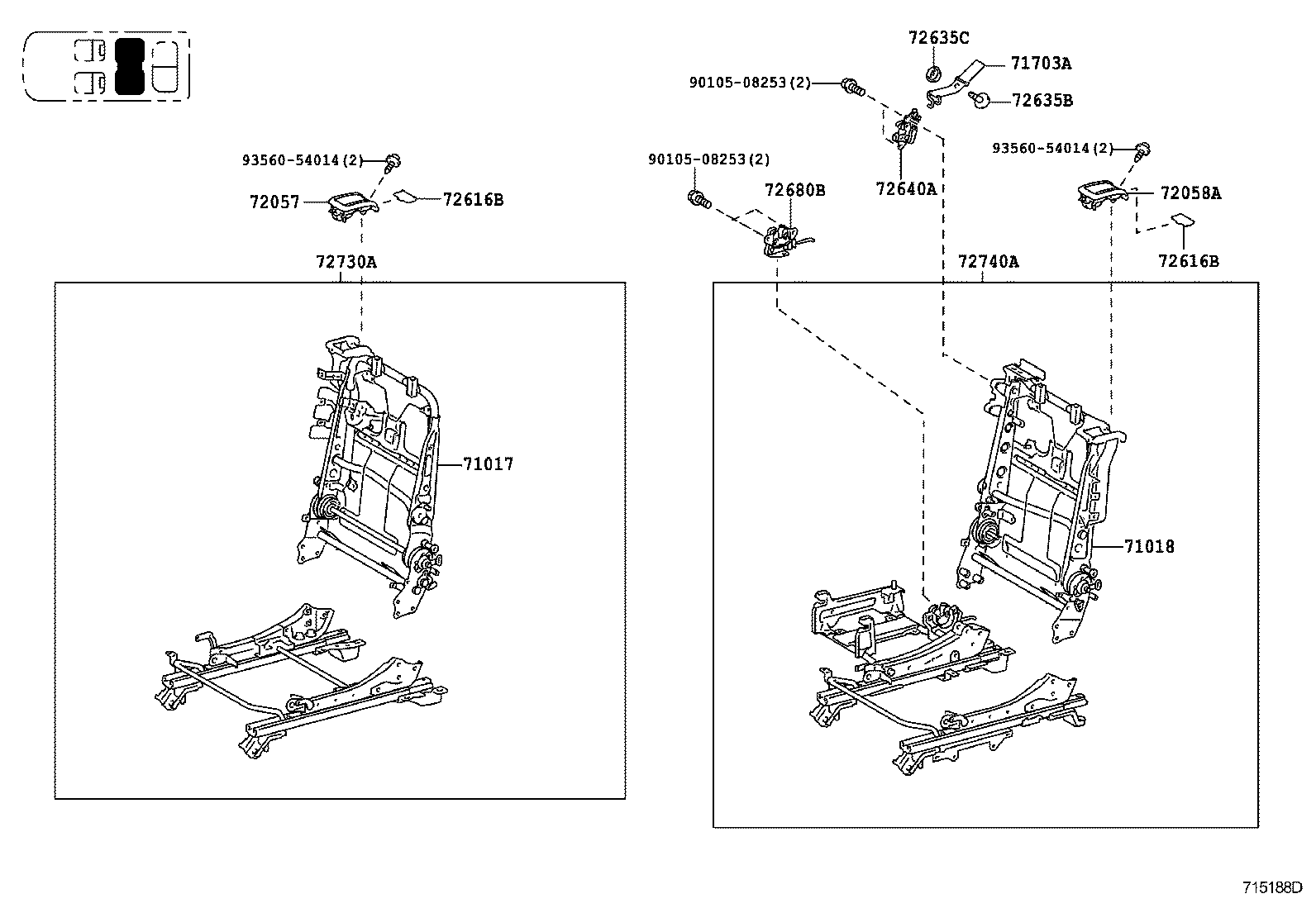

ILLUST NO. 4 OF 4(0705- )
REAR NO.1 SEAT FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-48170 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-48110 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71703A - BAND SUB-ASSY, REAR SIDE SEAT, NO.1 | ||||
| 71703-48010A0 |
ASU40,GSU4#,MHU48 IVORY,TRIM4# |
1 | ||
| 71703-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71703-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72057-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72057-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72058-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 72058-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-48020B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 72615-48020E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 72615-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-48020B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 72615-48020E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 72615-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72635B - HOOK, REAR SEAT BACK LOCK(MALE) | ||||
| 72635-13010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
3 | ||
| 72635-13010E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
3 | ||
| 72635-13010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72635-13010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
3 | ||
| 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) | ||||
| 72635-13020B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
3 | ||
| 72635-13020E3 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
3 | ||
| 72635-13020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72635-13020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
3 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-48140 |
ASU40,GSU4# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-48110 |
ASU40,GSU4# |
1 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 93560-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
