GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
ILLUST NO. 1 OF 2(0705- )

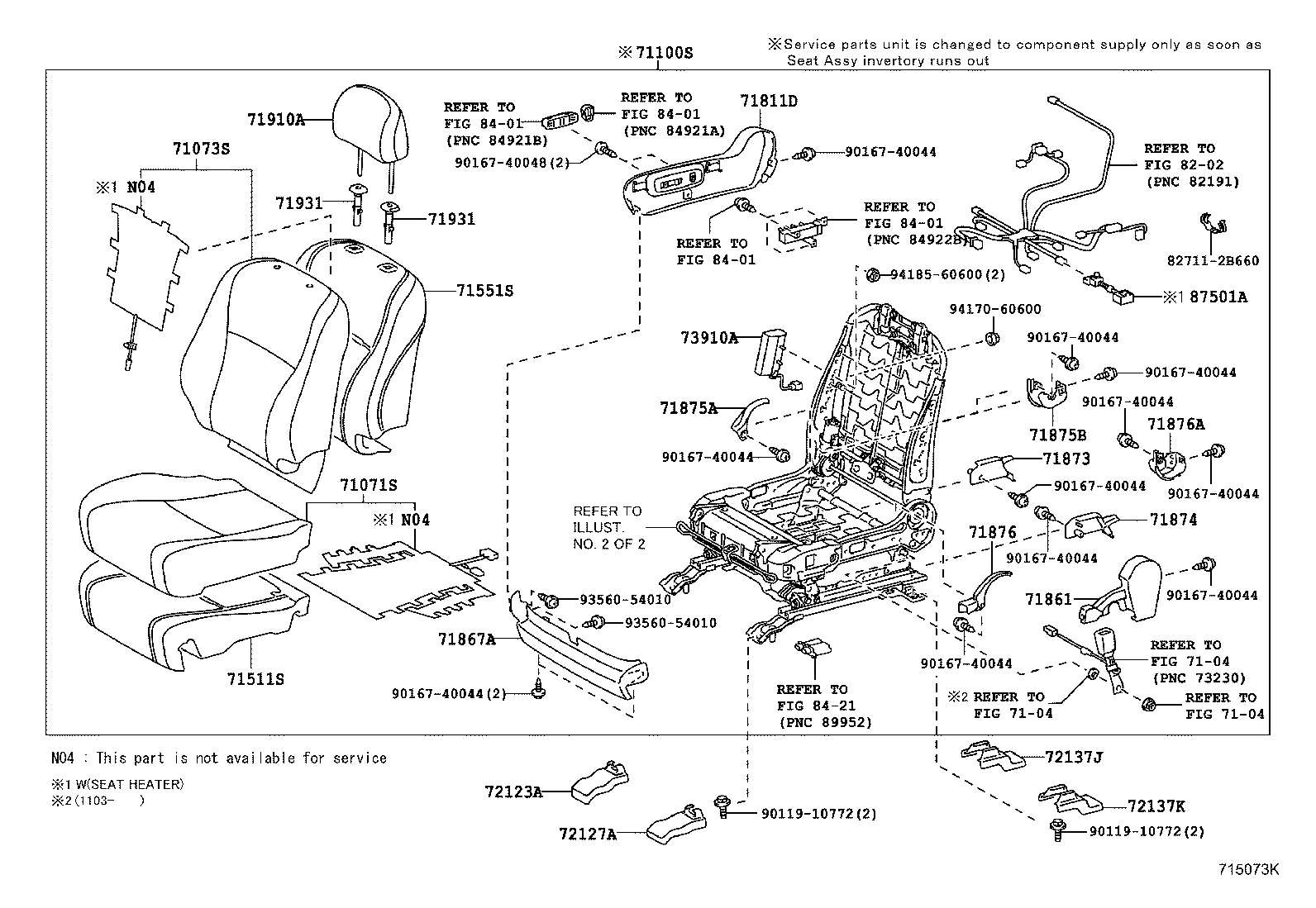

RH POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48520E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71071-48520C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71071-48520B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48630B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71073-48630E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71073-48630C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71073-48631C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-48E60E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71100-48E60B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71100-48E60C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71100-48E61C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48180 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48130C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71811-48130E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71811-48130B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-48070B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71861-48070C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71861-48070E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48100 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48160 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58040E3 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71875-58040B6 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71875-58040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58040B6 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71876-58040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71876-58040E3 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48360C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48360E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48360B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48362C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48361C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-48100C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72123-48100E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72123-48100B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-48050C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72127-48050E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72127-48050B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-48150B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72137-48150C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72137-48150E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-48150B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72137-48150C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72137-48150E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 93560-54010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(0705- )

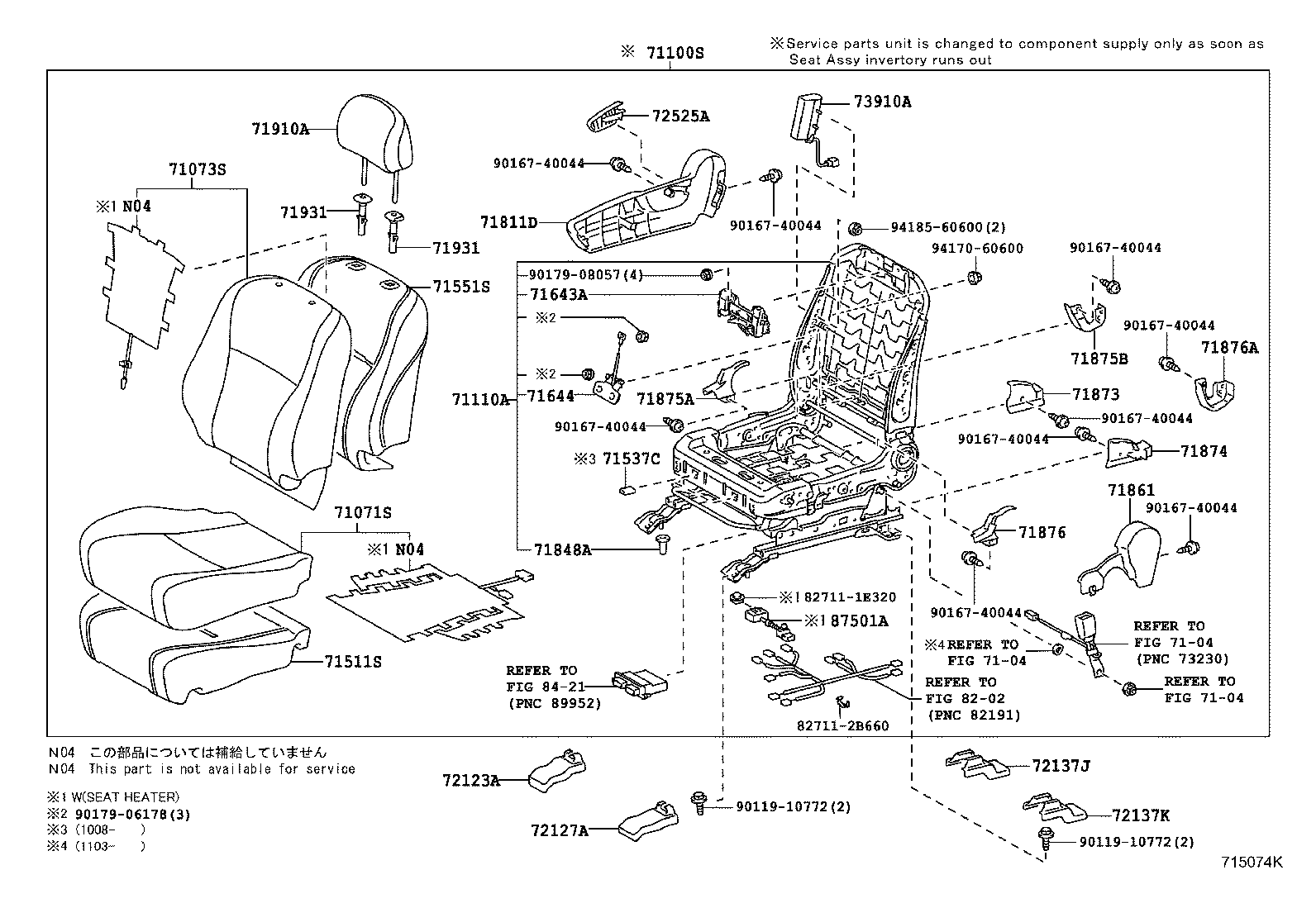

RH MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48520E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71071-48520C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71071-48520B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48630B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71073-48630E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71073-48630C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71073-48631C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-48E60E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71100-48E60B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71100-48E60C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71100-48E61C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||

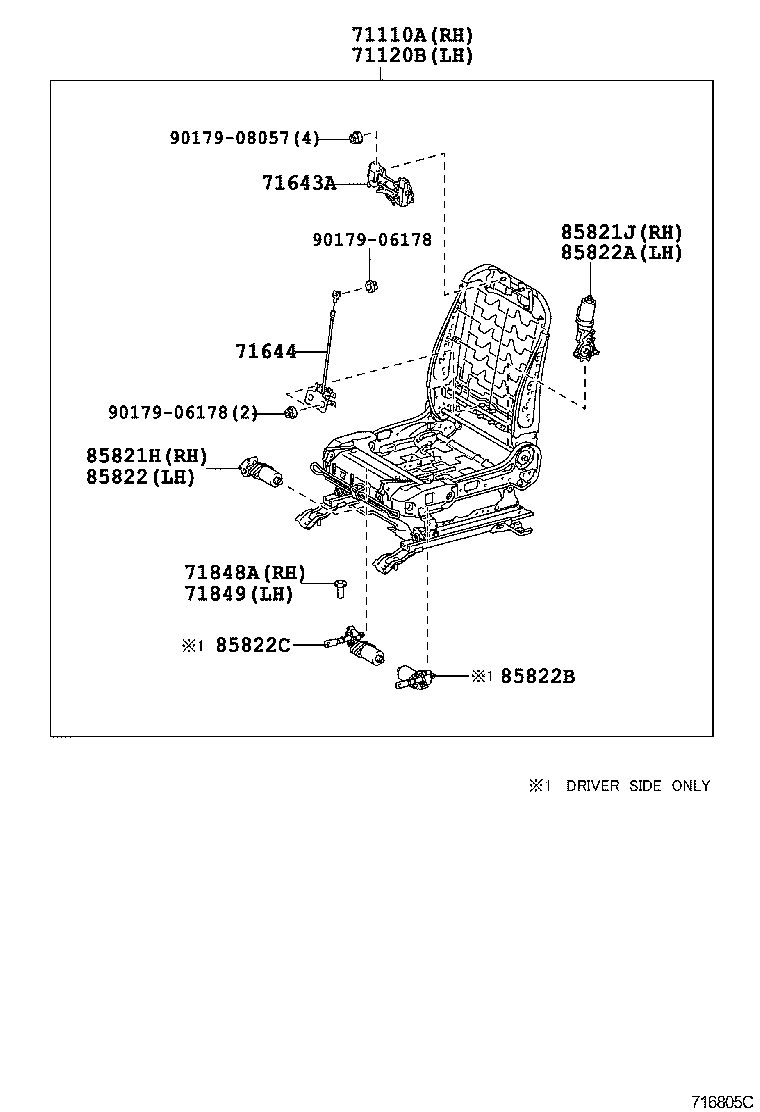

| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-48130 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48180 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48130C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71811-48130E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71811-48130B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-48070B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71861-48070C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71861-48070E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48100 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48160 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58040E3 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71875-58040B6 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71875-58040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58040B6 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 71876-58040C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71876-58040E3 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48360C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48360E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48360B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48362C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48361C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-48100C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72123-48100E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72123-48100B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-48050C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72127-48050E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72127-48050B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-48150B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72137-48150C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72137-48150E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-48150B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72137-48150C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72137-48150E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42010C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 72525-42010B1 |
MHU48;ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 72525-42010E2 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82711-2B660 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||

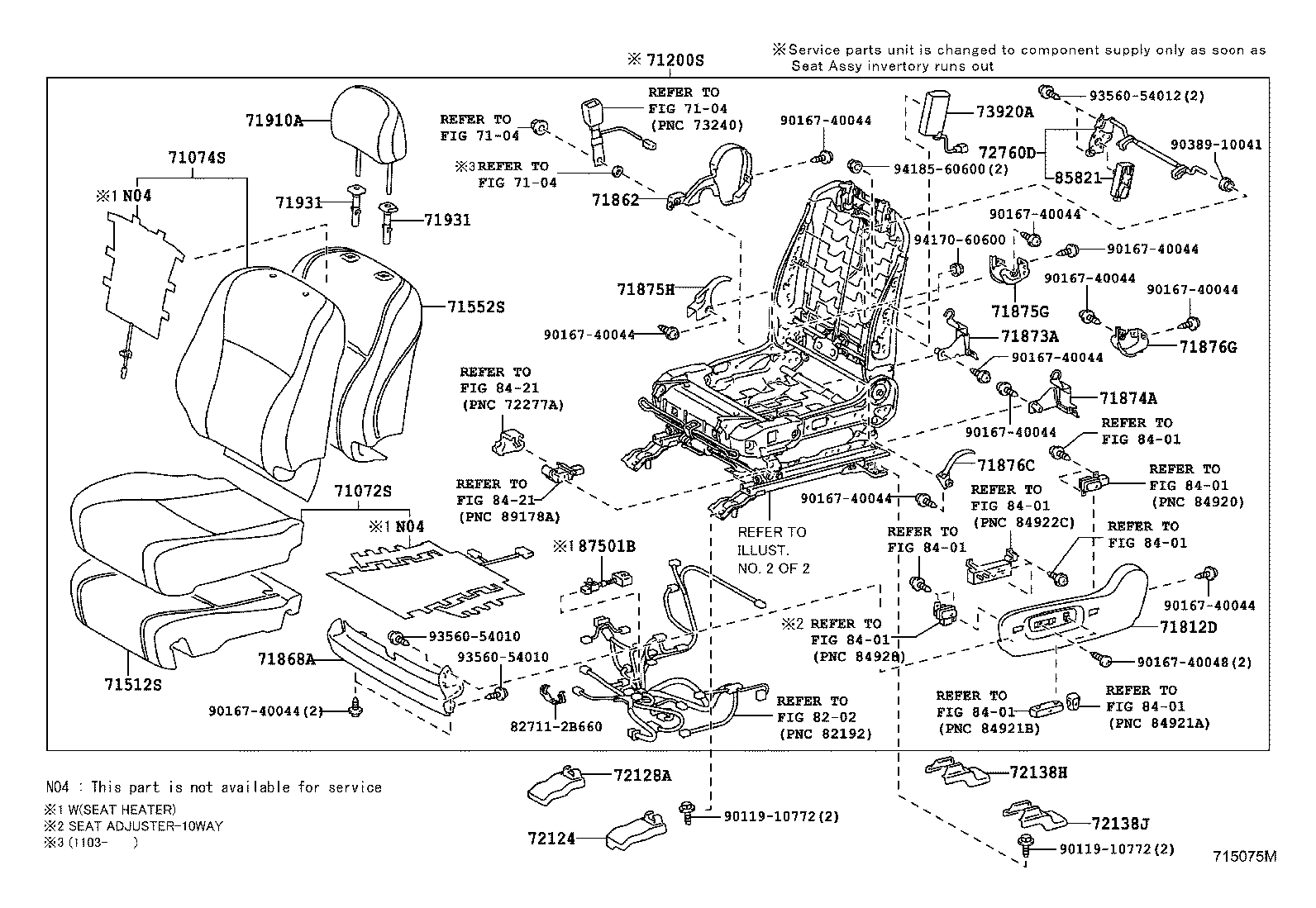

ILLUST NO. 1 OF 2(0705- )
LH POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48490C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71072-48490B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71072-48490E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48590B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71074-48590E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71074-48590C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71074-48591C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-48E30B1 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71200-48E30C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71200-48E30E1 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71200-48E31C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-48140 |
MHU48;GSU4#..GD,SPO |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48130C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71812-48130E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71812-48130B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71862-33050E1 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71862-33050B3 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-48030C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71868-48030E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71868-48030B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-12040 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48120 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60170C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71876-60170E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170B6 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150B5 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 71876-60150C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71876-60150E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48360C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48360E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48360B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48362C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48361C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72124-48060B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72124-48060E0 |
GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-48050B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72128-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72128-48050E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-48090B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72158-48090E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72158-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-48110B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72137-48110E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72137-48110C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-33060 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

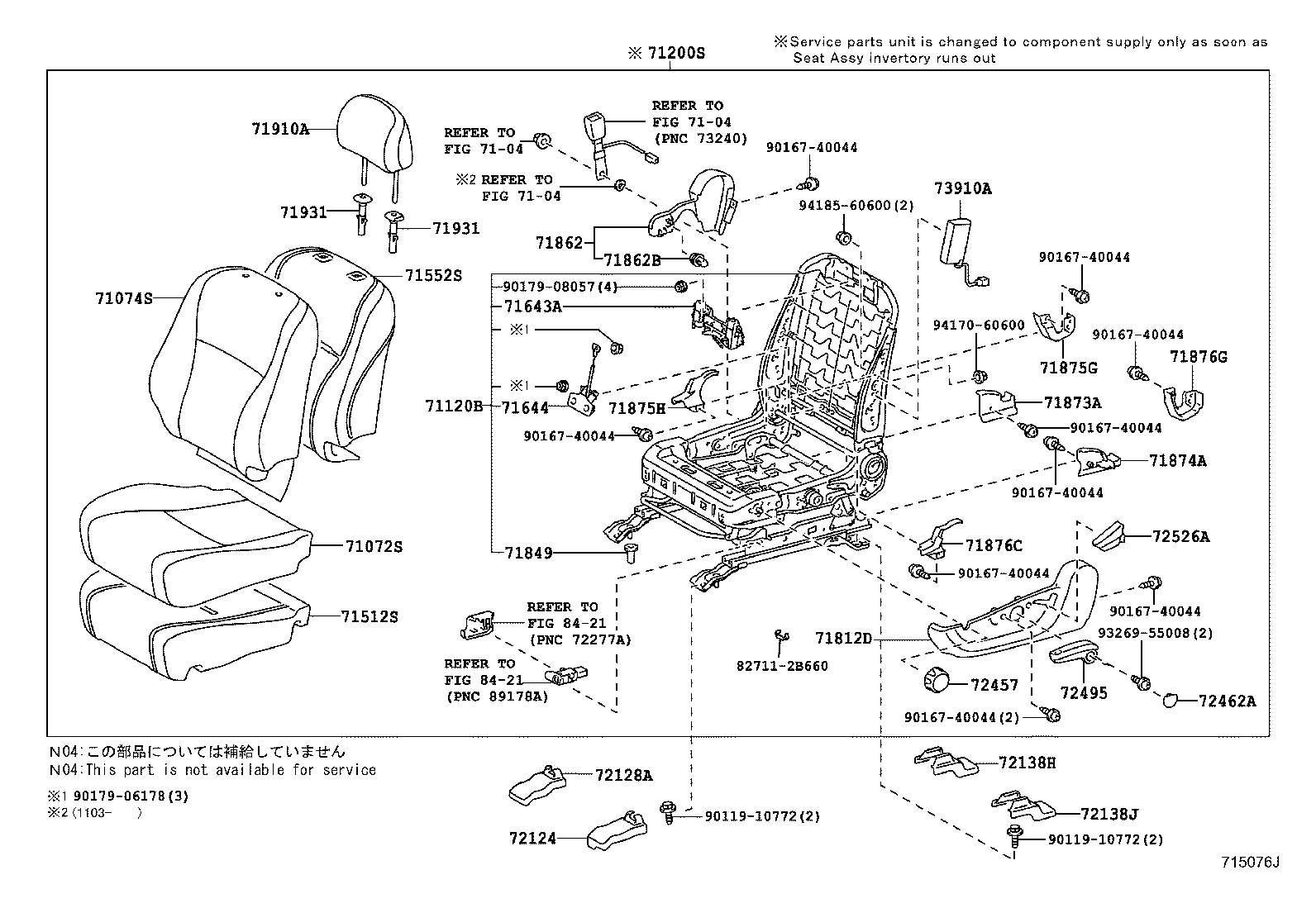

(0705- )ASU40,GSU4#,MHU48
LH MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48490C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71072-48490B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71072-48490E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48590B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71074-48590E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71074-48590C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71074-48591C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-48140 |
MHU48;GSU4#..GD,SPO |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-48E30B1 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71200-48E30C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71200-48E30E1 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71200-48E31C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-48140 |
MHU48;GSU4#..GD,SPO |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48090 |
ASU40,GSU4#,MHU48 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48130C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 71812-48130E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71812-48130B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71862-33050E1 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71862-33050B3 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-12040 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48120 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60170C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71876-60170E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71876-60170B6 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150B5 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 71876-60150C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 71876-60150E3 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48360C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48360E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48360B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361B0 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
2 | ||
| 71910-48361E0 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
2 | ||
| 71910-48362C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71910-48361C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020C0 |
GSU4#..GD,LIMD,SPO W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010C0 |
GSU4#..GD,LIMD,SPO W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-48010B4 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-48010E0 |
ASU40,GSU4#,MHU48 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B2 |
ASU40,GSU4#,MHU48 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
ASU40,GSU4#,MHU48 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010C0 |
GSU4#..GD,LIMD,SPO W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72124-48060B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72124-48060E0 |
GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-48050B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72128-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72128-48050E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-48090B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72158-48090E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72158-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-48110B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 72137-48110E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72137-48110C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93269-55008 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 2(0705- )
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-48130 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-48140 |
MHU48;GSU4#..GD,SPO |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-28060 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-28050 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-28080 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-28070 |
MHU48;GSU4#..GD,LIMD,SPO |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
