GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )GD,SPO,STD

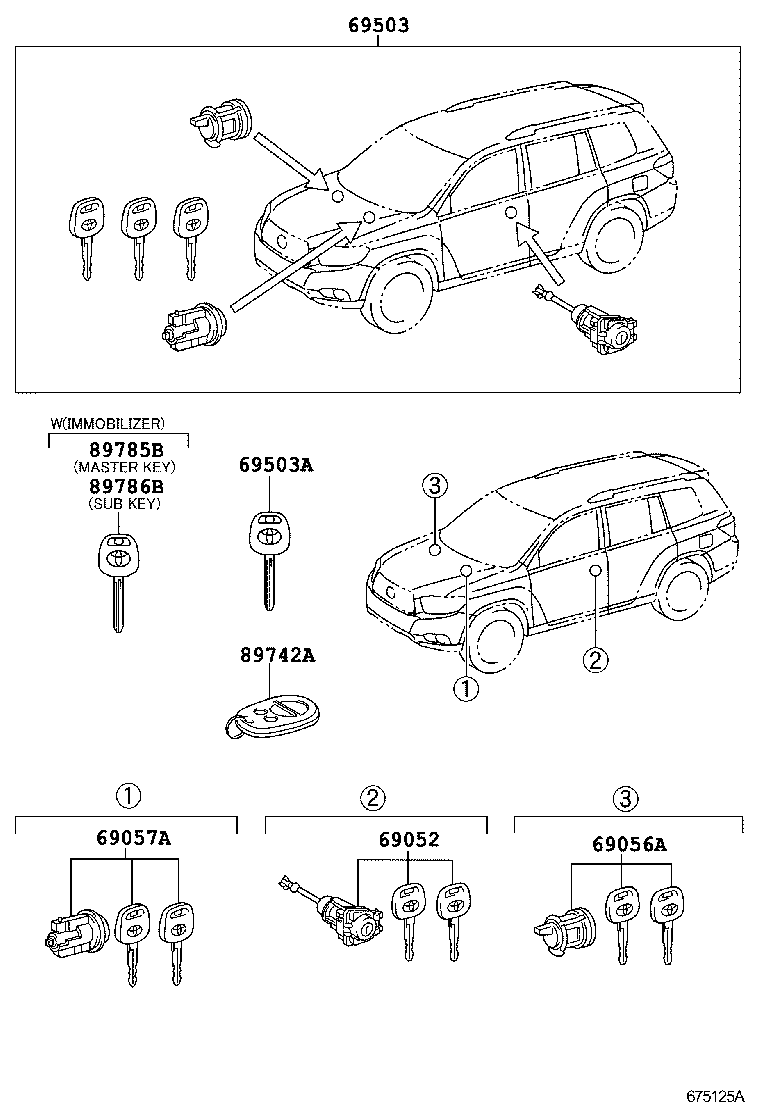

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69052 69056A 69057A 69503 69503A 89742A 89785B 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-42140

ASU40,GSU4#..GD,SPO,STD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-42100

ASU40,GSU4#..GD,SPO,STD

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-52510

GSU4#..GD,SPO

 1
69503 - CYLINDER SET, LOCK
69005-48310

GSU4#..GD,SPO

 1
69503A - KEY, BLANK
90999-00199

ASU40,GSU4#..GD,SPO,STD

MASTER KEY,W(*68)

 1
90999-00200

ASU40,GSU4#..GD,SPO,STD

SUB KEY,W(*68)

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-0W020

GSU4#..GD,SPO

POWRE BACK DOOR-WITH

 2
89742-0W010

GSU4#..GD,SPO

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

GSU4#..GD,SPO

BLANK KEY

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

GSU4#..GD,SPO

BLANK KEY

 1
