GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

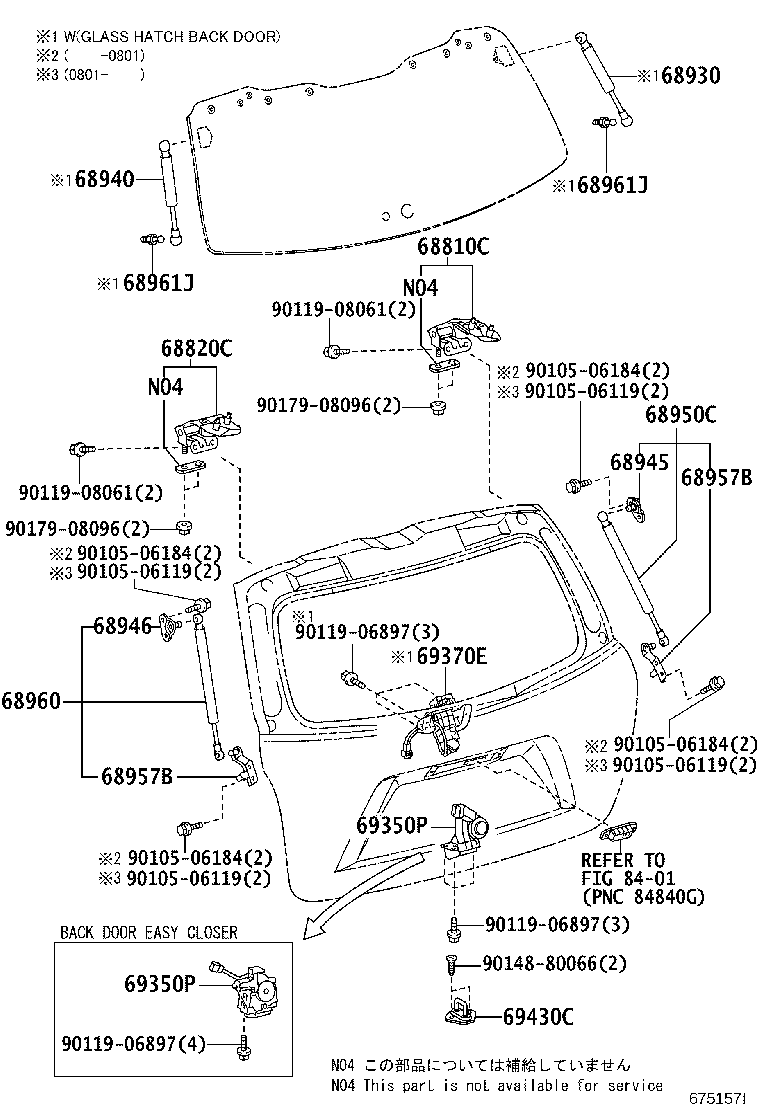

ILLUST NO. 1 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-48040 |
ASU40,GSU4#,MHU48 PAD T=2.0 |
1 | ||
| 68810-48030 |
ASU40,GSU4#,MHU48 PAD T=1.0 |
1 | ||
| 68810-48020 |
ASU40,GSU4#,MHU48 PAD T=1.5 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-48030 |
ASU40,GSU4#,MHU48 PAD T=2.0 |
1 | ||
| 68820-48020 |
ASU40,GSU4#,MHU48 PAD T=1.0 |
1 | ||
| 68820-48010 |
ASU40,GSU4#,MHU48 PAD T=1.5 |
1 | ||
| 68930 - STAY ASSY, BACK WINDOW, RH | ||||
| 68930-48010 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 68940 - STAY ASSY, BACK WINDOW, LH | ||||
| 68940-48010 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-48040 |
GSU4#;MHU48..STD |
1 | ||
| 68945-48040 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68945-48040 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68945-48040 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68945-48040 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68945-48040 |
GSU4#;MHU48..STD |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-49236 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 68950-49237 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49237 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49238 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49237 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 68950-49238 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49255 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49258 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 68950-49248 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 68950-49255 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49256 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68950-49256 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68957B - BRACKET, BACK DOOR STAY, LOWER | ||||
| 68957-48010 |
ASU40,GSU4#,MHU48 RH |
1 | ||
| 68957-48020 |
ASU40,GSU4#,MHU48 LH |
1 | ||
| 68957B - BRACKET, BACK DOOR STAY, LOWER | ||||
| 68957-48010 |
ASU40,GSU4#,MHU48 RH |
1 | ||
| 68957-48020 |
ASU40,GSU4#,MHU48 LH |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-49237 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49236 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 68960-49237 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 68960-49237 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49238 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49248 |
GSU4#..GD,LIMD,SPO |
1 | ||
| 68960-49238 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49256 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49255 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49256 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68960-49258 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 68960-49255 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT |
1 | ||
| 68961J - BOLT, BACK WINDOW STAY | ||||
| 68961-20140 |
GSU4#,MHU48..GD,LIMD,SPO |
2 | ||
| 68961J - BOLT, BACK WINDOW STAY | ||||
| 68961-20140 |
GSU4#,MHU48..GD,LIMD,SPO |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28160 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 69350-28150 |
MHU48..STD;ASU40,GSU4# |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28160 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 69350-28150 |
MHU48..STD;ASU40,GSU4# |
1 | ||
| 69370E - LOCK ASSY, BACK WINDOW | ||||
| 69370-48010 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90105-06119 | ||||
| 90105-06184 | ||||
| 90119-06897 | ||||
| 90119-08061 | ||||
| 90148-80066 | ||||
| 90179-08096 | ||||
| Linked diagrams | ||||
| 8401 | ||||

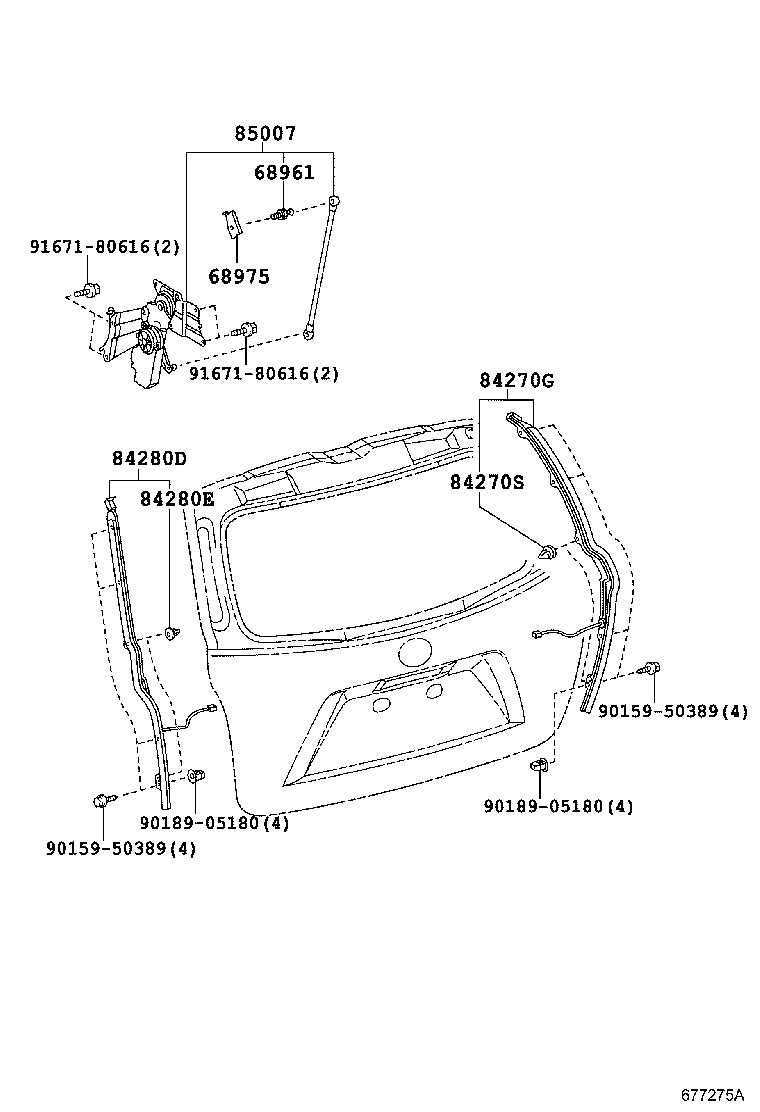

ILLUST NO. 2 OF 2(0705- )GVU48,MHU48 ; (0705- )GSU4#..GD,LIMD,SPO
POWER BACK DOOR PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-23010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 68975 - PLATE, BACK DOOR STAY | ||||
| 68975-48010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-48010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 84270S - CLIP(POWER BACK DOOR SENSOR, RH) | ||||
| 90467-10213C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-48010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 90467-10213C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK |
1 | ||
| 85007 - MOTOR UNIT, BACK DOOR | ||||
| 85007-49015 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 85007-48010 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| Common parts | ||||
| 90159-50389 | ||||
| 90189-05180 | ||||
| 91671-80616 | ||||
