GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

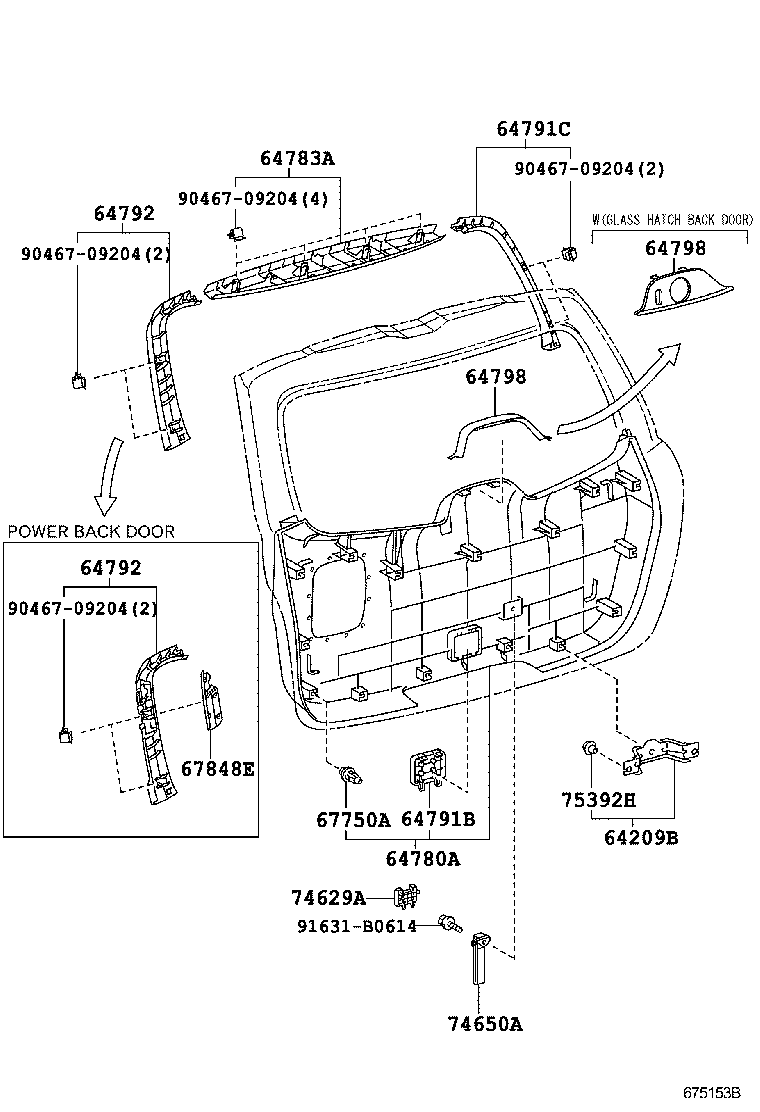

ILLUST NO. 2 OF 2(0705- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64209B - BRACKET SUB-ASSY, BACK PANEL TRIM | ||||
| 64209-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64780-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64780-48070B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64780-48070B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64780-48070C0 |
GSU4#..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64780-48070C0 |
GSU4#..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64780-48070B0 |
GSU4#,MHU48..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64780-48070E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64780-48070C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64780-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64780-48070E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64780-48070C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64780-48070E0 |
GSU4#,MHU48..GD,LIMD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64780-48070E0 |
GSU4#,MHU48..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64780-48070B0 |
GSU4#,MHU48..GD,LIMD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64783-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64783-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64791B - COVER, BACK DOOR TRIM | ||||
| 69321-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 69321-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 69321-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64791-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64791-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64792-48040B0 |
MHU48..STD;ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 64792-48050B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64792-48050B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1# |
1 | ||
| 64792-48050C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK,TRIM2# |
1 | ||
| 64792-48050C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64792-48040E0 |
MHU48..STD;ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 64792-48050E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 64792-48050E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64792-48050C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64792-48050B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64792-48050E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64792-48040B0 |
MHU48..STD;ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 64792-48050B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64792-48050B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1# |
1 | ||
| 64792-48050C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK,TRIM2# |
1 | ||
| 64792-48050C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64792-48040E0 |
MHU48..STD;ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 64792-48050E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 64792-48050E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64792-48050C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 64792-48050B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 64792-48050E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-48010B0 |
GSU4#,MHU48..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 64798-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64798-48010E0 |
GSU4#,MHU48..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-48010B0 |
GSU4#,MHU48..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 64798-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64798-48010E0 |
GSU4#,MHU48..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
16 | ||
| 67848E - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-48010C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67848-48010B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1# |
1 | ||
| 67848-48010E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 67848-48010B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67848-48010B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67848-48010E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67848-48010C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67848-48010E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67848-48010C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK,TRIM2# |
1 | ||
| 74629A - COVER, ASSIST STRAP HOLE | ||||
| 74629-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 74650A - STRAP ASSY, ASSIST | ||||
| 74650-48020C1 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 74650-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 74650-48020B1 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 75392H - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35210 |
ASU40,GSU4#,MHU48 |
2 | ||
| Common parts | ||||
| 90467-09204 | ||||
| 91631-B0614 | ||||

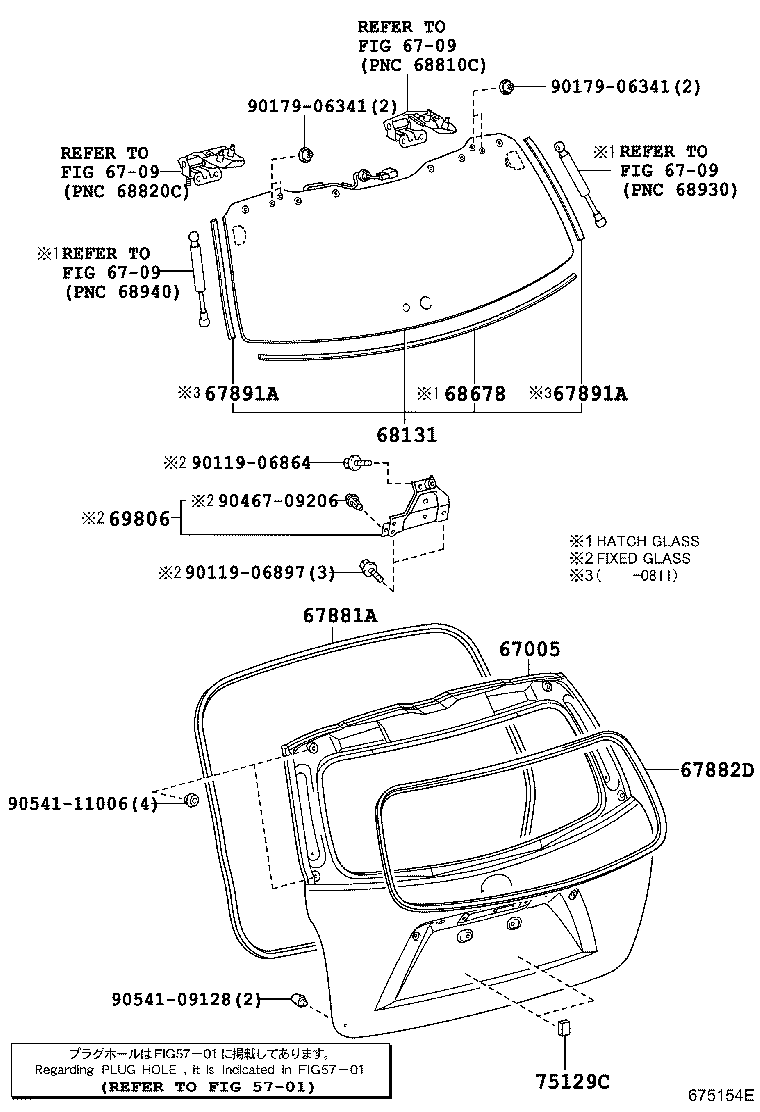

ILLUST NO. 1 OF 2(0705- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-48450 |
MHU48..STD;GSU4#..GD,LIMD,SPO |
1 | ||
| 67005-48430 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-48040 |
GSU4#,MHU48 |
1 | ||
| 67882D - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-48010 |
GSU4#,MHU48 |
2 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-48010 |
GSU4#,MHU48 |
2 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-48190 |
GSU4#,MHU48..GD,LIMD,SPO *EHT,T=5.0,PRIVACY |
1 | ||
| 68105-48191 |
GSU4#,MHU48..GD,LIMD,SPO *EHT,T=5.0,PRIVACY |
1 | ||
| 68105-48192 |
GSU4#,MHU48..GD,LIMD,SPO *EHT,T=5.0,PRIVACY |
1 | ||
| 68678 - PROTECTOR, BACK DOOR WINDOW | ||||
| 68678-48010 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90119-06897 | ||||
| 90179-06341 | ||||
| 90467-09206 | ||||
| 90541-09128 | ||||
| 90541-11006 | ||||
| Linked diagrams | ||||
| 6709 | ||||
