GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

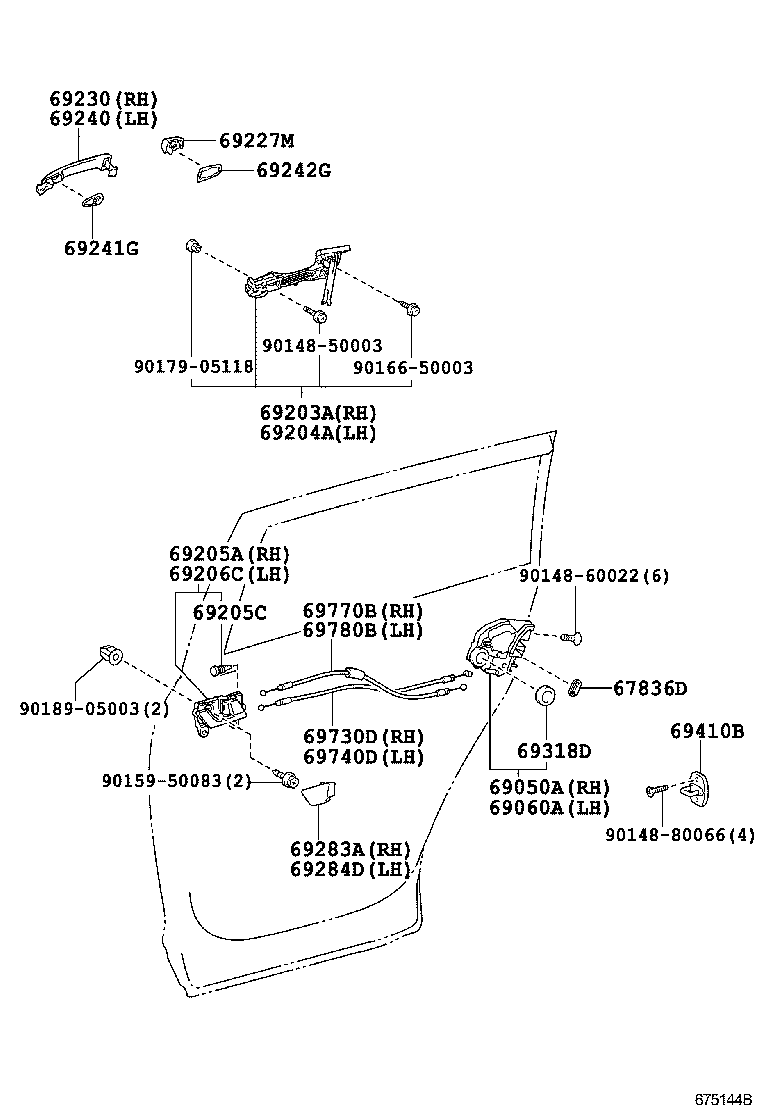

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227M 69230 69240 69241G 69242G 69283A 69284D 69318D 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880066 9015950083 9016650003 9017905118 9018905003
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

ASU40,GSU4#,MHU48

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-33120

ASU40,GSU4#,MHU48

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-33120

ASU40,GSU4#,MHU48

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-68010

ASU40,GSU4#,MHU48

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-68010

ASU40,GSU4#,MHU48

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-28120C0

GSU4#..GD,SPO

BLACK,TRIM1#,2#

 1
69205-28120E2

MHU48;GSU4#..GD,SPO

DK. BROWN,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

ASU40,GSU4#,MHU48

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-28120C0

GSU4#..GD,SPO

BLACK,TRIM1#,2#

 1
69206-28120E2

MHU48;GSU4#..GD,SPO

DK. BROWN,TRIM4#

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-60020B9

ASU40,GSU4#..GD,SPO,STD

GRAY ME.,1G3

 2
69227-60020A1

ASU40,GSU4#..GD,SPO,STD

WHITE PEARL CS.,070

 2
69227-60020D7

ASU40,GSU4#..GD,SPO,STD

DK. RED M.M.,3Q3

 2
69227-60020L0

ASU40,GSU4#..GD,SPO,STD

BEIGE ME.,4T8

 2
69227-60020G4

ASU40,GSU4#..GD,SPO,STD

OLIVE M.M.,6T7

 2
69227-60020C0

ASU40,GSU4#..GD,SPO,STD

BLACK,202

 2
69227-60020R9

ASU40,GSU4#..GD,SPO,STD

LT.BLUE M.M.,8S7

 2
69227-60020V0

ASU40,GSU4#..GD,SPO,STD

BLUE ME.,8T7

 2
69227-60020P2

ASU40,GSU4#..GD,SPO,STD

SILVER ME.,1F7

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-28070C1

ASU40,GSU4#..GD,SPO,STD

BLACK,202

 1
69211-28070L0

ASU40,GSU4#..GD,SPO,STD

BEIGE ME.,4T8

 1
69211-28070P4

ASU40,GSU4#..GD,SPO,STD

GRAY ME.,1G3

 1
69211-28070D9

ASU40,GSU4#..GD,SPO,STD

DK. RED M.M.,3Q3

 1
69211-28070V6

ASU40,GSU4#..GD,SPO,STD

BLUE ME.,8T7

 1
69211-28070P2

ASU40,GSU4#..GD,SPO,STD

SILVER ME.,1F7

 1
69211-28070V4

ASU40,GSU4#..GD,SPO,STD

LT.BLUE M.M.,8S7

 1
69211-28070G8

ASU40,GSU4#..GD,SPO,STD

OLIVE M.M.,6T7

 1
69211-28070A3

ASU40,GSU4#..GD,SPO,STD

WHITE PEARL CS.,070

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-28070C1

ASU40,GSU4#..GD,SPO,STD

BLACK,202

 1
69211-28070D9

ASU40,GSU4#..GD,SPO,STD

DK. RED M.M.,3Q3

 1
69211-28070A3

ASU40,GSU4#..GD,SPO,STD

WHITE PEARL CS.,070

 1
69211-28070L0

ASU40,GSU4#..GD,SPO,STD

BEIGE ME.,4T8

 1
69211-28070P4

ASU40,GSU4#..GD,SPO,STD

GRAY ME.,1G3

 1
69211-28070V4

ASU40,GSU4#..GD,SPO,STD

LT.BLUE M.M.,8S7

 1
69211-28070P2

ASU40,GSU4#..GD,SPO,STD

SILVER ME.,1F7

 1
69211-28070G8

ASU40,GSU4#..GD,SPO,STD

OLIVE M.M.,6T7

 1
69211-28070V6

ASU40,GSU4#..GD,SPO,STD

BLUE ME.,8T7

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-28060

ASU40,GSU4#,MHU48

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-60030

ASU40,GSU4#,MHU48

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-20020C0

ASU40,GSU4#,MHU48

BLACK

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-20010C0

ASU40,GSU4#,MHU48

BLACK

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ASU40,GSU4#,MHU48

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

ASU40,GSU4#,MHU48

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-48050

ASU40,GSU4#,MHU48

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-48050

ASU40,GSU4#,MHU48

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-48050

ASU40,GSU4#,MHU48

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-48050

ASU40,GSU4#,MHU48

 1
Common parts
90148-50003
90148-60022
90148-80066
90159-50083
90166-50003
90179-05118
90189-05003
