GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

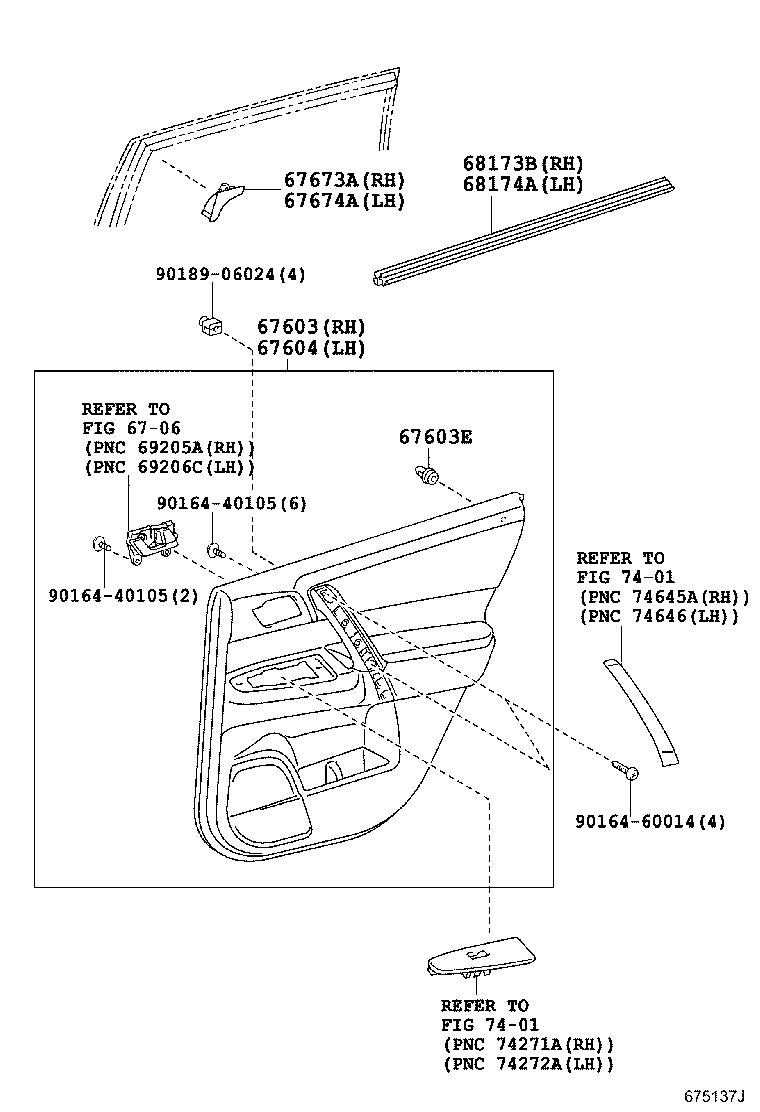

ILLUST NO. 2 OF 2(0705- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-48510C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67630-48550C0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67630-48550C0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67630-48510E1 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67630-48510B1 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67630-48550B0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67630-48550B0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67630-48550E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67630-48550E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ASU40,GSU4#,MHU48 |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-48510C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67640-48550C0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67640-48550C0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67640-48510B1 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67640-48550E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67640-48510E1 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67640-48550B0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67640-48550B0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67640-48550E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||

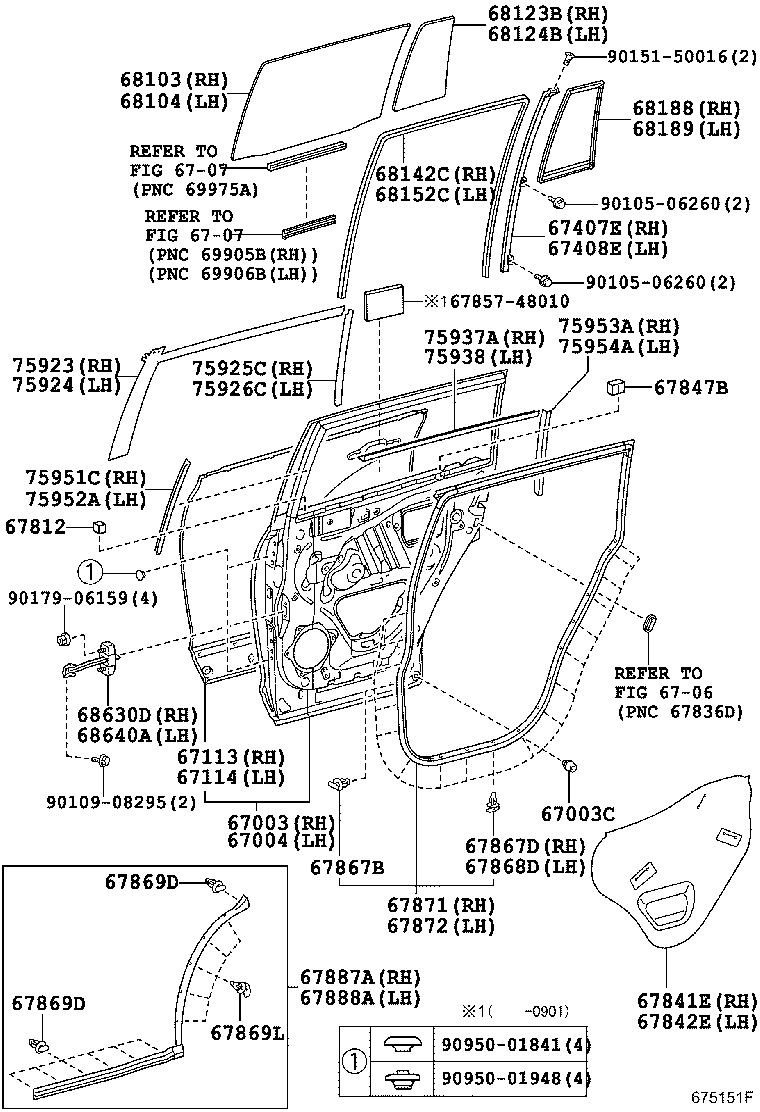

ILLUST NO. 1 OF 2(0705- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-48120 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-04034 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASU40,GSU4#,MHU48 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASU40,GSU4#,MHU48 |
18 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-48030 |
ASU40,GSU4#,MHU48 |
14 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-48030 |
ASU40,GSU4#,MHU48 |
14 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67867-12150 |
ASU40,GSU4#,MHU48 |
10 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-48120 |
ASU40,GSU4#,MHU48 *TEM,T=3.5,DARK GRAY |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-48120 |
ASU40,GSU4#,MHU48 *TEM,T=3.5,DARK GRAY |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-48090 |
ASU40,GSU4#,MHU48 *TEM,T=3.5,DARK GRAY |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-48090 |
ASU40,GSU4#,MHU48 *TEM,T=3.5,DARK GRAY |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 67857-48010 | ||||
| 90105-06260 | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90179-06159 | ||||
| 90950-01841 | ||||
| 90950-01948 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 6707 | ||||
