GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-42230 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-42250 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-28010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-28010 |
ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-28120E2 |
MHU48;GSU4#..GD,SPO DK. BROWN,TRIM4# |
1 | ||
| 69205-28120C0 |
GSU4#..GD,SPO BLACK,TRIM1#,2# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-28120C0 |
GSU4#..GD,SPO BLACK,TRIM1#,2# |
1 | ||
| 69206-28120E2 |
MHU48;GSU4#..GD,SPO DK. BROWN,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-28070C1 |
ASU40,GSU4#..GD,SPO,STD BLACK,202 |
1 | ||
| 69211-28070P4 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3 |
1 | ||
| 69211-28070D9 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070G8 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7 |
1 | ||
| 69211-28070A3 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070 |
1 | ||
| 69211-28070P2 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7 |
1 | ||
| 69211-28070V4 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070L0 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8 |
1 | ||
| 69211-28070V6 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-28070C1 |
ASU40,GSU4#..GD,SPO,STD BLACK,202 |
1 | ||
| 69211-28070P4 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3 |
1 | ||
| 69211-28070D9 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070G8 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7 |
1 | ||
| 69211-28070A3 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070 |
1 | ||
| 69211-28070P2 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7 |
1 | ||
| 69211-28070V4 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070L0 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8 |
1 | ||
| 69211-28070V6 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-28010A3 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070,DRIVER SIDE |
1 | ||
| 69217-28010C1 |
ASU40,GSU4#..GD,SPO,STD BLACK,202,DRIVER SIDE |
1 | ||
| 69217-28010G5 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7,DRIVER SIDE |
1 | ||
| 69217-28010D9 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3,DRIVER SIDE |
1 | ||
| 69217-60020D8 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3,PASSENGER SIDE |
1 | ||
| 69217-60020P0 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7,PASSENGER SIDE |
1 | ||
| 69217-28010V4 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7,DRIVER SIDE |
1 | ||
| 69217-28010P2 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7,DRIVER SIDE |
1 | ||
| 69217-60020L1 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8,PASSENGER SIDE |
1 | ||
| 69217-28010P5 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3,DRIVER SIDE |
1 | ||
| 69217-60020P3 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3,PASSENGER SIDE |
1 | ||
| 69217-60020G5 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7,PASSENGER SIDE |
1 | ||
| 69217-60020C0 |
ASU40,GSU4#..GD,SPO,STD BLACK,202,PASSENGER SIDE |
1 | ||
| 69217-60020V0 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7,PASSENGER SIDE |
1 | ||
| 69217-60020A1 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070,PASSENGER SIDE |
1 | ||
| 69217-28010V8 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7,DRIVER SIDE |
1 | ||
| 69217-60020V4 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7,PASSENGER SIDE |
1 | ||
| 69217-28010L1 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8,DRIVER SIDE |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-28010A3 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070,DRIVER SIDE |
1 | ||
| 69217-28010C1 |
ASU40,GSU4#..GD,SPO,STD BLACK,202,DRIVER SIDE |
1 | ||
| 69217-28010G5 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7,DRIVER SIDE |
1 | ||
| 69217-28010D9 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3,DRIVER SIDE |
1 | ||
| 69217-60020D8 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3,PASSENGER SIDE |
1 | ||
| 69217-60020P0 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7,PASSENGER SIDE |
1 | ||
| 69217-28010V4 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7,DRIVER SIDE |
1 | ||
| 69217-28010P2 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7,DRIVER SIDE |
1 | ||
| 69217-60020L1 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8,PASSENGER SIDE |
1 | ||
| 69217-28010P5 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3,DRIVER SIDE |
1 | ||
| 69217-60020P3 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3,PASSENGER SIDE |
1 | ||
| 69217-60020G5 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7,PASSENGER SIDE |
1 | ||
| 69217-60020C0 |
ASU40,GSU4#..GD,SPO,STD BLACK,202,PASSENGER SIDE |
1 | ||
| 69217-60020V0 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7,PASSENGER SIDE |
1 | ||
| 69217-60020A1 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070,PASSENGER SIDE |
1 | ||
| 69217-28010V8 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7,DRIVER SIDE |
1 | ||
| 69217-60020V4 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7,PASSENGER SIDE |
1 | ||
| 69217-28010L1 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8,DRIVER SIDE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-28070C1 |
ASU40,GSU4#..GD,SPO,STD BLACK,202 |
1 | ||
| 69211-28070L0 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8 |
1 | ||
| 69211-28070D9 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070A3 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070 |
1 | ||
| 69211-28070P4 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3 |
1 | ||
| 69211-28070V6 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7 |
1 | ||
| 69211-28070P2 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7 |
1 | ||
| 69211-28070V4 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070G8 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-28070C1 |
ASU40,GSU4#..GD,SPO,STD BLACK,202 |
1 | ||
| 69211-28070L0 |
ASU40,GSU4#..GD,SPO,STD BEIGE ME.,4T8 |
1 | ||
| 69211-28070D9 |
ASU40,GSU4#..GD,SPO,STD DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070A3 |
ASU40,GSU4#..GD,SPO,STD WHITE PEARL CS.,070 |
1 | ||
| 69211-28070P4 |
ASU40,GSU4#..GD,SPO,STD GRAY ME.,1G3 |
1 | ||
| 69211-28070V6 |
ASU40,GSU4#..GD,SPO,STD BLUE ME.,8T7 |
1 | ||
| 69211-28070P2 |
ASU40,GSU4#..GD,SPO,STD SILVER ME.,1F7 |
1 | ||
| 69211-28070V4 |
ASU40,GSU4#..GD,SPO,STD LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070G8 |
ASU40,GSU4#..GD,SPO,STD OLIVE M.M.,6T7 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-20020C0 |
ASU40,GSU4#,MHU48 BLACK |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-20010C0 |
ASU40,GSU4#,MHU48 BLACK |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 69296-48010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90159-50083 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 90386-08066 | ||||

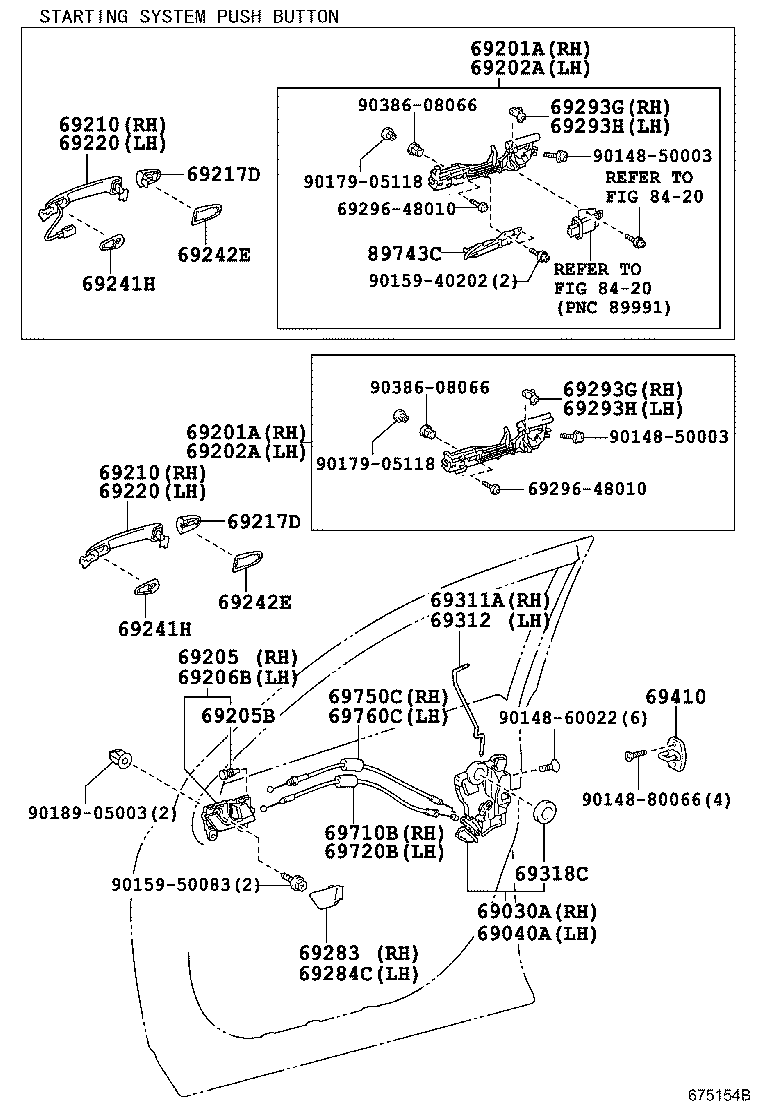

| Linked diagrams | ||||
| 8420 | ||||
