GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

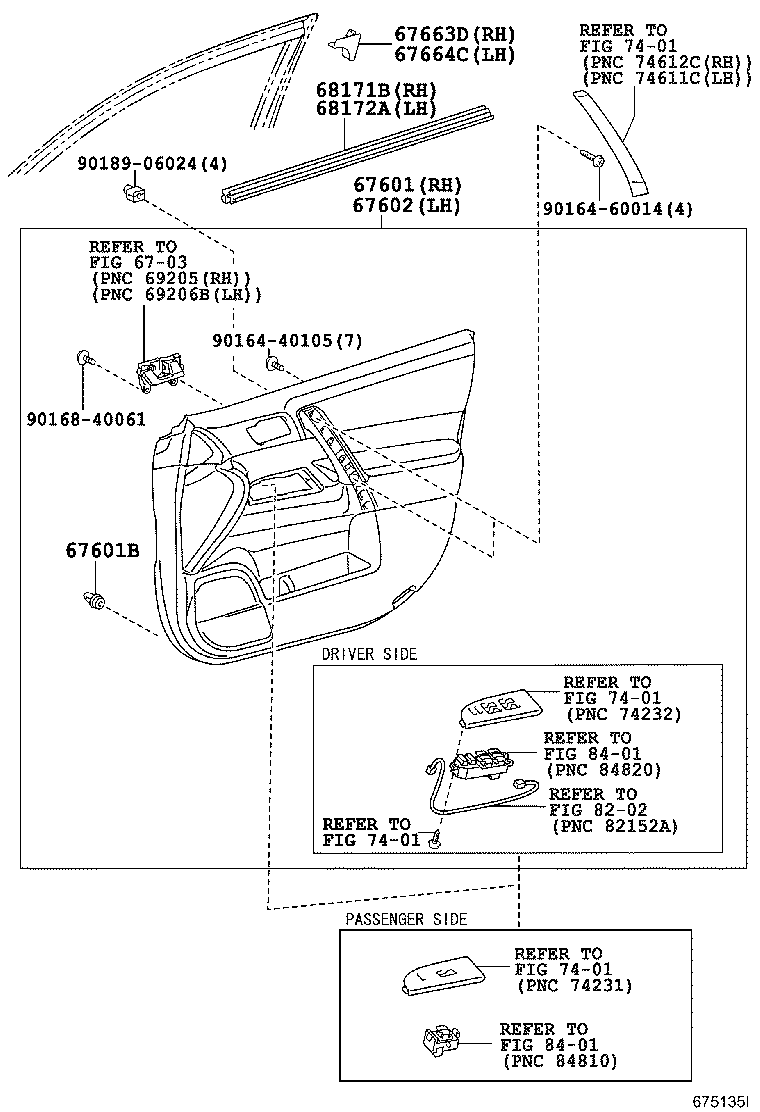

ILLUST NO. 2 OF 2(0705-0811)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-48660C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67610-48670C1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67610-48660E1 |
GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67610-48670B1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67610-48660B1 |
GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67610-48670E1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67610-48670E1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67610-48670C1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67610-48670B1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ASU40,GSU4#,MHU48 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-48610B1 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67620-48620C1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48620B1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67620-48620B1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67620-48620E1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48610C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67620-48610E1 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67620-48620C1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48620E1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48490C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67620-48490E0 |
GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67620-48500B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67620-48500C0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48500C0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48500E0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48490B0 |
GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67620-48500E0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48500B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90164-60014 | ||||
| 90168-40061 | ||||
| 90189-06024 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8202 | ||||
| 8401 | ||||

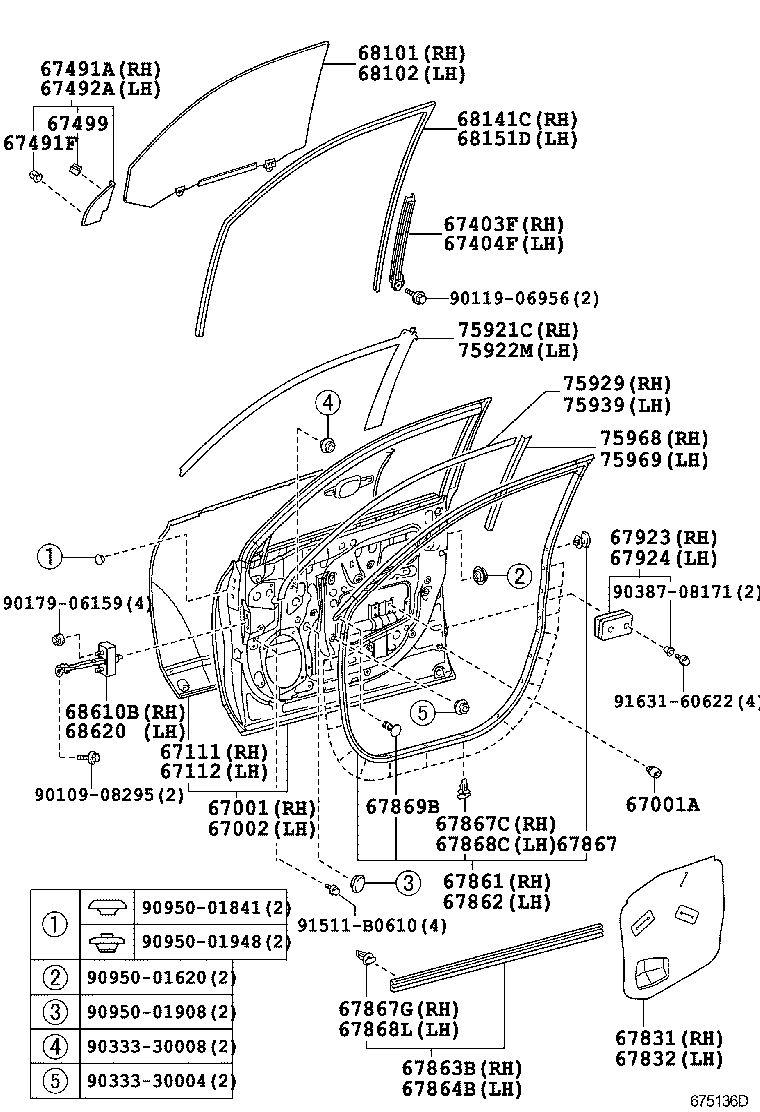

ILLUST NO. 1 OF 2(0705- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-48100 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-48100 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90468-05106 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 90468-04181 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASU40,GSU4#,MHU48 |
16 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-48030 |
ASU40,GSU4#,MHU48 |
8 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASU40,GSU4#,MHU48 |
16 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-48030 |
ASU40,GSU4#,MHU48 |
8 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-48090 |
ASU40,GSU4#,MHU48 *UVCT,T=4.0,GREEN |
1 | ||
| 68101-48091 |
ASU40,GSU4#,MHU48 *UVCT,T=4.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-48091 |
ASU40,GSU4#,MHU48 *UVCT,T=4.0,GREEN |
1 | ||
| 68102-48090 |
ASU40,GSU4#,MHU48 *UVCT,T=4.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06956 | ||||
| 90179-06159 | ||||
| 90333-30004 | ||||
| 90333-30008 | ||||
| 90387-08171 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01908 | ||||
| 90950-01948 | ||||
| 91511-B0610 | ||||
| 91631-60622 | ||||

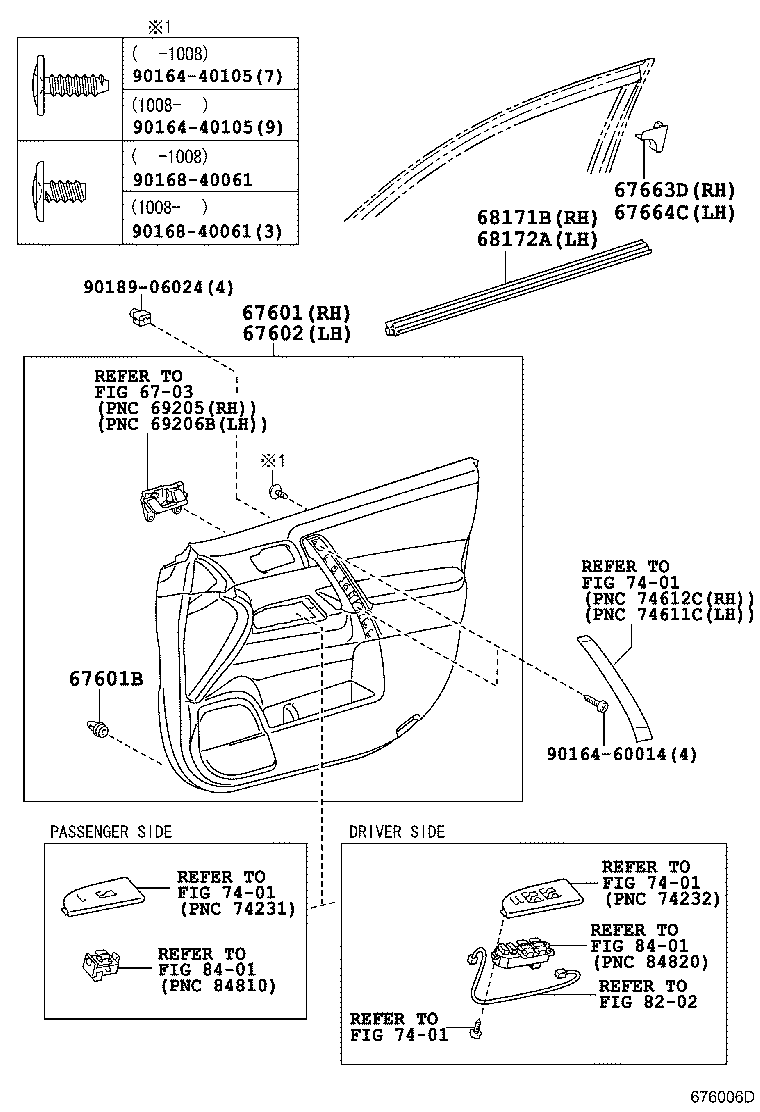

ILLUST NO. 2 OF 2(0811- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-48660C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67610-48670C1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67610-48660E1 |
GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67610-48670B1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67610-48660B1 |
GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67610-48670E1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67610-48670E1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67610-48670C1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67610-48670B1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ASU40,GSU4#,MHU48 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-48610B1 |
MHU48;GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67620-48620C1 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48620B1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67620-48620B1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67620-48620E1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48610C1 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67620-48610E1 |
MHU48;GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67620-48620C1 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48620E1 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48490C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67620-48490E0 |
GSU4#..GD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 67620-48500B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67620-48500C0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48500C0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,BLACK,TRIM2# |
1 | ||
| 67620-48500E0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48490B0 |
GSU4#..GD,SPO GRAY,TRIM1# |
1 | ||
| 67620-48500E0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 67620-48500B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90164-60014 | ||||
| 90168-40061 | ||||
| 90189-06024 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8202 | ||||
| 8401 | ||||
