GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

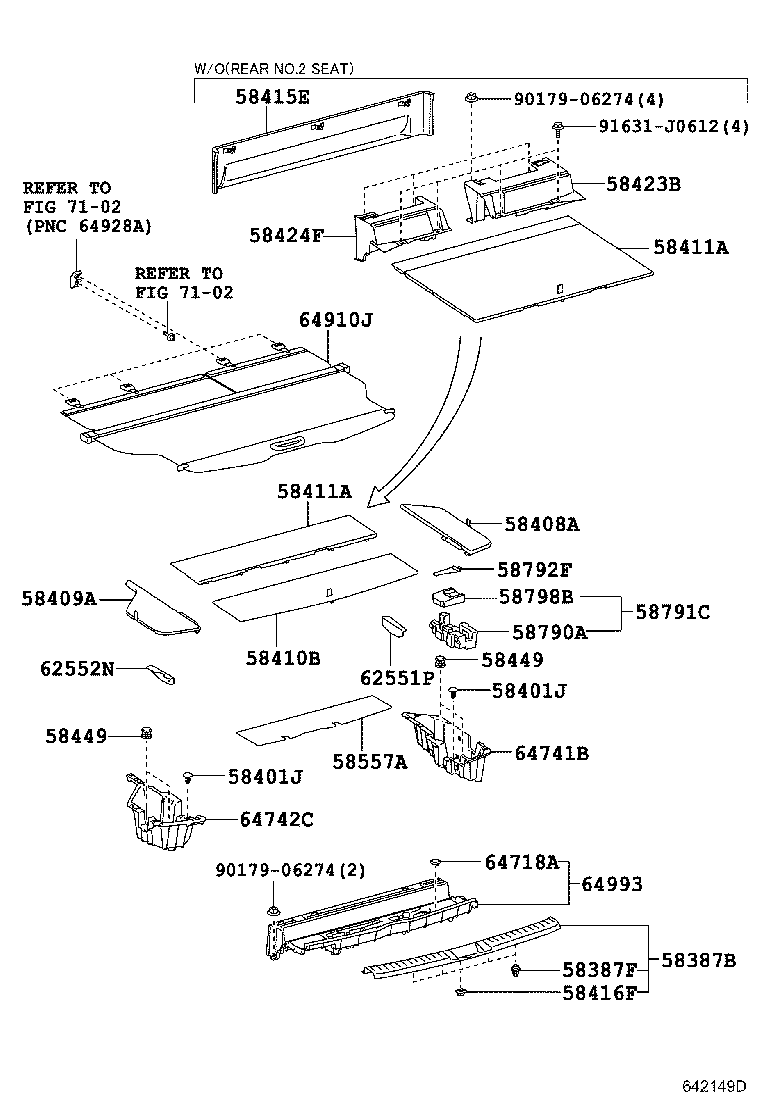

ILLUST NO. 1 OF 2(0705-1008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 58387-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 58387-48050B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
4 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 90467-06020C0 |
ASU40,GSU4#,MHU48 BLACK |
2 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 90467-06020C0 |
ASU40,GSU4#,MHU48 BLACK |
2 | ||
| 58408A - BOARD SUB-ASSY, DECK, NO.2 | ||||
| 58408-48080C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 58408-48080B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 58408-48080E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 58409A - BOARD SUB-ASSY, DECK, NO.3 | ||||
| 58409-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 58409-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 58409-48070B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-48090E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 58410-48090B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 58410-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 58411-48010B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 58411-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 58411-48010B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 58411-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 58416F - BRACKET, DECK BOARD, NO.1 | ||||
| 58416-33020C0 |
ASU40,GSU4#,MHU48 BLACK |
1 | ||
| 58449 - CLIP, DECK BOARD | ||||
| 90467-06193C0 |
ASU40,GSU4#,MHU48 BLACK |
4 | ||
| 58449 - CLIP, DECK BOARD | ||||
| 90467-06193C0 |
ASU40,GSU4#,MHU48 BLACK |
4 | ||
| 58557A - MAT, REAR | ||||
| 58557-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 58790A - CARRIER ASSY, JACK | ||||
| 58790-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 58791C - CARRIER, JACK | ||||
| 58791-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 58792F - SUPPORT, JACK CARRIER | ||||
| 58792-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 58798B - CUSHION, JACK CARRIER | ||||
| 58798-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 62551P - COVER, REAR SEAT SIDE, RH | ||||
| 62551-48090E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62551-48090B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 62551-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62552N - COVER, REAR SEAT SIDE, LH | ||||
| 62552-48050B0 |
ASU40,GSU4#,MHU48 LT.GRAY,TRIM1# |
1 | ||
| 62552-48050C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62552-48050E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64910-48090C0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,BLACK,TRIM2# |
1 | ||
| 64910-48070B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| 64910-48090B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1# |
1 | ||
| 64910-48070E0 |
GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 64910-48090E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 7102 | ||||

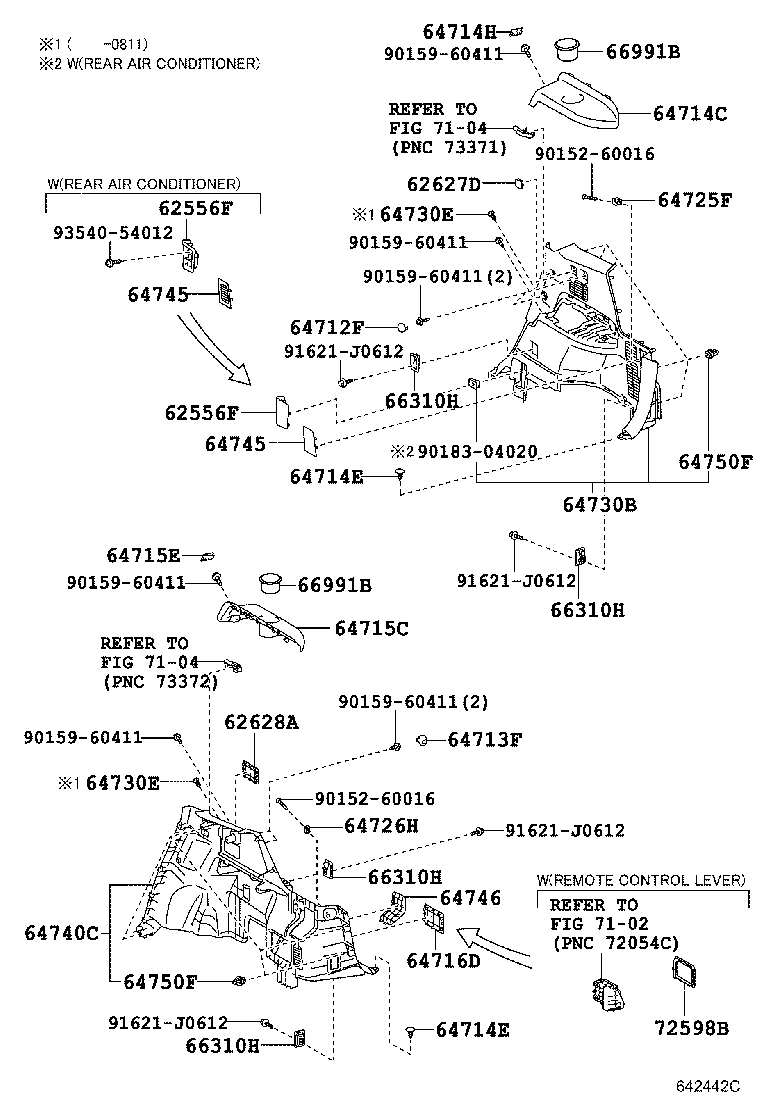

ILLUST NO. 2 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62556F - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-48051C0 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 62556-48051C0 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 62556-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62556-48051B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 62556-48051B0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 62556-48051E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 62556-48051E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 62556-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62556-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62556F - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-48051C0 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 62556-48051C0 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 62556-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62556-48051B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 62556-48051B0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 62556-48051E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 62556-48051E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 62556-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62556-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62627-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62627-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62627-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62628A - COVER, SIDE TRIM, LH | ||||
| 62628-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62628-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62628-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 64712-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 64712-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64712-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 64712-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 64712-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64714-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64714-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-08186C0 |
ASU40,GSU4#,MHU48 BLACK |
2 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-08186C0 |
ASU40,GSU4#,MHU48 BLACK |
2 | ||
| 64714H - COVER, DECK SIDE TRIM, NO.1 | ||||
| 64713-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64713-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64713-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64715-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64715-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64715E - COVER, DECK SIDE TRIM, NO.2 | ||||
| 64713-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64713-48020B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64713-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64725-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64725-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64726H - HOOK, DECK SIDE TRIM, NO.2 | ||||
| 64726-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64726-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64726-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-48080C0 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64730-48080B0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 64730-48090C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64730-48090B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64730-48080E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 64730-48080B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 64730-48080E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 64730-48080C0 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64730-48090E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05161C0 |
GSU4#,MHU48 BLACK |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05161C0 |
GSU4#,MHU48 BLACK |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64740-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64740-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-48020C0 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64745-48020B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 64745-48020E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 64745-48020C0 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64745-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64745-48020E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 64745-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64745-48020B0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 64745-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-48020C0 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64745-48020B0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 64745-48020E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 64745-48020C0 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),BLACK,TRIM2# |
1 | ||
| 64745-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64745-48020E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 64745-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 64745-48020B0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 64745-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-48020B0 |
ASU40,GSU4# GRAY,TRIM1# |
1 | ||
| 64746-48020C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 64746-48020E0 |
ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
8 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
8 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-32010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 66310-32010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 66310-32010E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-32010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 66310-32010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 66310-32010E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-32010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 66310-32010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 66310-32010E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-32010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
4 | ||
| 66310-32010B3 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
4 | ||
| 66310-32010E1 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 66991-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 66991-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 66991-48010B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
2 | ||
| 66991-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
2 | ||
| 72598B - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72598-48010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 72598-48010E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 72598-48010B0 |
MHU48;GSU4#..GD,LIMD,SPO GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90152-60016 | ||||
| 90159-60411 | ||||
| 90183-04020 | ||||
| 91621-J0612 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 7102 | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
