GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
(0705- )

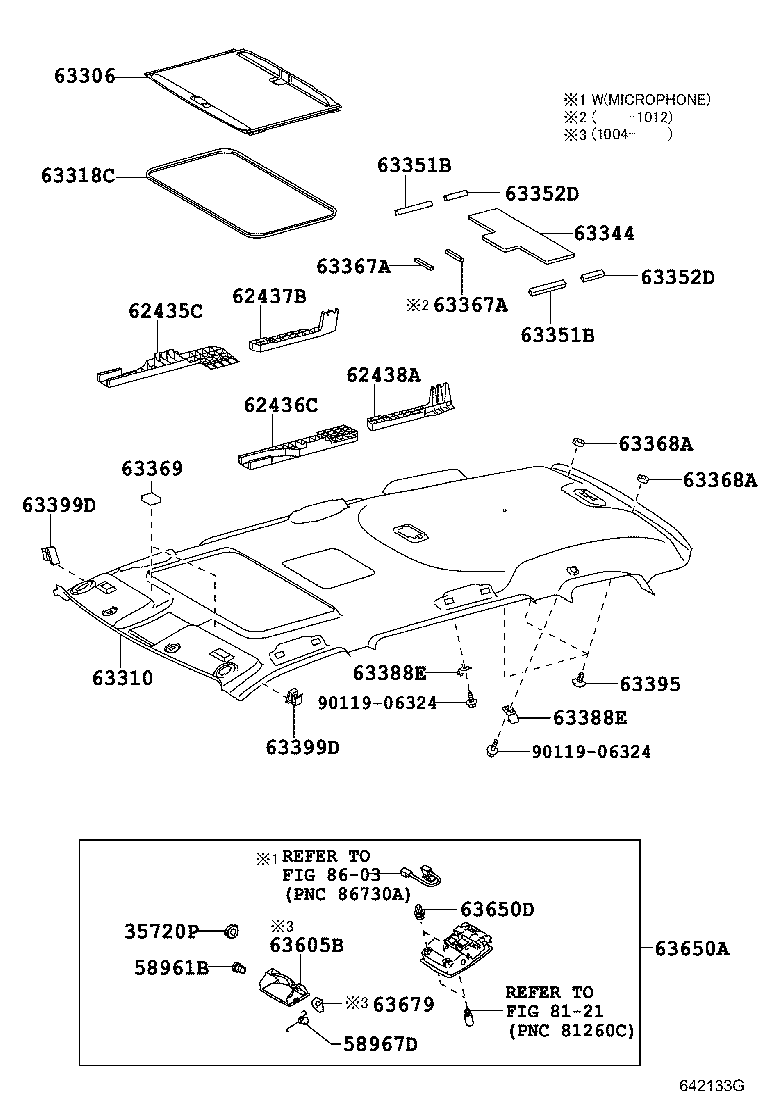

W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-42040B0 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-48290B1 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63310-48290E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 63310-48330B1 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48310B1 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48310B1 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48320B1 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63310-48310E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48310E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48330B1 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-48020B0 |
GSU4#..GD L=2374,MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63318-48020B0 |
GSU4#..GD L=2374,MOON ROOF-WITH&WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63318-48020B0 |
GSU4#..GD L=2374,MOON ROOF-WITH&WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
ASU40,GSU4#,MHU48 |
3 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
ASU40,GSU4#,MHU48 |
3 | ||
| 63369 - SUPPORT, ROOF HEADLINING, NO.9 | ||||
| 63369-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-48010B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
4 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
3 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-48060B0 |
GSU4#..GD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48080B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48070B0 |
GSU4#..GD,SPO GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48070E0 |
MHU48;GSU4#..GD,SPO GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48060E0 |
MHU48;GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 63650-48080B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48080E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48080E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48090B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48090E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48090E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48090B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48140E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48140B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48120E0 |
GSU4#..GD,STD MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48140B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48130B0 |
GSU4#..GD MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48160E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48071B0 |
GSU4#..GD,SPO GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48061B0 |
GSU4#..GD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48130E0 |
GSU4#..GD MOON ROOF-WITH&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48160B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48071E0 |
MHU48;GSU4#..GD,SPO GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48061E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 63650-48160B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48140E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48081B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48120B0 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48081B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48081E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48081E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48121B0 |
GSU4#..GD,SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48091B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48091E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48091E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48160E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48091B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48131B0 |
GSU4#..GD,SPO MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48121E0 |
MHU48..LIMD;GSU4#..GD,SPO,STD MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48141B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48131E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48161B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48161E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48141B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48161E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48161B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48092B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48141E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48082B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48141E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48122B0 |
GSU4#..GD,SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48072B0 |
GSU4#..GD,SPO GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48082B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48092B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48062B0 |
GSU4#..GD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48162B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48142B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48142B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48162B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48132B0 |
GSU4#..GD,SPO MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90467-10167 |
ASU40,GSU4#,MHU48 |
2 | ||
| Common parts | ||||
| 90119-06324 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||

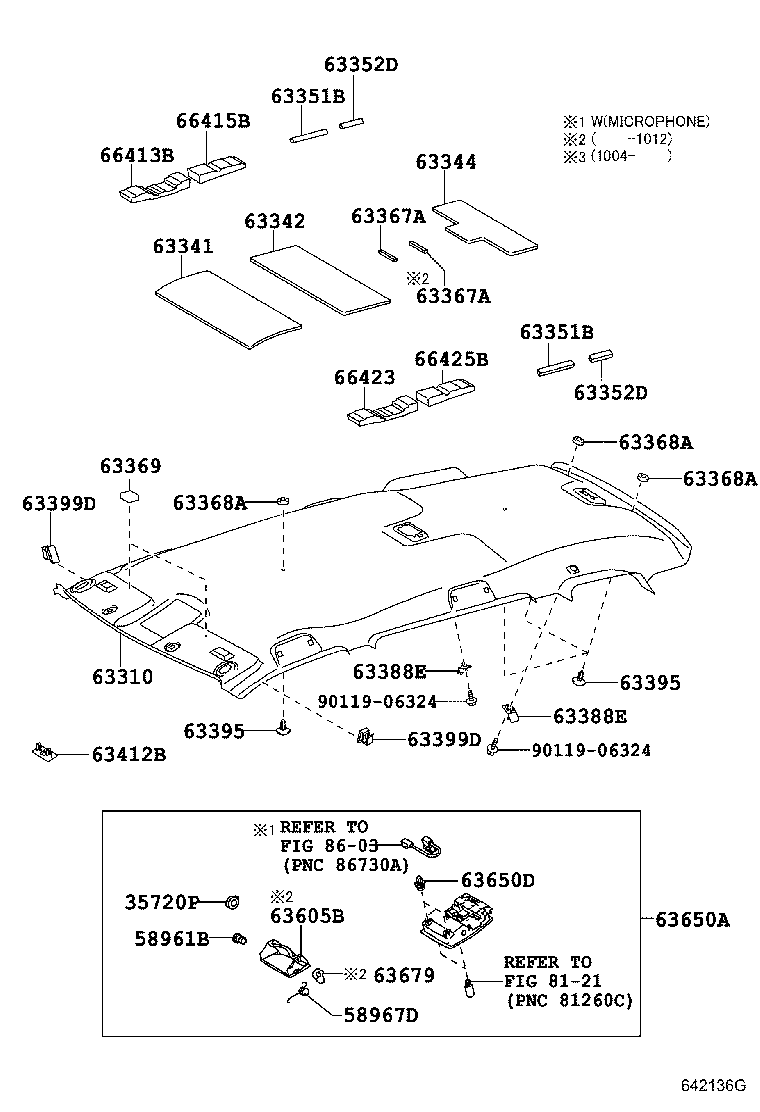

(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-48290B1 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63310-48290E0 |
MHU48;GSU4#..GD,LIMD,SPO SAND BEIGE,TRIM4# |
1 | ||
| 63310-48330B1 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48310B1 |
GSU4#..GD,SPO WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48310B1 |
GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63310-48320B1 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63310-48310E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48310E0 |
MHU48;GSU4#..GD,LIMD,SPO WITH(REAR AUTO AIR CONDITIONER),SAND BEIGE,TRIM4# |
1 | ||
| 63310-48330B1 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-48040 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63367A - SUPPORT, ROOF HEADLINING, C NO.1 | ||||
| 63367-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
ASU40,GSU4#,MHU48 |
3 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
ASU40,GSU4#,MHU48 |
3 | ||
| 63368A - SUPPORT, ROOF HEADLINING, C NO.2 | ||||
| 63368-48010 |
ASU40,GSU4#,MHU48 |
3 | ||
| 63369 - SUPPORT, ROOF HEADLINING, NO.9 | ||||
| 63369-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 63388E - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-48020B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
2 | ||
| 63388-48020E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
2 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-48010B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
4 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
3 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-48010B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
4 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63395-48010E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
4 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
3 | ||
| 63395-48010B0 |
GSU4#..GD MOON ROOF-WITH&WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#,2# |
3 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-48010 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-33010 |
GSU4# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-48060B0 |
GSU4#..GD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48080B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48070B0 |
GSU4#..GD,SPO GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48070E0 |
MHU48;GSU4#..GD,SPO GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48060E0 |
MHU48;GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 63650-48080B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48080E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48080E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48090B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48090E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48090E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48090B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48140E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48140B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48120E0 |
GSU4#..GD,STD MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48140B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48130B0 |
GSU4#..GD MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48160E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48071B0 |
GSU4#..GD,SPO GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48061B0 |
GSU4#..GD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48130E0 |
GSU4#..GD MOON ROOF-WITH&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48160B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48071E0 |
MHU48;GSU4#..GD,SPO GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48061E0 |
MHU48;ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 63650-48160B0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48140E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48081B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48120B0 |
GSU4#..GD MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48081B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48081E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48081E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48121B0 |
GSU4#..GD,SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48091B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48091E0 |
MHU48;GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48091E0 |
MHU48..LIMD;GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48160E0 |
GSU4#..GD MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48091B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48131B0 |
GSU4#..GD,SPO MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48121E0 |
MHU48..LIMD;GSU4#..GD,SPO,STD MOON ROOF-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48141B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48131E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48161B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48161E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48141B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48161E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48161B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48092B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48141E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48082B0 |
GSU4#..GD,SPO AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48141E0 |
MHU48..LIMD;GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,SAND BEIGE,TRIM4# |
1 | ||
| 63650-48122B0 |
GSU4#..GD,SPO MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48072B0 |
GSU4#..GD,SPO GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48082B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48092B0 |
GSU4#..GD,SPO AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48062B0 |
GSU4#..GD,SPO GRAY,TRIM1#,2# |
1 | ||
| 63650-48162B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48142B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48142B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 9SPEAKER JBL&*BT,GRAY,TRIM1#,2# |
1 | ||
| 63650-48162B0 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-NAVIGATION 4CD-CHANGER 9SPEAKER JBL&*BT&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650-48132B0 |
GSU4#..GD,SPO MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1#,2# |
1 | ||
| 63650D - CLIP(FOR ROOF CONSOLE BOX) | ||||
| 90467-10167 |
ASU40,GSU4#,MHU48 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-06324 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
