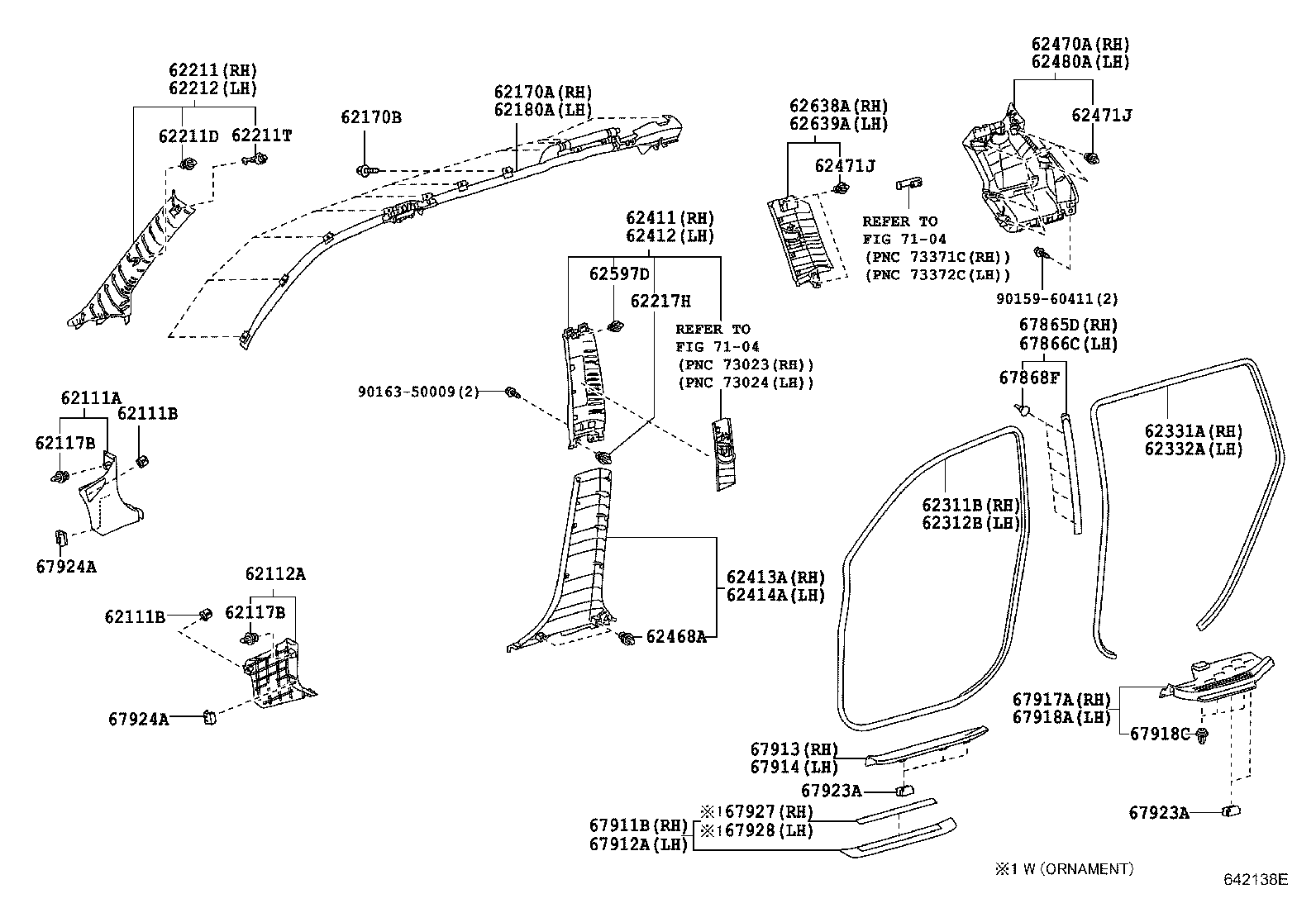

GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62101-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62101-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06193C0 |
GSU4#..GD,LIMD,SPO BLACK |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06193C0 |
GSU4#..GD,LIMD,SPO BLACK |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62102-48070C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62102-48070B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
ASU40,GSU4#,MHU48 |
22 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-48110B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62210-48110E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10188 |
ASU40,GSU4#,MHU48 |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08005 |
ASU40,GSU4#,MHU48 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-48110E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62220-48110B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62311-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62311-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62312-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62312-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62331-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62331-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62332-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62332-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-48070B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62410-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-48070E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62420-48070B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62413-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62413-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-48030B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 62414-48030C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 62414-48030E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62468A - CLIP (FOR CENTER PILLAR REAR GARNISH) | ||||
| 90467-10161 |
GSU4#,MHU48 |
4 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-48100E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62470-48100B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
14 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 |
14 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-48080B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62480-48100B0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,GRAY,TRIM1#,2# |
1 | ||
| 62480-48080E0 |
MHU48..STD;ASU40,GSU4# SAND BEIGE,TRIM4# |
1 | ||
| 62480-48100E0 |
GSU4#..GD,LIMD,SPO POWRE BACK DOOR-WITH,SAND BEIGE,TRIM4# |
1 | ||
| 62597D - CLIP | ||||
| 90467-10188 |
ASU40,GSU4#,MHU48 |
2 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 62638-48040B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-48040B0 |
GSU4#..GD,LIMD,SPO GRAY,TRIM1#,2# |
1 | ||
| 62639-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 67865D - WEATHERSTRIP, CENTER PILLAR UPPER END, RH | ||||
| 67865-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67866C - WEATHERSTRIP, CENTER PILLAR UPPER END, LH | ||||
| 67866-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 67868F - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASU40,GSU4#,MHU48 |
10 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-48070C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67911-48070B0 |
ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 67911-48070E0 |
ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-48070C0 |
GSU4#..GD,SPO BLACK,TRIM2# |
1 | ||
| 67912-48070B0 |
ASU40,GSU4#..GD,SPO,STD GRAY,TRIM1# |
1 | ||
| 67912-48070E0 |
ASU40,GSU4#..GD,SPO,STD SAND BEIGE,TRIM4# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 67913-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 67913-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-48040E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 67914-48040B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 67914-48040C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 67917-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 67917-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-48060B0 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 67918-48060E0 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 67918-48060C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 67918C - CLIP(FOR REAR SCUFF PLATE) | ||||
| 90467-10161 |
ASU40,GSU4#,MHU48 NATURAL |
4 | ||
| 67921-48050 |
ASU40,GSU4#,MHU48 YELLOW |
2 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
ASU40,GSU4#,MHU48 |
10 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
ASU40,GSU4#,MHU48 |
10 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67923-30030 |
ASU40,GSU4#,MHU48 |
2 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67923-30030 |
ASU40,GSU4#,MHU48 |
2 | ||
| Common parts | ||||
| 90159-60411 | ||||
| 90163-50009 | ||||
| Linked diagrams | ||||
| 7104 | ||||
