GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

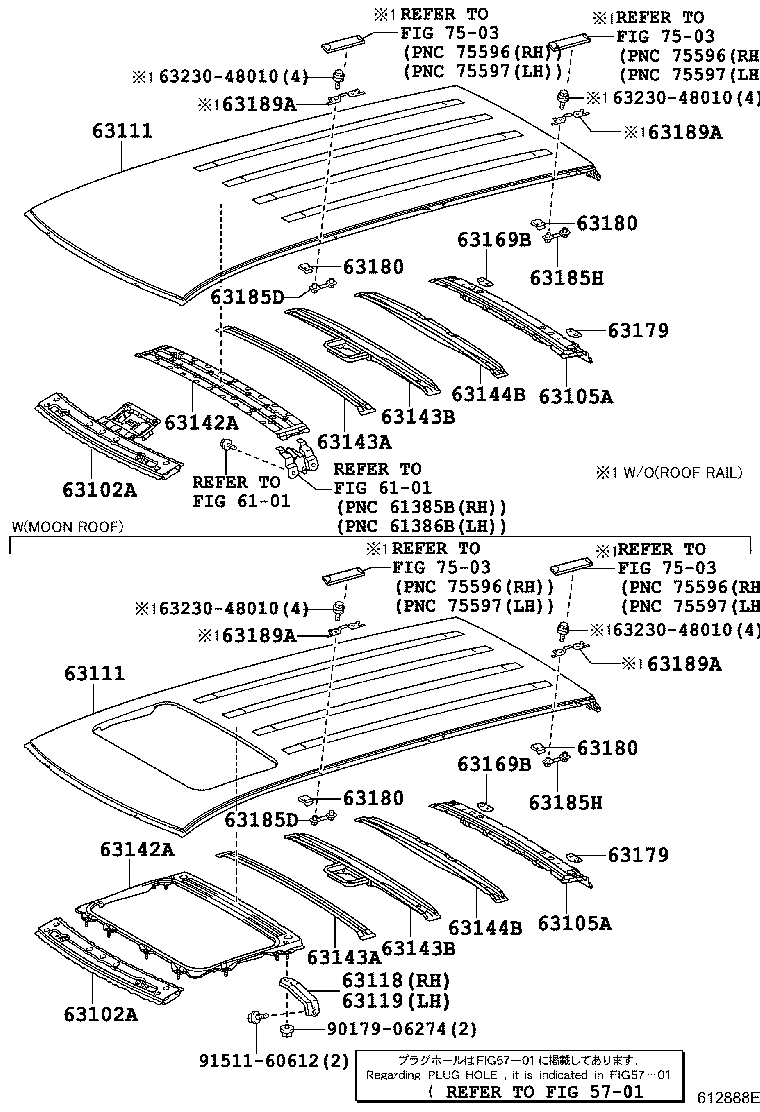

ILLUST NO. 1 OF 3(0705- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48907 |
GSU4#..GD,STD MOON ROOF-WITH |
1 | ||
| 63102-48907 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6SPEAKER |
1 | ||
| 63102-48906 |
GSU4#,MHU48 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48907 |
GSU4#..GD,STD MOON ROOF-WITH |
1 | ||
| 63102-48907 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6SPEAKER |
1 | ||
| 63102-48906 |
GSU4#,MHU48 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48110 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 63111-48120 |
GSU4#..GD MOON ROOF-WITH |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48110 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 63111-48120 |
GSU4#..GD MOON ROOF-WITH |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-48040 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6SPEAKER |
1 | ||
| 63103-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-48040 |
GSU4#..GD,SPO MOON ROOF-WITH&AUDIO-AM/FM 6SPEAKER |
1 | ||
| 63103-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63104-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63104-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU40,GSU4#,MHU48 FRONT |
2 | ||
| 63479-48010 |
ASU40,GSU4#,MHU48 REAR |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU40,GSU4#,MHU48 FRONT |
2 | ||
| 63479-48010 |
ASU40,GSU4#,MHU48 REAR |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU40,GSU4#,MHU48 FRONT |
2 | ||
| 63479-48010 |
ASU40,GSU4#,MHU48 REAR |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU40,GSU4#,MHU48 FRONT |
2 | ||
| 63479-48010 |
ASU40,GSU4#,MHU48 REAR |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-35020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-35020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| Common parts | ||||
| 63230-48010 | ||||
| 90179-06274 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6101 | ||||
| 7503 | ||||

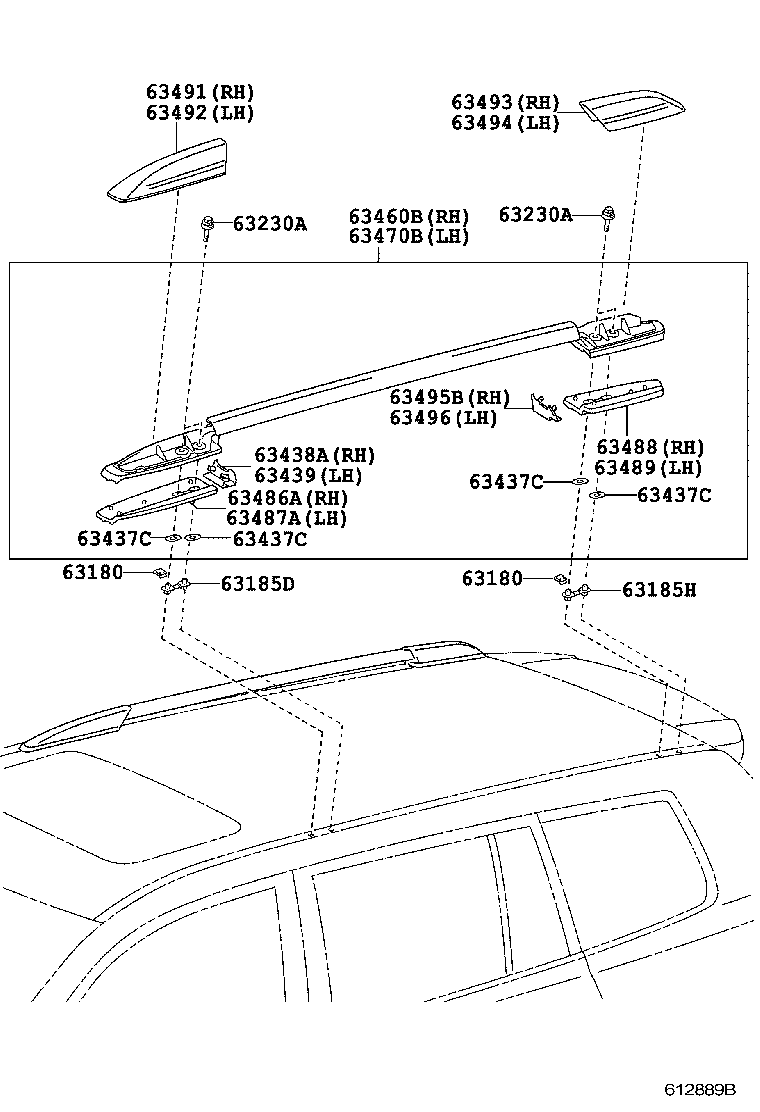

ILLUST NO. 3 OF 3(0705- )
ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU40,GSU4#,MHU48 FRONT |
2 | ||
| 63479-48010 |
ASU40,GSU4#,MHU48 REAR |
2 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 63479-48020 |
ASU40,GSU4#,MHU48 FRONT |
2 | ||
| 63479-48010 |
ASU40,GSU4#,MHU48 REAR |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-35020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63187-48020 |
ASU40,GSU4#,MHU48 |
2 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-42010 |
GSU4#,MHU48..GD,LIMD,SPO |
8 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-42010 |
GSU4#,MHU48..GD,LIMD,SPO |
8 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
8 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
8 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
8 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
8 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-48010 |
GSU4#..GD |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-48010 |
GSU4#..GD |
1 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-48020 |
GSU4#..GD |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-48020 |
GSU4#..GD |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-48020 |
GSU4#,MHU48..GD,LIMD,SPO |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-48020 |
GSU4#..GD |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-48020 |
GSU4#..GD |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-48020 |
GSU4#..GD |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-48020 |
GSU4#..GD |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-48020 |
GSU4#..GD |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-48020 |
GSU4#..GD |
1 | ||

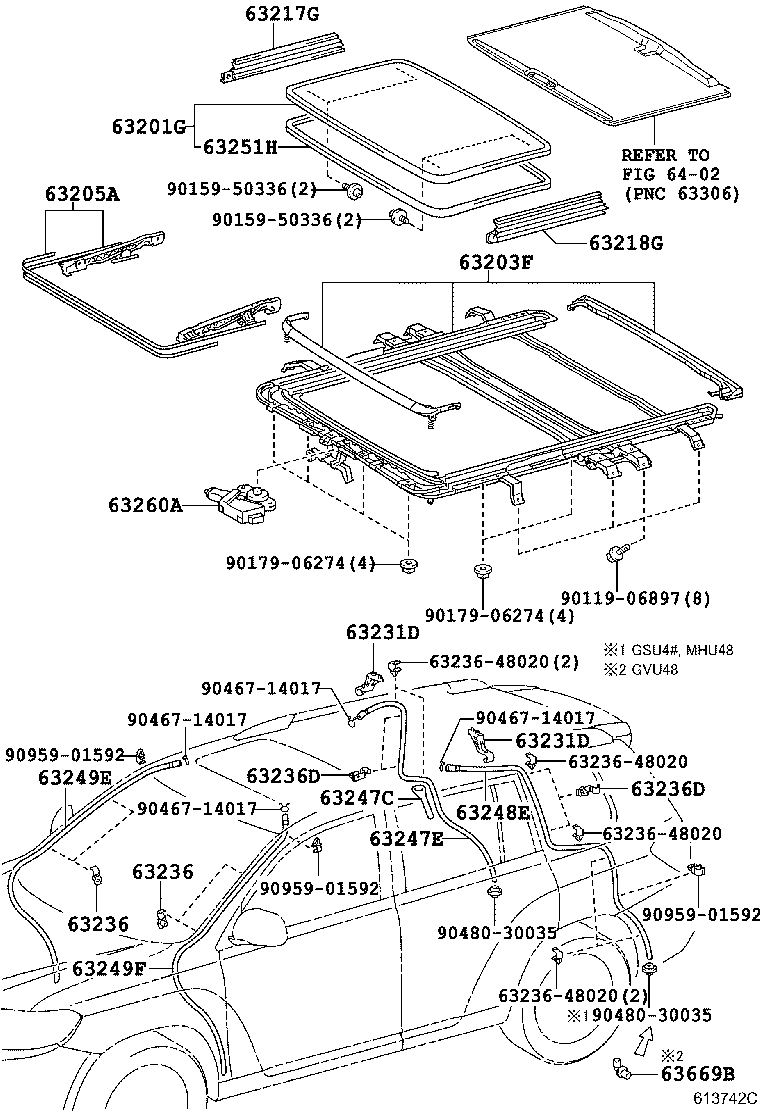

ILLUST NO. 2 OF 3(0705- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-48140 |
GSU4#..GD,STD *TEM,T=4.0,GRAY,MOON ROOF-WITH |
1 | ||
| Common parts | ||||
| 63236-48020 | ||||
| 90119-06897 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90467-14017 | ||||
| 90480-30035 | ||||
| 90959-01592 | ||||
| Linked diagrams | ||||
| 6402 | ||||
