GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )ASU40,GSU4#

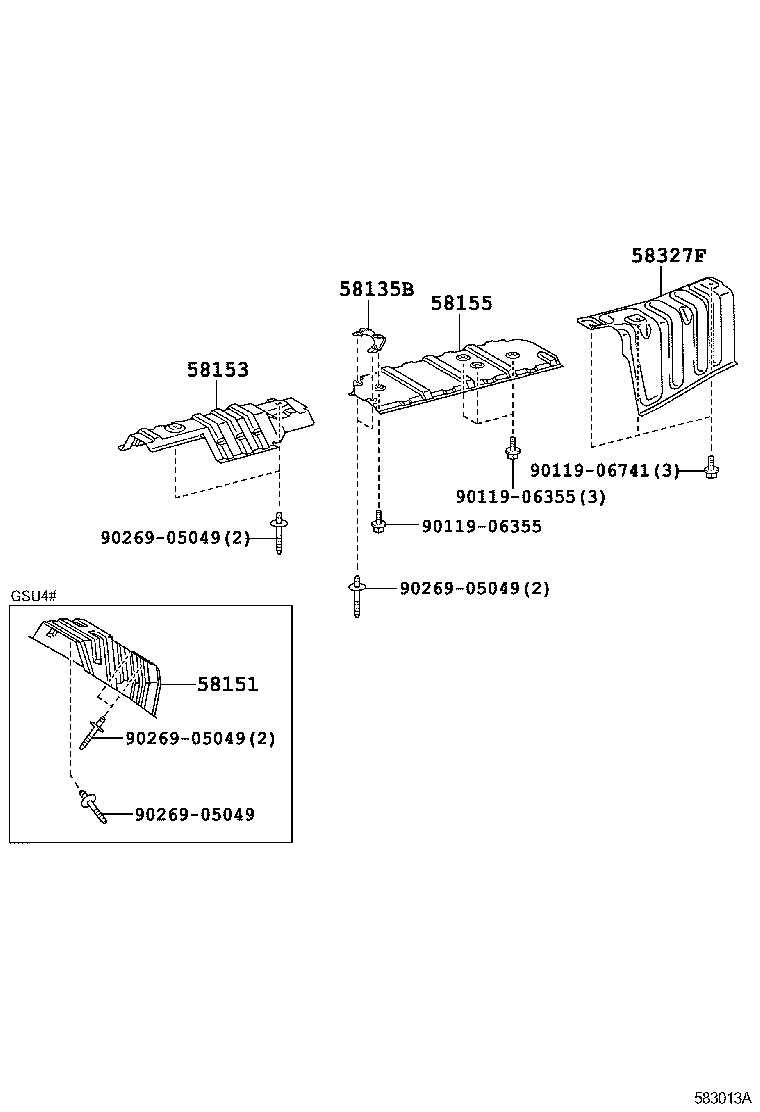

Click highlighted areas on diagram

diagram 58135B 58151 58153 58155 58327F 9011906355 9011906355 9011906741 9026905049 9026905049 9026905049 9026905049
Part # Description Qty Price
58135B - BRACKET, FLOOR INSULATOR SUPPORT
58135-48010

ASU40,GSU4#

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-48031

GSU4#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-48020

ASU40,GSU4#,MHU48

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-48021

ASU40,GSU4#

 1
58327F - INSULATOR, MAIN MUFFLER HEAT, RH
58327-48040

ASU40,GSU4#,MHU48

 1
Common parts
90119-06355
90119-06741
90269-05049
