GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

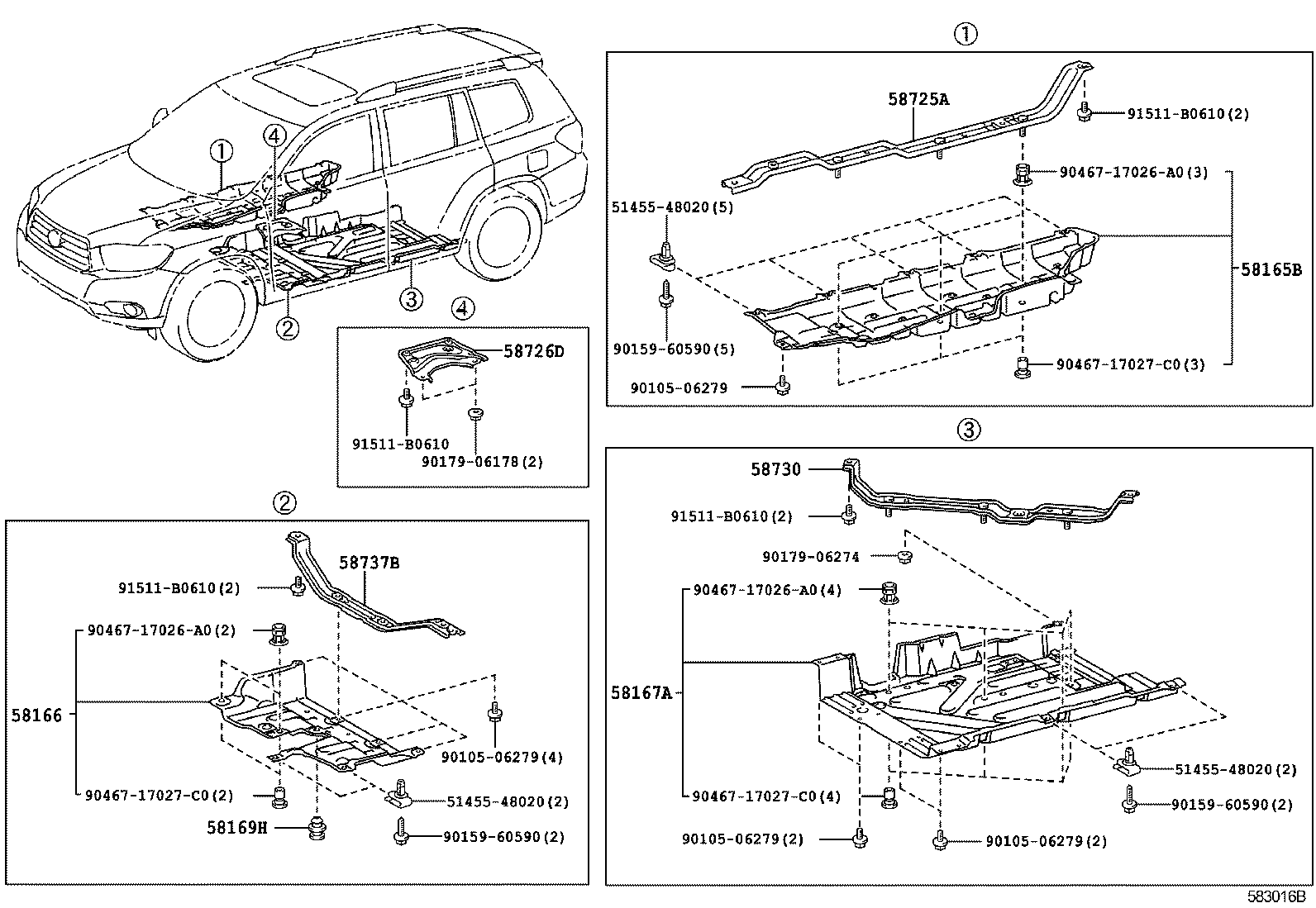

ILLUST NO. 2 OF 3(0705- )ASU40,GSU4#

Click highlighted areas on diagram

diagram 5145548020 5145548020 5145548020 58165B 58166 58167A 58169H 58725A 58726D 58730 58737B 9010506279 9010506279 9010506279 9010506279 9015960590 9015960590 9015960590 9017906178 9017906274 9046717026A0 9046717026A0 9046717026A0 9046717027C0 9046717027C0 9046717027C0 91511B0610 91511B0610 91511B0610 91511B0610
Part # Description Qty Price
58165B - COVER, FRONT FLOOR, RH
58165-48030

ASU40,GSU4#,MHU48

 1
58166 - COVER, FRONT FLOOR, LH
58166-48030

ASU40,GSU4#,MHU48

 1
58167A - COVER, FRONT FLOOR, CENTER
58167-48020

ASU40,GSU4#

 1
58169H - PATCH, FRONT FLOOR, REAR
58169-48010

ASU40,GSU4#,MHU48

 1
58725A - STAY, ENGINE SERVICE COVER
58720-48010

ASU40,GSU4#,MHU48

 1
58726D - STAY, ENGINE SERVICE COVER CATCH, REAR LH
58726-48030

ASU40,GSU4#,MHU48

 1
58730 - COVER ASSY, ENGINE SERVICE, REAR
58730-48010

ASU40,GSU4#,MHU48

 1
58737B - BRACKET, ENGINE SERVICE COVER
58737-48010

ASU40,GSU4#,MHU48

 1
Common parts
51455-48020
90105-06279
90159-60590
90179-06178
90179-06274
90467-17026A0
90467-17027C0
91511-B0610

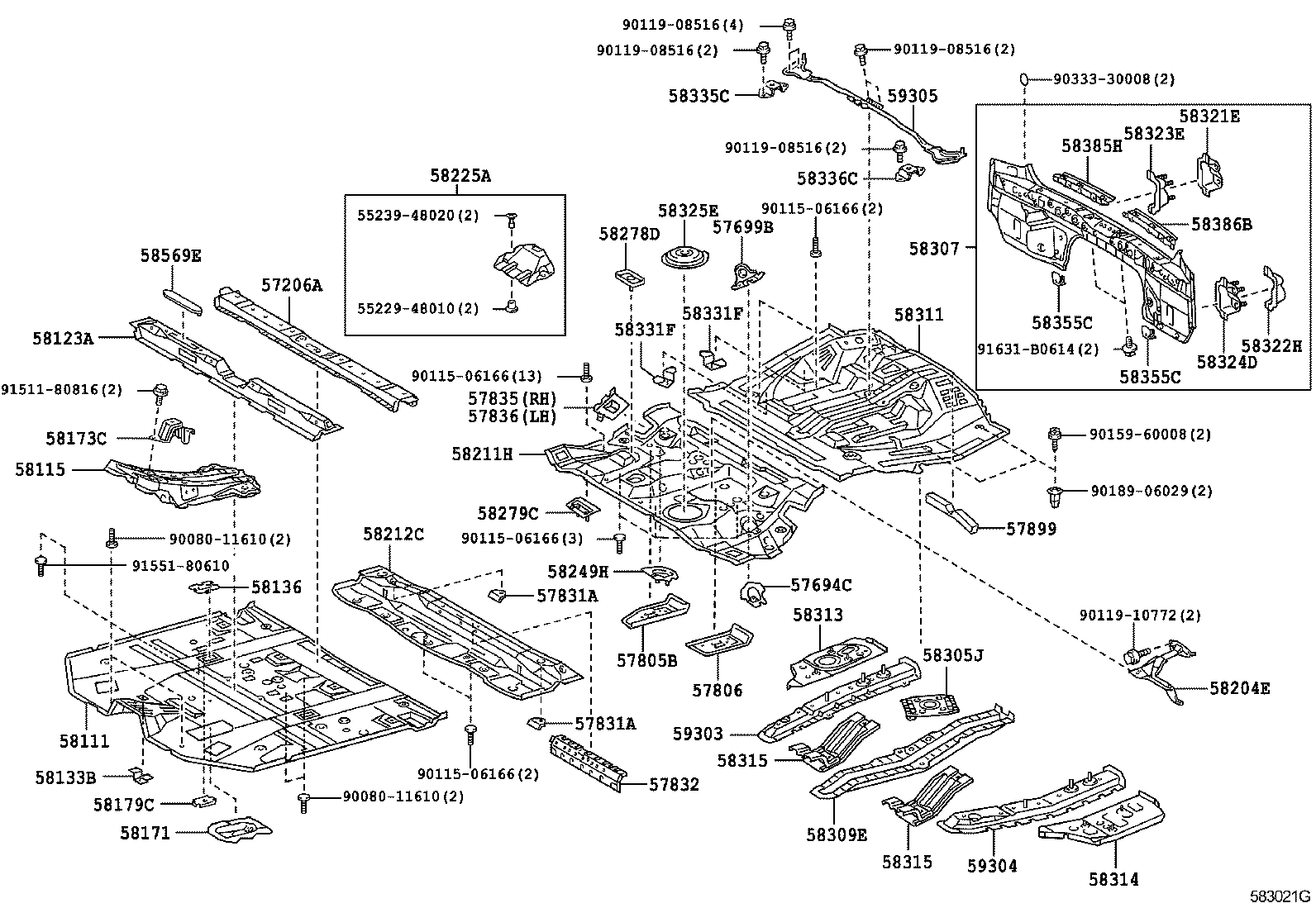

ILLUST NO. 1 OF 3(0705- )ASU40,GSU4#

Click highlighted areas on diagram

diagram 5522948010 5523948020 57206A 57694C 57699B 57805B 57806 57831A 57831A 57832 57835 57836 57899 58111 58115 58123A 58133B 58136 58171 58173C 58179C 58204E 58211H 58212C 58225A 58249H 58278D 58279C 58305J 58307 58309E 58311 58313 58314 58315 58315 58321E 58322H 58323E 58324D 58325E 58331F 58331F 58335C 58336C 58355C 58355C 58385H 58386B 58569E 59303 59304 59305 9008011610 9008011610 9011506166 9011506166 9011506166 9011506166 9011908516 9011908516 9011908516 9011908516 9011910772 9015960008 9018906029 9033330008 9151180816 9155180610 91631B0614
Part # Description Qty Price
57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57206-48010

ASU40,GSU4#,MHU48

 1
57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57693-48010

ASU40,GSU4#

 1
57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57699-48010

ASU40,GSU4#

 1
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-48030

ASU40,GSU4#

 1
57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57806-48010

ASU40,GSU4#

 1
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-48010

ASU40,GSU4#,MHU48

 2
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-48010

ASU40,GSU4#,MHU48

 2
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-48020

ASU40,GSU4#

 1
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-48020

ASU40,GSU4#,MHU48

 1
57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57836-48020

ASU40,GSU4#,MHU48

 1
57899 - SEAL, REAR FLOOR, REAR
57899-48010

ASU40,GSU4#,MHU48

 1
58111 - PAN, FRONT FLOOR
58111-48916

ASU40,GSU4#,MHU48

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58115-48050

ASU40,GSU4#,MHU48

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-48020

ASU40,GSU4#,MHU48

 1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-22040

ASU40,GSU4#,MHU48

 1
58136 - COVER, FRONT FLOOR HOLE
58136-48030

ASU40,GSU4#,MHU48

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-48030

ASU40,GSU4#,MHU48

 1
58173C - BRACKET, WIRING HARNESS PROTECTOR
58173-48010

ASU40,GSU4#,MHU48

 1
58179C - BRACKET, CLAMP FLOOR
58179-48010

ASU40,GSU4#,MHU48

 1
58204E - BRACKET SUB-ASSY, FRONT SEAT
58205-48010

ASU40,GSU4#

 1
58211H - PAN, CENTER FLOOR
58211-48908

GSU4#

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-48907

ASU40,GSU4#

 1
58225A - BRACKET, CENTER MOUNTING
58225-48010

ASU40,GSU4#

 1
58249H - BRACKET, CENTER FLOOR BOARD SUPPORT
58249-48010

ASU40,GSU4#

 1
58278D - PROTECTOR, FUEL TANK, UPPER
58278-48010

ASU40,GSU4#

 1
58279C - PROTECTOR, FUEL TANK, UPPER NO.2
58279-48010

ASU40,GSU4#

 1
58305J - BRACKET, SPARE WHEEL CARRIER
58305-48011

ASU40,GSU4#,MHU48

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-48070

ASU40,GSU4#,MHU48

 1
58309E - PLATE SUB-ASSY, REAR FLOOR
58309-48010

ASU40,GSU4#,MHU48

 1
58311 - PAN, REAR FLOOR
58311-48905

ASU40,GSU4#,MHU48

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-48060

ASU40,GSU4#,MHU48

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-48040

ASU40,GSU4#,MHU48

 1
58315 - EXTENSION, REAR FLOOR PANEL
58306-48020

ASU40,GSU4#,MHU48

 2
58315 - EXTENSION, REAR FLOOR PANEL
58306-48020

ASU40,GSU4#,MHU48

 2
58321E - PLATE, REAR BUMPER ARM SUPPORT, RH
58321-48010

ASU40,GSU4#,MHU48

 1
58322H - PLATE, REAR BUMPER ARM SUPPORT, LH
58322-48010

ASU40,GSU4#,MHU48

 1
58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58323-48070

ASU40,GSU4#,MHU48

 1
58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58324-48050

ASU40,GSU4#,MHU48

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-48020

ASU40,GSU4#

 1
58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58331-10010

ASU40,GSU4#,MHU48

 2
58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58331-10010

ASU40,GSU4#,MHU48

 2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-48010

ASU40,GSU4#,MHU48

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-48030

ASU40,GSU4#,MHU48

 1
58355C - BRACKET, REAR BUMPER ARM
58355-48010

ASU40,GSU4#,MHU48

 2
58355C - BRACKET, REAR BUMPER ARM
58355-48010

ASU40,GSU4#,MHU48

 2
58385H - BRACKET, REAR BUMPER COVER, NO.1
58385-48020

ASU40,GSU4#,MHU48

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-48010

ASU40,GSU4#,MHU48

 1
58569E - COVER, FRONT FLOOR CAUTION PLATE
58569-48010B2

ASU40,GSU4#

GRAY,TRIM1#

 1
58569-48010E0

ASU40,GSU4#

SAND BEIGE,TRIM4#

 1
58569-48010C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
59303 - PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH
59303-48020

ASU40,GSU4#,MHU48

 1
59304 - PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH
59304-48020

ASU40,GSU4#,MHU48

 1
59305 - MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS
59305-48020

ASU40,GSU4#,MHU48

 1
Common parts
55229-48010
55239-48020
90080-11610
90115-06166
90119-08516
90119-10772
90159-60008
90189-06029
90333-30008
91511-80816
91551-80610
91631-B0614

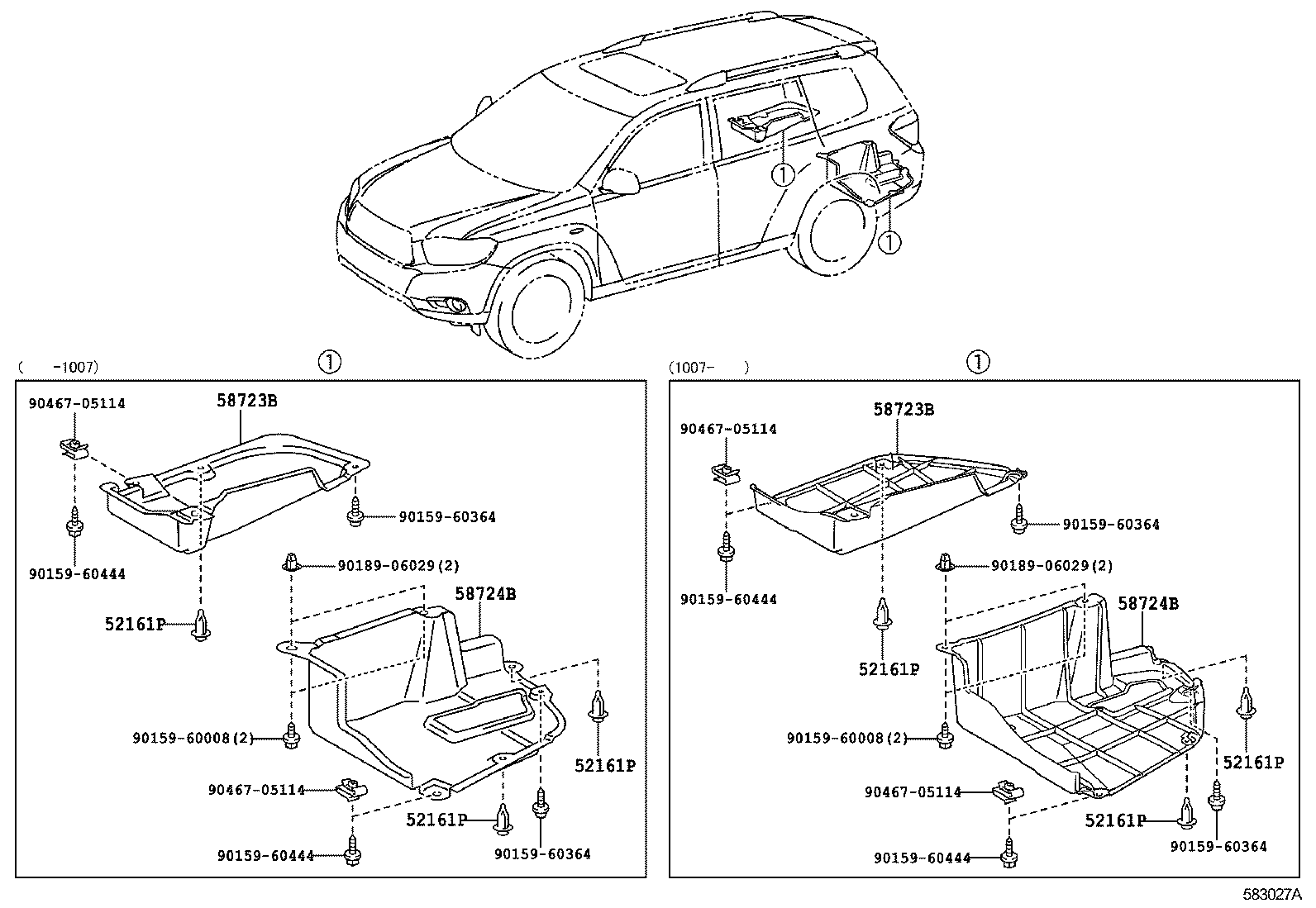

ILLUST NO. 3 OF 3(0705- )

Click highlighted areas on diagram

diagram 52161P 52161P 52161P 52161P 52161P 52161P 58723B 58723B 58724B 58724B 9015960008 9015960008 9015960364 9015960364 9015960364 9015960364 9015960444 9015960444 9015960444 9015960444 9018906029 9018906029 9046705114 9046705114 9046705114 9046705114
Part # Description Qty Price
52161P - PIECE, REAR BUMPER
52161-16010

GSU4#,MHU48

 3
52161P - PIECE, REAR BUMPER
52161-16010

GSU4#,MHU48

 3
52161P - PIECE, REAR BUMPER
52161-16010

GSU4#,MHU48

 3
52161P - PIECE, REAR BUMPER
52161-16010

GSU4#,MHU48

 3
52161P - PIECE, REAR BUMPER
52161-16010

GSU4#,MHU48

 3
52161P - PIECE, REAR BUMPER
52161-16010

GSU4#,MHU48

 3
58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58723-48020

GSU4#,MHU48

 1
58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58723-48020

GSU4#,MHU48

 1
58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58724-48020

GSU4#,MHU48

 1
58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58724-48020

GSU4#,MHU48

 1
Common parts
90159-60008
90159-60364
90159-60444
90189-06029
90467-05114
