GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

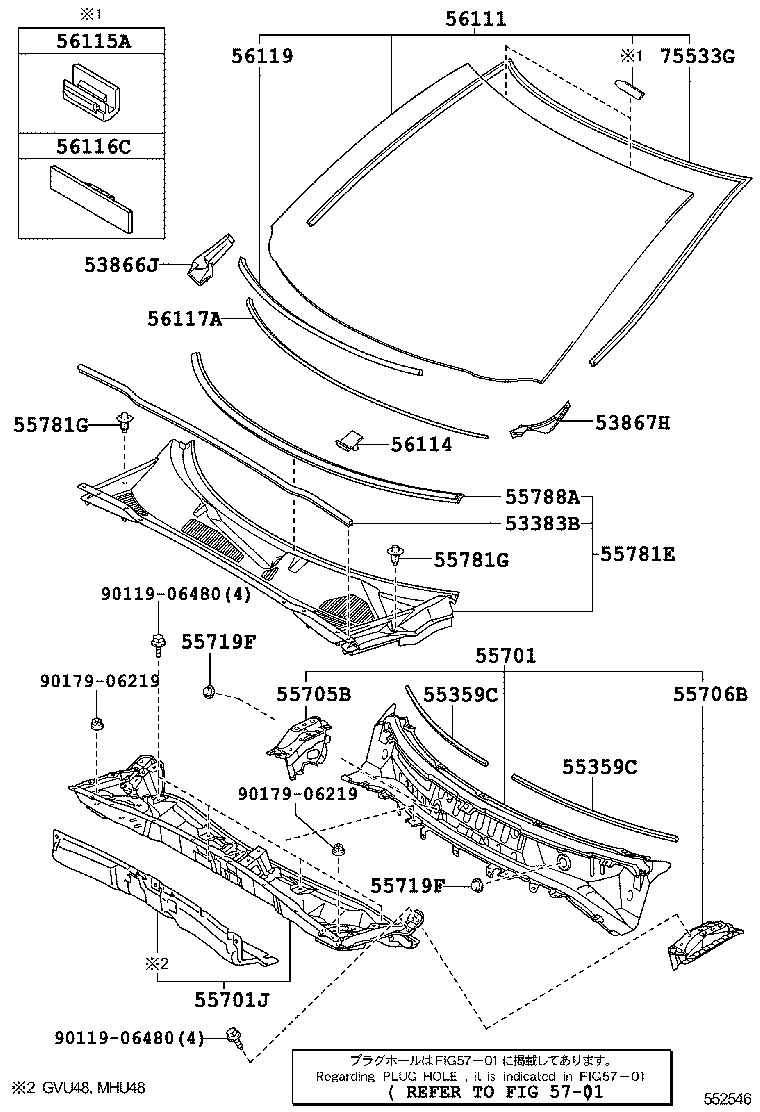

Click highlighted areas on diagram

diagram 53383B 53866J 53867H 55359C 55359C 55701 55701J 55705B 55706B 55719F 55719F 55781E 55781G 55781G 55788A 56111 56114 56115A 56116C 56117A 56119 5701 75533G 9011906480 9011906480 9017906219 9017906219
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-48040

ASU40,GSU4#,MHU48

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-48030

ASU40,GSU4#,MHU48

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-48040

ASU40,GSU4#,MHU48

 1
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-48040

ASU40,GSU4#,MHU48

 2
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-48040

ASU40,GSU4#,MHU48

 2
55701 - PANEL SUB-ASSY, COWL
55700-48090

ASU40,GSU4#,MHU48

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-48080

GSU4#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-48030

ASU40,GSU4#,MHU48

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-48030

ASU40,GSU4#,MHU48

 1
55719F - PACKING, FRONT LOWER PANEL
55719-33020

ASU40,GSU4#,MHU48

 2
55719F - PACKING, FRONT LOWER PANEL
55719-33020

ASU40,GSU4#,MHU48

 2
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-48050

ASU40,GSU4#,MHU48

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-08180

ASU40,GSU4#,MHU48

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-08180

ASU40,GSU4#,MHU48

 2
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-48050

ASU40,GSU4#,MHU48

 1
56111 - GLASS, WINDSHIELD
56101-48270

GSU4#,MHU48

*LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

 1
56101-48272

ASU40,GSU4#,MHU48

*LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

 1
56101-48273

ASU40,GSU4#,MHU48

*EHL,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

 1
56101-48252

ASU40,GSU4#,MHU48

*LAM,T=4.76,GREEN

 1
56101-48251

GSU4#,MHU48

*LAM,T=4.76,GREEN

 1
56101-48250

GSU4#,MHU48

*LAM,T=4.76,GREEN

 1
56101-48253

ASU40,GSU4#,MHU48

*LAM,T=4.76,GREEN

 1
56101-48271

GSU4#,MHU48

*LAM,T=4.76,GREEN,WINDOSHIELD DEICER-WITH

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-22050

ASU40,GSU4#,MHU48

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ASU40,GSU4#,MHU48

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ASU40,GSU4#,MHU48

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-48060

ASU40,GSU4#,MHU48

L=1551

 1
56117-48060

ASU40,GSU4#,MHU48

L=1551,WINDOSHIELD DEICER-WITH

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-48040

ASU40,GSU4#,MHU48

 1
Common parts
90119-06480
90179-06219
Linked diagrams
5701
