GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

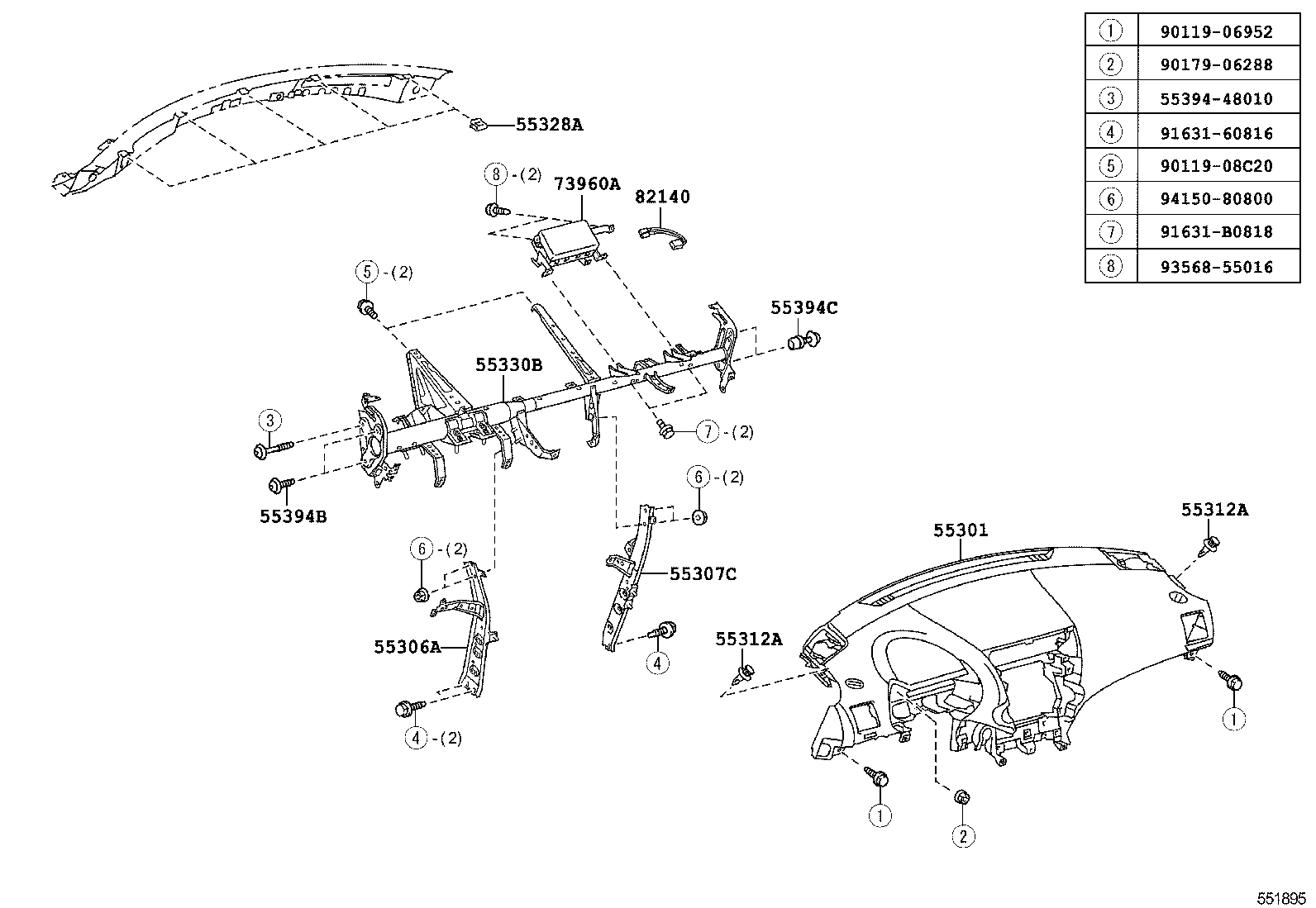

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55312A 55312A 55328A 55330B 5539448010 55394B 55394C 73960A 82140 9011906952 9011908C20 9017906288 9163160816 91631B0818 9356855016 9415080800
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-48070C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55301-48070E0

ASU40,GSU4#

DK. BROWN,TRIM4#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-48090

ASU40,GSU4#,MHU48

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-48090

ASU40,GSU4#,MHU48

 1
55312A - CLIP, INSTRUMENT PANEL
52161-16010

ASU40,GSU4#,MHU48

 2
55312A - CLIP, INSTRUMENT PANEL
52161-16010

ASU40,GSU4#,MHU48

 2
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-50170

ASU40,GSU4#,MHU48

 5
55328-30160

GSU4#

 5
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-48090

ASU40,GSU4#,MHU48

 1
55394B - BOLT, INSTRUMENT PANEL
55394-30021

ASU40,GSU4#,MHU48

 2
55394C - BOLT, INSTRUMENT PANEL
55394-33041

ASU40,GSU4#,MHU48

 2
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-48040

ASU40,GSU4#,MHU48

 1
82140 - WIRE ASSY, INSTRUMENT PANEL
82140-30020

ASU40,GSU4#,MHU48

 1
Common parts
55394-48010
90119-06952
90119-08C20
90179-06288
91631-60816
91631-B0818
93568-55016
94150-80800

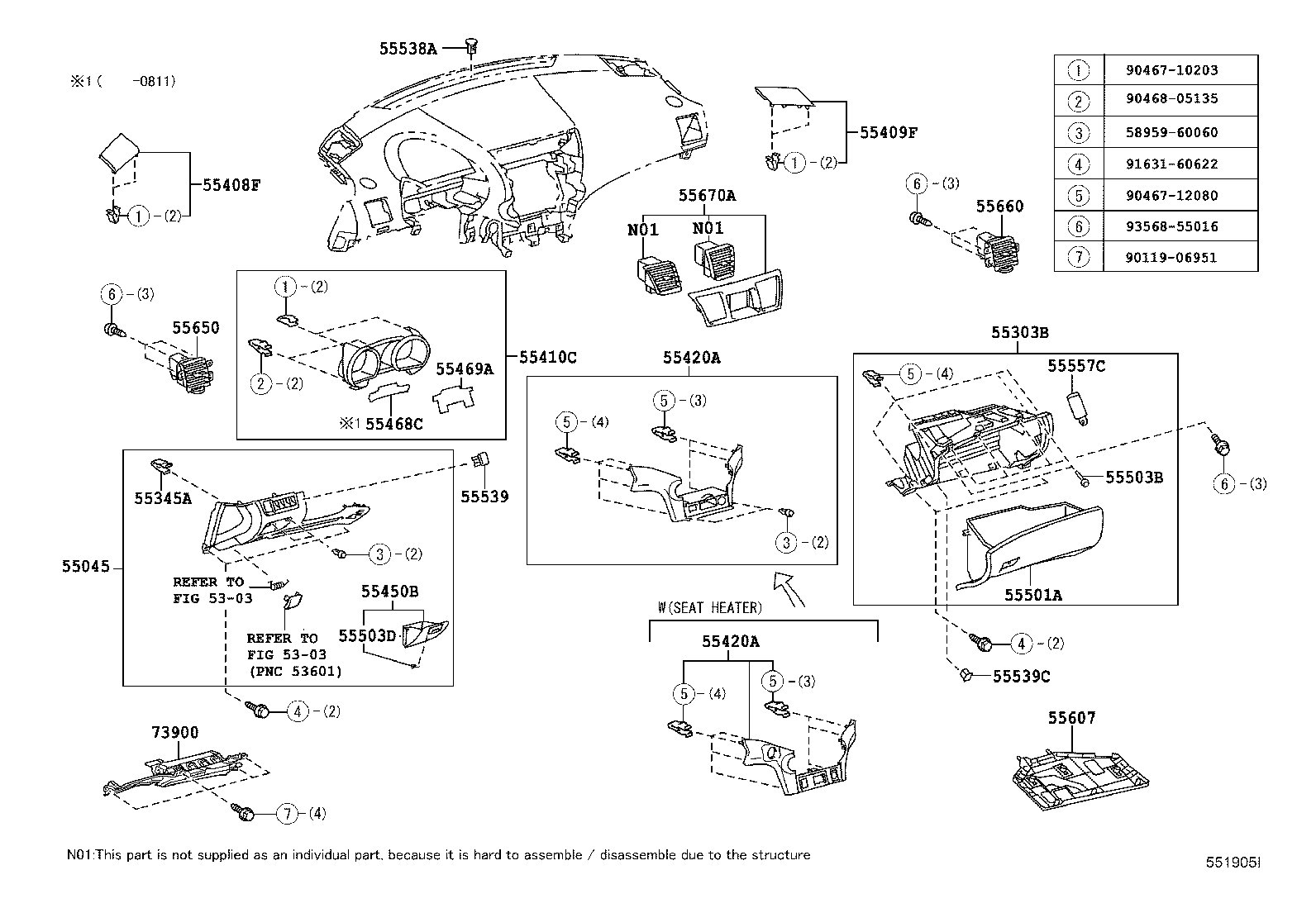

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

diagram 5303 5303 55045 55303B 55345A 55408F 55409F 55410C 55420A 55420A 55450B 55468C 55469A 55501A 55503B 55503D 55538A 55539 55539C 55557C 55607 55650 55660 55670A 5895960060 73900 9011906951 9046710203 9046712080 9046805135 9163160622 9356855016
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-48121E0

ASU40,GSU4#

SAND BEIGE,TRIM4#

 1
55045-48121B0

ASU40,GSU4#

GRAY,TRIM1#

 1
55045-48120B0

ASU40,GSU4#

GRAY,TRIM1#

 1
55045-48121C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
55045-48120E0

ASU40,GSU4#

SAND BEIGE,TRIM4#

 1
55045-48120C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-48150C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
55303-48150B0

ASU40,GSU4#,MHU48

GRAY,TRIM1#

 1
55303-48150E0

ASU40,GSU4#,MHU48

SAND BEIGE,TRIM4#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
90467-10201

ASU40,GSU4#,MHU48

NATURAL

 5
90467-12080

ASU40,GSU4#,MHU48

PINK

 4
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-48040C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55472-48040E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55473-48040E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
55473-48040C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-48090E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
55410-48090C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-48101B0

ASU40,GSU4#..GD,SPO,STD

GRAY,TRIM1#

 1
55420-48101E0

ASU40,GSU4#..GD,SPO,STD

SAND BEIGE,TRIM4#

 1
55420-48101C0

GSU4#..GD,SPO

BLACK,TRIM2#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-48101B0

ASU40,GSU4#..GD,SPO,STD

GRAY,TRIM1#

 1
55420-48101E0

ASU40,GSU4#..GD,SPO,STD

SAND BEIGE,TRIM4#

 1
55420-48101C0

GSU4#..GD,SPO

BLACK,TRIM2#

 1
55450B - BOX ASSY, COIN
55450-48110E0

ASU40,GSU4#,MHU48

SAND BEIGE,TRIM4#

 1
55450-48110B0

ASU40,GSU4#,MHU48

GRAY,TRIM1#

 1
55450-48110C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55468-48010

GSU4#,MHU48

 1
55469A - SEAL, INSTUMENT CLUSTER FINISH PANEL, NO.2
55469-48010

ASU40,GSU4#,MHU48

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-48180E0

ASU40,GSU4#,MHU48

SAND BEIGE,TRIM4#

 1
55501-48180C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
55501-48180B0

ASU40,GSU4#,MHU48

GRAY,TRIM1#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-03015

ASU40,GSU4#,MHU48

 2
55503D - SPRING(FOR GLOVE COMPARTMENT)
55518-48010

ASU40,GSU4#,MHU48

 1
55538A - COVER, COOLER SWITCH HOLE
55538-48010

ASU40,GSU4#,MHU48..GD,STD

 1
55538-48010

GSU4#..GD;MHU48..STD

LIGHT CONTROL SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

 1
55538-48010

GSU4#..GD;MHU48..STD

FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

 1
55538-48010

ASU40,GSU4#,MHU48..GD,STD

LIGHT CONTROL SYSTEM-WITH

 1
55539 - COVER, SPARE SWITCH HOLE
55539-28160C0

ASU40,GSU4#,MHU48

WINDOSHIELD DEICER-WITH,BLACK

 1
55539-28160C0

ASU40,GSU4#,MHU48

BLACK

 1
55539-28160C0

GSU4#..GD,LIMD,SPO

POWRE BACK DOOR-WITH,BLACK

 1
55539C - COVER, SPARE SWITCH HOLE
55539-48020

GSU4#..GD,LIMD,SPO

POWRE BACK DOOR-WITH

 1
55539-48020

MHU48..STD;ASU40,GSU4#

 1
55557C - DAMPER, GLOVE COMPARTMENT DOOR
55557-48010

ASU40,GSU4#,MHU48

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-48140

ASU40,GSU4#,MHU48

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-48060C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55650-48060E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-48060E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
55660-48060C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-48060E0

ASU40,GSU4#,MHU48

DK. BROWN,TRIM4#

 1
55670-48061C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
55670-48060C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM1#,2#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-48030E0

ASU40,GSU4#,MHU48

SAND BEIGE,TRIM4#

 1
73900-48030B0

ASU40,GSU4#,MHU48

GRAY,TRIM1#

 1
73900-48030C0

GSU4#..GD,LIMD,SPO

BLACK,TRIM2#

 1
Common parts
58959-60060
90119-06951
90467-10203
90467-12080
90468-05135
91631-60622
93568-55016
Linked diagrams
5303
