GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)

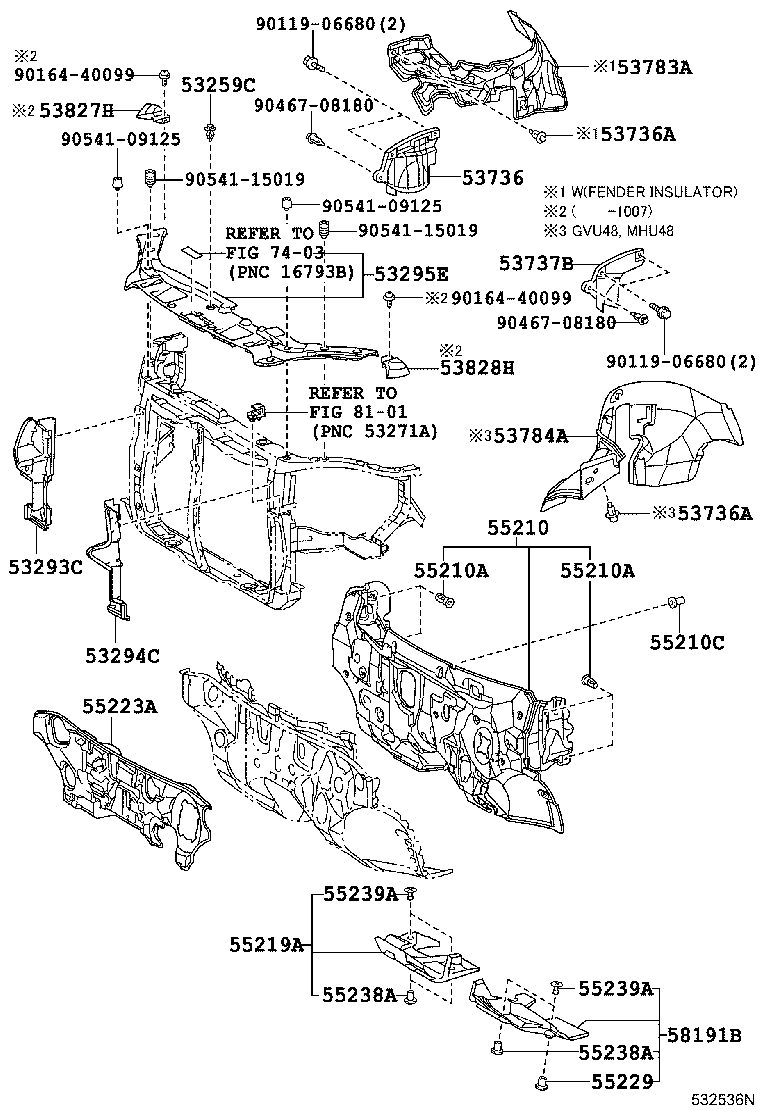

ILLUST NO. 2 OF 2(0705- )
INSULATOR & SEAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 90467-07211 |
ASU40,GSU4#,MHU48 |
11 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-48070 |
ASU40,GSU4# |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-48070 |
ASU40,GSU4# |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-33040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10170C0 |
GSU4# BLACK |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10170C0 |
GSU4# BLACK |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-33020 |
ASU40,GSU4# |
1 | ||
| 53783A - INSULATOR, APRON FRONT FENDER, RH | ||||
| 53783-48010 |
GSU4# |
1 | ||
| 53827H - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-48010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-48140 |
ASU40,GSU4#,MHU48 |
1 | ||
| 55210A - CLIP | ||||
| 90467-13079 |
ASU40,GSU4#,MHU48 |
4 | ||
| 55210A - CLIP | ||||
| 90467-13079 |
ASU40,GSU4#,MHU48 |
4 | ||
| 55210C - CLIP | ||||
| 90467-06197 |
ASU40,GSU4#,MHU48 |
8 | ||
| 55219A - PACKING, DASH PANEL HOLE COVER | ||||
| 55219-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-48160 |
ASU40,GSU4#,MHU48 |
1 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
GSU4#,MHU48 |
1 | ||
| 55238A - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55229-48020 |
ASU40,GSU4#,MHU48 |
3 | ||
| 55238A - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55229-48020 |
ASU40,GSU4#,MHU48 |
3 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
ASU40,GSU4#,MHU48 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
ASU40,GSU4#,MHU48 |
4 | ||
| 58191B - FOOTREST, FRONT FLOOR | ||||
| 58191-48080 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 90119-06680 | ||||
| 90164-40099 | ||||
| 90467-08180 | ||||
| 90541-09125 | ||||
| 90541-15019 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8101 | ||||

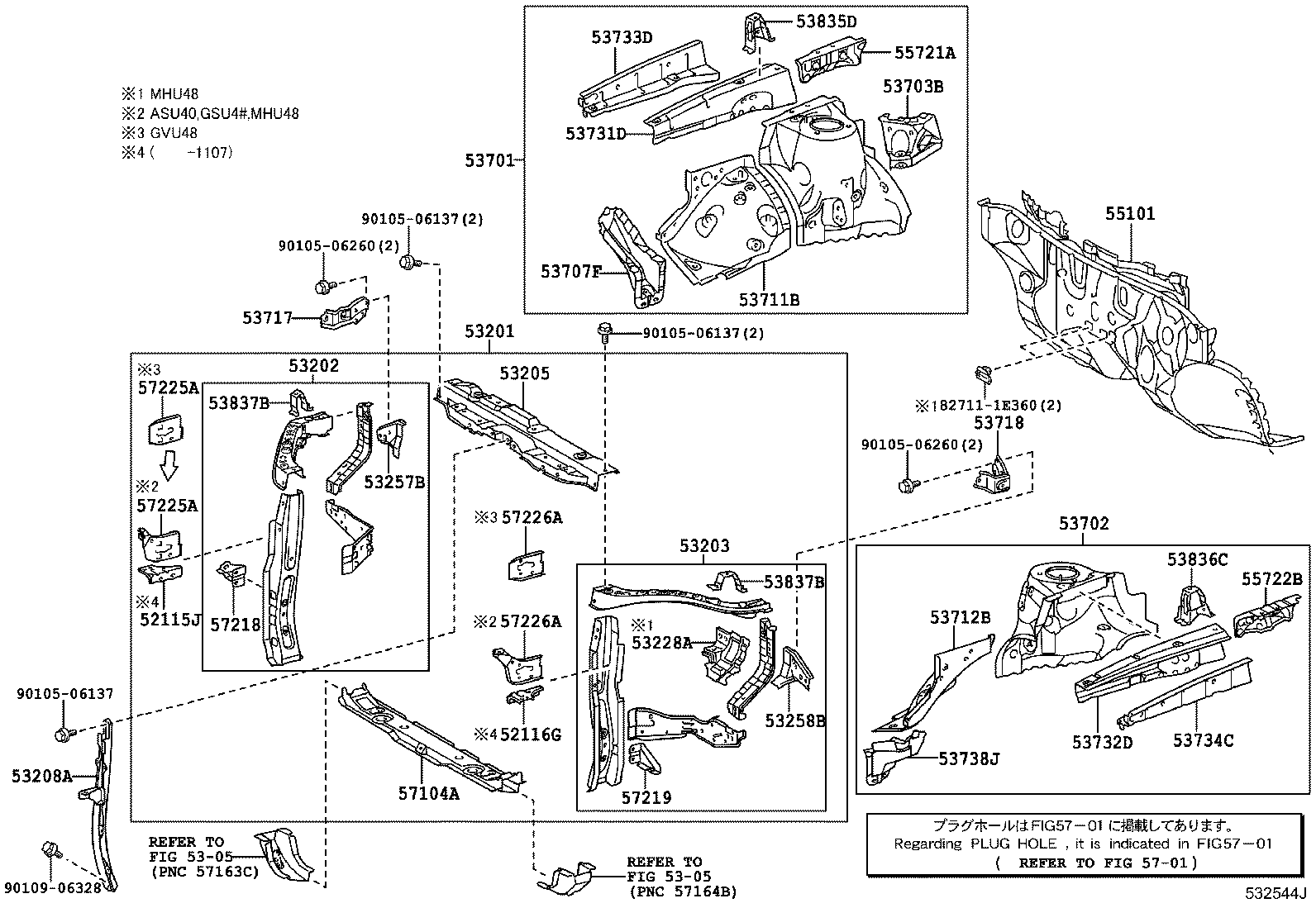

ILLUST NO. 1 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115J - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 52116G - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-48906 |
ASU40,GSU4# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-48070 |
ASU40,GSU4# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-48050 |
GSU4#,MHU48 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-48050 |
GSU4#,MHU48 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53703B - RETAINER SUB-ASSY, FENDER APRON, RH | ||||
| 53703-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH | ||||
| 53738-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53838-48010 |
GSU4#,MHU48 LH |
1 | ||
| 53837-48010 |
GSU4#,MHU48 RH |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53838-48010 |
GSU4#,MHU48 LH |
1 | ||
| 53837-48010 |
GSU4#,MHU48 RH |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-48150 |
ASU40,GSU4# |
1 | ||
| 55721A - BRACE, COWL TOP TO COWL, INNER NO.1 | ||||
| 55721-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 55722B - BRACE, COWL TOP TO COWL, INNER NO.2 | ||||
| 55722-48040 |
ASU40,GSU4#,MHU48 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-48010 |
GSU4#,MHU48 |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-48010 |
GSU4#,MHU48 |
1 | ||
| 57225A - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 57225A - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 57226A - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| 57226A - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-48020 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90105-06137 | ||||
| 90105-06260 | ||||
| 90109-06328 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
