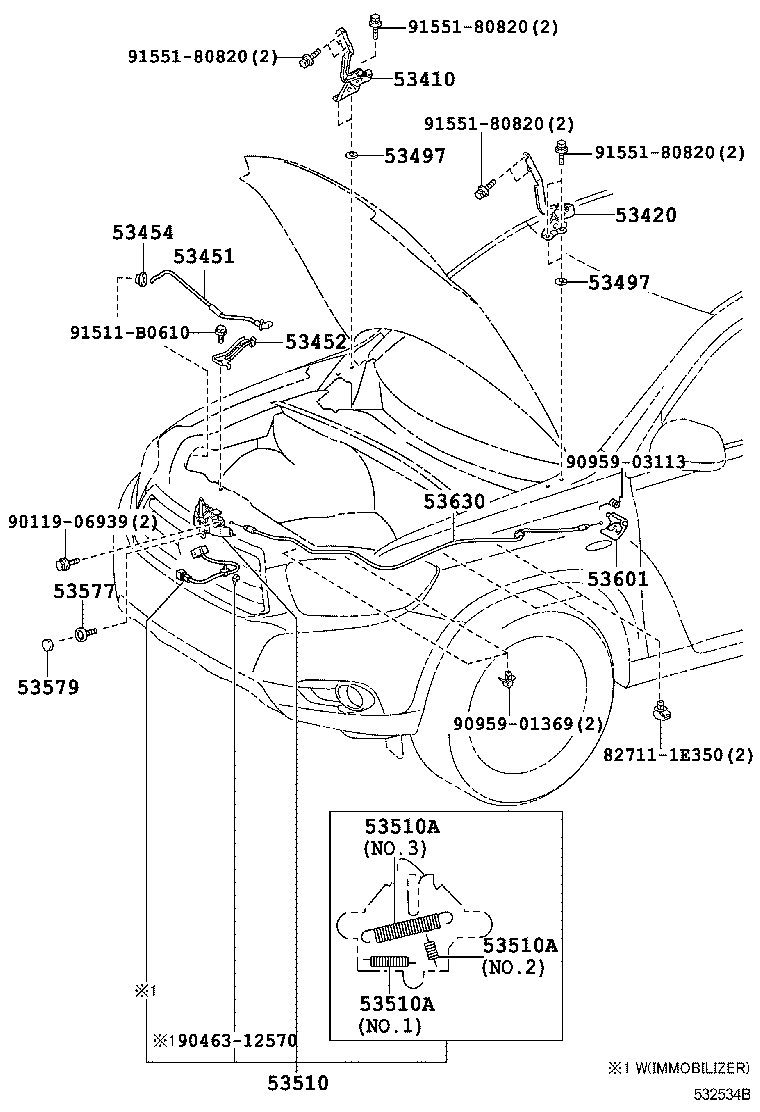

GSU40L-BRAMKA (2007)
Toyota Highlander (Jpp)
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-48070 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-48060 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-48030 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 90480-15027 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ASU40,GSU4#,MHU48 T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ASU40,GSU4#,MHU48 T=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-48180 |
MHU48;GSU4#..GD,SPO,STD ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 53510-48181 |
MHU48;ASU40,GSU4#..GD,SPO,STD ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 53510-48170 |
MHU48;ASU40,GSU4#..GD,SPO,STD |
1 | ||
| 53510-48182 |
MHU48;ASU40,GSU4#..GD,SPO,STD ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ASU40,GSU4#,MHU48 WD=0.9,CW=21,NO.3:REFER ILLUST. |
1 | ||
| 90506-18067 |
ASU40,GSU4#,MHU48 WD=1.8,CW=13,NO.1:REFER ILLUST. |
1 | ||
| 90506-12063 |
ASU40,GSU4#,MHU48 WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ASU40,GSU4#,MHU48 WD=0.9,CW=21,NO.3:REFER ILLUST. |
1 | ||
| 90506-18067 |
ASU40,GSU4#,MHU48 WD=1.8,CW=13,NO.1:REFER ILLUST. |
1 | ||
| 90506-12063 |
ASU40,GSU4#,MHU48 WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ASU40,GSU4#,MHU48 WD=0.9,CW=21,NO.3:REFER ILLUST. |
1 | ||
| 90506-18067 |
ASU40,GSU4#,MHU48 WD=1.8,CW=13,NO.1:REFER ILLUST. |
1 | ||
| 90506-12063 |
ASU40,GSU4#,MHU48 WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
ASU40,GSU4#,MHU48 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53611-22010B7 |
ASU40,GSU4#,MHU48 GRAY,TRIM1# |
1 | ||
| 53611-22010C0 |
GSU4#..GD,LIMD,SPO BLACK,TRIM2# |
1 | ||
| 53611-22010E5 |
ASU40,GSU4#,MHU48 SAND BEIGE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-48050 |
ASU40,GSU4#,MHU48 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 90119-06939 | ||||
| 90463-12570 | ||||
| 90959-01369 | ||||
| 90959-03113 | ||||
| 91511-B0610 | ||||
| 91551-80820 | ||||
