GSU40L-BRAMKA (2007)

Toyota Highlander (Jpp)

Production May 2007 - Jul 2010
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

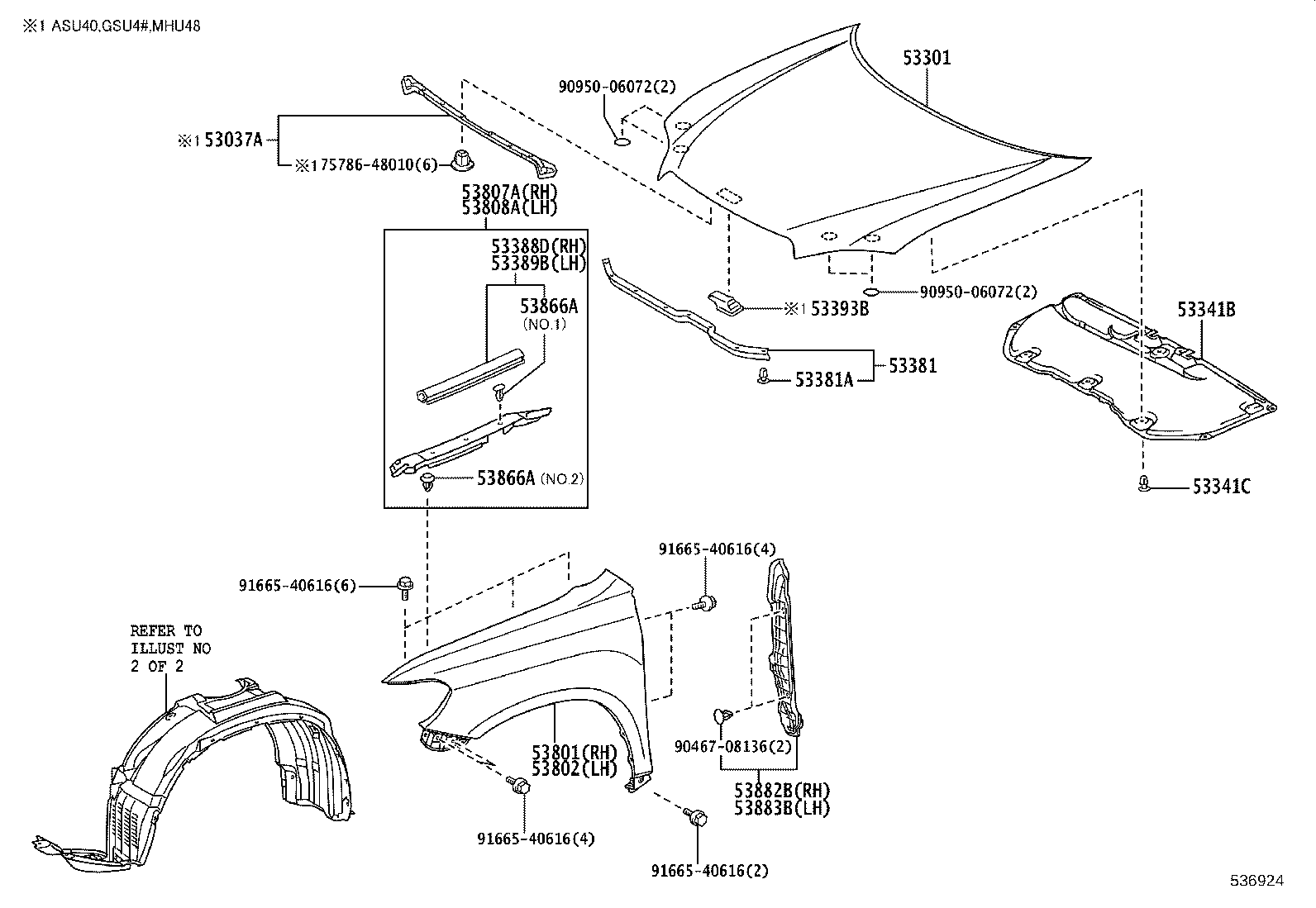

ILLUST NO. 1 OF 2(0705- )

Click highlighted areas on diagram

diagram 53037A 53301 53341B 53341C 53381 53381A 53388D 53389B 53393B 53801 53802 53807A 53808A 53866A 53866A 53882B 53883B 7578648010 9046708136 9095006072 9095006072 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
53037A - SEAL SUB-ASSY, RADIATOR
53037-48010

ASU40,GSU4#,MHU48

 1
53301 - HOOD SUB-ASSY
53301-48120

ASU40,GSU4#,MHU48

 1
53341B - INSULATOR, HOOD
53341-48070

ASU40,GSU4#,MHU48

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

ASU40,GSU4#,MHU48

 8
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-48060

ASU40,GSU4#,MHU48

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ASU40,GSU4#,MHU48

 8
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-48030

ASU40,GSU4#,MHU48

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-48030

ASU40,GSU4#,MHU48

 1
53393B - PROTECTOR, HOOD, FRONT
53393-48040

ASU40,GSU4#,MHU48

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-48040

MHU48;GSU4#..GD,LIMD,SPO

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-48100

ASU40,GSU4#,MHU48

 1
53807A - SHIELD SUB-ASSY, FENDER SPLASH, REAR RH
53807-48010

ASU40,GSU4#,MHU48

 1
53808A - SHIELD SUB-ASSY, FENDER SPLASH, REAR LH
53808-48010

ASU40,GSU4#,MHU48

 1
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
90467-10161

ASU40,GSU4#,MHU48

NO.2:REFER ILLUST.

 6
90467-08108

ASU40,GSU4#,MHU48

NO.1:REFER ILLUST.

 6
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
90467-10161

ASU40,GSU4#,MHU48

NO.2:REFER ILLUST.

 6
90467-08108

ASU40,GSU4#,MHU48

NO.1:REFER ILLUST.

 6
53882B - SEAL, FRONT FENDER, RH
53882-48030

ASU40,GSU4#,MHU48

 1
53883B - SEAL, FRONT FENDER, LH
53883-48030

ASU40,GSU4#,MHU48

 1
Common parts
75786-48010
90467-08136
90950-06072
91665-40616

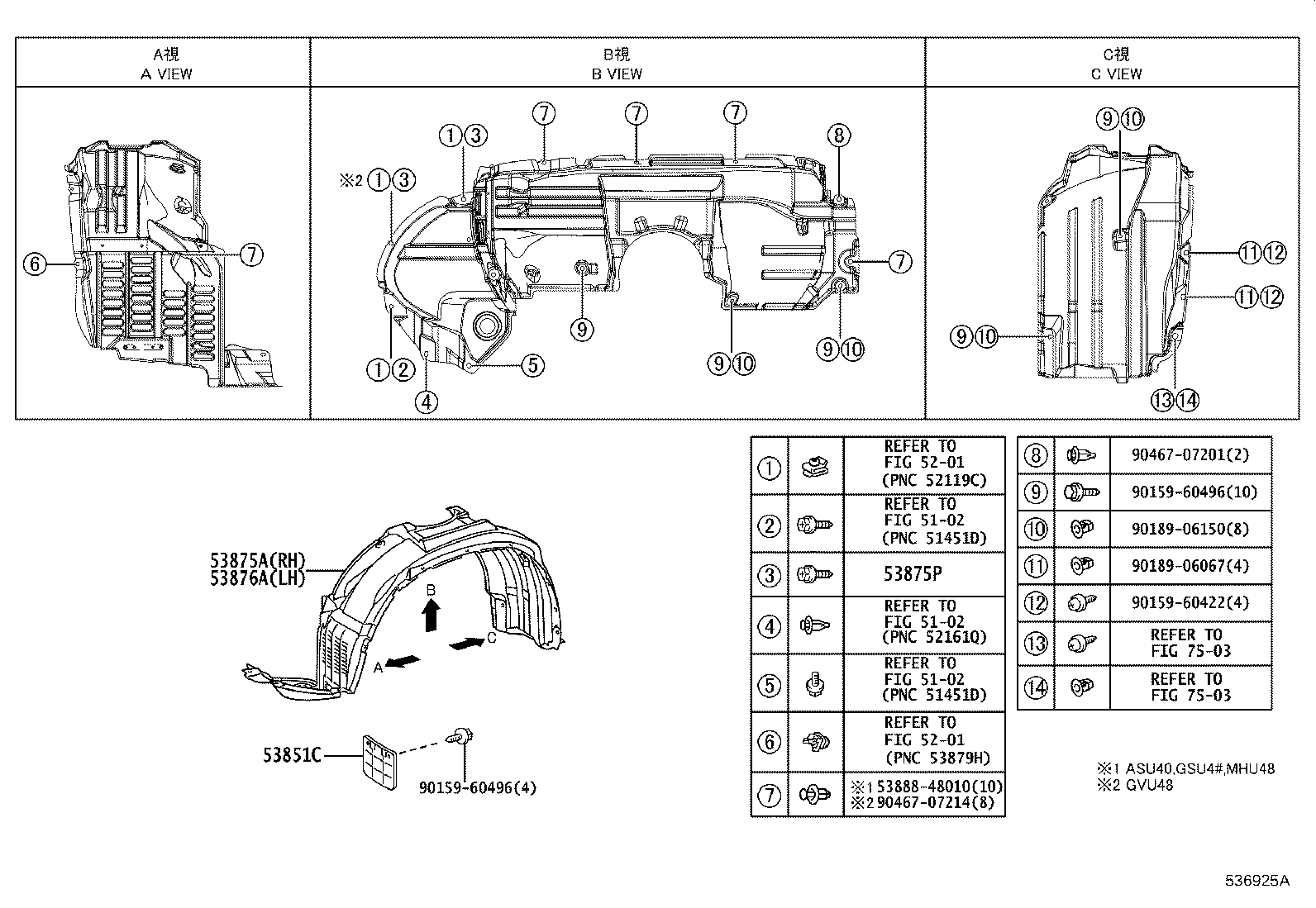

ILLUST NO. 2 OF 2(0705- )

Click highlighted areas on diagram

FENDER LINER

diagram 5102 5102 5102 5201 5201 53851C 53875A 53875P 53876A 5388848010 7503 7503 9015960422 9015960496 9015960496 9018906067 9018906150 9046707201 9046707214
Part # Description Qty Price
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-48040

ASU40,GSU4#,MHU48

 2
53875A - LINER, FRONT FENDER, RH
53805-48080

ASU40,GSU4#

 1
53875P - SCREW, NO.1
90159-60444

ASU40,GSU4#,MHU48

 3
53876A - LINER, FRONT FENDER, LH
53806-48090

GSU4#

TOWING PACKAGE-5000LBS

 1
53806-48080

ASU40,GSU4#

 1
Common parts
53888-48010
90159-60422
90159-60496
90189-06067
90189-06150
90467-07201
90467-07214
Linked diagrams
5102
5201
7503
